Aequorea victoria
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | FLUORIDE ION × 1 water × 1 | Consistent with protein count |
| UniProt name | GFP_AEQVI |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–237； UniProt 1–238 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 3ssv |
| Deposition date deposition_date | 2011-07-08 |
| Structure title title | Engineered low-affinity halide-binding protein derived from YFP: fluoride complex |
| Keywords keywords | beta barrel, luminescent protein, yellow fluorescent protein, imaging reagent, HALIDE BINDING PROTEIN; HALIDE BINDING PROTEIN |
| Experimental Method method | X-RAY DIFFRACTION |

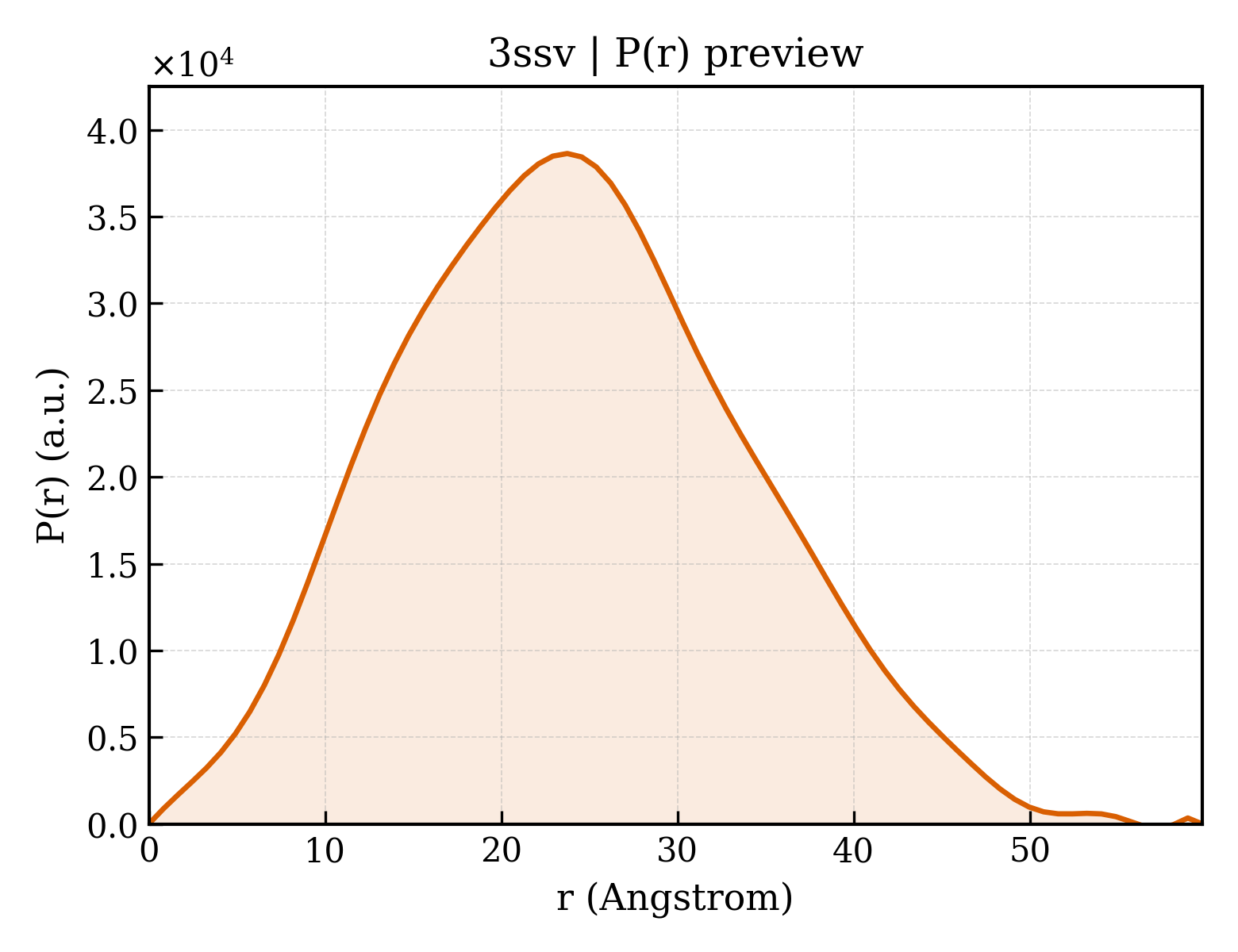

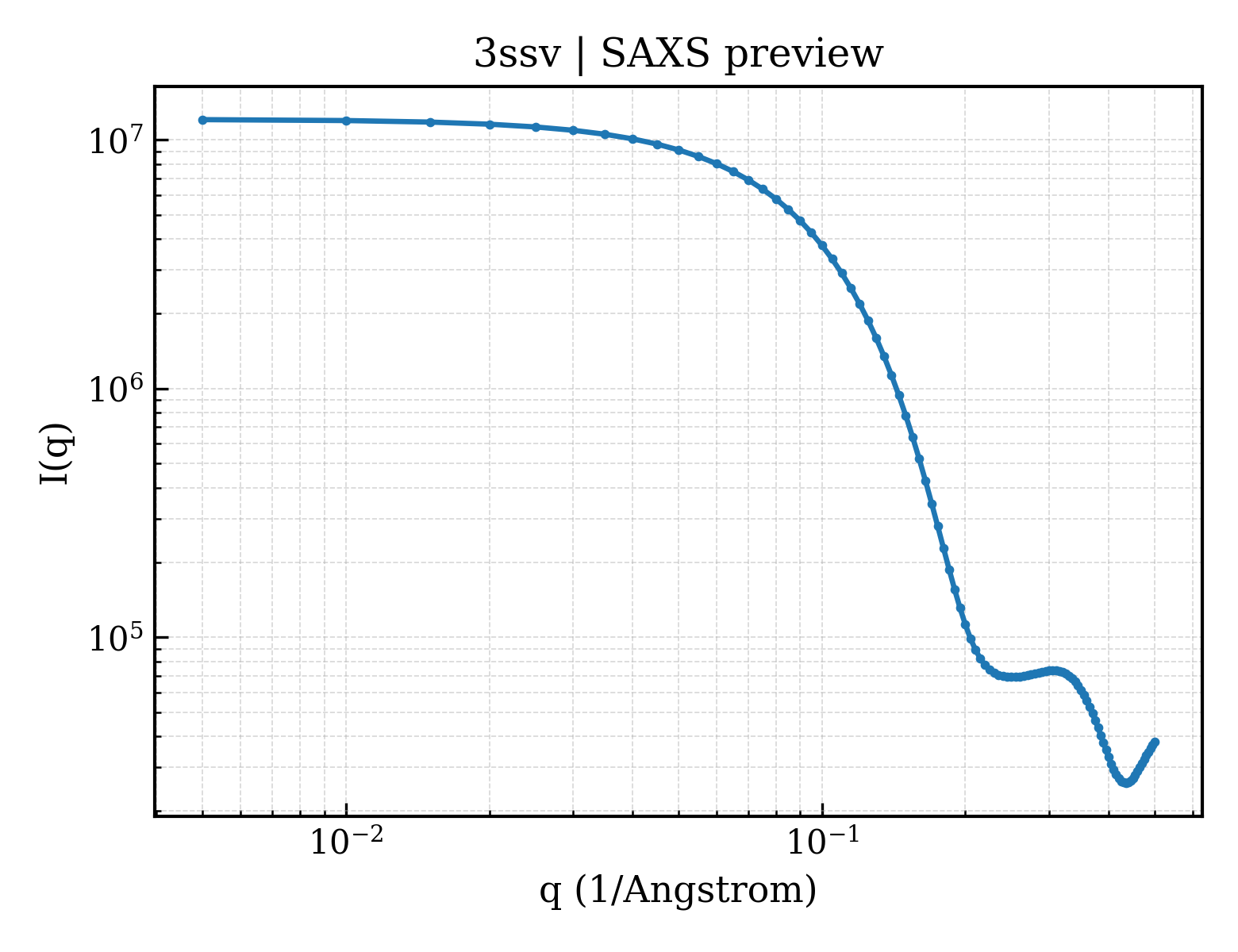

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 18.45 Å |
| Rg (electron density) | 17.14 Å |
| Total Rg | 18.26 Å |
| Atom count | 3627 |
| Residues | 228 |
| Excluded volume | 32568 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d3ssva_ |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.22 — GFP-like |
| Superfamily Superfamily superfamily | d.22.1 — GFP-like |
| Family Family family | d.22.1.1 — Fluorescent proteins |
| Domain ID domain_id | 3ssvA00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 40 — Beta Barrel |
| Topology topology | 155 — Green Fluorescent Protein |
| Homologous superfamily homologous superfamily | 10 — Green fluorescent protein |
