SAXSdb — 9w62

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-binding cassette sub-family D member 3,Green fluorescent protein

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 2	CHOLESTEROL × 4 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ABCD3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–659； UniProt 1–659

ATP-binding cassette sub-family D member 3,Green fluorescent protein

Homo sapiens

UniProt P42212

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 2	CHOLESTEROL × 4 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GFP_AEQVI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 669–906； UniProt 1–238

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9w62
Deposition date deposition_date	2025-08-03
Structure title title	Cryo-EM structure of human ABCD3 in inward-facing conformation in the presence of phytanoyl-CoA
Keywords keywords	ABC transporter, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9w62__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9w62__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

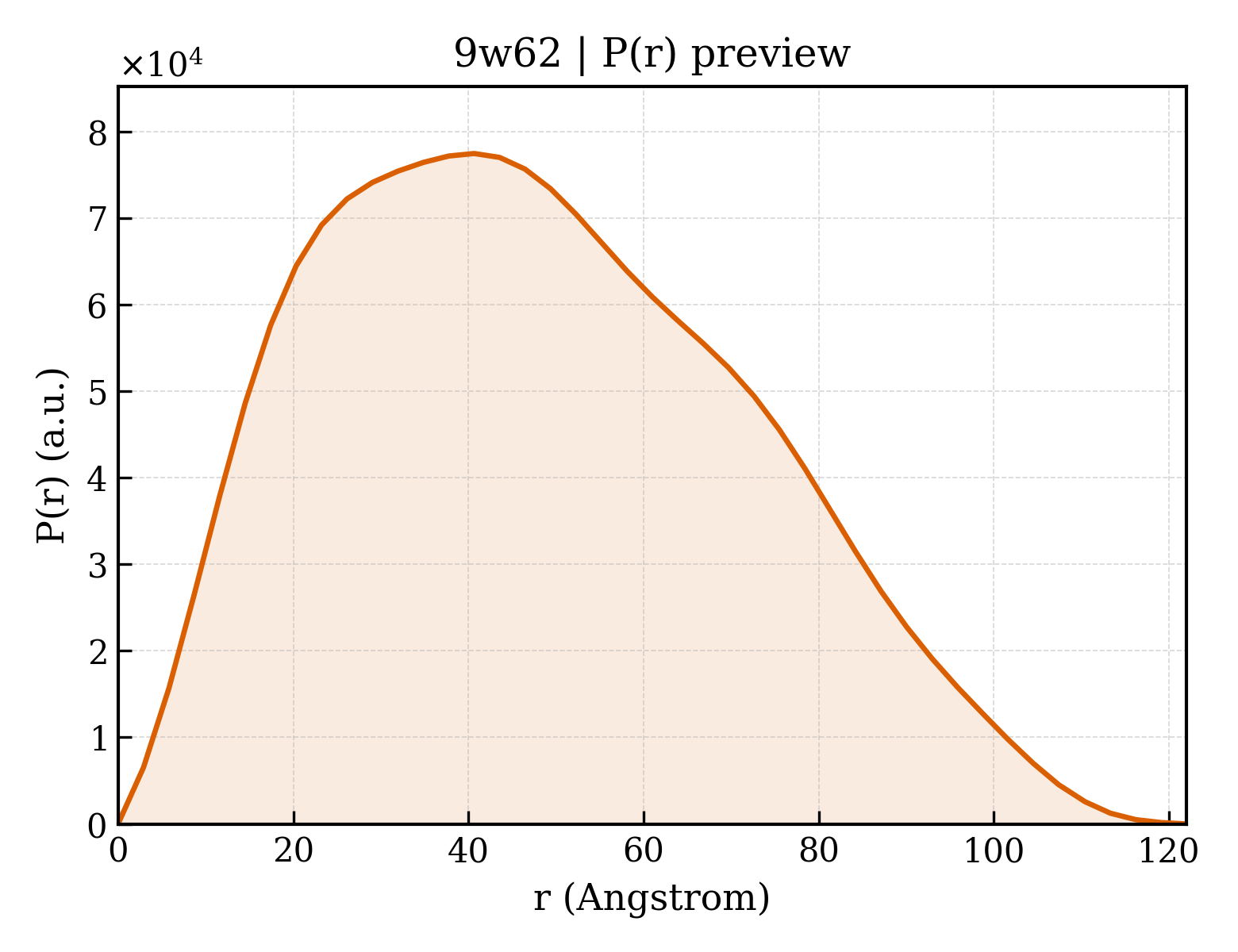

9w62__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.83 Å
Rg (electron density)	40.35 Å
Total Rg	40.65 Å
Atom count	9548
Residues	1148
Excluded volume	173210 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9w62__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ATP-binding cassette sub-family D member 3,Green fluorescent protein
Molecular weight formula_weight	104527.6 kDa
EC 编号 ec_number	3.1.2.-,7.6.2.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	4774

MAAFSKYLTARNSSLAGAAFLLLCLLHKRRRALGLHGKKSGKPPLQNNEKEGKKERAVVDKVFFSRLIQILKIMVPRTFCKETGYLVLIAVMLVSRTYCDVWMIQNGTLIESGIIGRSRKDFKRYLLNFIAAMPLISLVNNFLKYGLNELKLCFRVRLTKYLYEEYLQAFTYYKMGNLDNRIANPDQLLTQDVEKFCNSVVDLYSNLSKPFLDIVLYIFKLTSAIGAQGPASMMAYLVVSGLFLTRLRRPIGKMTITEQKYEGEYRYVNSRLITNSEEIAFYNGNKREKQTVHSVFRKLVEHLHNFILFRFSMGFIDSIIAKYLATVVGYLVVSRPFLDLSHPRHLKSTHSELLEDYYQSGRMLLRMSQALGRIVLAGREMTRLAGFTARITELMQVLKDLNHGKYERTMVSQQEKGIEGVQVIPLIPGAGEIIIADNIIKFDHVPLATPNGDVLIRDLNFEVRSGANVLICGPNGCGKSSLFRVLGELWPLFGGRLTKPERGKLFYVPQRPYMTLGTLRDQVIYPDGREDQKRKGISDLVLKEYLDNVQLGHILEREGGWDSVQDWMDVLSGGEKQRMAMARLFYHKPQFAILDECTSAVSVDVEGYIYSHCRKVGITLFTVSHRKSLWKHHEYYLHMDGRGNYEFKQITEDTVEFGSLEVLFQGPAVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLLEFVTAAGITLGMDELYKHHHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	CHOLESTEROL
Molecular weight formula_weight	386.7 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine
Molecular weight formula_weight	760.1 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.28 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	73450

Cryo-EM structure of human ABCD3 in inward-facing conformation in the presence of phytanoyl-CoA
