9w66

Cryo-EM structure of ATP bound state human ABCD3 in outward-facing conformation

Method: ELECTRON MICROSCOPY D_max: 124.3 Å Quality: GOOD

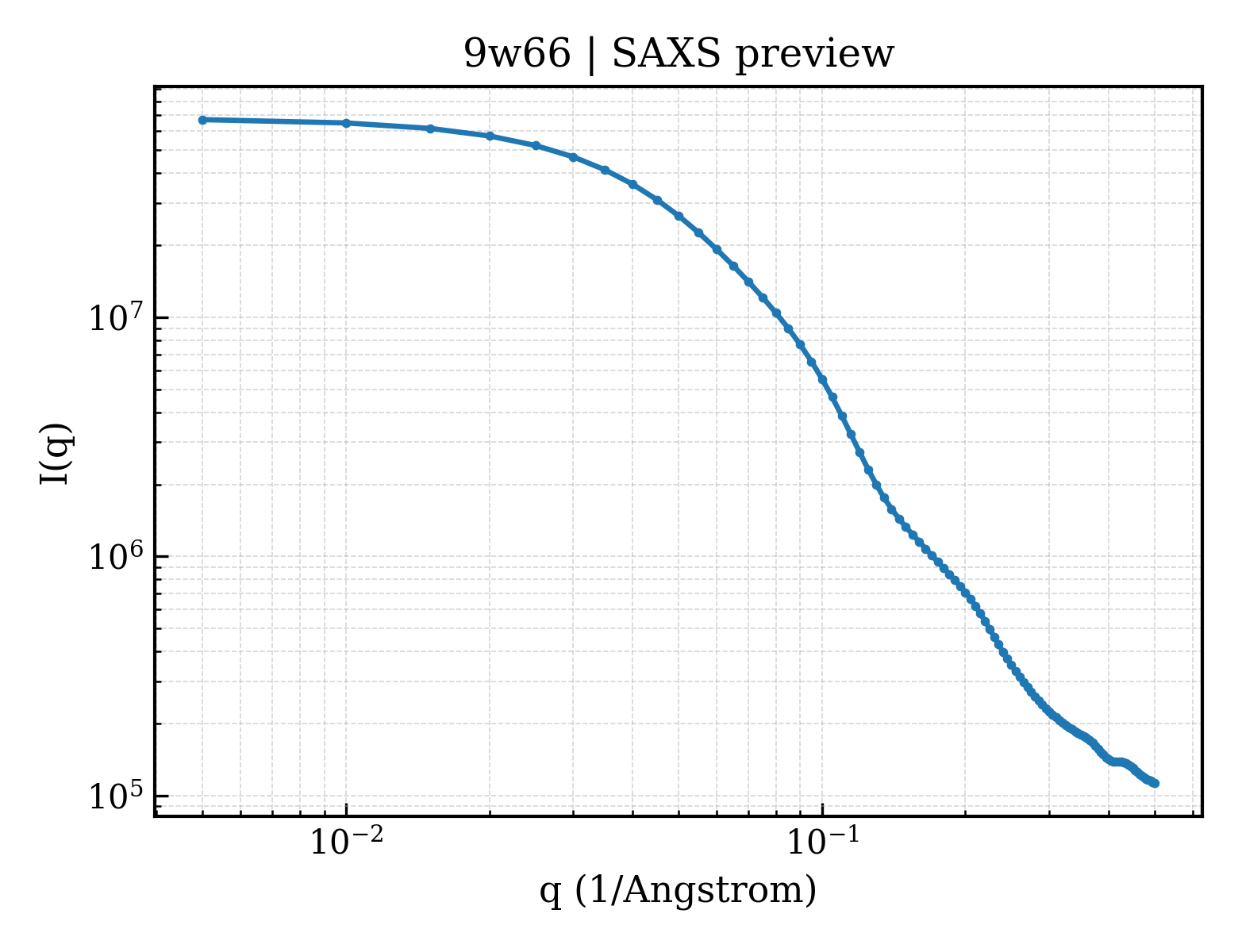

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9w66
deposition_date	2025-08-03
title	Cryo-EM structure of ATP bound state human ABCD3 in outward-facing conformation
keywords	ABC transporter, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	35.28 Å
rg_electron	35.34 Å
i0	67813000.00
molecular_weight	69045.0 kDa
excluded_volume	88126 Å³
envelope_volume	120610 Å³
shell_volume	31158 Å³
envelope_diameter	131.5 Å
shell_rg	37.63 Å
envelope_rg	35.44 Å
shape_rg	35.35 Å
total_rg	35.48 Å
total_atoms	4861
n_residues	581
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	124.3 Å
rg_real	35.72 Å
rg_real_error	1.44 Å
i0_real	6.7810e+07
i0_real_error	1.3500e+06
rg_reciprocal	35.45 Å
i0_reciprocal	67800000.0000
total_estimate	0.8037
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	33.1 Å
skewness	0.607
kurtosis	-0.276
angular_range	— – 0.2250 Å⁻¹
current_alpha	0.0000
highest_alpha	4859000.0000
n_real_points	46
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.673; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.668; Smooth: 0.757

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	ATP-binding cassette sub-family D member 3,Green fluorescent protein
formula_weight	104526.6 kDa
ec_number	3.1.2.-,7.6.2.-
mutation	E596Q
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4861

MAAFSKYLTARNSSLAGAAFLLLCLLHKRRRALGLHGKKSGKPPLQNNEKEGKKERAVVDKVFFSRLIQILKIMVPRTFCKETGYLVLIAVMLVSRTYCDVWMIQNGTLIESGIIGRSRKDFKRYLLNFIAAMPLISLVNNFLKYGLNELKLCFRVRLTKYLYEEYLQAFTYYKMGNLDNRIANPDQLLTQDVEKFCNSVVDLYSNLSKPFLDIVLYIFKLTSAIGAQGPASMMAYLVVSGLFLTRLRRPIGKMTITEQKYEGEYRYVNSRLITNSEEIAFYNGNKREKQTVHSVFRKLVEHLHNFILFRFSMGFIDSIIAKYLATVVGYLVVSRPFLDLSHPRHLKSTHSELLEDYYQSGRMLLRMSQALGRIVLAGREMTRLAGFTARITELMQVLKDLNHGKYERTMVSQQEKGIEGVQVIPLIPGAGEIIIADNIIKFDHVPLATPNGDVLIRDLNFEVRSGANVLICGPNGCGKSSLFRVLGELWPLFGGRLTKPERGKLFYVPQRPYMTLGTLRDQVIYPDGREDQKRKGISDLVLKEYLDNVQLGHILEREGGWDSVQDWMDVLSGGEKQRMAMARLFYHKPQFAILDQCTSAVSVDVEGYIYSHCRKVGITLFTVSHRKSLWKHHEYYLHMDGRGNYEFKQITEDTVEFGSLEVLFQGPAVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLLEFVTAAGITLGMDELYKHHHHHHHH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 non-polymer

description	ADENOSINE-5'-TRIPHOSPHATE
formula_weight	507.2 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	CHOLESTEROL
formula_weight	386.7 kDa
src_method	syn
entity_count	4

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.30 Å
resolution_method	—
num_particles	20043
