8w2l

TRPM7 structure in complex with anticancer agent CCT128930 in closed state

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Green fluorescent protein,Transient receptor potential cation channel subfamily M member 7

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 4	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 52 CHOLESTEROL × 4 4-(4-chlorobenzyl)-1-(7H-pyrrolo[2,3-d]pyrimidin-4-yl)piperidin-4-aminium × 4 ;2-[2-[(1~{S},2~{S},4~{S},5'~{R},6~{R},7~{S},8~{R},9~{S},12~{S},13~{R},16~{S})-5',7,9,13-tetramethylspiro[5-oxapentacyclo[10.8.0.0^{2,9}.0^{4,8}.0^{13,18}]icos-18-ene-6,2'-oxane]-16-yl]oxyethyl]propane-1,3-diol ; × 4 CALCIUM ION × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GFP_AEQVI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 11–247； UniProt 2–238 Author chain B； PDBConstruct 11–247； UniProt 2–238 Author chain C； PDBConstruct 11–247； UniProt 2–238 Author chain D； PDBConstruct 11–247； UniProt 2–238

Green fluorescent protein,Transient receptor potential cation channel subfamily M member 7

Mus musculus

UniProt Q923J1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 4	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 52 CHOLESTEROL × 4 4-(4-chlorobenzyl)-1-(7H-pyrrolo[2,3-d]pyrimidin-4-yl)piperidin-4-aminium × 4 ;2-[2-[(1~{S},2~{S},4~{S},5'~{R},6~{R},7~{S},8~{R},9~{S},12~{S},13~{R},16~{S})-5',7,9,13-tetramethylspiro[5-oxapentacyclo[10.8.0.0^{2,9}.0^{4,8}.0^{13,18}]icos-18-ene-6,2'-oxane]-16-yl]oxyethyl]propane-1,3-diol ; × 4 CALCIUM ION × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRPM7_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 257–1534； UniProt 3–1280 Author chain B； PDBConstruct 257–1534； UniProt 3–1280 Author chain C； PDBConstruct 257–1534； UniProt 3–1280 Author chain D； PDBConstruct 257–1534； UniProt 3–1280

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8w2l
Deposition date deposition_date	2024-02-20
Structure title title	TRPM7 structure in complex with anticancer agent CCT128930 in closed state
Keywords keywords	transient receptor potential M family member 7, TRP, channel, TRPM7, TRP channels, membrane protein, CCT128930; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8w2l__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

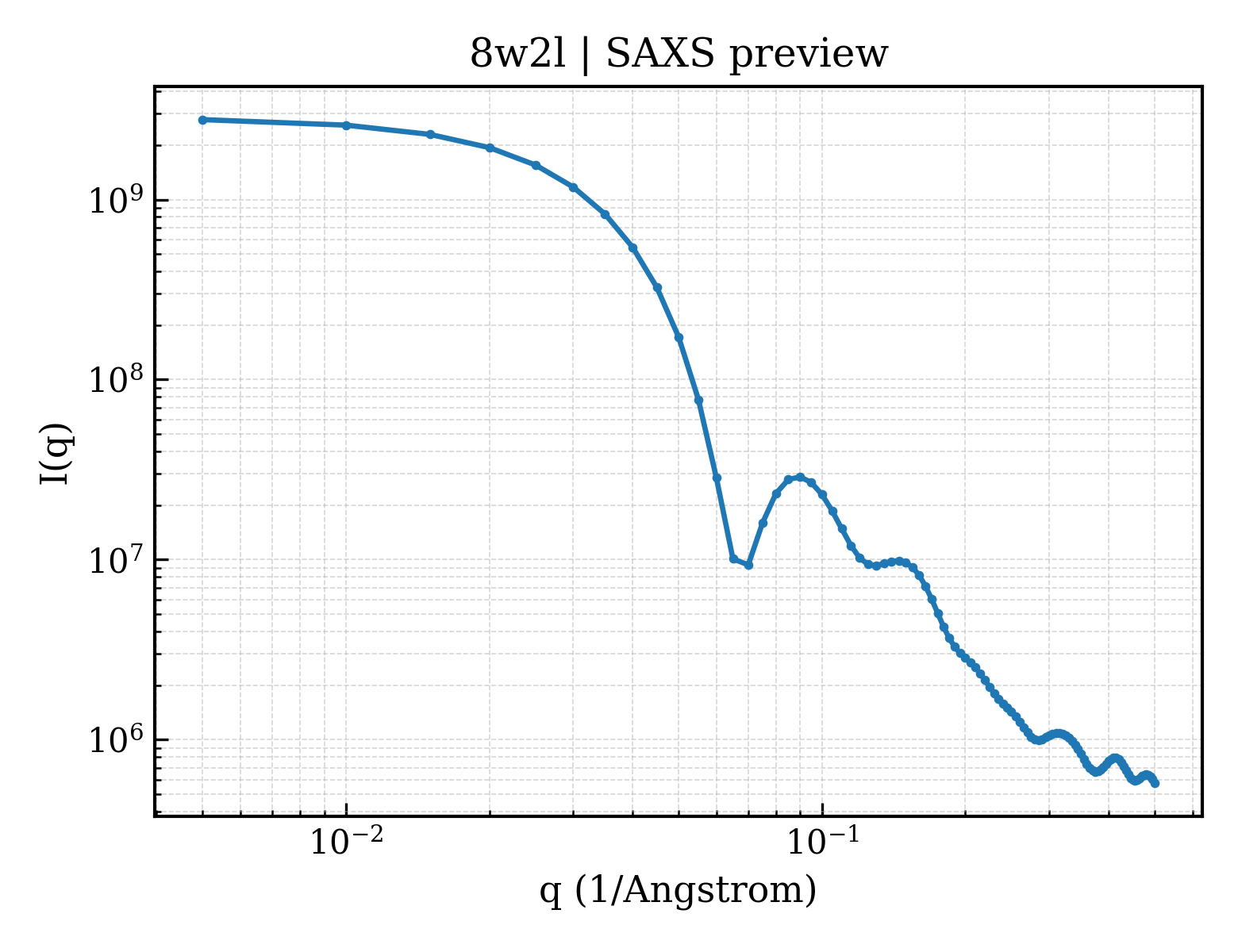

8w2l__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8w2l__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	53.16 Å
Rg (electron density)	52.88 Å
Total Rg	53.20 Å
Atom count	35633
Residues	4056
Excluded volume	658200 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8w2l__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Green fluorescent protein,Transient receptor potential cation channel subfamily M member 7
Molecular weight formula_weight	175756.2 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	35797

MWSHPQFEKVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLLEFVTAAGITLGMDELYKVDLVPRGSAQKSWIESTLTKRECVYIIPSSKDPHRCLPGCQICQQLVRCFCGRLVKQHACFTASLAMKYSDVKLGEHFNQAIEEWSVEKHTEQSPTDAYGVINFQGGSHSYRAKYVRLSYDTKPEIILQLLLKEWQMELPKLVISVHGGMQKFELHPRIKQLLGKGLIKAAVTTGAWILTGGVNTGVAKHVGDALKEHASRSSRKICTIGIAPWGVIENRNDLVGRDVVAPYQTLLNPLSKLNVLNNLHSHFILVDDGTVGKYGAEVRLRRELEKTINQQRIHARIGQGVPVVALIFEGGPNVILTVLEYLQESPPVPVVVCEGTGRAADLLAYIHKQTEEGGNLPDAAEPDIISTIKKTFNFGQSEAVHLFQTMMECMKKKELITVFHIGSEDHQDIDVAILTALLKGTNASAFDQLILTLAWDRVDIAKNHVFVYGQQWLVGSLEQAMLDALVMDRVSFVKLLIENGVSMHKFLTIPRLEELYNTKQGPTNPMLFHLIRDVKQGNLPPGYKITLIDIGLVIEYLMGGTYRCTYTRKRFRLIYNSLGGNNRRSGRNTSSSTPQLRKSHETFGNRADKKEKMRHNHFIKTAQPYRPKMDASMEEGKKKRTKDEIVDIDDPETKRFPYPLNELLIWACLMKRQVMARFLWQHGEESMAKALVACKIYRSMAYEAKQSDLVDDTSEELKQYSNDFGQLAVELLEQSFRQDETMAMKLLTYELKNWSNSTCLKLAVSSRLRPFVAHTCTQMLLSDMWMGRLNMRKNSWYKVILSILVPPAILMLEYKTKAEMSHIPQSQDAHQMTMEDSENNFHNITEEIPMEVFKEVKILDSSDGKNEMEIHIKSKKLPITRKFYAFYHAPIVKFWFNTLAYLGFLMLYTFVVLVKMEQLPSVQEWIVIAYIFTYAIEKVREVFMSEAGKISQKIKVWFSDYFNVSDTIAIISFFVGFGLRFGAKWNYINAYDNHVFVAGRLIYCLNIIFWYVRLLDFLAVNQQAGPYVMMIGKMVANMFYIVVIMALVLLSFGVPRKAILYPHEEPSWSLAKDIVFHPYWMIFGEVYAYEIDVCANDSTLPTICGPGTWLTPFLQAVYLFVQYIIMVNLLIAFFNNVYLQVKAISNIVWKYQRYHFIMAYHEKPVLPPPLIILSHIVSLFCCVCKRRKKDKTSDGPKLFLTEEDQKKLHDFEEQCVEMYFDEKDDKFNSGSEERIRVTFERVEQMSIQIKEVGDRVNYIKRSLQSLDSQIGHLQDLSALTVDTLKTLTAQKASEASKVHNEITRELSISKHLAQNLID

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate
Molecular weight formula_weight	760.1 kDa
Source method src_method	syn
Copy count entity_count	52

Entity 3 Entity 3 non-polymer

Description description	CHOLESTEROL
Molecular weight formula_weight	386.7 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	4-(4-chlorobenzyl)-1-(7H-pyrrolo[2,3-d]pyrimidin-4-yl)piperidin-4-aminium
Molecular weight formula_weight	342.8 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	;2-[2-[(1~{S},2~{S},4~{S},5'~{R},6~{R},7~{S},8~{R},9~{S},12~{S},13~{R},16~{S})-5',7,9,13-tetramethylspiro[5-oxapentacyclo[10.8.0.0^{2,9}.0^{4,8}.0^{13,18}]icos-18-ene-6,2'-oxane]-16-yl]oxyethyl]propane-1,3-diol ;
Molecular weight formula_weight	516.8 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	164

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.45 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	433041
