SAXSdb — 9vef

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Piezo-type mechanosensitive ion channel component 2,Green fluorescent protein

Aequorea victoria

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	MyoD family inhibitor domain-containing protein × 3 （Q9P1T7）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GFP_AEQVI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2770–3006； UniProt 2–238 Author chain C； PDBConstruct 2770–3006； UniProt 2–238 Author chain E； PDBConstruct 2770–3006； UniProt 2–238

Piezo-type mechanosensitive ion channel component 2,Green fluorescent protein

Aequorea victoria

UniProt Q9H5I5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	MyoD family inhibitor domain-containing protein × 3 （Q9P1T7）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PIEZ2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–2752； UniProt 1–2752 Author chain C； PDBConstruct 1–2752； UniProt 1–2752 Author chain E； PDBConstruct 1–2752； UniProt 1–2752

MyoD family inhibitor domain-containing protein

Homo sapiens

UniProt Q9P1T7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	Piezo-type mechanosensitive ion channel component 2,Green fluorescent protein × 3 （P42212,Q9H5I5）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MDFIC_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 22–267； UniProt 1–246 Author chain D； PDBConstruct 22–267； UniProt 1–246 Author chain F； PDBConstruct 22–267； UniProt 1–246

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9vef
Deposition date deposition_date	2025-06-09
Structure title title	The cryo-EM structure of human Piezo2-MDFIC complex (composite map)
Keywords keywords	Piezo2, mechanosensitive channel, MDFIC, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9vef__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9vef__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

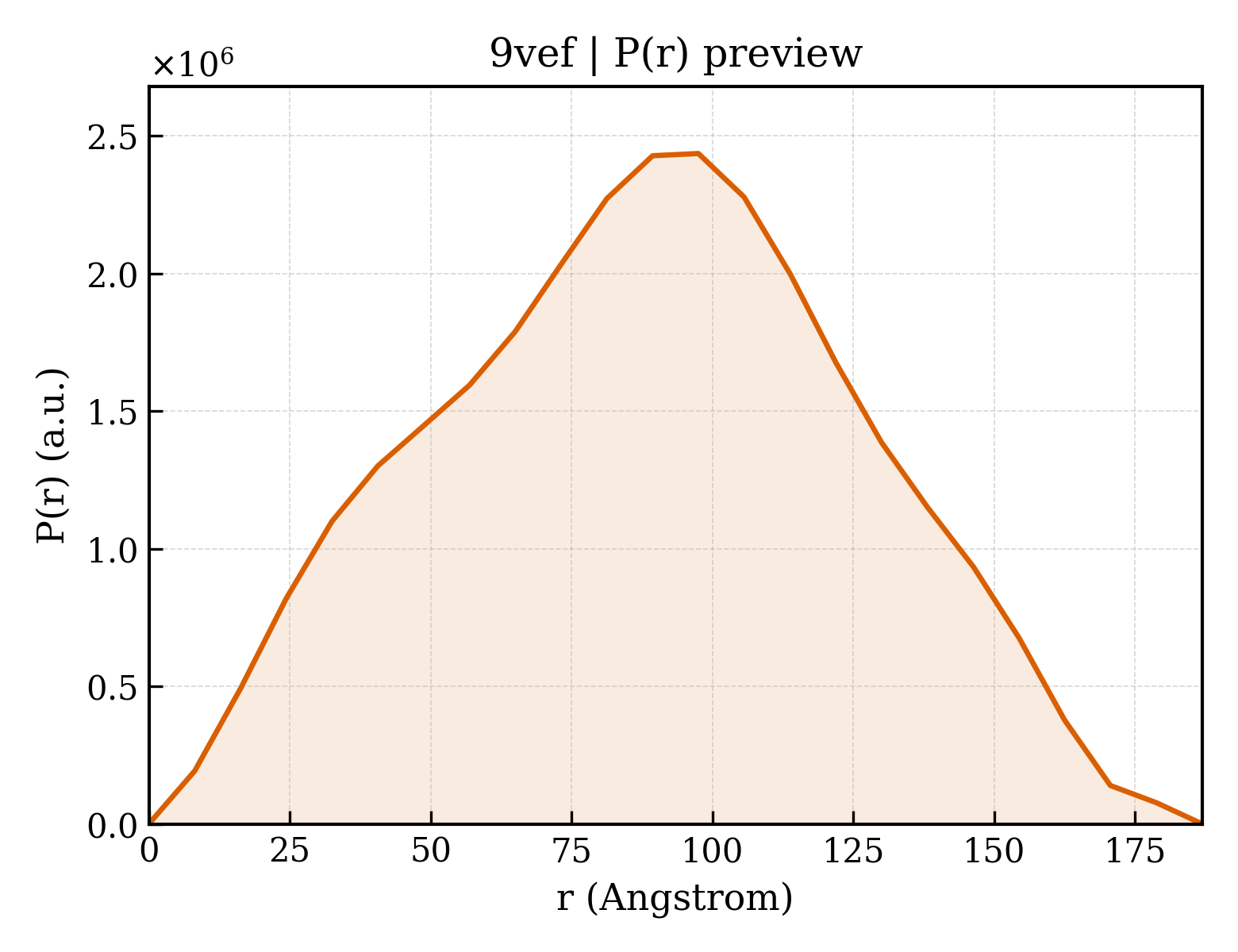

9vef__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	67.99 Å
Rg (electron density)	67.47 Å
Total Rg	67.49 Å
Atom count	34857
Residues	4254
Excluded volume	633720 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9vef__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Piezo-type mechanosensitive ion channel component 2,Green fluorescent protein
Molecular weight formula_weight	348501.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E
Atom count atom_count	34857

MASEVVCGLIFRLLLPICLAVACAFRYNGLSFVYLIYLLLIPLFSEPTKTTMQGHTGRLLKSLCFISLSFLLLHIIFHITLVSLEAQHRIAPGYNCSTWEKTFRQIGFESLKGADAGNGIRVFVPDIGMFIASLTIWLLCRNIVQKPVTDEAAQSNPEFENEELAEGEKIDSEEALIYEEDFNGGDGVEGELEESTKLKMFRRLASVASKLKEFIGNMITTAGKVVVTILLGSSGMMLPSLTSSVYFFVFLGLCTWWSWCRTFDPLLFSCLCVLLAIFTAGHLIGLYLYQFQFFQEAVPPNDYYARLFGIKSVIQTDCSSTWKIIVNPDLSWYHHANPILLLVMYYTLATLIRIWLQEPLVQDEGTKEEDKALACSPIQITAGRRRSLWYATHYPTDERKLLSMTQDDYKPSDGLLVTVNGNPVDYHTIHPSLPMENGPGKADLYSTPQYRWEPSDESSEKREEEEEEKEEFEEERSREEKRSIKVHAMVSVFQFIMKQSYICALIAMMAWSITYHSWLTFVLLIWSCTLWMIRNRRKYAMISSPFMVVYGNLLLILQYIWSFELPEIKKVPGFLEKKEPGELASKILFTITFWLLLRQHLTEQKALQEKEALLSEVKIGSQENEEKDEELQDIQVEGEPKEEEEEEAKEEKQERKKVEQEEAEEEDEQDIMKVLGNLVVAMFIKYWIYVCGGMFFFVSFEGKIVMYKIIYMVLFLFCVALYQVHYEWWRKILKYFWMSVVIYTMLVLIFIYTYQFENFPGLWQNMTGLKKEKLEDLGLKQFTVAELFTRIFIPTSFLLVCILHLHYFHDRFLELTDLKSIPSKEDNTIYRLAHPEGSLPDLTMMHLTASLEKPEVRKLAEPGEEKLEGYSEKAQKGDLGKDSEESEEDGEEEEESEEEEETSDLRNKWHLVIDRLTVLFLKFLEYFHKLQVFMWWILELHIIKIVSSYIIWVSVKEVSLFNYVFLISWAFALPYAKLRRLASSVCTVWTCVIIVCKMLYQLQTIKPENFSVNCSLPNENQTNIPFNELNKSLLYSAPIDPTEWVGLRKSSPLLVYLRNNLLMLAILAFEVTIYRHQEYYRGRNNLTAPVSRTIFHDITRLHLDDGLINCAKYFINYFFYKFGLETCFLMSVNVIGQRMDFYAMIHACWLIAVLYRRRRKAIAEIWPKYCCFLACIITFQYFICIGIPPAPCRDYPWRFKGASFNDNIIKWLYFPDFIVRPNPVFLVYDFMLLLCASLQRQIFEDENKAAVRIMAGDNVEICMNLDAASFSQHNPVPDFIHCRSYLDMSKVIIFSYLFWFVLTIIFITGTTRISIFCMGYLVACFYFLLFGGDLLLKPIKSILRYWDWLIAYNVFVITMKNILSIGACGYIGTLVHNSCWLIQAFSLACTVKGYQMPAANSPCTLPSGEAGIIWDSICFAFLLLQRRVFMSYYFLHVVADIKASQILASRGAELFQATIVKAVKARIEEEKKSMDQLKRQMDRIKARQQKYKKGKERMLSLTQEPGEGQDMQKLSEEDDEREADKQKAKGKKKQWWRPWVDHASMVRSGDYYLFETDSEEEEEEELKKEDEEPPRRSAFQFVYQAWITDPKTALRQRHKEKKRSAREERKRRRKGSKEGPVEWEDREDEPIKKKSDGPDNIIKRIFNILKFTWVLFLATVDSFTTWLNSISREHIDISTVLRIERCMLTREIKKGNVPTRESIHMYYQNHIMNLSRESGLDTIDEHPGAASGAQTAHRMDSLDSHDSISSEPTQCTMLYSRQGTTETIEEVEAEQEEEAGSTAPEPREAKEYEATGYDVGAMGAEEASLTPEEELTQFSTLDGDVEAPPSYSKAVSFEHLSFGSQDDSAGKNRMAVSPDDSRTDKLGSSILPPLTHELTASELLLKKMFHDDELEESEKFYVGQPRFLLLFYAMYNTLVARSEMVCYFVIILNHMVSASMITLLLPILIFLWAMLSVPRPSRRFWMMAIVYTEVAIVVKYFFQFGFFPWNKNVEVNKDKPYHPPNIIGVEKKEGYVLYDLIQLLALFFHRSILKCHGLWDEDDMTESGMAREESDDELSLGHGRRDSSDSLKSINLAASVESVHVTFPEQQTAVRRKRSGSSSEPSQRSSFSSNRSQRGSTSTRNSSQKGSSVLSIKQKGKRELYMEKLQEHLIKAKAFTIKKTLEIYVPIKQFFYNLIHPEYSAVTDVYVLMFLADTVDFIIIVFGFWAFGKHSAAADITSSLSEDQVPGPFLVMVLIQFGTMVVDRALYLRKTVLGKVIFQVILVFGIHFWMFFILPGVTERKFSQNLVAQLWYFVKCVYFGLSAYQIRCGYPTRVLGNFLTKSYNYVNLFLFQGFRLVPFLTELRAVMDWVWTDTTLSLSSWICVEDIYAHIFILKCWRESEKRYPQPRGQKKKKVVKYGMGGMIIVLLICIVWFPLLFMSLIKSVAGVINQPLDVSVTITLGGYQPIFTMSAQQSQLKVMDQQSFNKFIQAFSRDTGAMQFLENYEKEDITVAELEGNSNSLWTISPPSKQKMIHELLDPNSSFSVVFSWSIQRNLSLGAKSEIATDKLSFPLKNITRKNIAKMIAGNSTESSKTPVTIEKIYPYYVKAPSDSNSKPIKQLLSENNFMDITIILSRDNTTKYNSEWWVLNLTGNRIYNPNSQALELVVFNDKVSPPSLGFLAGYGIMGLYASVVLVIGKFVREFFSGISHSIMFEELPNVDRILKLCTDIFLVRETGELELEEDLYAKLIFLYRSPETMIKWTREKTNSNSLEVLFQGPTAAAAVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLLEFVTAAGITLGMDELYKSGGGHHHHHHHHHH

Source Source

Source organism organism	Aequorea victoria
Common name common_name	Water jellyfish, Mesonema victoria
NCBI taxonomy ID ncbi_taxonomy_id	6100
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	MyoD family inhibitor domain-containing protein
Molecular weight formula_weight	28114.6 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F

MDYKDDDDKGLEVLFQGPGSSMSGAGEALAPGPVGPQRVAEAGGGQLGSTAQGKCDKDNTEKDITQATNSHFTHGEMQDQSIWGNPSDGELIRTQPQRLPQLQTSAQVPSGEEIGKIKNGHTGLSNGNGIHHGAKHGSADNRKLSAPVSQKMHRKIQSSLSVNSDISKKSKVNAVFSQKTGSSPEDCCVHCILACLFCEFLTLCNIVLGQASCGICTSEACCCCCGDEMGDDCNCPCDMDCGIMDACCESSDCLEICMECCGICFPS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.75 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	83949

The cryo-EM structure of human Piezo2-MDFIC complex (composite map)
