SAXSdb — 9vmx

▼

1. Structure Basics

entry_id	9vmx
deposition_date	2025-06-29
title	Human PIEZO1-E756del-MDFIC
keywords	Complex of human PIEZO1-E756del and MDFIC, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	70.57 Å
rg_electron	70.62 Å
i0	2390030000.00
molecular_weight	455990.0 kDa
excluded_volume	588420 Å³
envelope_volume	1058700 Å³
shell_volume	129170 Å³
envelope_diameter	213.4 Å
shell_rg	67.04 Å
envelope_rg	68.37 Å
shape_rg	70.65 Å
total_rg	70.41 Å
total_atoms	32172
n_residues	3903
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

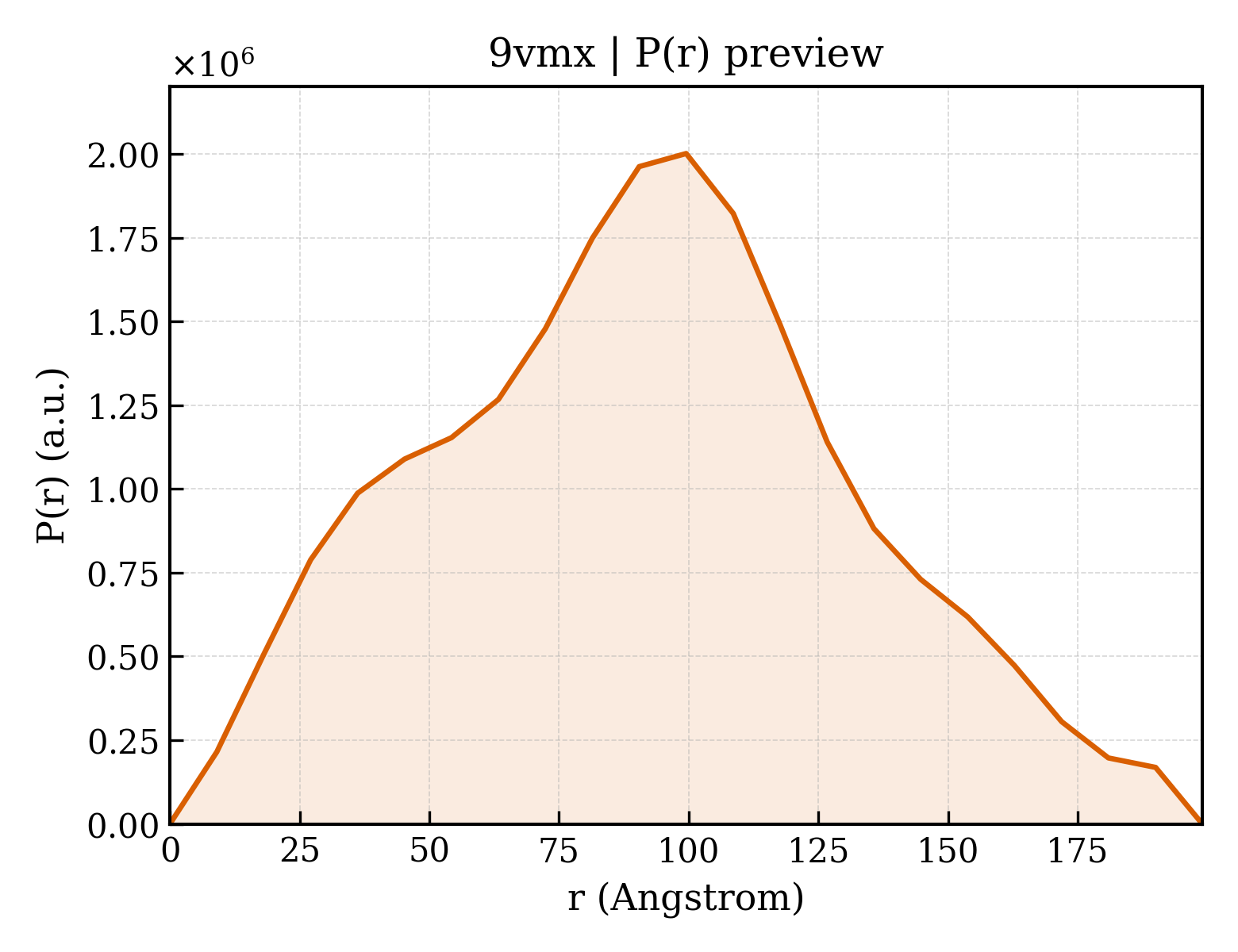

3. P(r) Analysis (GNOM)

dmax	199.0 Å
rg_real	70.44 Å
rg_real_error	1.15 Å
i0_real	2.3900e+09
i0_real_error	4.2940e+07
rg_reciprocal	70.82 Å
i0_reciprocal	2391000000.0000
total_estimate	0.8322
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	99.5 Å
skewness	0.121
kurtosis	-0.484
angular_range	— – 0.1100 Å⁻¹
current_alpha	0.0002
highest_alpha	86100000.0000
n_real_points	23
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.936; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.010

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Piezo-type mechanosensitive ion channel component 1
formula_weight	287094.1 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,D
atom_count	32172

MEPHVLGAVLYWLLLPCALLAACLLRFSGLSLVYLLFLLLLPWFPGPTRCGLQGHTGRLLRALLGLSLLFLVAHLALQICLHIVPRLDQLLGPSCSRWETLSRHIGVTRLDLKDIPNAIRLVAPDLGILVVSSVCLGICGRLARNTRQSPHPRELDDDERDVDASPTAGLQEAATLAPTRRSRLAARFRVTAHWLLVAAGRVLAVTLLALAGIAHPSALSSVYLLLFLALCTWWACHFPISTRGFSRLCVAVGCFGAGHLICLYCYQMPLAQALLPPAGIWARVLGLKDFVGPTNCSSPHALVLNTGLDWPVYASPGVLLLLCYATASLRKLRAYRPSGQRKEAAKGYEARELELAELDQWPQERESDQHVVPTAPDTEADNCIVHELTGQSSVLRRPVRPKRAEPREASPLHSLGHLIMDQSYVCALIAMMVWSITYHSWLTFVLLLWACLIWTVRSRHQLAMLCSPCILLYGMTLCCLRYVWAMDLRPELPTTLGPVSLRQLGLEHTRYPCLDLGAMLLYTLTFWLLLRQFVKEKLLKWAESPAALTEVTVADTEPTRTQTLLQSLGELVKGVYAKYWIYVCAGMFIVVSFAGRLVVYKIVYMFLFLLCLTLFQVYYSLWRKLLKAFWWLVVAYTMLVLIAVYTFQFQDFPAYWRNLTGFTDEQLGDLGLEQFSVSELFSSILVPGFFLLACILQLHYFHRPFMQLTDMEHVSLPGTRLPRWAHRQDAVSGTPLLREEQQEHQQQQQEEEEEEEDSRDEGLGVATPHQATQVPEGAAKWGLVAERLLELAAGFSDVLSRVQVFLRRLLELHVFKLVALYTVWVALKEVSVMNLLLVVLWAFALPYPRFRPMASCLSTVWTCVIIVCKMLYQLKVVNPQEYSSNCTEPFPNSTNLLPTEISQSLLYRGPVDPANWFGVRKGFPNLGYIQNHLQVLLLLVFEAIVYRRQEHYRRQHQLAPLPAQAVFASGTRQQLDQDLLGCLKYFINFFFYKFGLEICFLMAVNVIGQRMNFLVTLHGCWLVAILTRRHRQAIARLWPNYCLFLALFLLYQYLLCLGMPPALCIDYPWRWSRAVPMNSALIKWLYLPDFFRAPNSTNLISDFLLLLCASQQWQVFSAERTEEWQRMAGVNTDRLEPLRGEPNPVPNFIHCRSYLDMLKVAVFRYLFWLVLVVVFVTGATRISIFGLGYLLACFYLLLFGTALLQRDTRARLVLWDCLILYNVTVIISKNMLSLLACVFVEQMQTGFCWVIQLFSLVCTVKGYYDPKEMMDRDQDCLLPVEEAGIIWDSVCFFFLLLQRRVFLSHYYLHVRADLQATALLASRGFALYNAANLKSIDFHRRIEEKSLAQLKRQMERIRAKQEKHRQGRVDRSRPQDTLGPKDPGLEPGPDSPGGSSPPRRQWWRPWLDHATVIHSGDYFLFESDSEEEEEAVPEDPRPSAQSAFQLAYQAWVTNAQAVLRRRQQEQEQARQEQAGQLPTGGGPSQEVEPAEGPEEAAAGRSHVVQRVLSTAQFLWMLGQALVDELTRWLQEFTRHHGTMSDVLRAERYLLTQELLQGGEVHRGVLDQLYTSQAEATLPGPTEAPNAPSTVSSGLGAEEPLSSMTDDMGSPLSTGYHTRSGSEEAVTDPGEREAGASLYQGLMRTASELLLDRRLRIPELEEAELFAEGQGRALRLLRAVYQCVAAHSELLCYFIIILNHMVTASAGSLVLPVLVFLWAMLSIPRPSKRFWMTAIVFTEIAVVVKYLFQFGFFPWNSHVVLRRYENKPYFPPRILGLEKTDGYIKYDLVQLMALFFHRSQLLCYGLWDHEEDSPSKEHDKSGEEEQGAEEGPGVPAATTEDHIQVEARVGPTDGTPEPQVELRPRDTRRISLRFRRRKKEGPARKGAAAIEAEDREEEEGEEEKEAPTGREKRPSRSGGRVRAAGRRLQGFCLSLAQGTYRPLRRFFHDILHTKYRAATDVYALMFLADVVDFIIIIFGFWAFGKHSAATDITSSLSDDQVPEAFLVMLLIQFSTMVVDRALYLRKTVLGKLAFQVALVLAIHLWMFFILPAVTERMFNQNVVAQLWYFVKCIYFALSAYQIRCGYPTRILGNFLTKKYNHLNLFLFQGFRLVPFLVELRAVMDWVWTDTTLSLSSWMCVEDIYANIFIIKCSRETEKKYPQPKGQKKKKIVKYGMGGLIILFLIAIIWFPLLFMSLVRSVVGVVNQPIDVTVTLKLGGYEPLFTMSAQQPSIIPFTAQAYEELSRQFDPQPLAMQFISQYSPEDIVTAQIEGSSGALWRISPPSRAQMKRELYNGTADITLRFTWNFQRDLAKGGTVEYANEKHMLALAPNSTARRQLASLLEGTSDQSVVIPNLFPKYIRAPNGPEANPVKQLQPNEEADYLGVRIQLRREQGAGATGFLEWWVIELQECRTDCNLLPMVIFSDKVSPPSLGFLAGYGIMGLYVSIVLVIGKFVRGFFSEISHSIMFEELPCVDRILKLCQDIFLVRETRELELEEELYAKLIFLYRSPETMIKWTREKE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	MyoD family inhibitor domain-containing protein
formula_weight	25814.1 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	C,E,F

MSGAGEALAPGPVGPQRVAEAGGGQLGSTAQGKCDKDNTEKDITQATNSHFTHGEMQDQSIWGNPSDGELIRTQPQRLPQLQTSAQVPSGEEIGKIKNGHTGLSNGNGIHHGAKHGSADNRKLSAPVSQKMHRKIQSSLSVNSDISKKSKVNAVFSQKTGSSPEDCCVHCILACLFCEFLTLCNIVLGQASCGICTSEACCCCCGDEMGDDCNCPCDMDCGIMDACCESSDCLEICMECCGICFPS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 non-polymer

description	DODECANE
formula_weight	170.3 kDa
src_method	man
entity_count	15

Entity 4 non-polymer

description	(1S)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(octadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate
formula_weight	746.0 kDa
src_method	syn
entity_count	3

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.20 Å
resolution_method	—
num_particles	40207

fit	/app/data/saxs_computation/vm/9vmx/9vmx.fit
pddf	/app/data/pr_computation/vm/9vmx/9vmx.pr.out
profile	/app/data/saxs_computation/vm/9vmx/9vmx.dat
