SAXSdb — 9s2u

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Siderophore exporter MmpL5,Green fluorescent protein

Aequorea victoria

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Meromycolate extension acyl carrier protein × 1 （A0R0B3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GFP_AEQVI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain D； PDBConstruct 782–1018； UniProt 2–238

Siderophore exporter MmpL5,Green fluorescent protein

Aequorea victoria

UniProt P9WJV1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Meromycolate extension acyl carrier protein × 1 （A0R0B3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MMPL5_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain D； PDBConstruct 1–493； UniProt 1–493 Author chain D； PDBConstruct 494–770； UniProt 688–964

Meromycolate extension acyl carrier protein

OrganismNot specified

UniProt A0R0B3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Siderophore exporter MmpL5,Green fluorescent protein × 1 （P42212,P9WJV1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACPM_MYCS2
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain I； PDBConstruct 1–78； UniProt 3–80

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9s2u
Deposition date deposition_date	2025-07-22
Last revision last_revision	2025-10-08
Structure title title	1:1 complex of M.tuberculosis MmpL5 and M.smegmatis AcpM
Keywords keywords	Drug Efflux, RND transporter, Tuberculosis, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9s2u__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9s2u__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

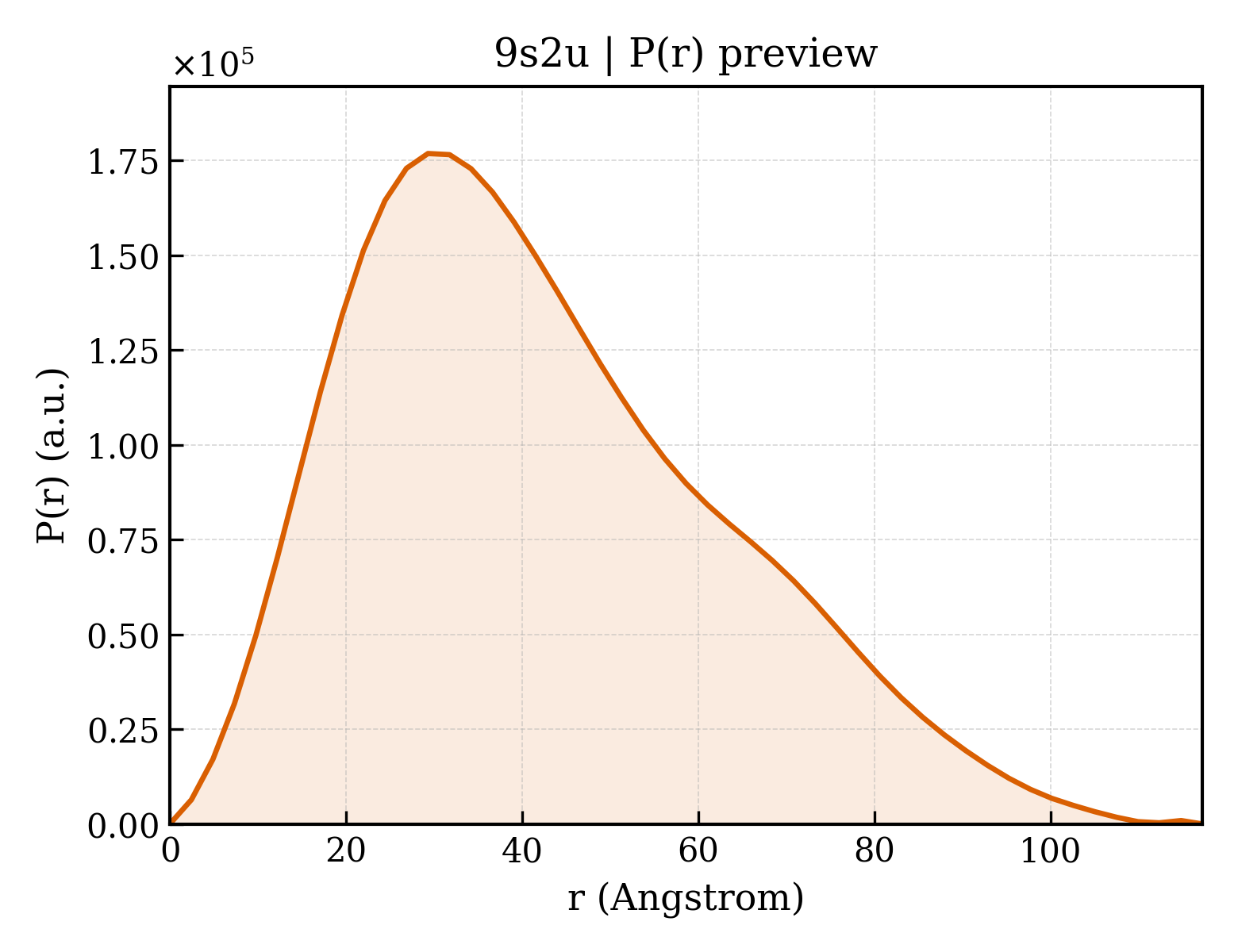

9s2u__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.82 Å
Rg (electron density)	32.52 Å
Total Rg	32.74 Å
Atom count	6157
Residues	816
Excluded volume	111530 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9s2u__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Siderophore exporter MmpL5,Green fluorescent protein
Molecular weight formula_weight	111448.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D
Atom count atom_count	6157

MIVQRTAAPTGSVPPDRHAARPFIPRMIRTFAVPIILGWLVTIAVLNVTVPQLETVGQIQAVSMSPDAAPSMISMKHIGKVFEEGDSDSAAMIVLEGQRPLGDAAHAFYDQMIGRLQADTTHVQSLQDFWGDPLTATGAQSSDGKAAYVQVKLAGNQGESLANESVEAVKTIVERLAPPPGVKVYVTGSAALVADQQQAGDRSLQVIEAVTFTVIIVMLLLVYRSIITSAIMLTMVVLGLLATRGGVAFLGFHRIIGLSTFATNLLVVLAIAAATDYAIFLIGRYQEARGLGQDRESAYYTMFGGTAHVVLGSGLTIAGATFCLSFTRLPYFQTLGVPLAIGMVIVVAAALTLGPAIIAVTSRFGKLLEPKRMARVRGWRKVGAAIVRWPGPILVGAVALALVGLLTLPGYRTNYNDRNYLPADLPANEGYAAAERHFSQARMNPEVLMVESDHDMRNSADFLVINKIAKAIFAVEGISRVQAITRPDGKPIESFYLPPEVFDNPDFQRGLEQFLSPDGHAVRFIISHEGDPMSQAGIARIAKIKTAAKEAIKGTPLEGSAIYLGGTAAMFKDLSDGNTYDLMIAGISALCLIFIIMLITTRSVVAAAVIVGTVVLSLGASFGLSVLIWQHILGIELHWLVLAMAVIILLAVGADYNLLLVARLKEEIHAGINTGIIRAMGGSGSVVTAAGLVFAFTMMSFAVSELTVMAQVGTTIGMGLLFDTLIVRSFMTPSIAALLGKWFWWPQVVRQRPIPQPWPSPASARTFALVALEVLFQGPQFSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKRHDFFKSAMPEGYVQERTISFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYITADKQKNGIKANFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLEFVTAAGITHGMDELYKTSDYKDDDDK

Source Source

Source organism organism	Aequorea victoria
Common name common_name	Water jellyfish, Mesonema victoria
NCBI taxonomy ID ncbi_taxonomy_id	6100
Host organism host_organism	Mycolicibacterium smegmatis MC2 155

Entity 2 Entity 2 polymer

Description description	Meromycolate extension acyl carrier protein
Molecular weight formula_weight	8468.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

ATQEEIIAGLAEIIEEVTGIEPSEVTPEKSFVDDLDIDSLSMVEIAVQTEDKYGVKIPDEDLAGLRTVGDVVAYIQKL

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	3.200 Å
R factor r_factor	0.4444
R_work r_work	0.4444
R_free r_free	—

Resolution resolution	3.20 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	78900

1:1 complex of M.tuberculosis MmpL5 and M.smegmatis AcpM
