SAXSdb — 9rfu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Siderophore export accessory protein MmpS5

Mycobacterium tuberculosis H37Rv

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Siderophore exporter MmpL5 × 3 （P9WJV1） Meromycolate extension acyl carrier protein × 3 （A0R0B3） (1S)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(octadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MMPS5_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–31； UniProt 2–31 Author chain B； PDBConstruct 2–31； UniProt 2–31 Author chain C； PDBConstruct 2–31； UniProt 2–31

Siderophore exporter MmpL5

Mycobacterium tuberculosis

UniProt P9WJV1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Siderophore export accessory protein MmpS5 × 3 （P9WJS7） Meromycolate extension acyl carrier protein × 3 （A0R0B3） (1S)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(octadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MMPL5_MYCTU
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–474； UniProt 20–493 Author chain D； PDBConstruct 475–739； UniProt 688–952 Author chain E； PDBConstruct 1–474； UniProt 20–493 Author chain E； PDBConstruct 475–739； UniProt 688–952 Author chain F； PDBConstruct 1–474； UniProt 20–493 Author chain F； PDBConstruct 475–739； UniProt 688–952

Meromycolate extension acyl carrier protein

OrganismNot specified

UniProt A0R0B3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Siderophore export accessory protein MmpS5 × 3 （P9WJS7） Siderophore exporter MmpL5 × 3 （P9WJV1） (1S)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(octadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACPM_MYCS2
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–78； UniProt 3–80 Author chain H； PDBConstruct 1–78； UniProt 3–80 Author chain I； PDBConstruct 1–78； UniProt 3–80

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9rfu
Deposition date deposition_date	2025-06-05
Last revision last_revision	2025-08-13
Structure title title	M.tuberculosis MmpS5L5-acpM complex
Keywords keywords	Drug efflux, RND transporter, Tuberculosis, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9rfu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9rfu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

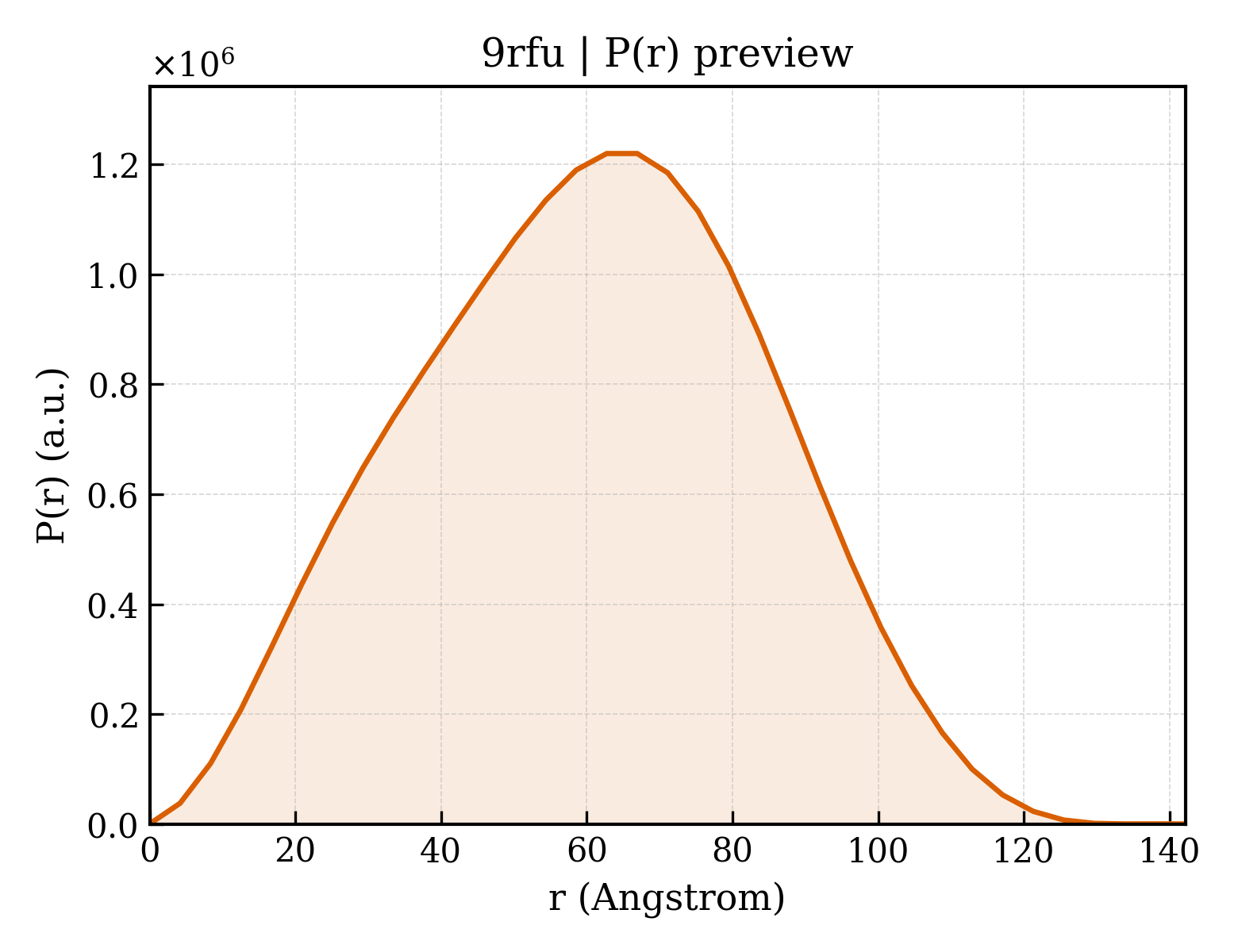

9rfu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	46.30 Å
Rg (electron density)	45.20 Å
Total Rg	45.38 Å
Atom count	19410
Residues	2540
Excluded volume	352610 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9rfu__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Siderophore export accessory protein MmpS5
Molecular weight formula_weight	3457.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	19410

SIGTLKRAWIPLLILVVVAIAGFTVQRIRTF

Source Source

Source organism organism	Mycobacterium tuberculosis H37Rv
NCBI taxonomy ID ncbi_taxonomy_id	83332
Host organism host_organism	Mycolicibacterium smegmatis MC2 155

Entity 2 Entity 2 polymer

Description description	Siderophore exporter MmpL5
Molecular weight formula_weight	79180.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F

ARPFIPRMIRTFAVPIILGWLVTIAVLNVTVPQLETVGQIQAVSMSPDAAPSMISMKHIGKVFEEGDSDSAAMIVLEGQRPLGDAAHAFYDQMIGRLQADTTHVQSLQDFWGDPLTATGAQSSDGKAAYVQVKLAGNQGESLANESVEAVKTIVERLAPPPGVKVYVTGSAALVADQQQAGDRSLQVIEAVTFTVIIVMLLLVYRSIITSAIMLTMVVLGLLATRGGVAFLGFHRIIGLSTFATNLLVVLAIAAATDYAIFLIGRYQEARGLGQDRESAYYTMFGGTAHVVLGSGLTIAGATFCLSFTRLPYFQTLGVPLAIGMVIVVAAALTLGPAIIAVTSRFGKLLEPKRMARVRGWRKVGAAIVRWPGPILVGAVALALVGLLTLPGYRTNYNDRNYLPADLPANEGYAAAERHFSQARMNPEVLMVESDHDMRNSADFLVINKIAKAIFAVEGISRVQAITRPDGKPIESFYLPPEVFDNPDFQRGLEQFLSPDGHAVRFIISHEGDPMSQAGIARIAKIKTAAKEAIKGTPLEGSAIYLGGTAAMFKDLSDGNTYDLMIAGISALCLIFIIMLITTRSVVAAAVIVGTVVLSLGASFGLSVLIWQHILGIELHWLVLAMAVIILLAVGADYNLLLVARLKEEIHAGINTGIIRAMGGSGSVVTAAGLVFAFTMMSFAVSELTVMAQVGTTIGMGLLFDTLIVRSFMTPSIAALLGKWFWWPQVVRQRPIPQPW

Source Source

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Mycolicibacterium smegmatis MC2 155

Entity 3 Entity 3 polymer

Description description	Meromycolate extension acyl carrier protein
Molecular weight formula_weight	8808.8 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,I

ATQEEIIAGLAEIIEEVTGIEPSEVTPEKSFVDDLDIDXLSMVEIAVQTEDKYGVKIPDEDLAGLRTVGDVVAYIQKL

Entity 4 Entity 4 non-polymer

Description description	(1S)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(octadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate
Molecular weight formula_weight	746.0 kDa
Source method src_method	syn
Copy count entity_count	3

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.30 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	27426
