9u9d

Bipartite Genetically Encoded Biosensor sG-GECO1

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Myosin light chain kinase, smooth muscle, deglutamylated form,Green fluorescent protein,Calmodulin-1

Rattus norvegicus

UniProt P0DP29

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Insufficient information Heteromer Protein 2 Green fluorescent protein × 1 (P42212) water × 2 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name CALM1_RAT
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A; PDBConstruct 88–234; UniProt 3–149

Myosin light chain kinase, smooth muscle, deglutamylated form,Green fluorescent protein,Calmodulin-1

Rattus norvegicus

UniProt P11799

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Insufficient information Heteromer Protein 2 Green fluorescent protein × 1 (P42212) water × 2 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name MYLK_CHICK
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A; PDBConstruct 37–60; UniProt 1726–1749

Myosin light chain kinase, smooth muscle, deglutamylated form,Green fluorescent protein,Calmodulin-1

Rattus norvegicus

UniProt P42212

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Insufficient information Heteromer Protein 2 water × 2 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name GFP_AEQVI
Isoform —
PDB entities 1, 2
Chains and sequence ranges Author chain A; PDBConstruct 61–84; UniProt 149–172 Author chain B; PDBConstruct 13–81; UniProt 170–238 Author chain B; PDBConstruct 90–232; UniProt 2–146

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9u9d
Deposition date deposition_date2025-03-27
Structure title titleBipartite Genetically Encoded Biosensor sG-GECO1
Keywords keywordsFluorescent protein, GFP, bipartite scpFP, sG-GECO1; FLUORESCENT PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9u9d__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

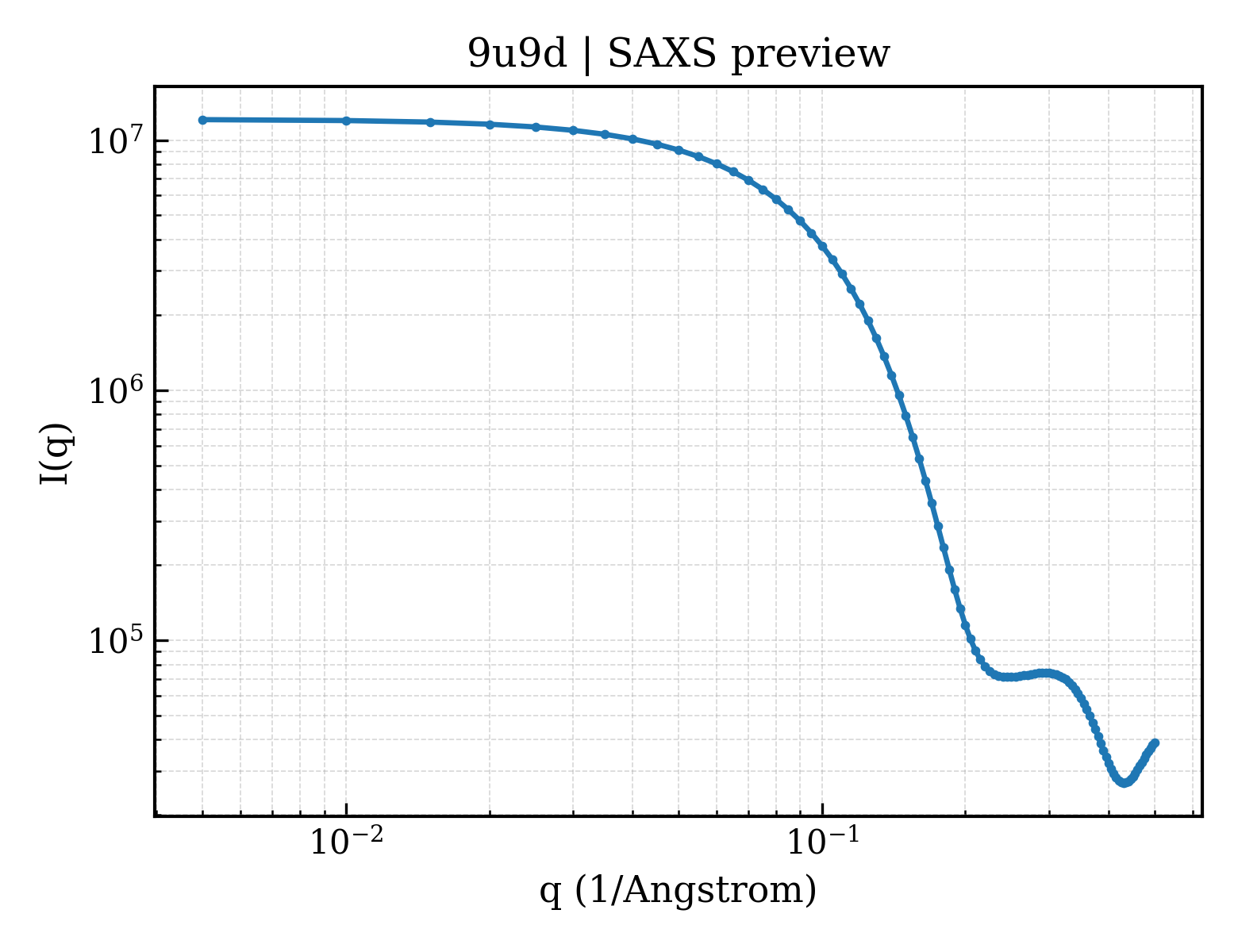

9u9d__assembly_1__model_1 | I(q)

10-2 10-1 105 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

9u9d__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg(Guinier)18.42 Å
Rg (electron density)17.16 Å
Total Rg18.24 Å
Atom count1839
Residues230
Excluded volume32671 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 9u9d__assembly_1__model_1 dimeric (2) Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▶

7. Citations (1)
