SAXSdb — 8tlm

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

C-C chemokine receptor type 8, Green fluorescent protein fusion

Aequorea victoria

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	Fab heavy chain × 1 Fab light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GFP_AEQVI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 404–640； UniProt 2–238

C-C chemokine receptor type 8, Green fluorescent protein fusion

Aequorea victoria

UniProt P51685

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	Fab heavy chain × 1 Fab light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CCR8_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 36–390； UniProt 1–355

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8tlm
Deposition date deposition_date	2023-07-27
Structure title title	Structure of a class A GPCR/Fab complex
Keywords keywords	GPCR Fab, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8tlm__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8tlm__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

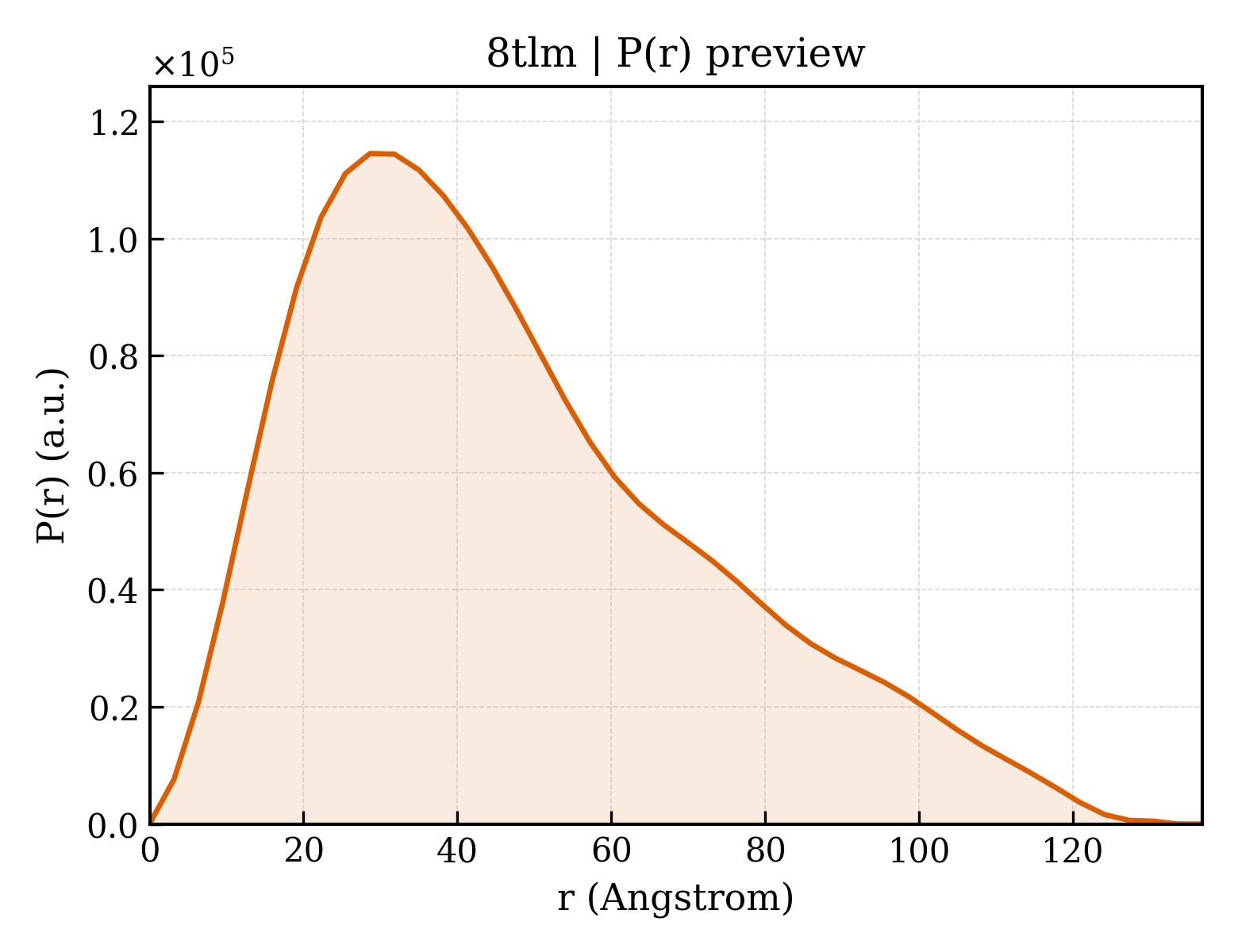

8tlm__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.01 Å
Rg (electron density)	38.33 Å
Total Rg	38.59 Å
Atom count	5400
Residues	696
Excluded volume	97582 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8tlm__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Fab heavy chain
Molecular weight formula_weight	23775.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5400

QSVEESGGRLVTPGTPLTLTCTVSGFSLSNYAMIWVRQAPGEGLEWVGTISLGGYTYYANWAKGRFTISKTSTTVDLKISSPTTEDTATYFCARARWSTDSAIYTYAFDPWGPGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCD

Source Source

Source organism organism	Oryctolagus cuniculus
Common name common_name	rabbit
NCBI taxonomy ID ncbi_taxonomy_id	9986
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Fab light chain
Molecular weight formula_weight	23402.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

AYDMTQTPASVEVAVGGTVTIKCQASQSISSYLSWYQQKPGQRPELLIYKASTLASGVSSRFKGSGSGTQFTLTISDLEAADAATYYCQQGYTSSNIDNIFGGGTEVVVKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Oryctolagus cuniculus
Common name common_name	rabbit
NCBI taxonomy ID ncbi_taxonomy_id	9986
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	C-C chemokine receptor type 8, Green fluorescent protein fusion
Molecular weight formula_weight	76003.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MKTIIALSYIFCLVFADYKDDDDKGSENLYFQSGSMDYTLDLSVTTVTDYYYPDIFSSPCDAELIQTNGKLLLAVFYCLLFVFSLLGNSLVILVLVVCKKLRSITDVYLLNLALSDLLFVFSFPFQTYYLLDQWVFGTVMCKVVSGFYYIGFYSSMFFITLMSVDRYLAVVHAVYALKVRTIRMGTTLCLAVWLTAIMATIPLLVFYQVASEDGVLQCYSFYNQQTLKWKIFTNFKMNILGLLIPFTIFMFCYIKILHQLKRCQNHNKTKAIRLVLIVVIASLLFWVPFNVVLFLTSLHSMHILDGCSISQQLTYATHVTEIISFTHCCVNPVIYAFVGEKFKKHLSEIFQKSCSQIFNYLGRQMPRESCEKSSSCQQHSSRSSSVDYILGNSLEVLFQGPMVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKLICTTGKLPVPWPTLVTTLGYGLQCFARYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYITADKQKNGIKANFKIRHNIEDGGVQLADHYQQNTPIGDGPVLLPDNHYLSYQSKLSKDPNEKRDHMVLLEFVTAAGITLGMDELYKGSAWSHPQFEKGGGSGGGSGGSAWSHPQFEK

Source Source

Source organism organism	Aequorea victoria
Common name common_name	Water jellyfish, Mesonema victoria
NCBI taxonomy ID ncbi_taxonomy_id	6100
Host organism host_organism	Mammalian expression vector Flag-MCS-pcDNA3.1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	340479
