SAXSdb — 9yzq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Replication initiation protein

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2 DNA 2	DNA (31-MER) × 1 DNA (31-MER) × 1 Segmentation polarity homeobox protein engrailed,Green fluorescent protein × 1 （P02836,P42212） MAGNESIUM ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	REPE1_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 13–263； UniProt 1–251

Segmentation polarity homeobox protein engrailed,Green fluorescent protein

Aequorea victoria

UniProt P02836

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2 DNA 2	DNA (31-MER) × 1 DNA (31-MER) × 1 Replication initiation protein × 1 （P03856） MAGNESIUM ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HMEN_DROME
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 2–60； UniProt 454–512

Segmentation polarity homeobox protein engrailed,Green fluorescent protein

Aequorea victoria

UniProt P42212

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2 DNA 2	DNA (31-MER) × 1 DNA (31-MER) × 1 Replication initiation protein × 1 （P03856） MAGNESIUM ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GFP_AEQVI
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 69–307； UniProt 1–238

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9yzq
Deposition date deposition_date	2025-10-30
Last revision last_revision	2026-02-18
Structure title title	Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence TGATGAGCAG and loaded with Engrailed homeodomain enhanced Green fluorescent protein fusion
Keywords keywords	Protein-DNA complex, DNA Binding protein, Transcription factor, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9yzq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9yzq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

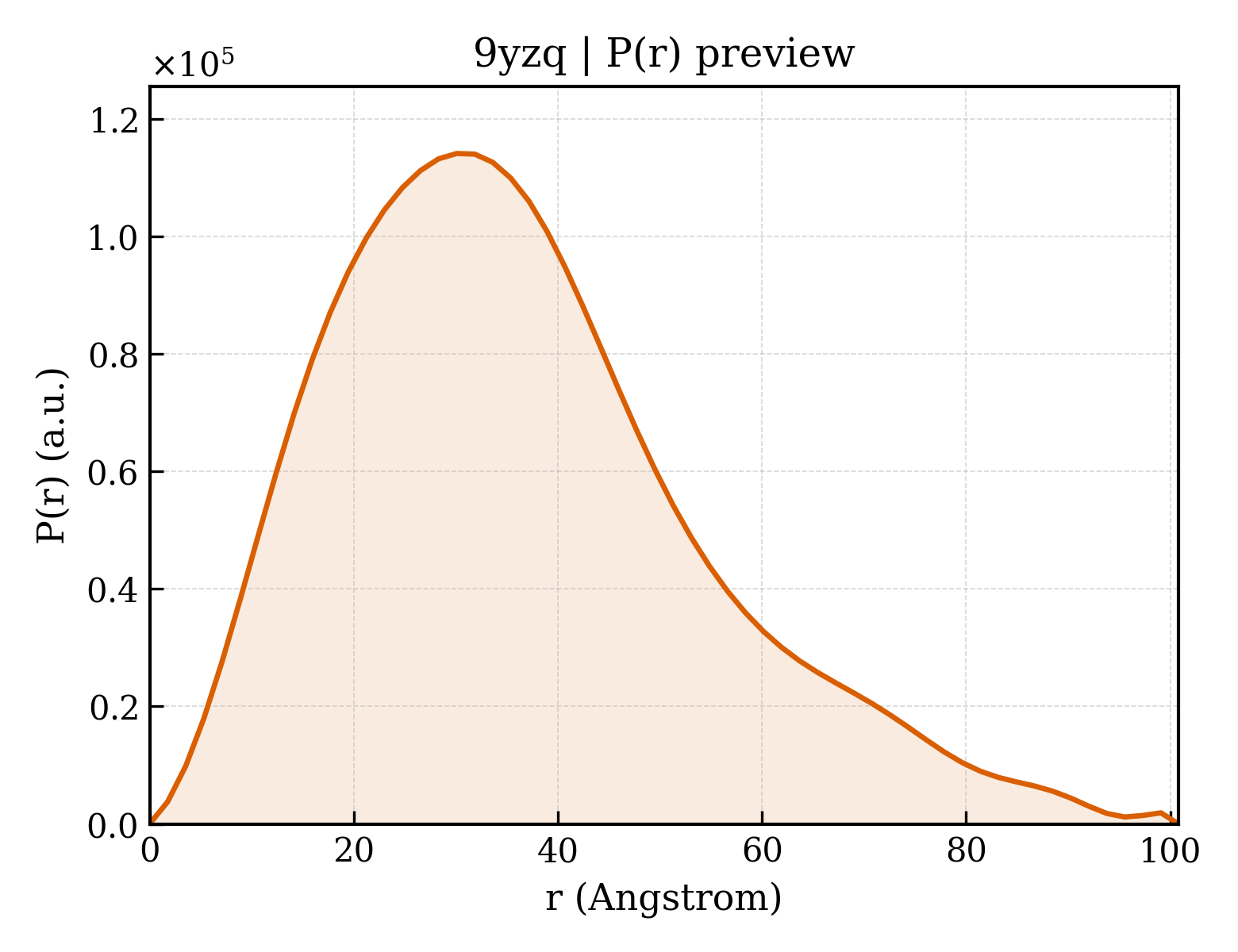

9yzq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.01 Å
Rg (electron density)	27.12 Å
Total Rg	27.74 Å
Atom count	3192
Residues	334
Excluded volume	51831 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9yzq__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	DNA (31-MER)
Molecular weight formula_weight	9496.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	A
Atom count atom_count	3198

CCTGTGACAAATTGCCCTCAGATGAGTCATA

Entity 2 Entity 2 polymer

Description description	DNA (31-MER)
Molecular weight formula_weight	9567.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B

GTATGACTCATCTGAGGGCAATTTGTCACAG

Entity 3 Entity 3 polymer

Description description	Replication initiation protein
Molecular weight formula_weight	30749.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MRGSHHHHHHGSMAETAVINHKKRKNSPRIVQSNDLTEAAYSLSRDQKRMLYLFVDQIRKSDGTLQEHDGICEIHVAKYAEIFGLTSAEASKDIRQALKSFAGKEVVFYRPEEDAGDEKGYESFPWFIKPAHSPSRGLYSVHINPYLIPFFIGLQNRFTQFRLSETKEITNPYAMRLYESLCQYRKPDGSGIVSLKIDWIIERYQLPQSYQRMPDFRRRFLQVCVNEINSRTPMRLSYIEKKKGRQTTHIVFSFRDITSMTTG

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	Segmentation polarity homeobox protein engrailed,Green fluorescent protein
Molecular weight formula_weight	36124.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MEKRPRTAFSSEQLARLKREFNENRYLTERRRQQLSSELGLNEAQIKIWFQNKRAKIKKSTSQFYLNEMVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLEFVTAAGITLGMDELYKHHHHHH

Source Source

Source organism organism	Aequorea victoria
Common name common_name	Water jellyfish, Mesonema victoria
NCBI taxonomy ID ncbi_taxonomy_id	6100
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	74.116 Å
Unit-cell length b length_b	122.397 Å
Unit-cell length c length_c	140.438 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.38 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	I 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	monoclinic

Resolution resolution	3.750 Å
Low-resolution limit resolution_low	46.920 Å
R factor r_factor	0.2992
R_work r_work	0.2951
R_free r_free	0.3382

Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence TGATGAGCAG and loaded with Engrailed homeodomain enhanced Green fluorescent protein fusion
