2hdd

ENGRAILED HOMEODOMAIN Q50K VARIANT DNA COMPLEX

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (ENGRAILED HOMEODOMAIN Q50K)

Drosophila melanogaster

UniProt P02836

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein–DNA Homooligomer Protein 2 DNA 2 ;DNA (5'-D(*TP*TP*TP*TP*GP*CP*CP*AP*TP*GP*TP*AP*AP*TP*CP*CP*C P*CP*GP*GP*A)-3') ; × 1 ;DNA (5'-D(*AP*TP*CP*CP*GP*GP*GP*GP*AP*TP*TP*AP*CP*AP*TP*GP*G P*CP*AP*AP*A)-3') ; × 1 water × 4 Consistent with all polymers

Other States of the Same Protein in the Database

Monomer
1enh 1p7i 1p7i 1p7i 1p7i 1p7j 1p7j 1p7j 1p7j 1ztr 2jwt 2p81

13 assemblies; showing the first 12

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
1du0 1hdd 2hdd 2hos 2hot 3hdd 6m3d 9yzq

8 assemblies

View Construct and Data Evidence
UniProt name HMEN_DROME
Isoform —
PDB entities 3
Chains and sequence ranges Author chain A； PDBConstruct 3–61； UniProt 454–512 Author chain B； PDBConstruct 3–61； UniProt 454–512

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2hdd
Deposition date deposition_date1998-02-10
Structure title titleENGRAILED HOMEODOMAIN Q50K VARIANT DNA COMPLEX
Keywords keywordsDNA BINDING, COMPLEX (DNA BINDING PROTEIN-DNA), TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hdd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

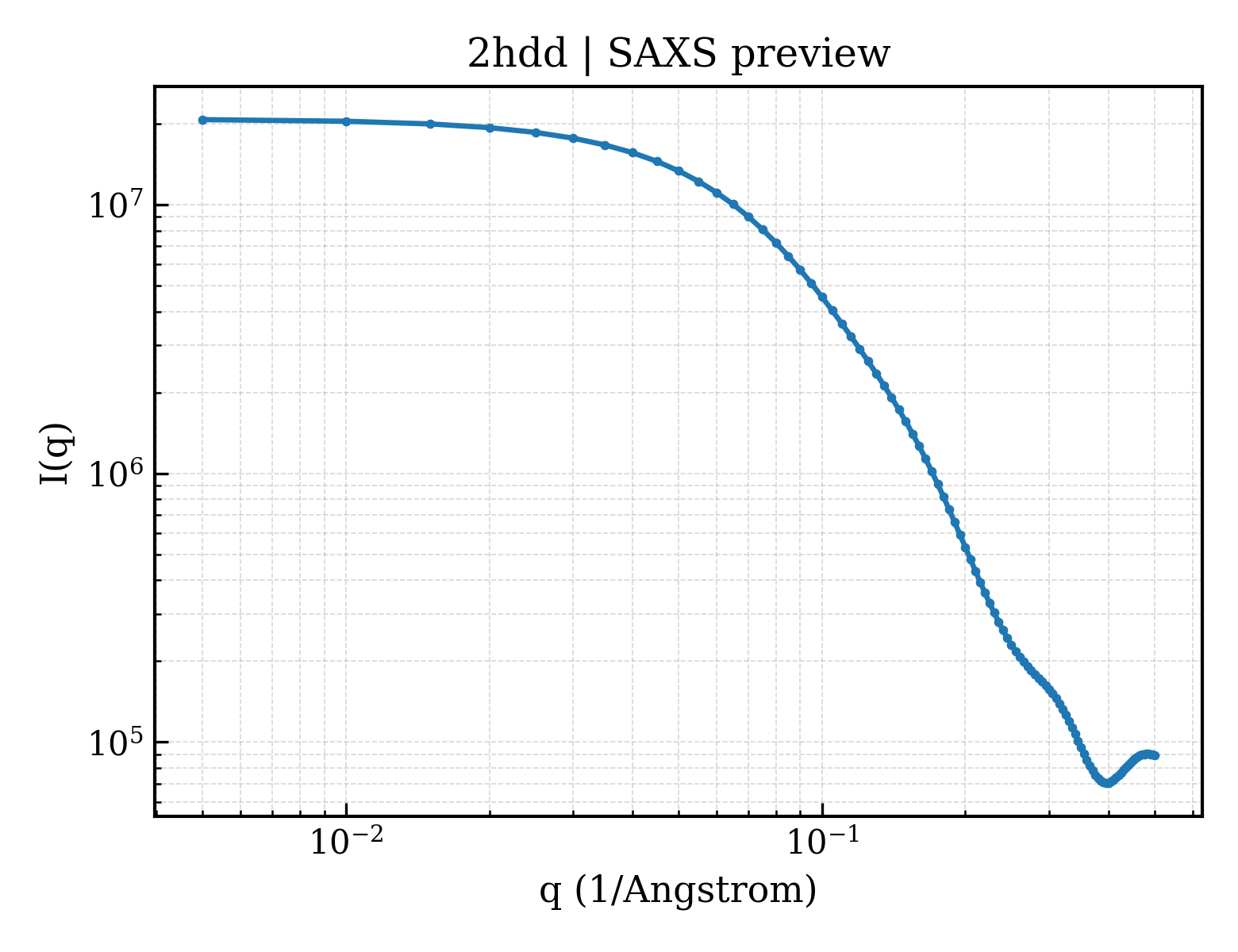

2hdd__assembly_1__model_1 | I(q)

10-2 10-1 105 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

2hdd__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）23.23 Å
Rg (electron density)23.20 Å
Total Rg23.69 Å
Atom count1803
Residues153
Excluded volume29304 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 2hdd__assembly_1__model_1 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd2hdda_
Class classa — All alpha proteins
Fold Fold folda.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamilya.4.1 — Homeodomain-like
Family Family familya.4.1.1 — Homeodomain
Domain ID domain_idd2hddb_
Class classa — All alpha proteins
Fold Fold folda.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamilya.4.1 — Homeodomain-like
Family Family familya.4.1.1 — Homeodomain

CATH v4.4 (2 domains)

Domain ID domain_id2hddA00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily60 — Homeodomain-like
Domain ID domain_id2hddB00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily60 — Homeodomain-like
▶

7. Citations (1)
