HER2/ErbB2 extracellular domain (ECD) in compact conformation in complex with trastuzumab (TZB) antibody

Method: ELECTRON MICROSCOPY D_max: 81.3 Å Quality: GOOD

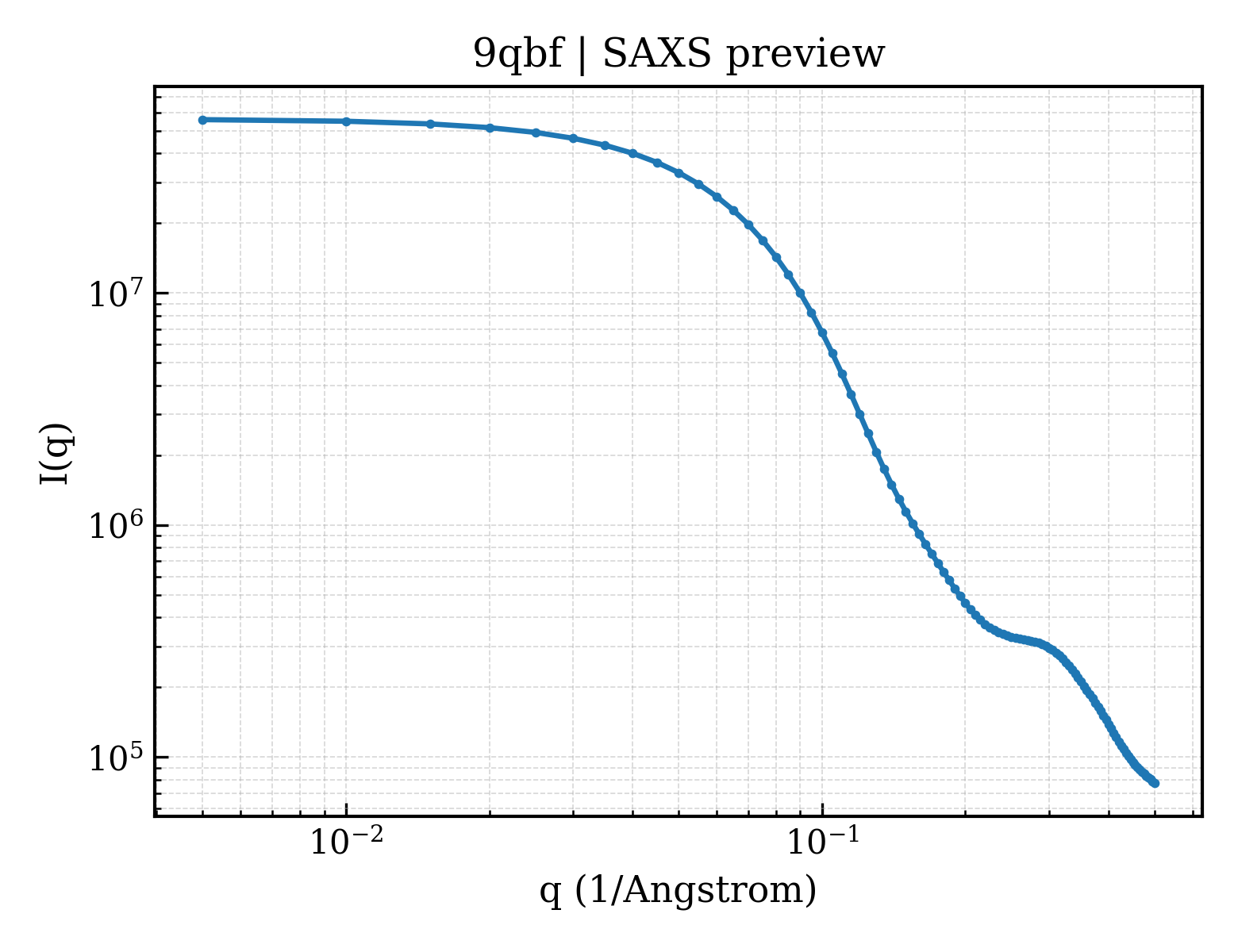

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9qbf
deposition_date	2025-03-02
last_revision	2025-08-06
title	HER2/ErbB2 extracellular domain (ECD) in compact conformation in complex with trastuzumab (TZB) antibody
keywords	Receptor, tyrosine kinase, transmembrane, HER2, SIGNALING PROTEIN; SIGNALING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	25.19 Å
rg_electron	24.01 Å
i0	56137400.00
molecular_weight	55691.0 kDa
excluded_volume	68554 Å³
envelope_volume	80508 Å³
shell_volume	27936 Å³
envelope_diameter	83.9 Å
shell_rg	31.24 Å
envelope_rg	24.60 Å
shape_rg	23.99 Å
total_rg	24.85 Å
total_atoms	7628
n_residues	504
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	81.3 Å
rg_real	25.13 Å
rg_real_error	0.67 Å
i0_real	5.6140e+07
i0_real_error	8.4090e+05
rg_reciprocal	25.15 Å
i0_reciprocal	56140000.0000
total_estimate	0.9000
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	29.7 Å
skewness	0.269
kurtosis	-0.381
angular_range	— – 0.3150 Å⁻¹
current_alpha	0.0000
highest_alpha	3842000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.903; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.991

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

Entity 1 polymer

description	Receptor tyrosine-protein kinase erbB-2,Green fluorescent protein
formula_weight	146737.2 kDa
ec_number	2.7.10.1
mutation	Del1-22,Del1030-1255,C789S,C805S,C965S.
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	7628

MKFLVNVALVFMVVYISYIYADYKDDDDKHHHHHHHHHHLEVLFQGPYPYDVPDYATQVCTGTDMKLRLPASPETHLDMLRHLYQGCQVVQGNLELTYLPTNASLSFLQDIQEVQGYVLIAHNQVRQVPLQRLRIVRGTQLFEDNYALAVLDNGDPLNNTTPVTGASPGGLRELQLRSLTEILKGGVLIQRNPQLCYQDTILWKDIFHKNNQLALTLIDTNRSRACHPCSPMCKGSRCWGESSEDCQSLTRTVCAGGCARCKGPLPTDCCHEQCAAGCTGPKHSDCLACLHFNHSGICELHCPALVTYNTDTFESMPNPEGRYTFGASCVTACPYNYLSTDVGSCTLVCPLHNQEVTAEDGTQRCEKCSKPCARVCYGLGMEHLREVRAVTSANIQEFAGCKKIFGSLAFLPESFDGDPASNTAPLQPEQLQVFETLEEITGYLYISAWPDSLPDLSVFQNLQVIRGRILHNGAYSLTLQGLGISWLGLRSLRELGSGLALIHHNTHLCFVHTVPWDQLFRNPHQALLHTANRPEDECVGEGLACHQLCARGHCWGPGPTQCVNCSQFLRGQECVEECRVLQGLPREYVNARHCLPCHPECQPQNGSVTCFGPEADQCVACAHYKDPPFCVARCPSGVKPDLSYMPIWKFPDEEGACQPCPINCTHSCVDLDDKGCPAEQRASPLTSIISAVVGILLVVVLGVVFGILIKRRQQKIRKYTMRRLLQETELVEPLTPSGAMPNQAQMRILKETELRKVKVLGSGAFGTVYKGIWIPDGENVKIPVAIKVLRENTSPKANKEILDEAYVMAGVGSPYVSRLLGISLTSTVQLVTQLMPYGSLLDHVRENRGRLGSQDLLNWCMQIAKGMSYLEDVRLVHRDLAARNVLVKSPNHVKITDFGLARLLDIDETEYHADGGKVPIKWMALESILRRRFTHQSDVWSYGVTVWELMTFGAKPYDGIPAREIPDLLEKGERLPQPPICTIDVYMIMVKCWMIDSESRPRFRELVSEFSRMARDPQRFVVIQNEDLGPASPLDSTFYRSLLEDDDMGDLVDAEEYLVPQQGLEVLFQGPGSMSKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATNGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKRHDFFKSAMPEGYVQERTISFKDDGTYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNFNSHNVYITADKQKNGIKANFKIRHNVEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSVLSKDPNEKRDHMVLLEFVTAAGITHGMDELYK

Source

organism	Aequorea victoria
ncbi_taxonomy_id	6100
host_organism	Spodoptera frugiperda

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.80 Å
resolution_method	—
num_particles	91370

fit	/app/data/saxs_computation/qb/9qbf/9qbf.fit
pddf	/app/data/pr_computation/qb/9qbf/9qbf.pr.out
profile	/app/data/saxs_computation/qb/9qbf/9qbf.dat
