9gu0

Human adult muscle nAChR in resting state in detergent with alpha-bungarotoxin

Method: ELECTRON MICROSCOPY D_max: 197.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9gu0
沉积日期 deposition_date	2024-09-18
最后修订 last_revision	2025-05-14
结构标题 title	Human adult muscle nAChR in resting state in detergent with alpha-bungarotoxin
关键词 keywords	Ligand-gated ion channel, nicotinic receptor, pLGIC, cys-loop receptor, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	56.31 Å
回转半径 Rg (电子) rg_electron	55.82 Å
零角强度 I(0) i0	1442550000.00
分子量 molecular_weight	324390.0 kDa
排除体积 excluded_volume	408920 Å³
包络体积 envelope_volume	593020 Å³
水化壳体积 shell_volume	93841 Å³
包络直径 envelope_diameter	215.4 Å
壳层 Rg shell_rg	52.47 Å
包络 Rg envelope_rg	57.33 Å
形状 Rg shape_rg	55.86 Å
总 Rg total_rg	55.58 Å
总原子数 total_atoms	22876
残基数 n_residues	2956
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

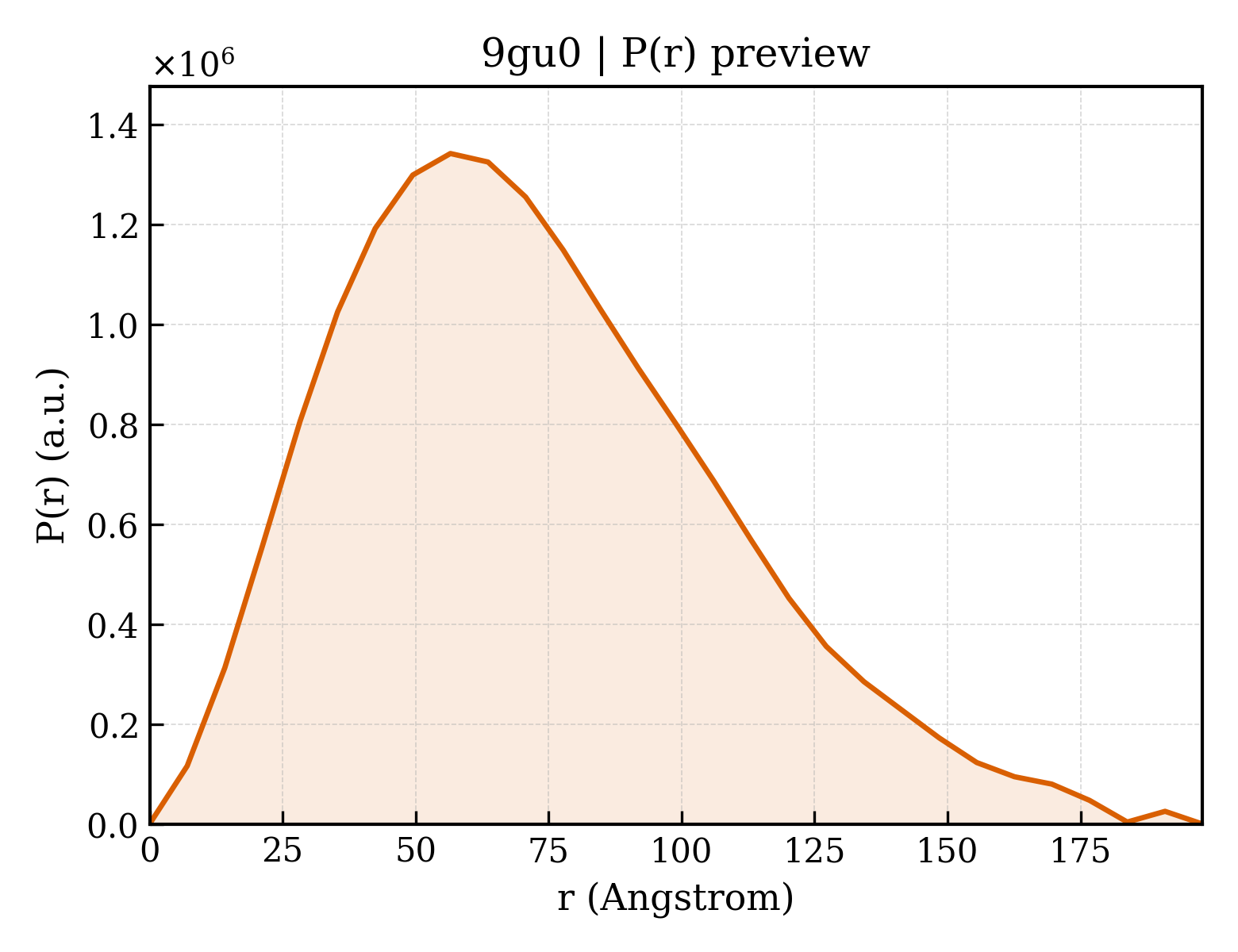

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	197.9 Å
Rg (实空间) rg_real	56.70 Å
Rg 误差 (实空间) rg_real_error	2.44 Å
I(0) (实空间) i0_real	1.4430e+09
I(0) 误差 (实空间) i0_real_error	3.0260e+07
Rg (倒空间) rg_reciprocal	55.98 Å
I(0) (倒空间) i0_reciprocal	1441000000.0000
解质量估计 total_estimate	0.8336
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	56.5 Å
偏度 Skewness skewness	0.575
峰度 Kurtosis kurtosis	-0.024
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	128300000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.766; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.574

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (13)

Entity 1 polymer

描述 description	Acetylcholine receptor subunit alpha
分子量 formula_weight	49747.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,L
原子数 atom_count	22876

SEHETRLVAKLFKDYSSVVRPVEDHRQVVEVTVGLQLIQLINVDEVNQIVTTNVRLKQQWVDYNLKWNPDDYGGVKKIHIPSEKIWRPDLVLYNNADGDFAIVKFTKVLLQYTGHITWTPPAIFKSYCEIIVTHFPFDEQNCSMKLGTWTYDGSVVAINPESDQPDLSNFMESGEWVIKESRGWKHSVTYSCCPDTPYLDITYHFVMQRLPLYFIVNVIIPCLLFSFLTGLVFYLPTDSGEKMTLSISVLLSLTVFLLVIVELIPSTSSAVPLIGKYMLFTMVFVIASIIITVIVINTHHRSPSTHVMPNWVRKVFIDTIPNIMFFSTMKRPSREKQDKKIFTEDIDISDISGKPGPPPMGFHSPLIKHPEVKSAIEGIKYIAETMKSDQESNNAAAEWKYVAMVMDHILLGVFMLVCIIGTLAVFAGRLIELNQQG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Acetylcholine receptor subunit beta
分子量 formula_weight	54596.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

SEAEGRLREKLFSGYDSSVRPAREVGDRVRVSVGLILAQLISLNEKDEEMSTKVYLDLEWTDYRLSWDPAEHDGIDSLRITAESVWLPDVVLLNNNDGNFDVALDISVVVSSDGSVRWQPPGIYRSSCSIQVTYFPFDWQNCTMVFSSYSYDSSEVSLQTGLGPDGQGHQEIHIHEGTFIENGQWEIIHKPSRLIQPPGDPRGGREGQRQEVIFYLIIRRKPLFYLVNVIAPCILITLLAIFVFYLPPDAGEKMGLSIFALLTLTVFLLLLADKVPETSLSVPIIIKYLMFTMVLVTFSVILSVVVLNLHHRSPHTHQMPLWVRQIFIHKLPLYLRLKRPKPERDLMPEPPHCSSPGSGWGRGTDEYFIRKPPSDFLFPKPNRFQPELSAPDLRRFIDGPNRAVALLPELREVVSSISYIARQLQEQEDHDALKEDWQFVAMVVDRLFLWTFIIFTSVGTLVIFLDATYHLPPPDPFP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	Fab35 light chain
分子量 formula_weight	23393.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,G

DIVITQSPSLLSASVGDRVTLTCKGSQNIDNYLAWYQQKLGEAPKLLIYKTNSLQTGIPSRFSGSGSGTDYTLTISSLHSEDLATYYCYQYINGYTFGTGTKLELKRADAAPTVSIFPPSTEQLATGGASVVCLMNNFYPRDISVKWKIDGTERRDGVLDSVTDQDSKDSTYSMSSTLSLTKADYESHNLYTCEVVHKTSSSPVVKSFNRNEC

来源 Source

来源生物 organism	Rattus norvegicus
NCBI 分类编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Rattus norvegicus

Entity 4 polymer

描述 description	Acetylcholine receptor subunit delta
分子量 formula_weight	56915.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

LNEEERLIRHLFQEKGYNKELRPVAHKEESVDVALALTLSNLISLKEVEETLTTNVWIEHGWTDNRLKWNAEEFGNISVLRLPPDMVWLPEIVLENNNDGSFQISYSCNVLVYHYGFVYWLPPAIFRSSCPISVTYFPFDWQNCSLKFSSLKYTAKEITLSLKQDAKENRTYPVEWIIIDPEGFTENGEWEIVHRPARVNVDPRAPLDSPSRQDITFYLIIRRKPLFYIINILVPCVLISFMVNLVFYLPADSGEKTSVAISVLLAQSVFLLLISKRLPATSMAIPLIGKFLLFGMVLVTMVVVICVIVLNIHFRTPSTHVLSEGVKKLFLETLPELLHMSRPAEDGPSPGALVRRSSSLGYISKAEEYFLLKSRSDLMFEKQSERHGLARRLTTARRPPASSEQAQQELFNELKPAVDGANFIVNHMRDQNNYNEEKDSWNRVARTVDRLCLFVVTPVMVVGTAWIFLQGVYNQPPPQPFPGDPYSYNVQDKRFI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 polymer

描述 description	Acetylcholine receptor subunit epsilon,Green fluorescent protein
分子量 formula_weight	80603.8 kDa
突变 mutation	EGFP insertion between residues R344 and A345 in the M3-M4 intracellular loop
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

KNEELRLYHHLFNNYDPGSRPVREPEDTVTISLKVTLTNLISLNEKEETLTTSVWIGIDWQDYRLNYSKDDFGGIETLRVPSELVWLPEIVLENNIDGQFGVAYDANVLVYEGGSVTWLPPAIYRSVCAVEVTYFPFDWQNCSLIFRSQTYNAEEVEFTFAVDNDGKTINKIDIDTEAYTENGEWAIDFCPGVIRRHHGGATDGPGETDVIYSLIIRRKPLFYVINIIVPCVLISGLVLLAYFLPAQAGGQKCTVSINVLLAQTVFLFLIAQKIPETSLSVPLLGRFLIFVMVVATLIVMNCVIVLNVSQRTPTTHAMSPRLRHVLLELLPRLLGSPPPPEAPRAPPVATMVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLEFVTAAGITLGMDELYKAPRAASPPRRASSVGLLLRAEELILKKPRSELVFEGQRHRQGTWTAAFCQSLGAAAPEVRCCVDAVNFVAESTRDQEATGEEVSDWVRMGNALDNICFWAALVLFSVGSSLIFLGAYFNRVPDLPYAPCIQP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 6 polymer

描述 description	Fab35 heavy chain
分子量 formula_weight	23879.8 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,H

EVQLQESGPGLVQPSETLSLTCTVSGFSLTSYSVSWLRQPSGKGPEWMGRMWDDGGTVYNSGLKSRLSISRDTSKNQVFLKMNSLQTDDTGTYYCTRDERIRAINWFAYWGQGTLVTVSSAETTAPSVYPLAPGTALKSNSMVTLGCLVKGYFPEPVTVTWNSGALSSGVHTFPAVLQSGLYTLTSSVTVPSSTWPSQTVTCNVAHPGQQHQRWTRKLC

来源 Source

来源生物 organism	Rattus norvegicus
NCBI 分类编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Rattus norvegicus

Entity 7 polymer

描述 description	Alpha-bungarotoxin
分子量 formula_weight	8005.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,I

IVCHTTATSPISAVTCPPGENLCYRKMWCDAFCSSRGKVVELGCAATCPSKKPYEEVTCCSTDKCNPHPKQRPG

Entity 8 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1235.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 9 branched

描述 description	;alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 10 branched

描述 description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1276.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 11 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 12 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 13 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	2.96 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	31022

fit	/app/data/saxs_computation/gu/9gu0/9gu0.fit
pddf	/app/data/pr_computation/gu/9gu0/9gu0.pr.out
profile	/app/data/saxs_computation/gu/9gu0/9gu0.dat
