SAXSdb — 9v81

▼

1. Structure Basics

entry_id	9v81
deposition_date	2025-05-29
title	cryoEM structure of HEP-50768-bound MRGPRX4-Gq complex
keywords	signal transduction, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	35.79 Å
rg_electron	35.53 Å
i0	392111000.00
molecular_weight	107610.0 kDa
excluded_volume	104320 Å³
envelope_volume	180350 Å³
shell_volume	43343 Å³
envelope_diameter	113.6 Å
shell_rg	40.61 Å
envelope_rg	35.58 Å
shape_rg	35.54 Å
total_rg	35.76 Å
total_atoms	8139
n_residues	1085
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	115.0 Å
rg_real	35.71 Å
rg_real_error	0.84 Å
i0_real	3.9210e+08
i0_real_error	6.4770e+06
rg_reciprocal	35.76 Å
i0_reciprocal	392100000.0000
total_estimate	0.9008
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	49.7 Å
skewness	0.152
kurtosis	-0.657
angular_range	— – 0.2200 Å⁻¹
current_alpha	0.0000
highest_alpha	27650000.0000
n_real_points	45
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.934; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.919

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Gs-mini-Gq chimera
formula_weight	28084.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B
atom_count	8139

MGSTVSAEDKAAAERSKMIDKNLREDGEKARRTLRLLLLGADNSGKSTIVKQMRILHGGSGGSGGTSGIFETKFQVDKVNFHMFDVGGQRDERRKWIQCFNDVTAIIFVVDSSDYNRLQEALNDFKSIWNNRWLRTISVILFLNKQDLLAEKVLAGKSKIEDYFPEFARYTTPEDATPEPGEDPRVTRAKYFIRKEFVDISTASGDGRHICYPHFTCAVDTENARRIFNDCKDIILQMNLREYNLV

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
formula_weight	39418.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MHHHHHHLEVLFQGPGSSGSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 3 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
formula_weight	7861.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 4 polymer

description	scFv16
formula_weight	28668.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

DVQLVESGGGLVQPGGSRKLSCSASGFAFSSFGMHWVRQAPEKGLEWVAYISSGSGTIYYADTVKGRFTISRDDPKNTLFLQMTSLRSEDTAMYYCVRSIYYYGSSPFDFWGQGTTLTVSSGGGGSGGGGSGGGGSDIVMTQATSSVPVTPGESVSISCRSSKSLLHSNGNTYLYWFLQRPGQSPQLLIYRMSNLASGVPDRFSGSGSGTAFTLTISRLEAEDVGVYYCMQHLEYPLTFGAGTKLELKAAALEVLFQGPHHHHHHHH

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Spodoptera frugiperda

Entity 5 polymer

description	Soluble cytochrome b562,Mas-related G-protein coupled receptor member X4
formula_weight	53396.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R

DYKDDDDAKLQTMHHHHHHHHHHENLYFQGGTTMADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLGSTLEVLFQGPDPTVPVFGTKLTPINGREETPCYNQTLSFTVLTCIISLVGLTGNAVVLWLLGYRMRRNAVSIYILNLAAADFLFLSFQIIRSPLRLINISHLIRKILVSVMTFPYFTGLSMLSAISTERCLSVLWPIWYRCRRPTHLSAVVCVLLWGLSLLFSMLEWRFCDFLFSGADSSWCETSDFIPVAWLIFLCVVLCVSSLVLLVRILCGSRKMPLTRLYVTILLTVLVFLLCGLPFGILGALIYRMHLNLEVLYCHVYLVCMSLSSLNSSANPIIYFFVGSFRQRQNRQNLKLVLQRALQDKPEVDKGEGQLPEESLELSGSRLGP

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 6 non-polymer

description	5-[2-fluoranyl-3-[(2S)-5-(trifluoromethyl)-2,3-dihydro-1-benzofuran-2-yl]phenyl]-1H-1,2,3,4-tetrazole
formula_weight	350.3 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.63 Å
resolution_method	—
num_particles	244199

fit	/app/data/saxs_computation/v8/9v81/9v81.fit
pddf	/app/data/pr_computation/v8/9v81/9v81.pr.out
profile	/app/data/saxs_computation/v8/9v81/9v81.dat

cryoEM structure of HEP-50768-bound MRGPRX4-Gq complex

SAXS Profile

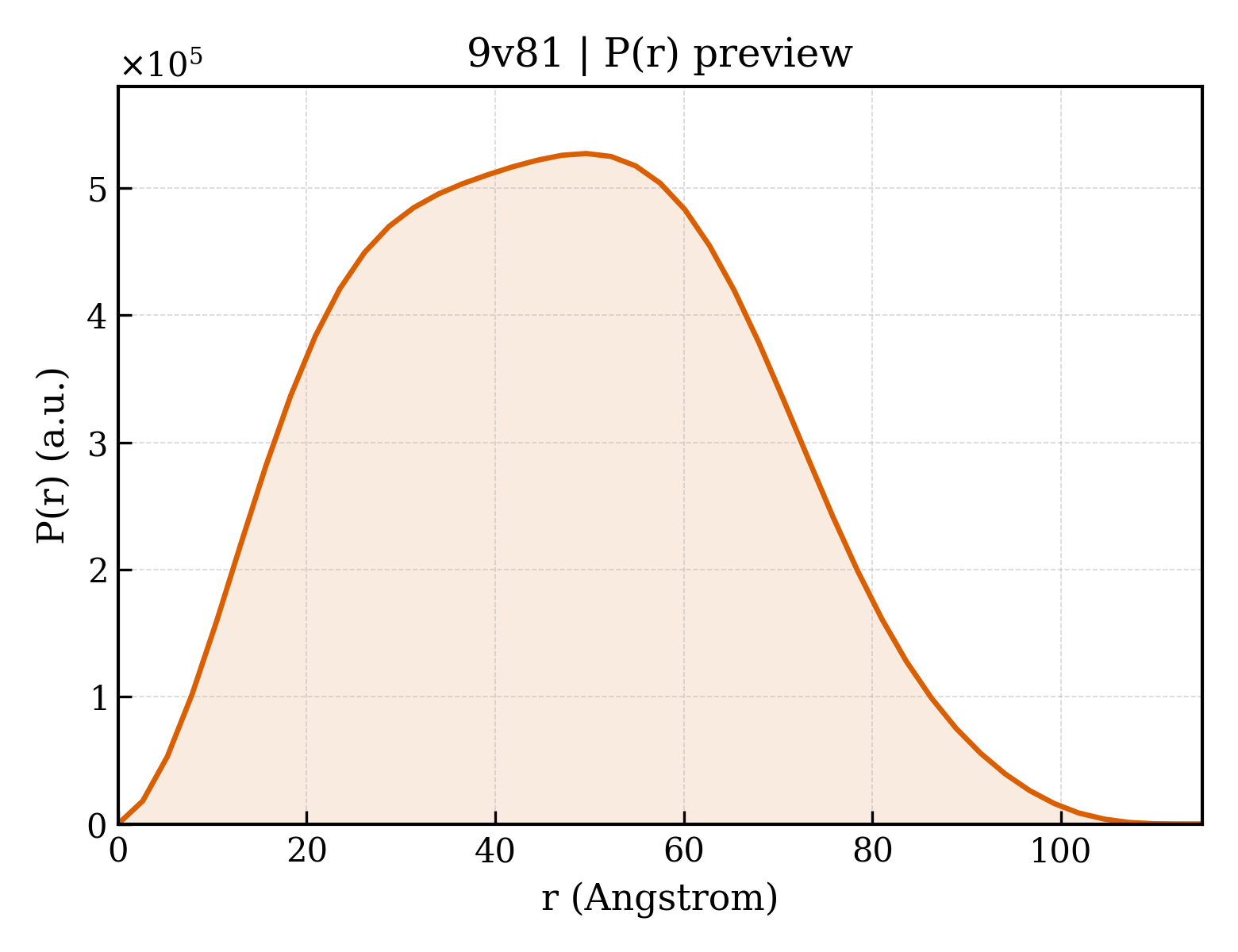

P(r) Distribution
