SAXSdb — 9lrs

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Soluble cytochrome b562,Mas-related G-protein coupled receptor member X4

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Gs-mini-Gq chimera × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） scFv16 × 1 4-[7-methyl-2,6-bis(oxidanylidene)-1-prop-2-ynyl-8-[2-[3-(trifluoromethyl)phenyl]ethyl]purin-3-yl]butylphosphonic acid × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C562_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain R； PDBConstruct 35–139； UniProt 23–127

Soluble cytochrome b562,Mas-related G-protein coupled receptor member X4

Homo sapiens

UniProt Q96LA9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Gs-mini-Gq chimera × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） scFv16 × 1 4-[7-methyl-2,6-bis(oxidanylidene)-1-prop-2-ynyl-8-[2-[3-(trifluoromethyl)phenyl]ethyl]purin-3-yl]butylphosphonic acid × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MRGX4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain R； PDBConstruct 152–472； UniProt 2–322

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Homo sapiens

UniProt P62873

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Soluble cytochrome b562,Mas-related G-protein coupled receptor member X4 × 1 （P0ABE7,Q96LA9） Gs-mini-Gq chimera × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） scFv16 × 1 4-[7-methyl-2,6-bis(oxidanylidene)-1-prop-2-ynyl-8-[2-[3-(trifluoromethyl)phenyl]ethyl]purin-3-yl]butylphosphonic acid × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 20–358； UniProt 2–340

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

Homo sapiens

UniProt P59768

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Soluble cytochrome b562,Mas-related G-protein coupled receptor member X4 × 1 （P0ABE7,Q96LA9） Gs-mini-Gq chimera × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） scFv16 × 1 4-[7-methyl-2,6-bis(oxidanylidene)-1-prop-2-ynyl-8-[2-[3-(trifluoromethyl)phenyl]ethyl]purin-3-yl]butylphosphonic acid × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBG2_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–71； UniProt 1–71

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9lrs
Deposition date deposition_date	2025-02-01
Structure title title	The structure of MRGPRX4 with PSB-18061
Keywords keywords	GPCR-G protein complex with a new ligand, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9lrs__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9lrs__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

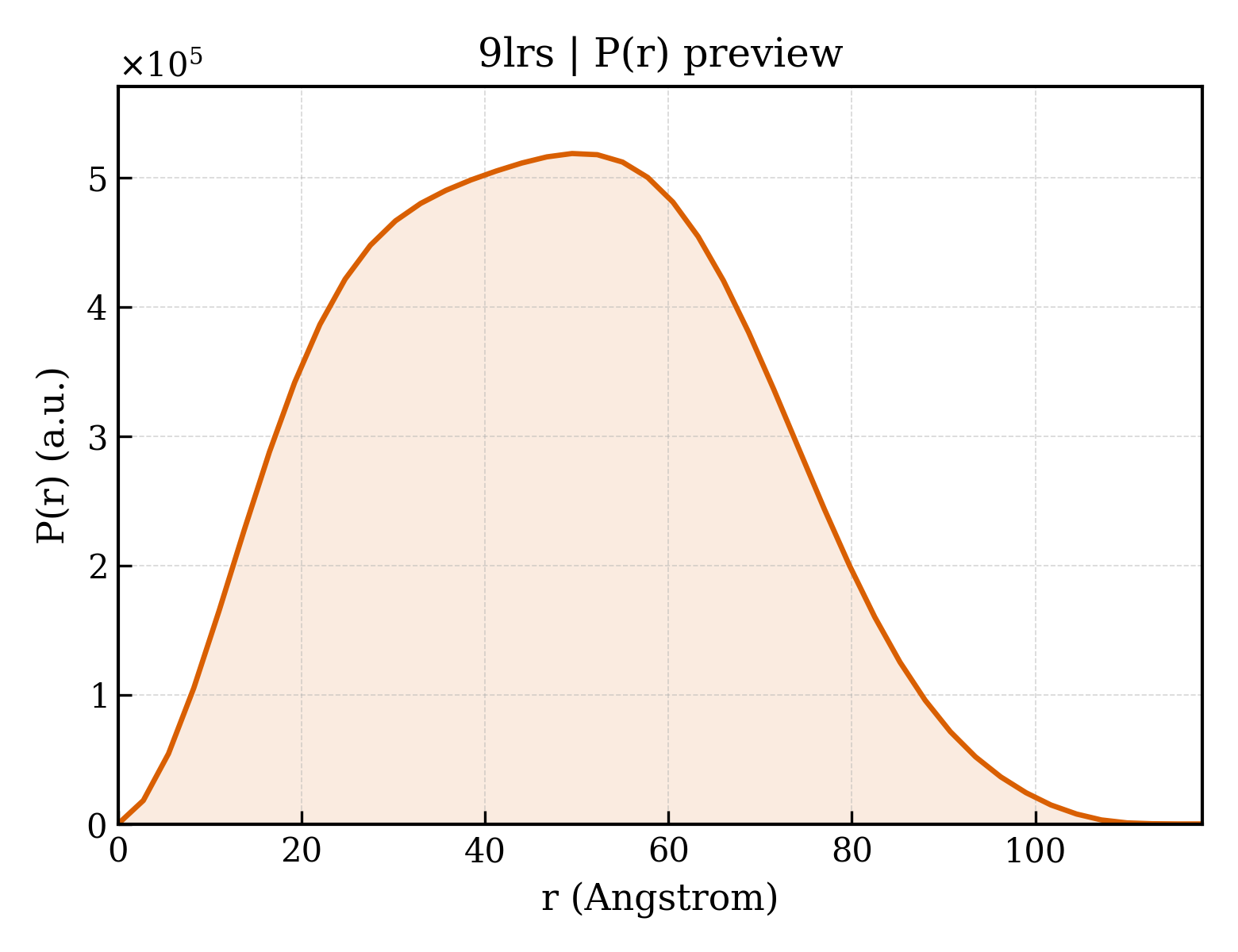

9lrs__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.46 Å
Rg (electron density)	36.25 Å
Total Rg	36.53 Å
Atom count	8137
Residues	1089
Excluded volume	144880 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9lrs__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Soluble cytochrome b562,Mas-related G-protein coupled receptor member X4
Molecular weight formula_weight	53396.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R
Atom count atom_count	8137

DYKDDDDAKLQTMHHHHHHHHHHENLYFQGGTTMADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLGSTLEVLFQGPDPTVPVFGTKLTPINGREETPCYNQTLSFTVLTCIISLVGLTGNAVVLWLLGYRMRRNAVSIYILNLAAADFLFLSFQIIRSPLRLINISHLIRKILVSVMTFPYFTGLSMLSAISTERCLSVLWPIWYRCRRPTHLSAVVCVLLWGLSLLFSMLEWRFCDFLFSGADSSWCETSDFIPVAWLIFLCVVLCVSSLVLLVRILCGSRKMPLTRLYVTILLTVLVFLLCGLPFGILGALIYRMHLNLEVLYCHVYLVCMSLSSLNSSANPIIYFFVGSFRQRQNRQNLKLVLQRALQDKPEVDKGEGQLPEESLELSGSRLGP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Gs-mini-Gq chimera
Molecular weight formula_weight	28084.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MGSTVSAEDKAAAERSKMIDKNLREDGEKARRTLRLLLLGADNSGKSTIVKQMRILHGGSGGSGGTSGIFETKFQVDKVNFHMFDVGGQRDERRKWIQCFNDVTAIIFVVDSSDYNRLQEALNDFKSIWNNRWLRTISVILFLNKQDLLAEKVLAGKSKIEDYFPEFARYTTPEDATPEPGEDPRVTRAKYFIRKEFVDISTASGDGRHICYPHFTCAVDTENARRIFNDCKDIILQMNLREYNLV

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	39418.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MHHHHHHLEVLFQGPGSSGSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Molecular weight formula_weight	7861.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 polymer

Description description	scFv16
Molecular weight formula_weight	28668.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

DVQLVESGGGLVQPGGSRKLSCSASGFAFSSFGMHWVRQAPEKGLEWVAYISSGSGTIYYADTVKGRFTISRDDPKNTLFLQMTSLRSEDTAMYYCVRSIYYYGSSPFDFWGQGTTLTVSSGGGGSGGGGSGGGGSDIVMTQATSSVPVTPGESVSISCRSSKSLLHSNGNTYLYWFLQRPGQSPQLLIYRMSNLASGVPDRFSGSGSGTAFTLTISRLEAEDVGVYYCMQHLEYPLTFGAGTKLELKAAALEVLFQGPHHHHHHHH

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Spodoptera frugiperda

Entity 6 Entity 6 non-polymer

Description description	4-[7-methyl-2,6-bis(oxidanylidene)-1-prop-2-ynyl-8-[2-[3-(trifluoromethyl)phenyl]ethyl]purin-3-yl]butylphosphonic acid
Molecular weight formula_weight	512.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.83 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	489757

The structure of MRGPRX4 with PSB-18061
