9ppm
Mn-bound structure of the H77C variant of TriCyt2

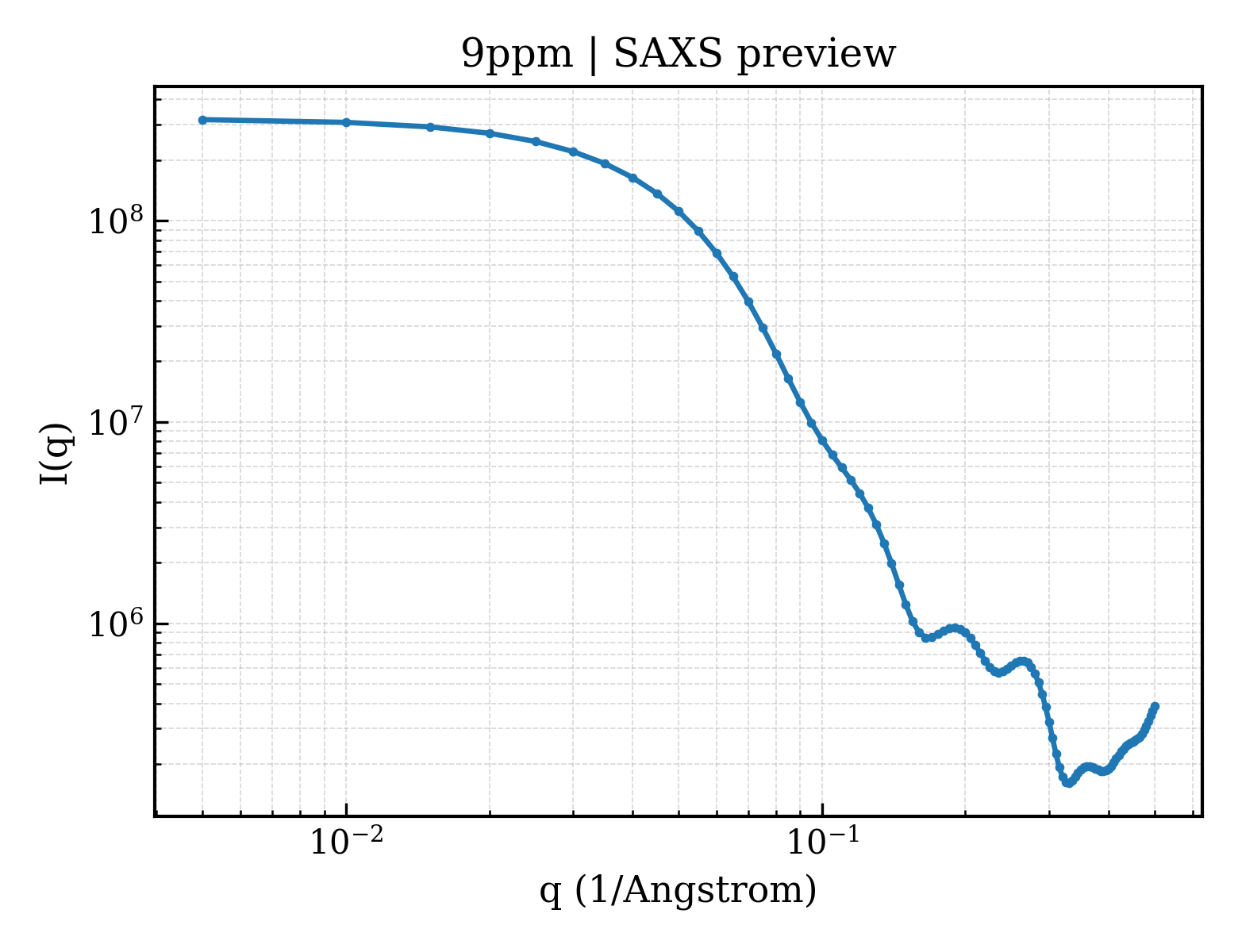

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9ppm |
| deposition_date | 2025-07-21 |
| last_revision | 2025-10-22 |
| title | Mn-bound structure of the H77C variant of TriCyt2 |
| keywords | Manganese-binding protein, assembly, METAL BINDING PROTEIN; METAL BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 35.32 Å |
| rg_electron | 34.58 Å |
| i0 | 320845000.00 |
| molecular_weight | 142560.0 kDa |
| excluded_volume | 177740 ų |
| envelope_volume | 235120 ų |
| shell_volume | 55149 ų |
| envelope_diameter | 115.9 Å |
| shell_rg | 42.59 Å |
| envelope_rg | 34.23 Å |
| shape_rg | 34.57 Å |
| total_rg | 35.17 Å |
| total_atoms | 10001 |
| n_residues | 1272 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 114.0 Å |
| rg_real | 35.18 Å |
| rg_real_error | 0.88 Å |
| i0_real | 3.2080e+08 |
| i0_real_error | 5.2780e+06 |
| rg_reciprocal | 35.27 Å |
| i0_reciprocal | 320900000.0000 |
| total_estimate | 0.8959 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 40.5 Å |
| skewness | 0.198 |
| kurtosis | -0.528 |
| angular_range | — – 0.2250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 82180000.0000 |
| n_real_points | 46 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.900; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.946 |
