SAXSdb — 8drk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Volume-regulated anion channel subunit LRRC8A,Soluble cytochrome b562

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	Volume-regulated anion channel subunit LRRC8C × 1 （Q8R502） 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 21 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C562_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 77–181； UniProt 23–127 Author chain B； PDBConstruct 77–181； UniProt 23–127 Author chain C； PDBConstruct 77–181； UniProt 23–127 Author chain D； PDBConstruct 77–181； UniProt 23–127 Author chain E； PDBConstruct 77–181； UniProt 23–127

Volume-regulated anion channel subunit LRRC8A,Soluble cytochrome b562

Mus musculus

UniProt Q80WG5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	Volume-regulated anion channel subunit LRRC8C × 1 （Q8R502） 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 21 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LRC8A_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–71； UniProt 1–71 Author chain A； PDBConstruct 183–902； UniProt 91–810 Author chain B； PDBConstruct 1–71； UniProt 1–71 Author chain B； PDBConstruct 183–902； UniProt 91–810 Author chain C； PDBConstruct 1–71； UniProt 1–71 Author chain C； PDBConstruct 183–902； UniProt 91–810 Author chain D； PDBConstruct 1–71； UniProt 1–71 Author chain D； PDBConstruct 183–902； UniProt 91–810 Author chain E； PDBConstruct 1–71； UniProt 1–71 Author chain E； PDBConstruct 183–902； UniProt 91–810

Volume-regulated anion channel subunit LRRC8C

Mus musculus

UniProt Q8R502

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	Volume-regulated anion channel subunit LRRC8A,Soluble cytochrome b562 × 5 （P0ABE7,Q80WG5） 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 21 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LRC8C_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain F； PDBConstruct 1–803； UniProt 1–803

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8drk
Deposition date deposition_date	2022-07-21
Structure title title	LRRC8A:C conformation 1 (round) top focus
Keywords keywords	ION CHANNEL, VOLUME-REGULATION, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8drk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

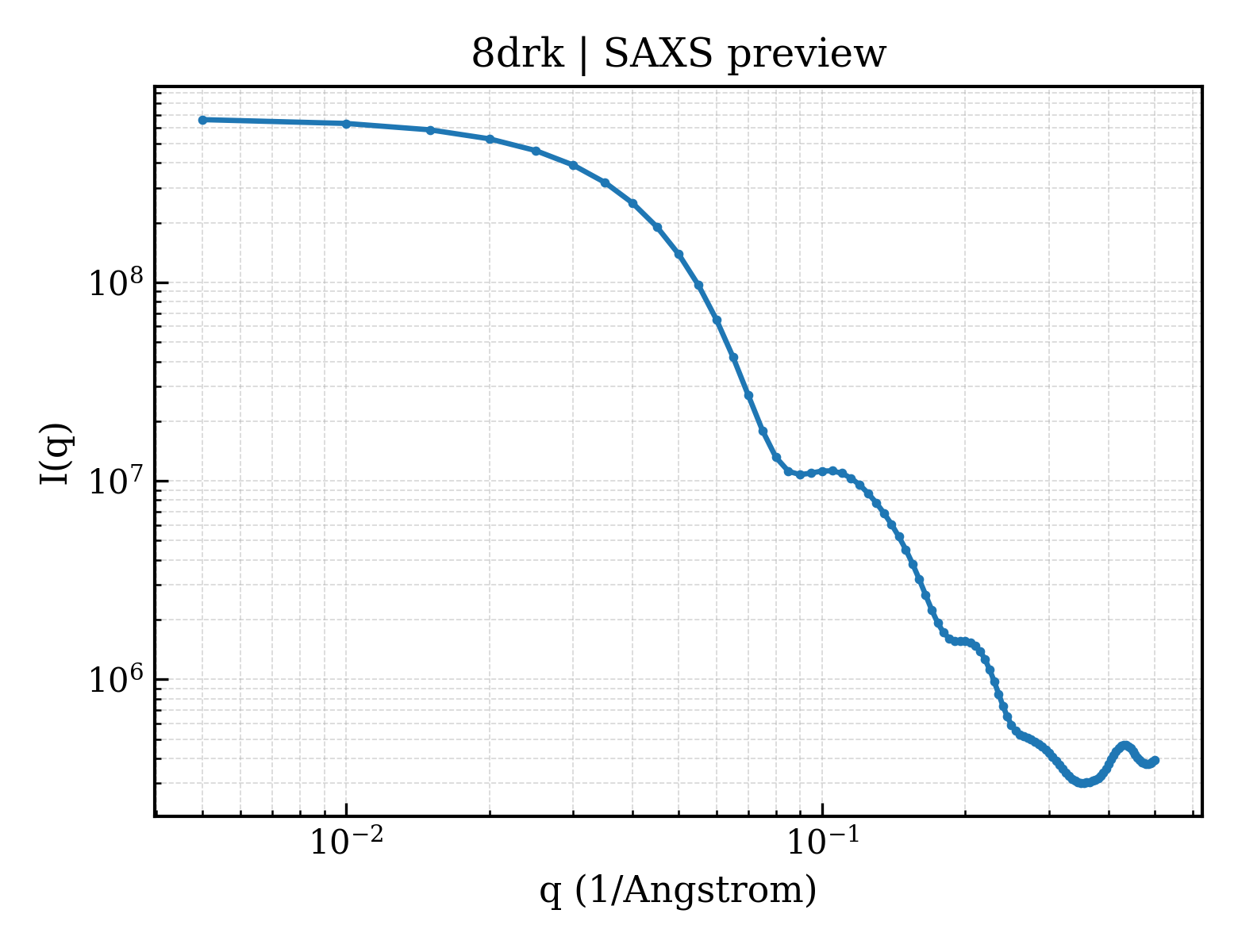

8drk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

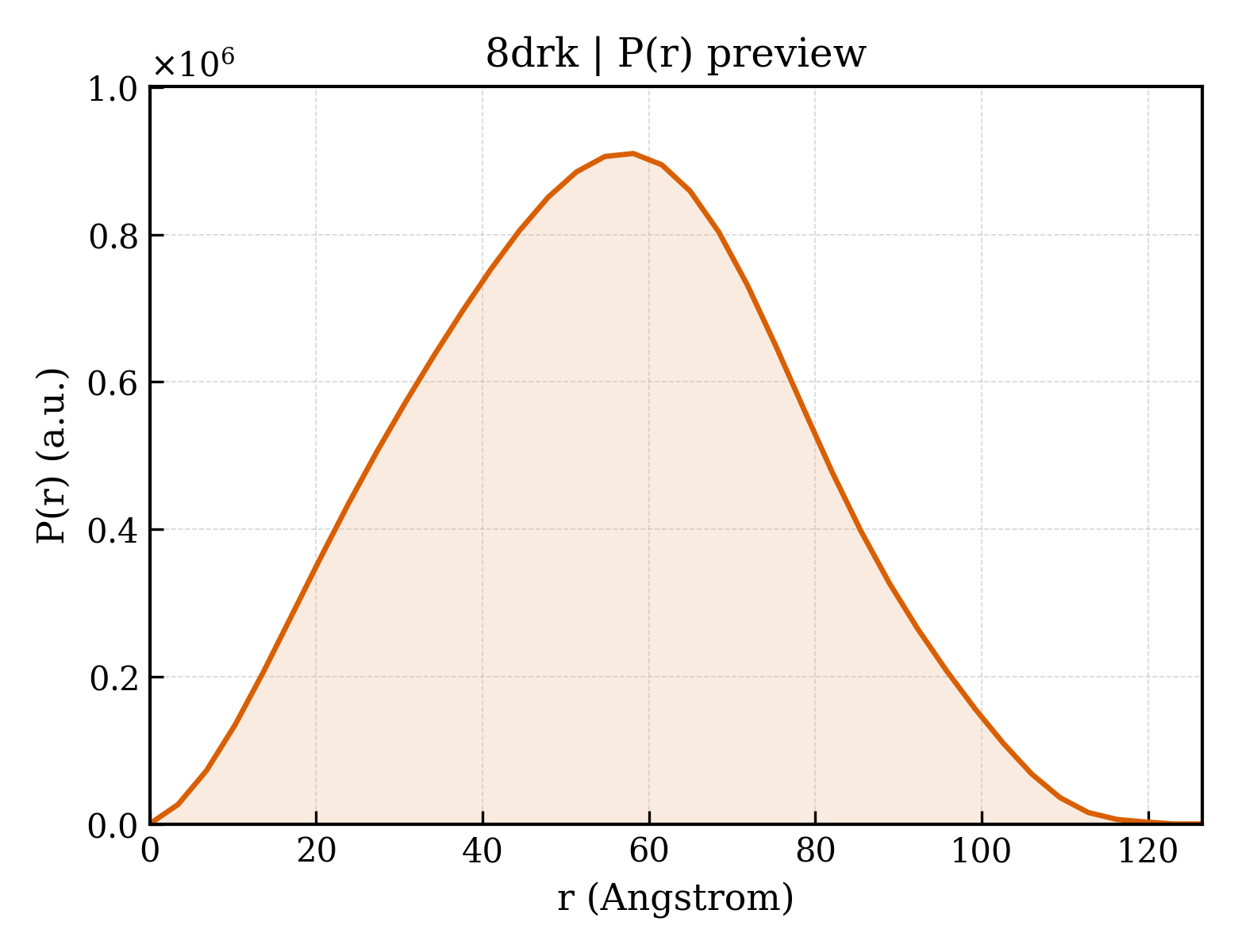

8drk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.17 Å
Rg (electron density)	40.27 Å
Total Rg	40.78 Å
Atom count	16437
Residues	1901
Excluded volume	299960 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8drk__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Volume-regulated anion channel subunit LRRC8A,Soluble cytochrome b562
Molecular weight formula_weight	105530.1 kDa
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E
Atom count atom_count	16443

MIPVTELRYFADTQPAYRILKPWWDVFTDYISIVMLMIAVFGGTLQVTQDKMICLPCKWVTKDSCNDSFRGWAASSADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLDTGPTGIKYDLDRHQYNYVDAVCYENRLHWFAKYFPYLVLLHTLIFLACSNFWFKFPRTSSKLEHFVSILLKCFDSPWTTRALSETVVEESDPKPAFSKMNGSMDKKSSTVSEDVEATVPMLQRTKSRIEQGIVDRSETGVLDKKEGEQAKALFEKVKKFRTHVEEGDIVYRLYMRQTIIKVIKFALIICYTVYYVHNIKFDVDCTVDIESLTGYRTYRCAHPLATLFKILASFYISLVIFYGLICMYTLWWMLRRSLKKYSFESIREESSYSDIPDVKNDFAFMLHLIDQYDPLYSKRFAVFLSEVSENKLRQLNLNNEWTLDKLRQRLTKNAQDKLELHLFMLSGIPDTVFDLVELEVLKLELIPDVTIPPSIAQLTGLKELWLYHTAAKIEAPALAFLRENLRALHIKFTDIKEIPLWIYSLKTLEELHLTGNLSAENNRYIVIDGLRELKRLKVLRLKSNLSKLPQVVTDVGVHLQKLSINNEGTKLIVLNSLKKMVNLTELELIRCDLERIPHSIFSLHNLQEIDLKDNNLKTIEEIISFQHLHRLTCLKLWYNHIAYIPIQIGNLTNLERLYLNRNKIEKIPTQLFYCRKLRYLDLSHNNLTFLPADIGLLQNLQNLAVTANRIEALPPELFQCRKLRALHLGNNVLQSLPSRVGELTNLTQIELRGNRLECLPVELGECPLLKRSGLVVEEDLFSTLPPEVKERLWRADKEQASNSLEVLFQ

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Volume-regulated anion channel subunit LRRC8C
Molecular weight formula_weight	93624.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MIPVTEFRQFSEQQPAFRVLKPWWDVFTDYLSVAMLMIGVFGCTLQVMQDKIICLPKRVQPAQNHSSVPNVSQAVISTTPLPPPKPSPTNPATVEMKGLKTDLDLQQYSFINQMCYERALHWYAKYFPYLVLIHTLVFMLCSNFWFKFPGSSSKIEHFISILGKCFDSPWTTRALSEVSGEDSEEKDNRKNNMNRSGTIQSGPEGNLVRSQSLKSIPEKFVVDKSAAGALDKKEGEQAKALFEKVKKFRLHVEEGDILYAMYVRQTVLKVIKFLIIIAYNSALVSKVQFTVDCNVDIQDMTGYKNFSCNHTMAHLFSKLSFCYLCFVSIYGLTCLYTLYWLFYRSLREYSFEYVRQETGIDDIPDVKNDFAFMLHMIDQYDPLYSKRFAVFLSEVSENKLKQLNLNNEWTPDKLRQKLQTNAHNRLELPLIMLSGLPDTVFEITELQSLKLEIIKNVMIPATIAQLDNLQELCLHQCSVKIHSAALSFLKENLKVLSVKFDDMRELPPWMYGLRNLEELYLVGSLSHDISKNVTLESLRDLKSLKILSIKSNVSKIPQAVVDVSSHLQKMCVHNDGTKLVMLNNLKKMTNLTELELVHCDLERIPHAVFSLLSLQELDLKENNLKSIEEIVSFQHLRKLTVLKLWYNSIAYIPEHIKKLTSLERLFFSHNKVEVLPSHLFLCNKIRYLDLSYNDIRFIPPEIGVLQSLQYFSITCNKVESLPDELYFCKKLKTLKIGKNSLSVLSPKIGNLLFLSYLDIKGNHFEVLPPELGDCRALKRAGLVVEDALFETLPSDVREQMKADSNSENLYFQG

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 non-polymer

Description description	1,2-dioleoyl-sn-glycero-3-phosphoethanolamine
Molecular weight formula_weight	744.0 kDa
Source method src_method	syn
Copy count entity_count	21

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	6

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.95 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	110018
