Crystal structure of orphan G protein-coupled receptor 6 with bound CVN424

Method: X-RAY DIFFRACTION D_max: 96.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

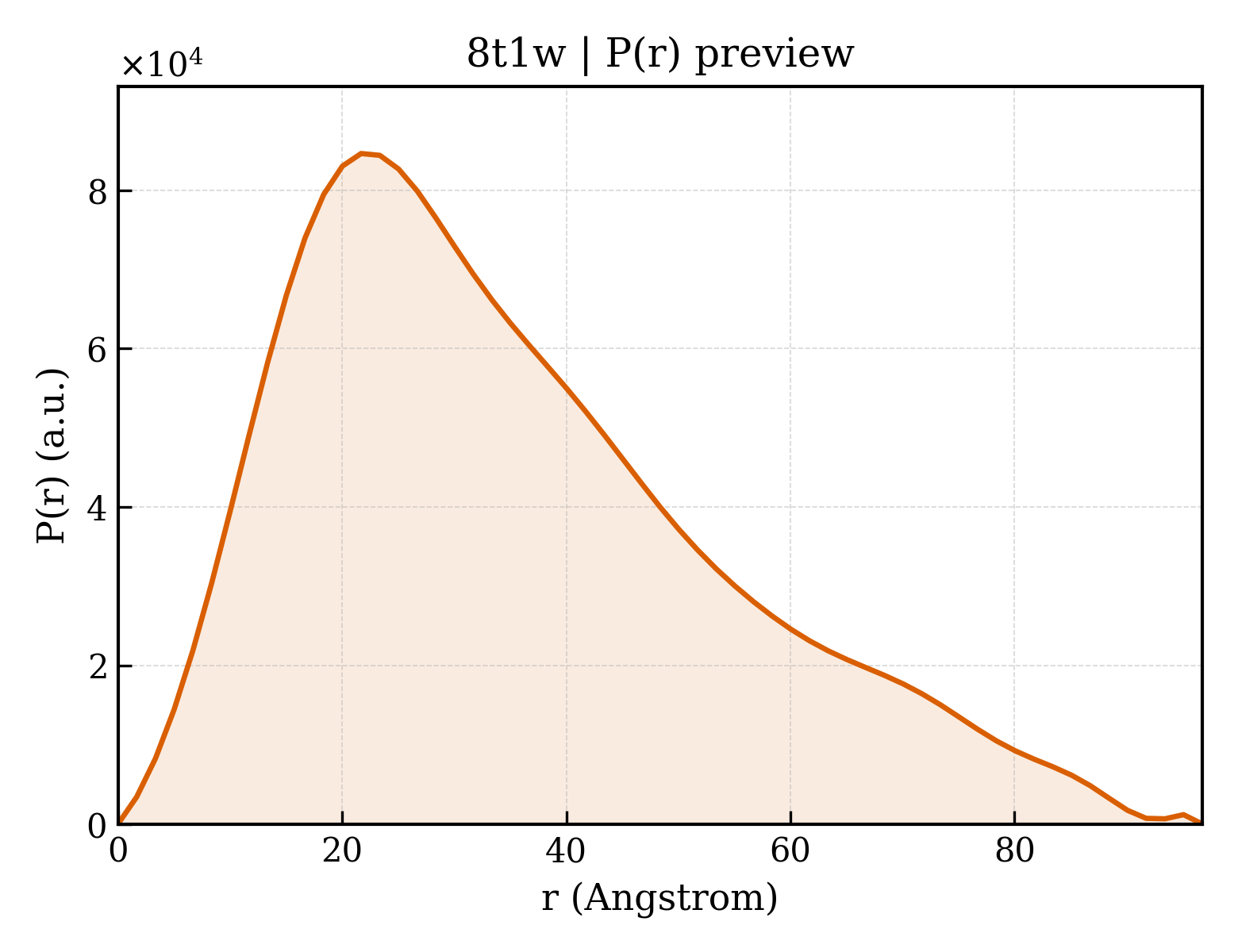

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8t1w
沉积日期 deposition_date	2023-06-04
结构标题 title	Crystal structure of orphan G protein-coupled receptor 6 with bound CVN424
关键词 keywords	Orphan GPCR, GPR6, BRIL, CVN424, inverse agonist, LCP, synchrotron, APS, membrane protein; MEMBRANE PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.46 Å
回转半径 Rg (电子) rg_electron	27.44 Å
零角强度 I(0) i0	43120600.00
分子量 molecular_weight	34870.0 kDa
排除体积 excluded_volume	34124 Å³
包络体积 envelope_volume	59243 Å³
水化壳体积 shell_volume	20776 Å³
包络直径 envelope_diameter	101.7 Å
壳层 Rg shell_rg	30.42 Å
包络 Rg envelope_rg	28.06 Å
形状 Rg shape_rg	27.39 Å
总 Rg total_rg	27.78 Å
总原子数 total_atoms	2651
残基数 n_residues	357
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	96.8 Å
Rg (实空间) rg_real	28.01 Å
Rg 误差 (实空间) rg_real_error	0.87 Å
I(0) (实空间) i0_real	4.3120e+07
I(0) 误差 (实空间) i0_real_error	6.7070e+05
Rg (倒空间) rg_reciprocal	27.84 Å
I(0) (倒空间) i0_reciprocal	43120000.0000
解质量估计 total_estimate	0.7511
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	21.7 Å
偏度 Skewness skewness	0.704
峰度 Kurtosis kurtosis	-0.127
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6665000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.542; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.437; Smooth: 0.697

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	G-protein coupled receptor 6, Soluble cytochrome b562 chimera
分子量 formula_weight	49715.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	2656

MKTIIALSYIFCLVFADYKDDDDAGRAGGANGSLELSSQLSAGPPGLLLPAVNPWDVLLCVSGTVIAGENALVVALIASTPALRTPMFVLVGSLATADLLAGLGLILHFVFQYLVPSETVSLLTVGFLVASFAASVSSLLAITVDRYLSLYNPLTYYSRRTLLGVHLLLAATWTVSLGLGLLPVLGWNCLAERAACSVVRPLARSHVALLSAAFFMVFGIMLHLYVRICQVVWRHAADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLAHLAATRKGVRTLAVVLGTFGACWLPFAIYCVVGSHEDPAVYTYATLLPATLNSMINPIIYAFRNQEIQRALWLLLDGCFQSKVPFRSRSPSEVEFLEVLFQGPHHHHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 non-polymer

描述 description	1-{2-[4-(2,4-difluorophenoxy)piperidin-1-yl]-3-{[(3R)-oxolan-3-yl]amino}-7,8-dihydropyrido[3,4-b]pyrazin-6(5H)-yl}ethan-1-one
分子量 formula_weight	473.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	63.731 Å
晶胞边长 b length_b	63.731 Å
晶胞边长 c length_c	250.932 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 32 2 1
空间群编号 int_tables_number	154
晶系 crystal_system	—

分辨率 resolution	3.490 Å
最低分辨率 resolution_low	46.070 Å
R 因子 r_factor	0.2929
R_work r_work	0.2913
R_free r_free	0.3219
