SAXSdb — 8j9o

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Frizzled-1,Soluble cytochrome b562

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	anti-BRIL Fab Heavy Chain × 1 anti-Fab nanobody × 1 anti-BRIL Fab Light Chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C562_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 454–558； UniProt 23–127

Frizzled-1,Soluble cytochrome b562

Homo sapiens

UniProt Q9UP38

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	anti-BRIL Fab Heavy Chain × 1 anti-Fab nanobody × 1 anti-BRIL Fab Light Chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FZD1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–446； UniProt 69–514 Author chain A； PDBConstruct 568–677； UniProt 528–637

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8j9o
Deposition date deposition_date	2023-05-04
Structure title title	Cryo-EM structure of inactive FZD1
Keywords keywords	Frizzled, class-F, FZD1, Complex, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8j9o__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8j9o__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

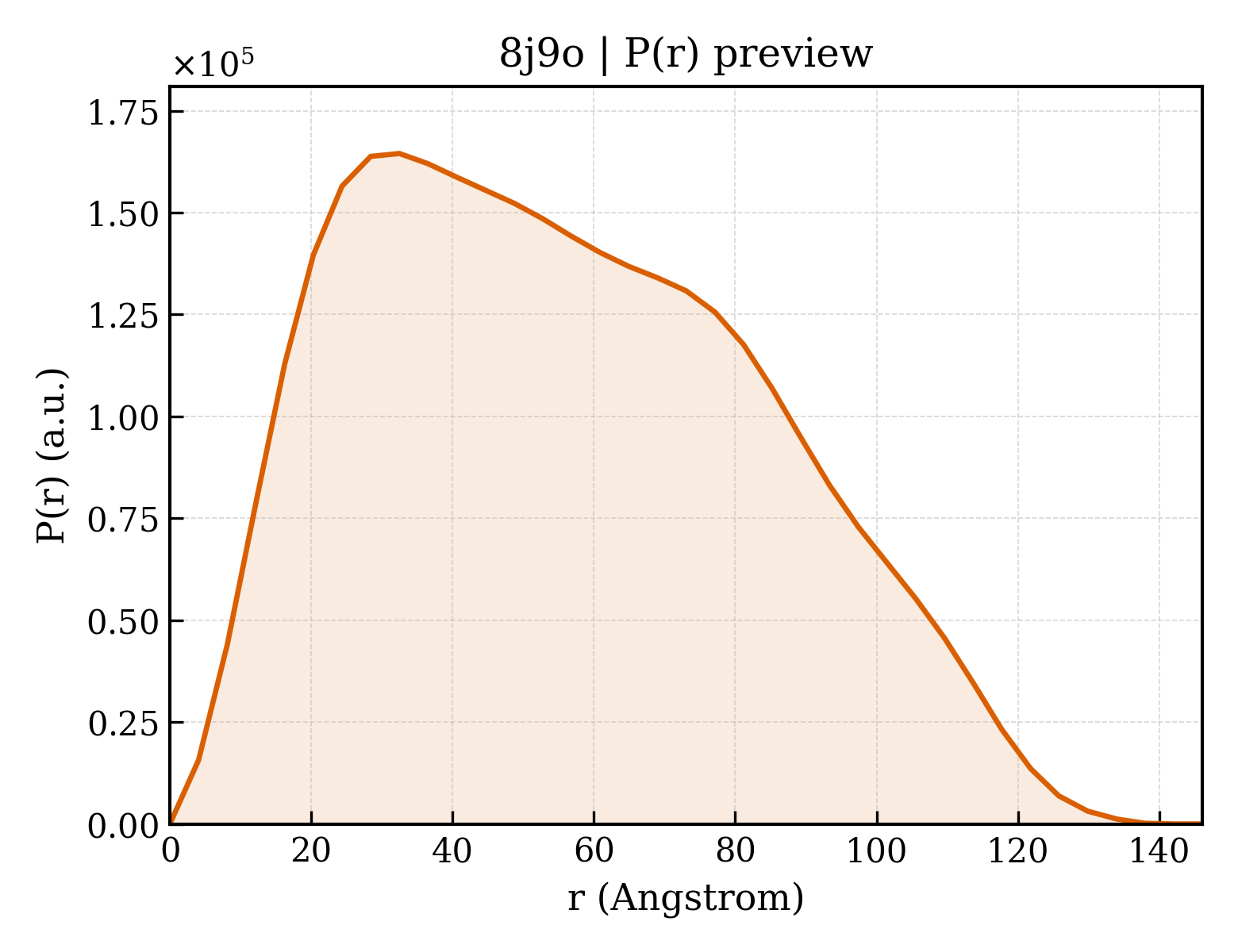

8j9o__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.86 Å
Rg (electron density)	43.92 Å
Total Rg	44.22 Å
Atom count	7441
Residues	999
Excluded volume	132070 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8j9o__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Frizzled-1,Soluble cytochrome b562
Molecular weight formula_weight	75034.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7441

GVRAQAAGQGPGQGPGPGQQPPPPPQQQQSGQQYNGERGISVPDHGYCQPISIPLCTDIAYNQTIMPNLLGHTNQEDAGLEVHQFYPLVKVQCSAELKFFLCSMYAPVCTVLEQALPPCRSLCERARQGCEALMNKFGFQWPDTLKCEKFPVHGAGELCVGQNTSDKGTPTPSLLPEFWTSNPQHGGGGHRGGFPGGAGASERGKFSCPRALKVPSYLNYHFLGEKDCGAPCEPTKVYGLMYFGPEELRFSRTWIGIWSVLCCASTLFTVLTYLVDMRRFSYPERPIIFLSGCYTAVAVAYIAGFLLEDRVVCNDKFAEDGARTVAQGTKKEGCTILFMMLYFFSMASSIWWVILSLTWFLAAGMKWGHEAIEANSQYFHLAAWAVPAIKTITILALGQVDGDVLSGVCFVGLNNVDALRGFVLAPLFVYLFIGTSFLLAGFVSLFIRARRQLADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLERARSTLKEKLEKLMVRIGVFSVLYTVPATIVIACYFYEQAFRDQWERSWVAQSCKSYAIPCPHLQAGGGAPPHPPMSPDFTVFMIKYLMTLIVGITSGFWIWSGKTLNSWRKFYTRL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	anti-BRIL Fab Heavy Chain
Molecular weight formula_weight	28035.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MVSAIVLYVLLAAAAHSAFAEISEVQLVESGGGLVQPGGSLRLSCAASGFNVVDFSLHWVRQAPGKGLEWVAYISSSSGSTSYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARWGYWPGEPWWKAFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSLEVLFQGPHHHHHH

Source Source

Source organism organism	Mus
NCBI taxonomy ID ncbi_taxonomy_id	10088
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	anti-Fab nanobody
Molecular weight formula_weight	13390.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GSQVQLQESGGGLVQPGGSLRLSCAASGRTISRYAMSWFRQAPGKEREFVAVARRSGDGAFYADSVQGRFTVSRDDAKNTVYLQMNSLKPEDTAVYYCAIDSDTFYSGSYDYWGQGTQVTVSS

Source Source

Source organism organism	Vicugna pacos
NCBI taxonomy ID ncbi_taxonomy_id	30538
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	anti-BRIL Fab Light Chain
Molecular weight formula_weight	24557.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MVVYISYIYASDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQYLYYSLVTFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRG

Source Source

Source organism organism	Mus
NCBI taxonomy ID ncbi_taxonomy_id	10088
Host organism host_organism	Trichoplusia ni

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	327768
