SAXSdb — 9vmy

▼

1. Structure Basics

entry_id	9vmy
deposition_date	2025-06-29
title	Cryo-EM structure of 5-HT1AR-GoA in complex with TMU4142
keywords	signal transduction, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	36.44 Å
rg_electron	36.26 Å
i0	437889000.00
molecular_weight	113950.0 kDa
excluded_volume	110490 Å³
envelope_volume	192470 Å³
shell_volume	44991 Å³
envelope_diameter	120.3 Å
shell_rg	41.50 Å
envelope_rg	36.29 Å
shape_rg	36.26 Å
total_rg	36.50 Å
total_atoms	8615
n_residues	1112
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	116.5 Å
rg_real	36.37 Å
rg_real_error	0.93 Å
i0_real	4.3790e+08
i0_real_error	7.3550e+06
rg_reciprocal	36.41 Å
i0_reciprocal	437900000.0000
total_estimate	0.9006
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	51.5 Å
skewness	0.174
kurtosis	-0.640
angular_range	— – 0.2150 Å⁻¹
current_alpha	0.0000
highest_alpha	35180000.0000
n_real_points	44
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.941; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.903

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (8)

Entity 1 polymer

description	Guanine nucleotide-binding protein G(o) subunit alpha
formula_weight	40081.4 kDa
ec_number	3.6.5.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B
atom_count	8615

MGSTLSAEERAALERSKAIEKNLKEDGISAAKDVKLLLLGAGESGKNTIVKQMKIIHEDGFSGEDVKQYKPVVYSNTIQSLAAIVRAMDTLGIEYGDKERKADAKMVCDVVSRMEDTEPFSAELLSAMMRLWGDSGIQECFNRSREYQLNDSAKYYLDSLDRIGAADYQPTEQDILRTRVKTTGIVETHFTFKNLHFRLFDVGAQRSERKKWIHCFEDVTAIIFCVALSGYDQVLHEDETTNRMHASLKLFDSICNNKFFIDTSIILFLNKKDLFGEKIKKSPLTICFPEYTGPNTYEDAAAYIQAQFESKNRSPNKEIYCHMTCSTDTNNIQVVFDAVTDIIIANNLRGCGLY

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
formula_weight	39418.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MHHHHHHLEVLFQGPGSSGSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 3 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
formula_weight	7861.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 4 polymer

description	ScFv16
formula_weight	26679.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

DVQLVESGGGLVQPGGSRKLSCSASGFAFSSFGMHWVRQAPEKGLEWVAYISSGSGTIYYADTVKGRFTISRDDPKNTLFLQMTSLRSEDTAMYYCVRSIYYYGSSPFDFWGQGTTLTVSSGGGGSGGGGSGGGGSDIVMTQATSSVPVTPGESVSISCRSSKSLLHSNGNTYLYWFLQRPGQSPQLLIYRMSNLASGVPDRFSGSGSGTAFTLTISRLEAEDVGVYYCMQHLEYPLTFGAGTKLELKAAA

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Spodoptera frugiperda

Entity 5 polymer

description	Soluble cytochrome b562,5-hydroxytryptamine receptor 1A
formula_weight	60921.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R

DYKDDDDAKLQTMHHHHHHHHHHENLYFQGGTTMADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLGSTLEVLFQGPTTGISDVTVSYQVITSLLLGTLIFCAVLGNACVVAAIALERSLQNVANYLIGSLAVTDLMVSVLVLPMAALYQVLNKWTLGQVTCDLFIALDVLCCTSSIWHLCAIALDRYWAITDPIDYVNKRTPRRAAALISLTWLIGFLISIPPMLGWRTPEDRSDPDACTISKDHGYTIYSTFGAFYIPLLLMLVLYGRIFRAARFRIRKTVKKVEKTGADTRHGASPAPQPKKSVNGESGSRNWRLGVESKAGGALCANGAVRQGDDGAALEVIEVHRVGNSKEHLPLPSEAGPTPCAPASFERKNERNAEAKRKMALARERKTVKTLGIIMGTFILCWLPFFIVALVLPFCESSCHMPTLLGAIINWLGYSNSLLNPVIYAYFNKDFQNAFKKIIKCKFCRQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 6 non-polymer

description	8-[3-[[(2~{S})-3-(1~{H}-indol-4-yloxy)-2-oxidanyl-propyl]amino]propyl]-8-azaspiro[4.5]decane-7,9-dione
formula_weight	413.5 kDa
src_method	syn
entity_count	1

Entity 7 non-polymer

description	CHOLESTEROL
formula_weight	386.7 kDa
src_method	syn
entity_count	2

Entity 8 non-polymer

description	;(2R)-1-(heptadecanoyloxy)-3-{[(R)-hydroxy{[(1R,2R,3R,4R,5S,6R)-2,3,5,6-tetrahydroxy-4-(phosphonooxy)cyclohexyl]oxy}phosphoryl]oxy}propan-2-yl (5Z,8Z,11Z,14Z)-icosa-5,8,11,14-tetraenoate ;
formula_weight	953.1 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.86 Å
resolution_method	—
num_particles	182037

fit	/app/data/saxs_computation/vm/9vmy/9vmy.fit
pddf	/app/data/pr_computation/vm/9vmy/9vmy.pr.out
profile	/app/data/saxs_computation/vm/9vmy/9vmy.dat

Cryo-EM structure of 5-HT1AR-GoA in complex with TMU4142

SAXS Profile

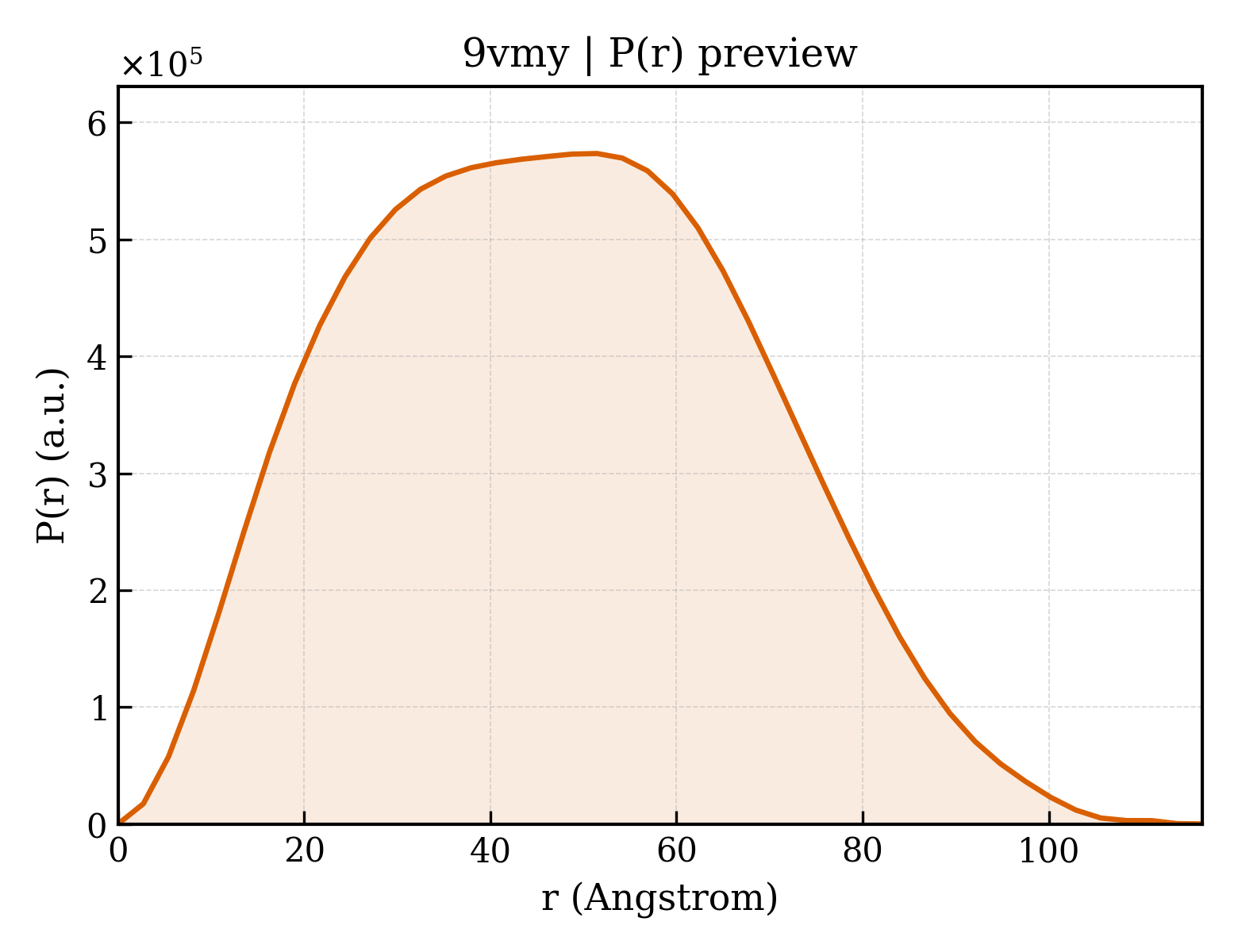

P(r) Distribution
