9w1q

Human SLC37A4 lateral dimer

Method: ELECTRON MICROSCOPY Dmax: 88.7 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 9w1q

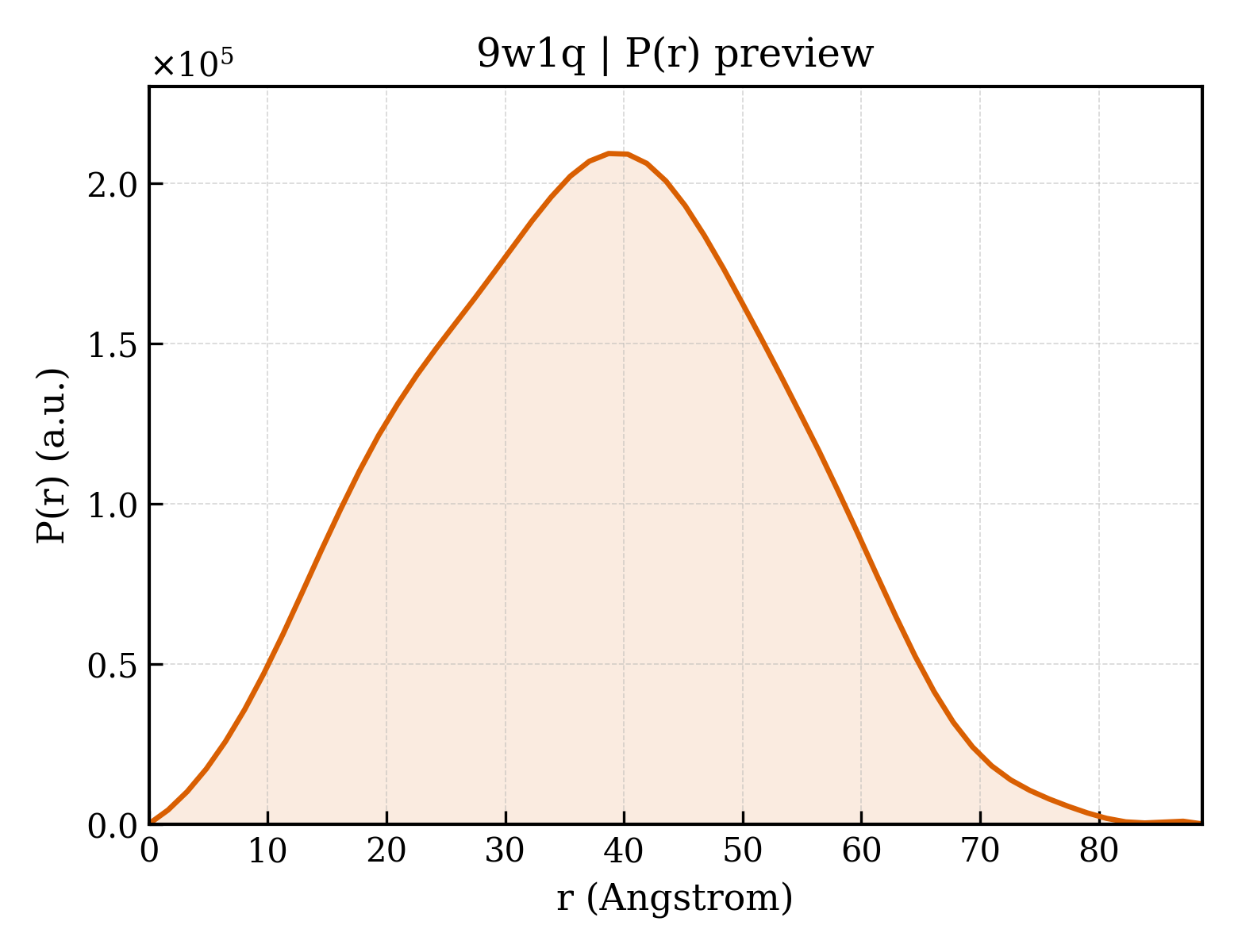

P(r) Distribution

P(r) distribution for 9w1q
▼

1. Structure Basics

entry_id9w1q
deposition_date2025-07-26
titleHuman SLC37A4 lateral dimer
keywordsSLC37A4, G6PT, G6P, GSD-Ib, TRANSPORT PROTEIN; TRANSPORT PROTEIN
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier29.05 Å
rg_electron28.16 Å
i0105331000.00
molecular_weight87372.0 kDa
excluded_volume111880 ų
envelope_volume135180 ų
shell_volume38670 ų
envelope_diameter93.1 Å
shell_rg36.54 Å
envelope_rg28.01 Å
shape_rg28.16 Å
total_rg28.98 Å
total_atoms6172
n_residues806
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax88.7 Å
rg_real28.87 Å
rg_real_error0.53 Å
i0_real1.0530e+08
i0_real_error1.5370e+06
rg_reciprocal28.95 Å
i0_reciprocal105300000.0000
total_estimate0.9049
solution_quality EXCELLENT a EXCELLENT solution
n_peaks2
r_peak_primary38.7 Å
skewness0.047
kurtosis-0.525
angular_range— – 0.2750 Å−1
current_alpha0.0000
highest_alpha15410000.0000
n_real_points56
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.928; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.986
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
