9w1n

Human SLC37A4 antiparallel dimer

Method: ELECTRON MICROSCOPY Dmax: 107.1 Å Quality: GOOD

SAXS Profile

SAXS profile for 9w1n

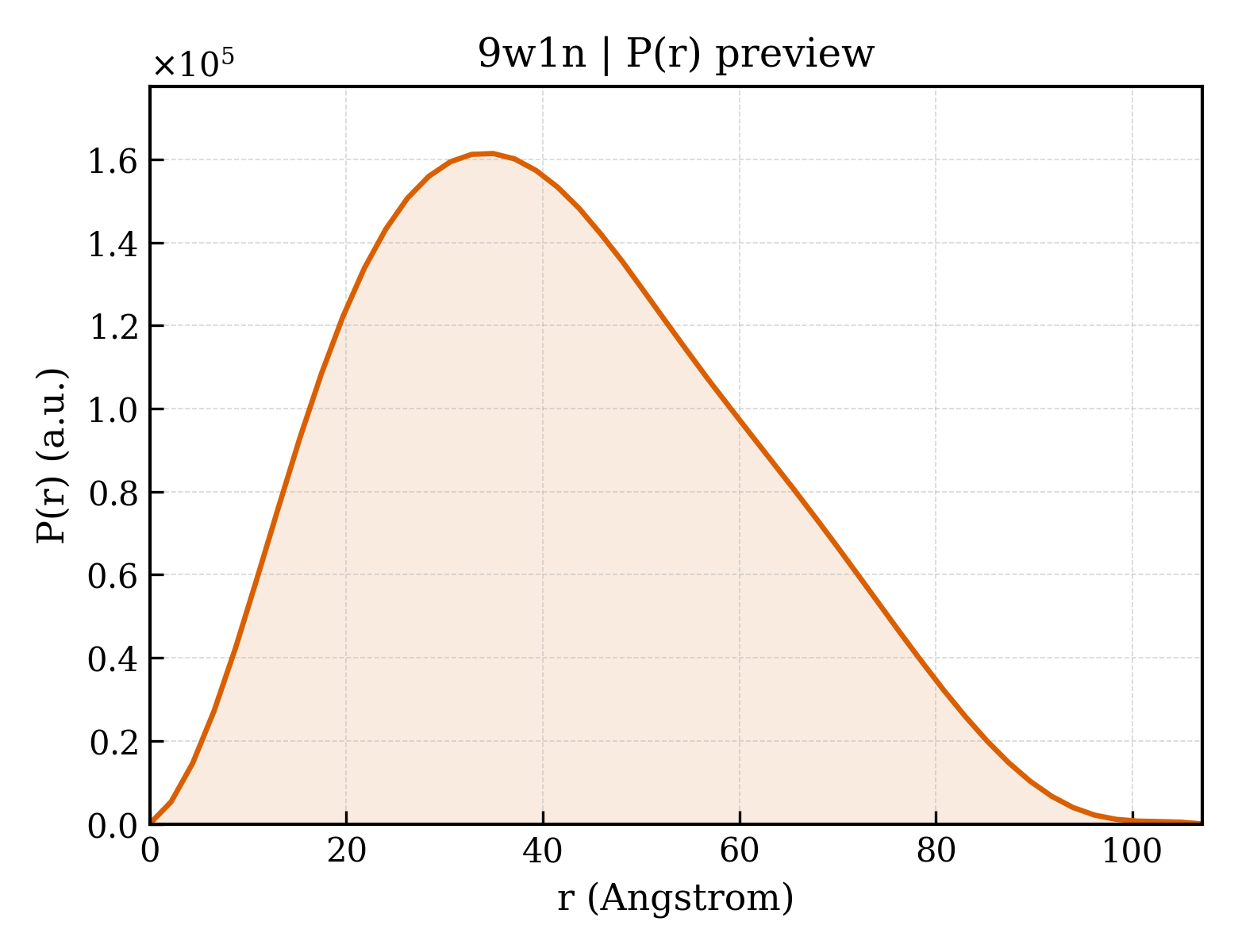

P(r) Distribution

P(r) distribution for 9w1n
▼

1. Structure Basics

entry_id9w1n
deposition_date2025-07-26
titleHuman SLC37A4 antiparallel dimer
keywordsSLC37A4, G6PT, G6P, GSD-Ib, TRANSPORT PROTEIN; TRANSPORT PROTEIN
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier32.41 Å
rg_electron32.31 Å
i0104304000.00
molecular_weight88011.0 kDa
excluded_volume112740 ų
envelope_volume140890 ų
shell_volume36642 ų
envelope_diameter114.1 Å
shell_rg38.84 Å
envelope_rg32.15 Å
shape_rg32.33 Å
total_rg32.80 Å
total_atoms6214
n_residues814
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax107.1 Å
rg_real32.50 Å
rg_real_error0.78 Å
i0_real1.0430e+08
i0_real_error1.5550e+06
rg_reciprocal32.47 Å
i0_reciprocal104300000.0000
total_estimate0.8948
solution_quality GOOD a GOOD solution
n_peaks1
r_peak_primary35.0 Å
skewness0.344
kurtosis-0.539
angular_range— – 0.2450 Å−1
current_alpha0.0001
highest_alpha12320000.0000
n_real_points50
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.908; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.943; Smooth: 0.961
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
