9xca

CryoEM structure of the G6PT dimer

Method: ELECTRON MICROSCOPY D_max: 90.0 Å Quality: EXCELLENT

SAXS Profile

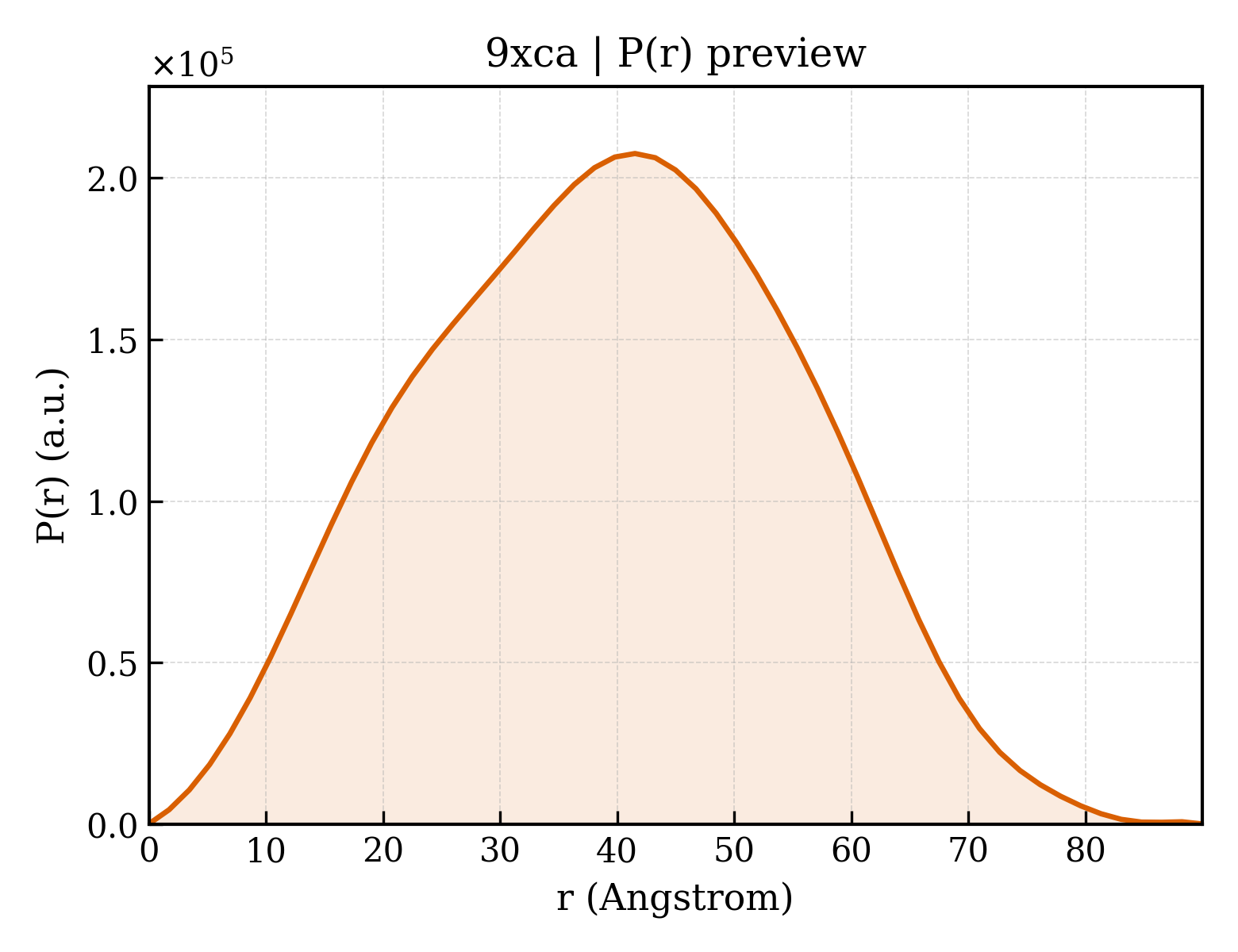

P(r) Distribution

P(r) distribution for 9xca

▼

1. Structure Basics

entry_id	9xca
deposition_date	2025-10-25
title	CryoEM structure of the G6PT dimer
keywords	Glucose-6-Phosphate Translocase, G6PT, SLC37A4, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	30.23 Å
rg_electron	29.36 Å
i0	111294000.00
molecular_weight	90136.0 kDa
excluded_volume	115690 Å³
envelope_volume	147530 Å³
shell_volume	40480 Å³
envelope_diameter	91.7 Å
shell_rg	37.81 Å
envelope_rg	28.86 Å
shape_rg	29.36 Å
total_rg	30.23 Å
total_atoms	6360
n_residues	814
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	90.0 Å
rg_real	30.02 Å
rg_real_error	0.47 Å
i0_real	1.1130e+08
i0_real_error	1.4960e+06
rg_reciprocal	30.11 Å
i0_reciprocal	111300000.0000
total_estimate	0.9081
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	41.5 Å
skewness	0.019
kurtosis	-0.591
angular_range	— – 0.2600 Å⁻¹
current_alpha	0.0000
highest_alpha	17050000.0000
n_real_points	53
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.958; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.942

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

7. Files & Curves (10)
