SAXSdb — 5nj6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Proteinase-activated receptor 2,Soluble cytochrome b562,Proteinase-activated receptor 2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	Fab3949 H × 1 Fab3949 L × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C562_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 217–321； UniProt 23–127

Proteinase-activated receptor 2,Soluble cytochrome b562,Proteinase-activated receptor 2

Homo sapiens

UniProt P55085

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	Fab3949 H × 1 Fab3949 L × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PAR2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–216； UniProt 55–269 Author chain A； PDBConstruct 323–424； UniProt 276–377

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5nj6
Deposition date deposition_date	2017-03-28
Structure title title	Crystal structure of a thermostabilised human protease-activated receptor-2 (PAR2) in ternary complex with Fab3949 and AZ7188 at 4.0 angstrom resolution
Keywords keywords	MEMBRANE PROTEIN, GPCR, 7TM; MEMBRANE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5nj6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5nj6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

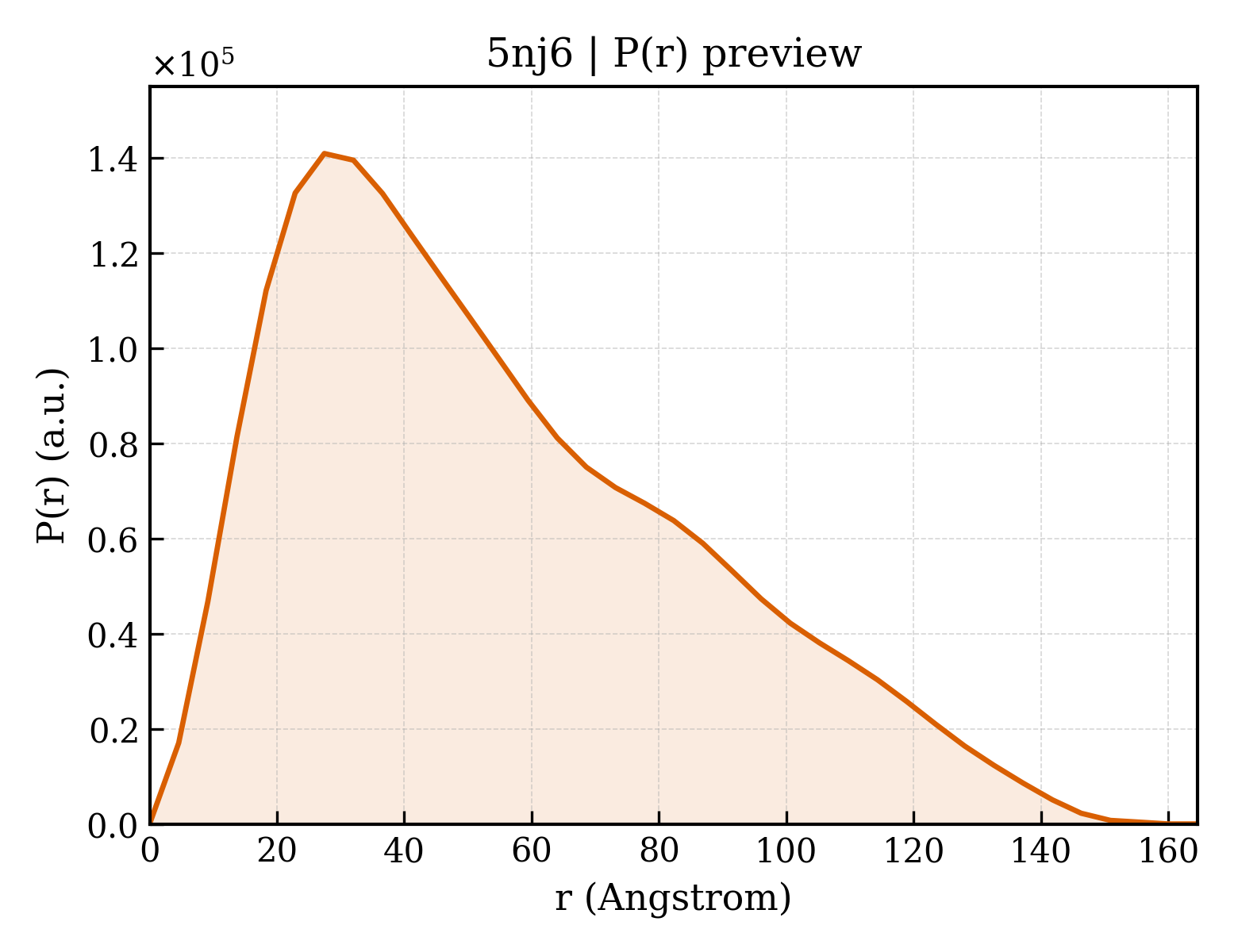

5nj6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.62 Å
Rg (electron density)	44.02 Å
Total Rg	44.05 Å
Atom count	6467
Residues	833
Excluded volume	116070 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5nj6__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Proteinase-activated receptor 2,Soluble cytochrome b562,Proteinase-activated receptor 2
Molecular weight formula_weight	49212.6 kDa
Mutation mutation	;G89A, H108A, G157A, M166L, Y174A, V176E, N222Q, M268A, I289A, L293A,G89A, H108A, G157A, M166L, Y174A, V176E, N222Q, M268A, I289A, L293A,G89A, H108A, G157A, M166L, Y174A, V176E, N222Q, M268A, I289A, L293A ;
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6467

MVETVFSVDEFSASVLTGKLTTVFLPIVYTIVFVVALPSNGMALWVFLFRTKKKAPAVIYMANLALADLLSVIWFPLKIAYHIHGNNWIYGEALCNVLIGFFYANMYCSILFLTCLSVQRAWEIVNPMGHSRKKANIAIGISLAIWLLILLVTIPLYVVKQTIFIPALQITTCHDVLPEQLLVGDMFNYFLSLAIGVFLFPAFLTASAYVLMIRALADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLENSEKKRKRAIKLAVTVAAMYLICFTPSNLLLVVHYFLIKSQGQSHVYALYIVALCLSTLNSCIDPFVYYFVSHDFRDHAKNALLCRSVRTVKQMQVSLTSKAAAHHHHHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Fab3949 H
Molecular weight formula_weight	23590.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EVILVESGGGLVKPGGSLKLSCAASGFTFSSYAMSWVRQTPEKRLEWVATISGIGSYTYYPDSVKGRFTISRDNAKNTLYLQMSSLRSEDTAMYYCSRQDYYGSSYDYWGQGTTLTVSSAKTTAPSVYPLAPVCGDTTGSSVTLGCLVKGYFPEPVTLTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDKKIEPR

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Mus musculus

Entity 3 Entity 3 polymer

Description description	Fab3949 L
Molecular weight formula_weight	23322.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

QIVLTQSPAIMSASLGERVTMTCTASSSISSSYLHWYQQKPGSSPKLWIYSTSNLASGVPARFSGSGSGTSYSLTISSMEAEDAATYYCHQFHRSPYTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRN

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Mus musculus

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	5nj6A01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	10 — Cytochrome c/b562

Domain ID domain_id	5nj6H02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5nj6L01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5nj6L02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	164.144 Å
Unit-cell length b length_b	38.520 Å
Unit-cell length c length_c	159.660 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	4.000 Å
Low-resolution limit resolution_low	45.130 Å
R factor r_factor	0.2650
R_work r_work	0.2630
R_free r_free	0.3190

Crystal structure of a thermostabilised human protease-activated receptor-2 (PAR2) in ternary complex with Fab3949 and AZ7188 at 4.0 angstrom resolution
