SAXSdb — 9iya

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

G-protein coupled receptor 55,Soluble cytochrome b562

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	anti-BRIL Fab Heavy chain × 1 anti-BRIL Fab Light chain × 1 anti-Fab Nanobody × 1 ;4-(3-bromanyl-5-ethoxy-4-oxidanyl-phenyl)-~{N}-(2-methoxyphenyl)-2-methyl-5-oxidanylidene-4,6,7,8-tetrahydro-1~{H}-quinoline-3-carboxamide ; × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C562_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 300–404； UniProt 23–127

G-protein coupled receptor 55,Soluble cytochrome b562

Homo sapiens

UniProt Q9Y2T6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	anti-BRIL Fab Heavy chain × 1 anti-BRIL Fab Light chain × 1 anti-Fab Nanobody × 1 ;4-(3-bromanyl-5-ethoxy-4-oxidanyl-phenyl)-~{N}-(2-methoxyphenyl)-2-methyl-5-oxidanylidene-4,6,7,8-tetrahydro-1~{H}-quinoline-3-carboxamide ; × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GPR55_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–290； UniProt 7–296

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9iya
Deposition date deposition_date	2024-07-30
Structure title title	Cryo-EM structure of GPR55-Fab-Nb-ONO-9710531 complex
Keywords keywords	GPCR, G protein, cryo-EM, membrane protein, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9iya__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9iya__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

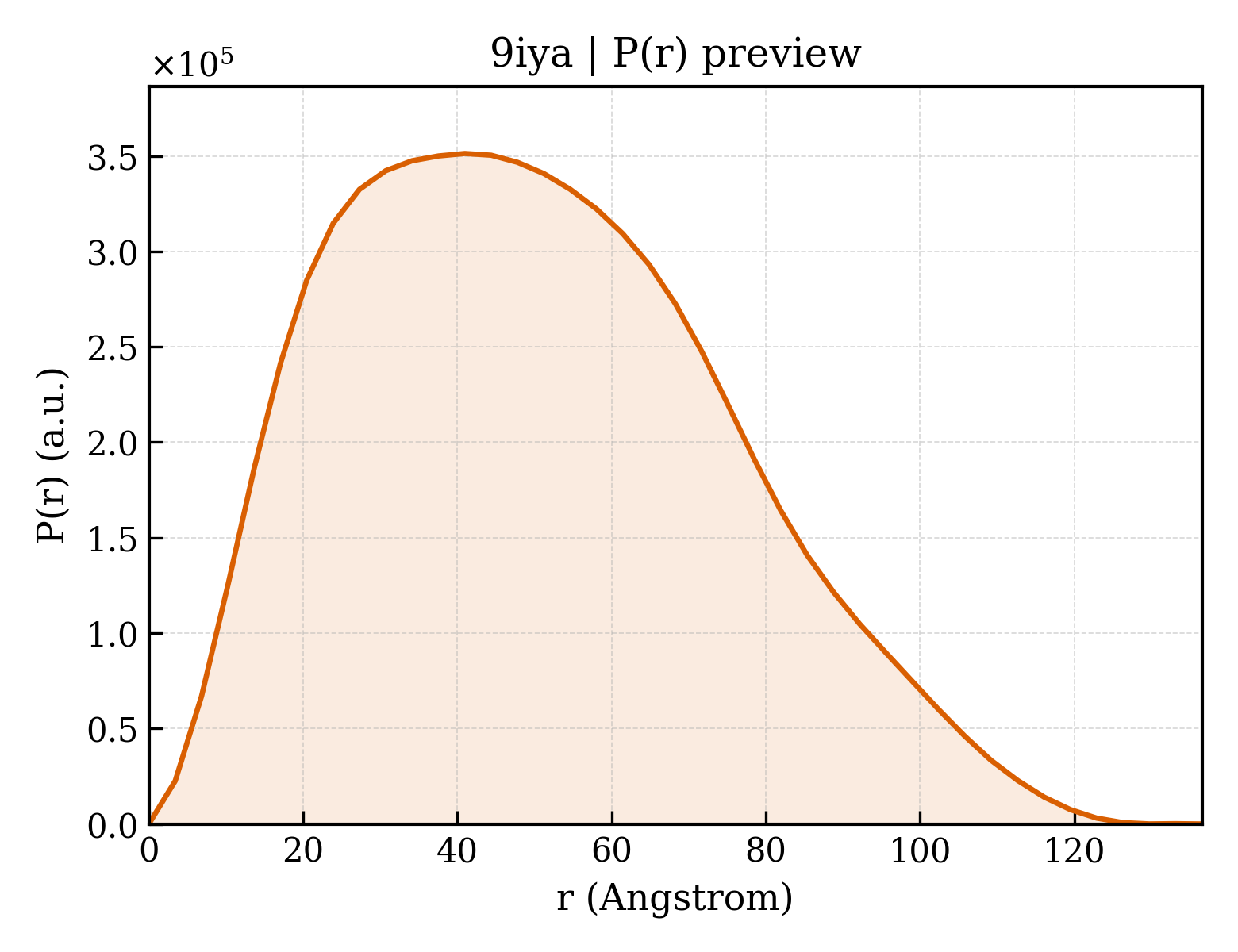

9iya__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.03 Å
Rg (electron density)	39.47 Å
Total Rg	39.87 Å
Atom count	7219
Residues	924
Excluded volume	128910 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9iya__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	G-protein coupled receptor 55,Soluble cytochrome b562
Molecular weight formula_weight	47058.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7219

SGDCLFDGVNELMKTLQFAVHIPTFVLGLLLNLLAIHVFSTFLKNRWPDYAATSIYMINLAVFDLLLVLSLPFKMVLSQVQSPFPSLCTLVECLYFVSMYGSVWTICFISMDRFLAIRYPLLVSHLRSPRKAFGICCTIWVLVWTGSIPIYSFHGKVEKYMCFHNMSDDTWSAKVFFPLEVFGFLLPMGIMGFCCSRSIHILLGRRDHTQDWVQQKACIYTIAASLAVFVVSFLPVHLGFFLQFLVRNSFIVECRAKQSISFFLQLSMCFSNVNCCLDVFIYYFVIKEFRMNIRAHRPSADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLERARSTL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	anti-BRIL Fab Heavy chain
Molecular weight formula_weight	26152.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

WSCIILFLVATATGVHSEISEVQLVESGGGLVQPGGSLRLSCAASGFNVRSFSIHWVRQAPGKGLEWVAYISSSSGSTSYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARWGYWPGEPWWKAFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKS

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	anti-BRIL Fab Light chain
Molecular weight formula_weight	23499.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQYLYYSLVTFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	anti-Fab Nanobody
Molecular weight formula_weight	13390.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

GSQVQLQESGGGLVQPGGSLRLSCAASGRTISRYAMSWFRQAPGKEREFVAVARRSGDGAFYADSVQGRFTVSRDDAKNTVYLQMNSLKPEDTAVYYCAIDSDTFYSGSYDYWGQGTQVTVSS

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 non-polymer

Description description	;4-(3-bromanyl-5-ethoxy-4-oxidanyl-phenyl)-~{N}-(2-methoxyphenyl)-2-methyl-5-oxidanylidene-4,6,7,8-tetrahydro-1~{H}-quinoline-3-carboxamide ;
Molecular weight formula_weight	527.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.04 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	452996
