SAXSdb — 8k2w

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Soluble cytochrome b562,C-X-C chemokine receptor type 3,Kappa-type opioid receptor

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Nb6 × 1 CHOLESTEROL × 1 1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 [1-MYRISTOYL-GLYCEROL-3-YL]PHOSPHONYLCHOLINE × 1 ;N-[(1R)-1-[3-(4-ethoxyphenyl)-4-oxidanylidene-pyrido[2,3-d]pyrimidin-2-yl]ethyl]-N-(pyridin-3-ylmethyl)-2-[4-(trifluoromethyloxy)phenyl]ethanamide ; × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C562_ECOLX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain R； PDBConstruct 27–131； UniProt 23–127

Soluble cytochrome b562,C-X-C chemokine receptor type 3,Kappa-type opioid receptor

Homo sapiens

UniProt P41145

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Nb6 × 1 CHOLESTEROL × 1 1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 [1-MYRISTOYL-GLYCEROL-3-YL]PHOSPHONYLCHOLINE × 1 ;N-[(1R)-1-[3-(4-ethoxyphenyl)-4-oxidanylidene-pyrido[2,3-d]pyrimidin-2-yl]ethyl]-N-(pyridin-3-ylmethyl)-2-[4-(trifluoromethyloxy)phenyl]ethanamide ; × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	OPRK_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain R； PDBConstruct 379–400； UniProt 252–273

Soluble cytochrome b562,C-X-C chemokine receptor type 3,Kappa-type opioid receptor

Homo sapiens

UniProt P49682

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Nb6 × 1 CHOLESTEROL × 1 1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 [1-MYRISTOYL-GLYCEROL-3-YL]PHOSPHONYLCHOLINE × 1 ;N-[(1R)-1-[3-(4-ethoxyphenyl)-4-oxidanylidene-pyrido[2,3-d]pyrimidin-2-yl]ethyl]-N-(pyridin-3-ylmethyl)-2-[4-(trifluoromethyloxy)phenyl]ethanamide ; × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CXCR3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain R； PDBConstruct 139–378； UniProt 1–240 Author chain R； PDBConstruct 401–507； UniProt 255–361

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8k2w
Deposition date deposition_date	2023-07-14
Structure title title	Structure of CXCR3 complexed with antagonist AMG487
Keywords keywords	G protein coupled receptor, chemokine receptor, CXCR3, AMG487, complex, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8k2w__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8k2w__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

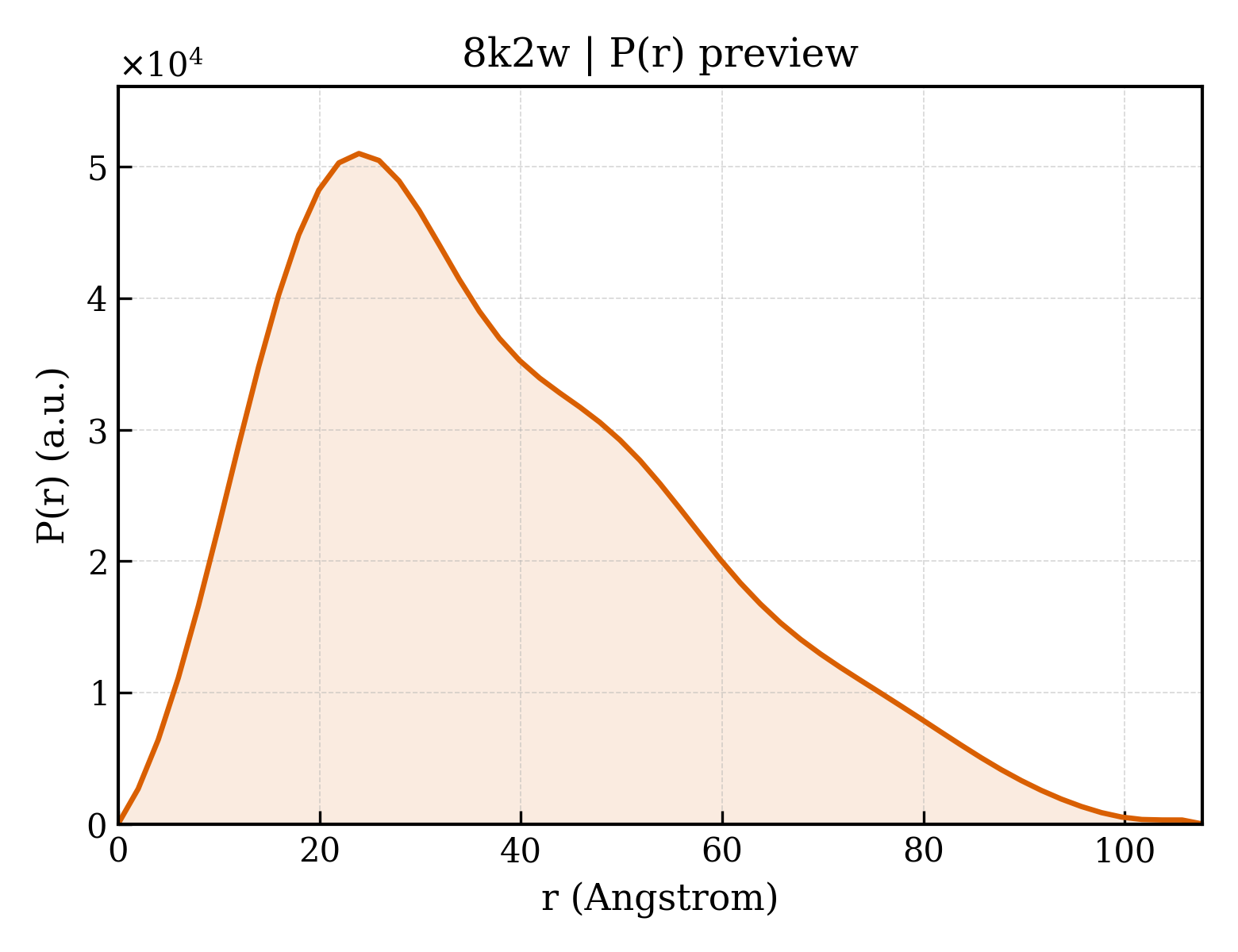

8k2w__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.58 Å
Rg (electron density)	28.91 Å
Total Rg	29.20 Å
Atom count	3143
Residues	386
Excluded volume	57321 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8k2w__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Nb6
Molecular weight formula_weight	18665.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N
Atom count atom_count	3143

MLLVNQSHQGFNKEHTSKMVSAIVLYVLLAAAAHSAFAMAQVQLQESGGGLVQAGESLRLSCAASGTIFRLYDMGWYRRVSGNQRELVASITSGGSTKYGDSVKGRFTISRDNAKNTVYLQMSSLKPEDTAVYYCNAEYRTGIWEELLDGWGQGTQVTVSSHHHHHHHH

Source Source

Source organism organism	Lama glama
NCBI taxonomy ID ncbi_taxonomy_id	9844
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Soluble cytochrome b562,C-X-C chemokine receptor type 3,Kappa-type opioid receptor
Molecular weight formula_weight	56327.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

MKTIIALSYIFCLVFADYKDDDDKGSADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLLVPRGSMVLEVSDHQVLNDAEVAALLENFSSSYDYGENESDSCCTSPPCPQDFSLNFDRAFLPALYSLLFLLGLLGNGAVAAVLLSRRTALSSTDTFLLHLAVADTLLVLTLPLWAVDAAVQWVFGSGLCKVAGALFNINFYAGALLLACISFDRYLNIVHATQLYRRGPPARVTLTCLAVWGLCLLFALPDFIFLSAHHDERLNATHCQYNFPQVGRTALRVLQLVAGFLLPLLVMAYCYAHILARLKSVRLLSGSREKDRNLRRITRLVVVVVVAFALCWTPYHLVVLVDILMDLGALARNCGRESRVDVAKSVTSGLGYMHCCLNPLLYAFVGVKFRERMWMLLLRLGCPNQRGLQRQPSSSRRDSSWSETS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 non-polymer

Description description	CHOLESTEROL
Molecular weight formula_weight	386.7 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE
Molecular weight formula_weight	787.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	[1-MYRISTOYL-GLYCEROL-3-YL]PHOSPHONYLCHOLINE
Molecular weight formula_weight	468.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	;N-[(1R)-1-[3-(4-ethoxyphenyl)-4-oxidanylidene-pyrido[2,3-d]pyrimidin-2-yl]ethyl]-N-(pyridin-3-ylmethyl)-2-[4-(trifluoromethyloxy)phenyl]ethanamide ;
Molecular weight formula_weight	603.6 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	834686

Structure of CXCR3 complexed with antagonist AMG487
