9ipy

Structure of JR14a-bound human C3aR

Method: ELECTRON MICROSCOPY D_max: 106.7 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

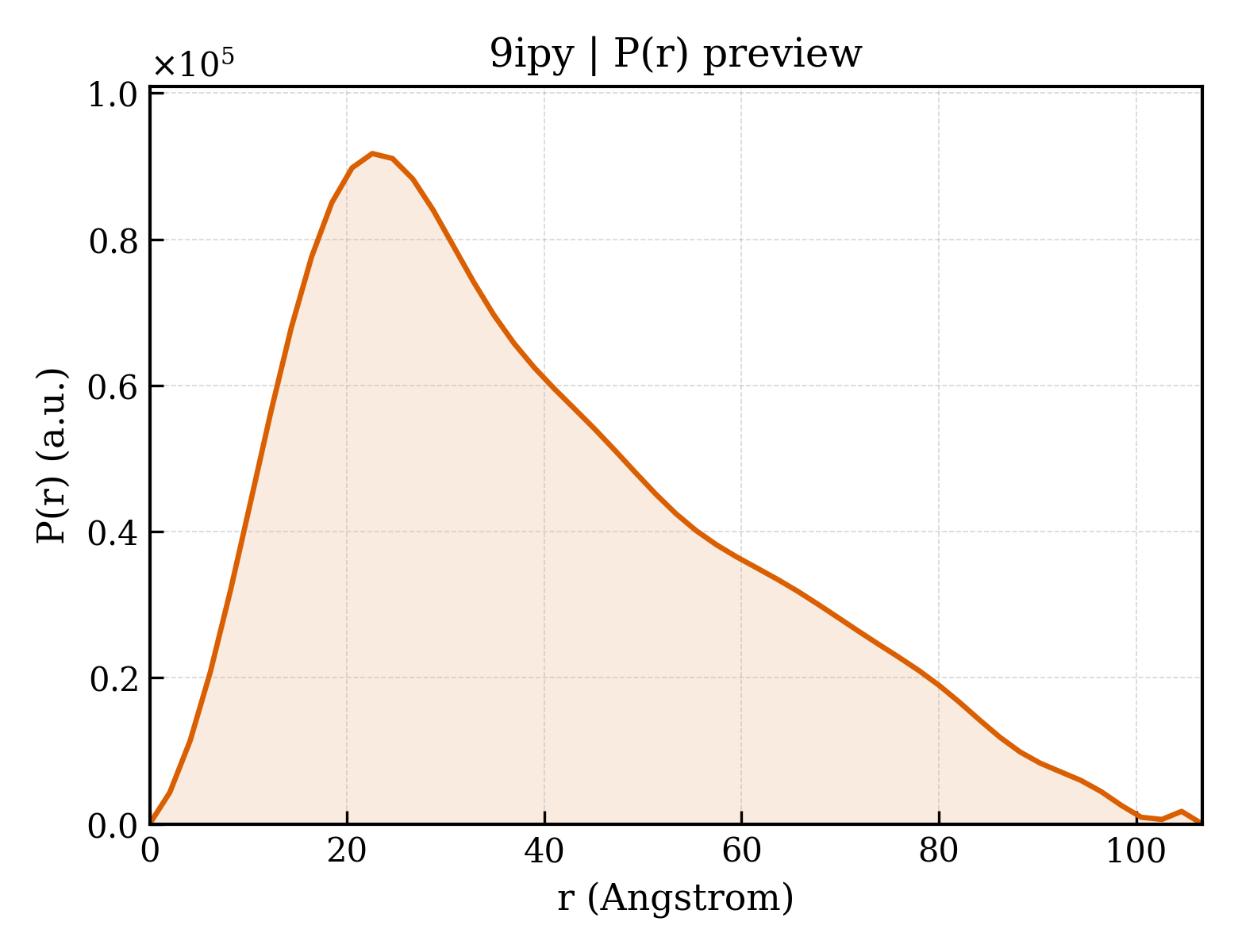

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ipy
沉积日期 deposition_date	2024-07-12
结构标题 title	Structure of JR14a-bound human C3aR
关键词 keywords	GPCR, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.59 Å
回转半径 Rg (电子) rg_electron	30.81 Å
零角强度 I(0) i0	52196500.00
分子量 molecular_weight	38947.0 kDa
排除体积 excluded_volume	38258 Å³
包络体积 envelope_volume	70337 Å³
水化壳体积 shell_volume	22226 Å³
包络直径 envelope_diameter	110.2 Å
壳层 Rg shell_rg	32.55 Å
包络 Rg envelope_rg	30.92 Å
形状 Rg shape_rg	30.82 Å
总 Rg total_rg	30.94 Å
总原子数 total_atoms	2949
残基数 n_residues	372
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	106.7 Å
Rg (实空间) rg_real	31.17 Å
Rg 误差 (实空间) rg_real_error	1.19 Å
I(0) (实空间) i0_real	5.2200e+07
I(0) 误差 (实空间) i0_real_error	9.1550e+05
Rg (倒空间) rg_reciprocal	30.92 Å
I(0) (倒空间) i0_reciprocal	52190000.0000
解质量估计 total_estimate	0.6928
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	22.6 Å
偏度 Skewness skewness	0.649
峰度 Kurtosis kurtosis	-0.341
角度范围 angular_range	— – 0.2600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	7045000.0000
实空间数据点数 n_real_points	53
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.477; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.234; Smooth: 0.337

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	C3a anaphylatoxin chemotactic receptor,Soluble cytochrome b562
分子量 formula_weight	68608.3 kDa
突变 mutation	M1012W/H1107I
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R
原子数 atom_count	2949

DYKDDDDAIDASFSAETNSTDLLSQPWNEPPVILSMVILSLTFLLGLPGNGLVLWVAGLKMQRTVNTIWFLHLTLADLLCCLSLPFSLAHLALQGQWPYGRFLCKLIPSIIVLNMFASVFLLTAISLDRCLVVFKPIWCQNHRNVGMACSICGCIWVVAFVMCIPVFVYREIFTTDNHNRCGYKFGLSSSLDYPDFYGDPLENRSLENIVQPPGEMNDRLDPSSFQTNDHPWTVPTVFQPQTFQRPSADSLPRGSARLTSQNLYSNVFKPADVVSPKIPSGFPIEDHETSPLDNSDAFLSTHLKLFPSASSNSFYESELPQGFQDYYNLGQFTDDDQVPTPLVAITITRLVVGFLLPSVIMIACYSFIVFRMQRARRQLADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLERARSTLKSQSKTFRVAVVVVAVFLVCWTPYHIFGVLSLLTDPETPLGKTLMSWDHVCIALASANSCFNPFLYALLGKDFRKKARQSIQGILEAAFSEELTRSTHCPSNNVISERNSTTVASLEVLFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 non-polymer

描述 description	(2~{S})-5-[bis(azanyl)methylideneamino]-2-[[5-[bis(4-chlorophenyl)methyl]-3-methyl-thiophen-2-yl]carbonylamino]pentanoic acid
分子量 formula_weight	533.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	342058
