8tw6

TCR in nanodisc ND-II

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-cell surface glycoprotein CD3 zeta chain, GFP fusion protein,GFP

human respiratory syncytial virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8 其他Polymer 1	TCR alpha × 1 T cell receptor beta variable 6-5,T cell receptor beta chain MC.7.G5,MCHERRY × 1 （A0A0K0K1A5,A0A4D6FVK6,P0DTU4） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A5P9VSM6_HRSV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain X； PDBConstruct 175–412； UniProt 2–239 Author chain Y； PDBConstruct 175–412； UniProt 2–239

T-cell surface glycoprotein CD3 zeta chain, GFP fusion protein,GFP

human respiratory syncytial virus

UniProt P20963

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8 其他Polymer 1	TCR alpha × 1 T cell receptor beta variable 6-5,T cell receptor beta chain MC.7.G5,MCHERRY × 1 （A0A0K0K1A5,A0A4D6FVK6,P0DTU4） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD3Z_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain X； PDBConstruct 1–164； UniProt 1–164 Author chain Y； PDBConstruct 1–164； UniProt 1–164

T cell receptor beta variable 6-5,T cell receptor beta chain MC.7.G5,MCHERRY

Escherichia coli str. K-12 substr. MG1655

UniProt A0A0K0K1A5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8 其他Polymer 1	T-cell surface glycoprotein CD3 zeta chain, GFP fusion protein,GFP × 2 （A0A5P9VSM6,P20963） TCR alpha × 1 T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TVB65_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 1–114； UniProt 1–114

T cell receptor beta variable 6-5,T cell receptor beta chain MC.7.G5,MCHERRY

Escherichia coli str. K-12 substr. MG1655

UniProt A0A4D6FVK6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8 其他Polymer 1	T-cell surface glycoprotein CD3 zeta chain, GFP fusion protein,GFP × 2 （A0A5P9VSM6,P20963） TCR alpha × 1 T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A4D6FVK6_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 322–556； UniProt 2–236

T cell receptor beta variable 6-5,T cell receptor beta chain MC.7.G5,MCHERRY

Escherichia coli str. K-12 substr. MG1655

UniProt P0DTU4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8 其他Polymer 1	T-cell surface glycoprotein CD3 zeta chain, GFP fusion protein,GFP × 2 （A0A5P9VSM6,P20963） TCR alpha × 1 T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRBR2_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 128–311； UniProt 132–315

T-cell surface glycoprotein CD3 epsilon chain

Homo sapiens

UniProt P07766

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8 其他Polymer 1	T-cell surface glycoprotein CD3 zeta chain, GFP fusion protein,GFP × 2 （A0A5P9VSM6,P20963） TCR alpha × 1 T cell receptor beta variable 6-5,T cell receptor beta chain MC.7.G5,MCHERRY × 1 （A0A0K0K1A5,A0A4D6FVK6,P0DTU4） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD3E_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–207； UniProt 1–207 Author chain F； PDBConstruct 1–207； UniProt 1–207

T-cell surface glycoprotein CD3 delta chain

Homo sapiens

UniProt P04234

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8 其他Polymer 1	T-cell surface glycoprotein CD3 zeta chain, GFP fusion protein,GFP × 2 （A0A5P9VSM6,P20963） TCR alpha × 1 T cell receptor beta variable 6-5,T cell receptor beta chain MC.7.G5,MCHERRY × 1 （A0A0K0K1A5,A0A4D6FVK6,P0DTU4） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD3D_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain D； PDBConstruct 1–171； UniProt 1–171

T-cell surface glycoprotein CD3 gamma chain

Homo sapiens

UniProt P09693

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8 其他Polymer 1	T-cell surface glycoprotein CD3 zeta chain, GFP fusion protein,GFP × 2 （A0A5P9VSM6,P20963） TCR alpha × 1 T cell receptor beta variable 6-5,T cell receptor beta chain MC.7.G5,MCHERRY × 1 （A0A0K0K1A5,A0A4D6FVK6,P0DTU4） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD3G_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain G； PDBConstruct 1–182； UniProt 1–182

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8tw6
Deposition date deposition_date	2023-08-20
Structure title title	TCR in nanodisc ND-II
Keywords keywords	T-cell receptor, TCR, 1G4, nanodisc, CD3, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8tw6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

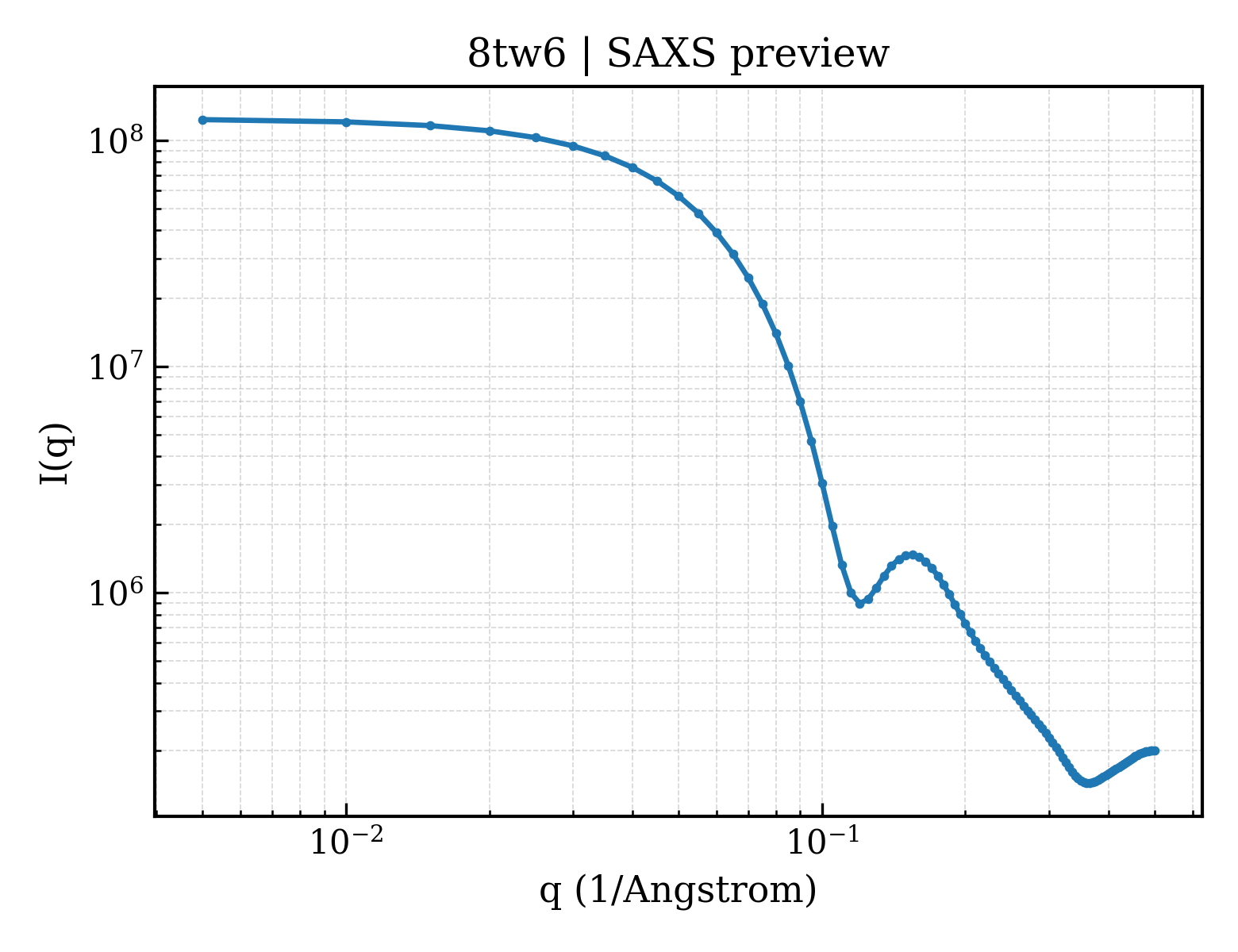

8tw6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

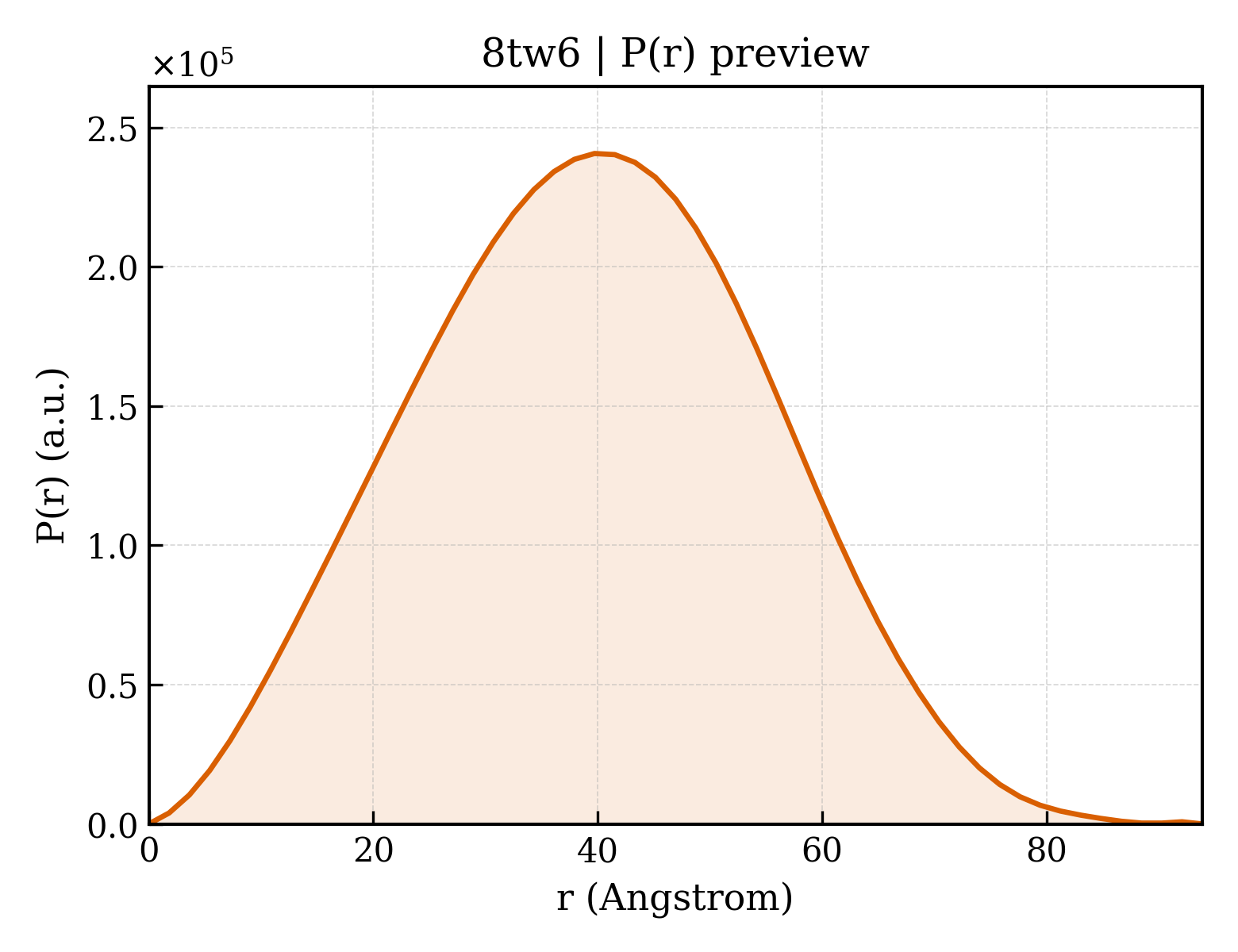

8tw6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.27 Å
Rg (electron density)	29.35 Å
Total Rg	30.15 Å
Atom count	6242
Residues	821
Excluded volume	111490 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8tw6__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	T-cell surface glycoprotein CD3 zeta chain, GFP fusion protein,GFP
Molecular weight formula_weight	46650.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Y,X
Atom count atom_count	6242

MKWKALFTAAILQAQLPITEAQSFGLLDPKLCYLLDGILFIYGVILTALFLRVKFSRSADAPAYQQGQNQLYNELNLGRREEYDVLDKRRGRDPEMGGKPQRRKNPQEGLYNELQKDKMAEAYSEIGMKGERRRGKGHDGLYQGLSTATKDTYDALHMQALPPRASLEVLFQGPVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLLEFVTAAGITLGMDELYK

Source Source

Source organism organism	human respiratory syncytial virus
NCBI taxonomy ID ncbi_taxonomy_id	11250
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	TCR alpha
Molecular weight formula_weight	30388.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

METLLGLLILWLQLQWVSSKQEVTQIPAALSVPEGENLVLNCSFTDSAIYNLQWFRQDPGKGLTSLLLIQSSQREQTSGRLNASLDKSSGRSTLYIAASQPGDSATYLCAVRPLYGGSYIPTFGRGTSLIVHPYIQNPDPAVYQLRDSKSSDKSVCLFTDFDSQTNVSQSKDSDVYITDKTVLDMRSMDFKSNSAVAWSNKSDFACANAFNNSIIPEDTFFPSPESSCDVKLVEKSFETDTNLNFQNLSVIGFRILLLKVAGFNLLMTLRLWSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	T cell receptor beta variable 6-5,T cell receptor beta chain MC.7.G5,MCHERRY
Molecular weight formula_weight	62042.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSIGLLCCAALSLLWAGPVNAGVTQTPKFQVLKTGQSMTLQCAQDMNHEYMSWYRQDPGMGLRLIHYSVGAGITDQGEVPNGYNVSRSTTEDFPLRLLSAAPSQTSVYFCASSYVGNTGELFFGEGSRLTVLEDLKNVFPPEVAVFEPSEAEISHTQKATLVCLATGFYPDHVELSWWVNGKEVHSGVSTDPQPLKEQPALNDSRYCLSSRLRVSATFWQNPRNHFRCQVQFYGLSENDEWTQDRAKPVTQIVSAEAWGRADCGFTSESYQQGVLSATILYEILLGKATLYAVLVSALVLMAMVKRKDSRGASLEVLFQGPVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEGTQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNFEDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALKGEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERAEGRHSTGGMDELYK

Source Source

Source organism organism	Escherichia coli str. K-12 substr. MG1655
NCBI taxonomy ID ncbi_taxonomy_id	511145
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	T-cell surface glycoprotein CD3 epsilon chain
Molecular weight formula_weight	23174.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

MQSGTHWRVLGLCLLSVGVWGQDGNEEMGGITQTPYKVSISGTTVILTCPQYPGSEILWQHNDKNIGGDEDDKNIGSDEDHLSLKEFSELEQSGYYVCYPRGSKPEDANFYLYLRARVCENCMEMDVMSVATIVIVDICITGGLLLLVYYWSKNRKAKAKPVTRGAGAGGRQRGQNKERPPPVPNPDYEPIRKGQRDLYSGLNQRRI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	T-cell surface glycoprotein CD3 delta chain
Molecular weight formula_weight	18949.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MEHSTFLSGLVLATLLSQVSPFKIPIEELEDRVFVNCNTSITWVEGTVGTLLSDITRLDLGKRILDPRGIYRCNGTDIYKDKESTVQVHYRMCQSCVELDPATVAGIIVTDVIATLLLALGVFCFAGHETGRLSGAADTQALLRNDQVYQPLRDRDDAQYSHLGGNWARNK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 polymer

Description description	T-cell surface glycoprotein CD3 gamma chain
Molecular weight formula_weight	21598.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MEQGKGLAVLILAIILLQGTLAQSIKGNHLVKVYDYQEDGSVLLTCDAEAKNITWFKDGKMIGFLTEDKKKWNLGSNAKDPRGMYQCKGSQNKSKPLQVYYRMCQNCIELNAATISGFLFAEIVSIFVLAVGVYFIAGQDGVRQSRASDKQTLLPNDQLYQPLKDREDDQYSHLQGNQLRRNHHHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 7 Entity 7 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	CHOLESTEROL
Molecular weight formula_weight	386.7 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 9 Entity 9 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	797000
