8es8

CryoEM structure of PN45545 TCR-CD3 in complex with HLA-A2 MAGEA4 (230-239)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-cell surface glycoprotein CD3 zeta chain

Homo sapiens

UniProt P20963

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 6	T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） PN45545 TCR alpha chain × 1 PN45545 TCR beta chain × 1 MHC class I antigen × 1 （Q861F7） Beta-2-microglobulin × 1 （P61769） Melanoma-associated antigen 4 × 1 （P43358） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CHOLESTEROL HEMISUCCINATE × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD3Z_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain Y； PDBConstruct 1–164； UniProt 1–164 Author chain Z； PDBConstruct 1–164； UniProt 1–164

T-cell surface glycoprotein CD3 delta chain

Homo sapiens

UniProt P04234

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 6	T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） PN45545 TCR alpha chain × 1 PN45545 TCR beta chain × 1 MHC class I antigen × 1 （Q861F7） Beta-2-microglobulin × 1 （P61769） Melanoma-associated antigen 4 × 1 （P43358） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CHOLESTEROL HEMISUCCINATE × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD3D_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–171； UniProt 1–171

T-cell surface glycoprotein CD3 epsilon chain

Homo sapiens

UniProt P07766

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 6	T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） PN45545 TCR alpha chain × 1 PN45545 TCR beta chain × 1 MHC class I antigen × 1 （Q861F7） Beta-2-microglobulin × 1 （P61769） Melanoma-associated antigen 4 × 1 （P43358） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CHOLESTEROL HEMISUCCINATE × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD3E_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 3–208； UniProt 2–207 Author chain F； PDBConstruct 3–208； UniProt 2–207

T-cell surface glycoprotein CD3 gamma chain

Homo sapiens

UniProt P09693

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 6	T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） PN45545 TCR alpha chain × 1 PN45545 TCR beta chain × 1 MHC class I antigen × 1 （Q861F7） Beta-2-microglobulin × 1 （P61769） Melanoma-associated antigen 4 × 1 （P43358） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CHOLESTEROL HEMISUCCINATE × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD3G_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain G； PDBConstruct 1–182； UniProt 1–182

MHC class I antigen

Homo sapiens

UniProt Q861F7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 6	T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） PN45545 TCR alpha chain × 1 PN45545 TCR beta chain × 1 Beta-2-microglobulin × 1 （P61769） Melanoma-associated antigen 4 × 1 （P43358） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CHOLESTEROL HEMISUCCINATE × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q861F7_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain N； PDBConstruct 2–277； UniProt 1–276

Beta-2-microglobulin

Homo sapiens

UniProt P61769

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 6	T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） PN45545 TCR alpha chain × 1 PN45545 TCR beta chain × 1 MHC class I antigen × 1 （Q861F7） Melanoma-associated antigen 4 × 1 （P43358） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CHOLESTEROL HEMISUCCINATE × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2MG_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain M； PDBConstruct 2–100； UniProt 21–119

Melanoma-associated antigen 4

OrganismNot specified

UniProt P43358

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 6	T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） PN45545 TCR alpha chain × 1 PN45545 TCR beta chain × 1 MHC class I antigen × 1 （Q861F7） Beta-2-microglobulin × 1 （P61769） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CHOLESTEROL HEMISUCCINATE × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MAGA4_HUMAN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain P； PDBConstruct 1–10； UniProt 230–239

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8es8
Deposition date deposition_date	2022-10-13
Structure title title	CryoEM structure of PN45545 TCR-CD3 in complex with HLA-A2 MAGEA4 (230-239)
Keywords keywords	TCR, membrane protein, CD3, HLA, MHC, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8es8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8es8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

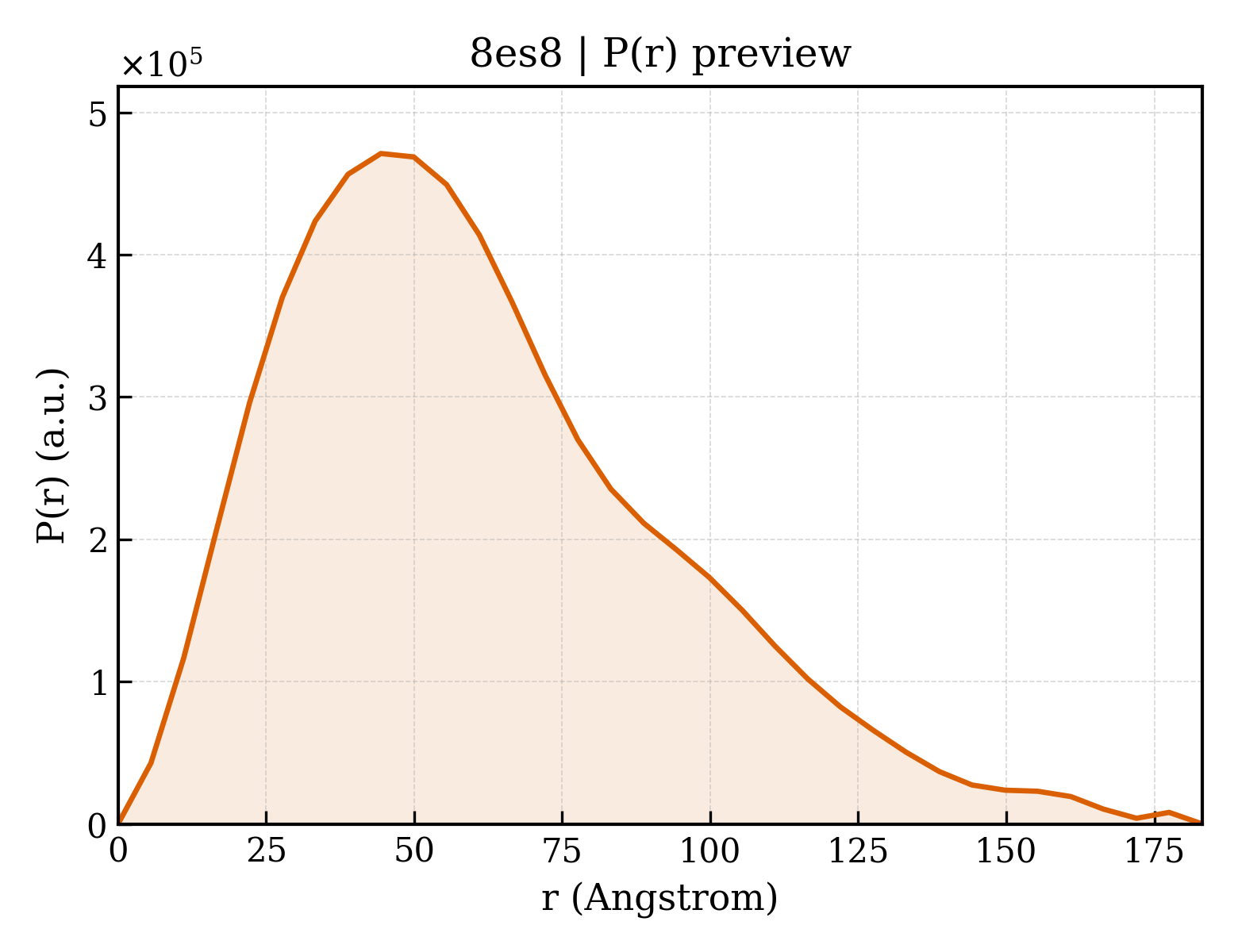

8es8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	47.90 Å
Rg (electron density)	49.64 Å
Total Rg	49.45 Å
Atom count	11976
Residues	1464
Excluded volume	212840 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8es8__assembly_1__model_1`	undecameric （11）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (13)

Entity 1 Entity 1 polymer

Description description	T-cell surface glycoprotein CD3 zeta chain
Molecular weight formula_weight	19654.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Z,Y
Atom count atom_count	11976

MKWKALFTAAILQAQLPITEAQSFGLLDPKLCYLLDGILFIYGVILTALFLRVKFSRSADAPAYQQGQNQLYNELNLGRREEYDVLDKRRGRDPEMGGKPQRRKNPQEGLYNELQKDKMAEAYSEIGMKGERRRGKGHDGLYQGLSTATKDTYDALHMQALPPRGSGLEVLFQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	T-cell surface glycoprotein CD3 delta chain
Molecular weight formula_weight	19150.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MEHSTFLSGLVLATLLSQVSPFKIPIEELEDRVFVNCNTSITWVEGTVGTLLSDITRLDLGKRILDPRGIYRCNGTDIYKDKESTVQVHYRMCQSCVELDPATVAGIIVTDVIATLLLALGVFCFAGHETGRLSGAADTQALLRNDQVYQPLRDRDDAQYSHLGGNWARNKGSG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	T-cell surface glycoprotein CD3 epsilon chain
Molecular weight formula_weight	23432.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,E

MGQSGTHWRVLGLCLLSVGVWGQDGNEEMGGITQTPYKVSISGTTVILTCPQYPGSEILWQHNDKNIGGDEDDKNIGSDEDHLSLKEFSELEQSGYYVCYPRGSKPEDANFYLYLRARVCENCMEMDVMSVATIVIVDICITGGLLLLVYYWSKNRKAKAKPVTRGAGAGGRQRGQNKERPPPVPNPDYEPIRKGQRDLYSGLNQRRIGSG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	T-cell surface glycoprotein CD3 gamma chain
Molecular weight formula_weight	20694.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MEQGKGLAVLILAIILLQGTLAQSIKGNHLVKVYDYQEDGSVLLTCDAEAKNITWFKDGKMIGFLTEDKKKWNLGSNAKDPRGMYQCKGSQNKSKPLQVYYRMCQNCIELNAATISGFLFAEIVSIFVLAVGVYFIAGQDGVRQSRASDKQTLLPNDQLYQPLKDREDDQYSHLQGNQLRRNGSG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	PN45545 TCR alpha chain
Molecular weight formula_weight	30737.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MSLSSLLKVVTASLWLGPGIAQKITQTQPGMFVQEKEAVTLDCTYDTSDPSYGLFWYKQPSSGEMIFLIYQGSYDQQNATEGRYSLNFQKARKSANLVISASQLGDSAMYFCAMRGGGSGGSYIPTFGRGTSLIVHPNIQNPDPAVYQLRDSKSSDKSVCLFTDFDSQTNVSQSKDSDVYITDKTVLDMRSMDFKSNSAVAWSNKSDFACANAFNNSIIPEDTFFPSPESSCDVKLVEKSFETDTNLNFQNLSVIGFRILLLKVAGFNLLMTLRLWSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 polymer

Description description	PN45545 TCR beta chain
Molecular weight formula_weight	35891.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MGFRLLCCVAFCLLGAGPVDVKVTQSSRYLVKRTGEKVFLECVQDMDHENMFWYRQDPGLGLRLIYFSYDVKMKEKGDIPEGYSVSREKKERFSLILESASTNQTSMYLCASSFTGPYNSPLHFGNGTRLTVTEDLNKVFPPEVAVFEPSEAEISHTQKATLVCLATGFFPDHVELSWWVNGKEVHSGVSTDPQPLKEQPALNDSRYCLSSRLRVSATFWQNPRNHFRCQVQFYGLSENDEWTQDRAKPVTQIVSAEAWGRADCGFTSVSYQQGVLSATILYEILLGKATLYAVLVSALVLMAMVKRKDSRGRAKRGSG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 7 Entity 7 polymer

Description description	MHC class I antigen
Molecular weight formula_weight	32082.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

MGSHSMRYFFTSVSRPGRGEPRFIAVGYVDDTQFVRFDSDAASQRMEPRAPWIEQEGPEYWDGETRKVKAHSQTHRVDLGTLRGYYNQSEAGSHTVQRMYGCDVGSDWRFLRGYHQYAYDGKDYIALKEDLRSWTAADMAAQTTKHKWEAAHVAEQLRAYLEGTCVEWLRRYLENGKETLQRTDAPKTHMTHHAVSDHEATLRCWALSFYPAEITLTWQRDGEDQTQDTELVETRPAGDGTFQKWAAVVVPSGQEQRYTCHVQHEGLPKPLTLRWEP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 8 Entity 8 polymer

Description description	Beta-2-microglobulin
Molecular weight formula_weight	11879.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MIQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKDEYACRVNHVTLSQPKIVKWDRDM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 9 Entity 9 polymer

Description description	Melanoma-associated antigen 4
Molecular weight formula_weight	1134.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

GVYDGREHTV

Entity 10 Entity 10 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 11 Entity 11 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	5

Entity 12 Entity 12 non-polymer

Description description	CHOLESTEROL HEMISUCCINATE
Molecular weight formula_weight	486.7 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 13 Entity 13 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	5

▼

6. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	8es8M01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	8es8N01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	8es8N02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.65 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	228624

CryoEM structure of PN45545 TCR-CD3 in complex with HLA-A2 MAGEA4 (230-239)

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-cell surface glycoprotein CD3 zeta chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-cell surface glycoprotein CD3 delta chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-cell surface glycoprotein CD3 epsilon chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

T-cell surface glycoprotein CD3 gamma chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

MHC class I antigen

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Beta-2-microglobulin

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Melanoma-associated antigen 4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

8es8__assembly_1__model_1

8es8__assembly_1__model_1 | I(q)

8es8__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (13)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source
