9ci8

T cell receptor complex

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-cell surface glycoprotein CD3 zeta chain

Homo sapiens

UniProt P20963

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	UCHT1 Fab × 2 UCHT1 Fab chain 2 × 2 T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） T cell receptor delta constant × 1 （A0A075B6X2） T cell receptor gamma constant 1 × 1 （P0CF51）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD3Z_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain a； PDBConstruct 1–31； UniProt 27–57 Author chain b； PDBConstruct 1–31； UniProt 27–57

T-cell surface glycoprotein CD3 delta chain

Homo sapiens

UniProt P04234

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	UCHT1 Fab × 2 UCHT1 Fab chain 2 × 2 T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） T cell receptor delta constant × 1 （A0A075B6X2） T cell receptor gamma constant 1 × 1 （P0CF51）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD3D_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain d； PDBConstruct 1–105； UniProt 22–126

T-cell surface glycoprotein CD3 epsilon chain

Homo sapiens

UniProt P07766

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	UCHT1 Fab × 2 UCHT1 Fab chain 2 × 2 T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） T cell receptor delta constant × 1 （A0A075B6X2） T cell receptor gamma constant 1 × 1 （P0CF51）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD3E_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain e； PDBConstruct 1–124； UniProt 33–156 Author chain f； PDBConstruct 1–124； UniProt 33–156

T-cell surface glycoprotein CD3 gamma chain

Homo sapiens

UniProt P09693

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	UCHT1 Fab × 2 UCHT1 Fab chain 2 × 2 T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T cell receptor delta constant × 1 （A0A075B6X2） T cell receptor gamma constant 1 × 1 （P0CF51）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CD3G_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain g； PDBConstruct 1–115； UniProt 24–138

T cell receptor delta constant

Homo sapiens

UniProt A0A075B6X2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	UCHT1 Fab × 2 UCHT1 Fab chain 2 × 2 T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） T cell receptor gamma constant 1 × 1 （P0CF51）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A075B6X2_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain m； PDBConstruct 1–36； UniProt 119–154

T cell receptor gamma constant 1

Homo sapiens

UniProt P0CF51

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	UCHT1 Fab × 2 UCHT1 Fab chain 2 × 2 T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） T cell receptor delta constant × 1 （A0A075B6X2）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRGC1_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain n； PDBConstruct 1–38； UniProt 128–165

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ci8
Deposition date deposition_date	2024-07-02
Structure title title	T cell receptor complex
Keywords keywords	T cell receptor T cell immunity, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ci8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9ci8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

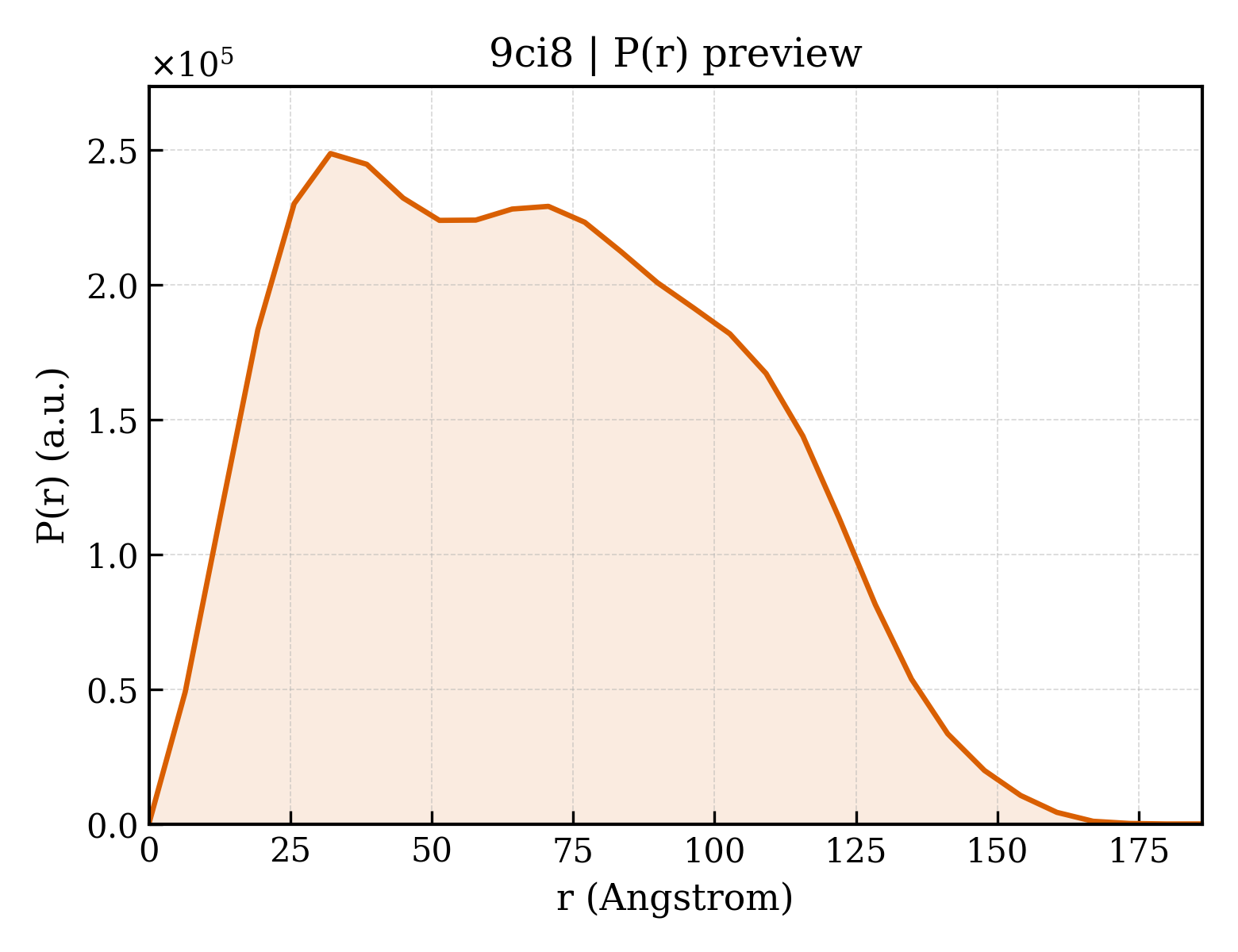

9ci8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	53.56 Å
Rg (electron density)	54.38 Å
Total Rg	54.22 Å
Atom count	10466
Residues	1382
Excluded volume	187140 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ci8__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	UCHT1 Fab
Molecular weight formula_weight	23614.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	10466

MDIQMTQTTSSLSASLGDRVTISCRASQDIRNYLNWYQQKPDGTVKLLIYYTSRLHSGVPSKFSGSGSGTDYSLTISNLEQEDIATYFCQQGNTLPWTFAGGTKLEIXXRADAAPTVSIFPPASEQLTSGGASVVCFLNNFYPKSINSKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKNEYERHNSYTCEATHKXXXSPIVKSFNRS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 2 Entity 2 polymer

Description description	UCHT1 Fab chain 2
Molecular weight formula_weight	23767.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

EVQLQQSGPELVKPGASMKISCKASGYSFTGYTMNWVKQSHGKNLEWMGLINPYKGVSTYNQKFKDKATLTVDKSSSTAYMELLSLTSEDSAVYYCARSGYYGDSDWYFDVWGQGTTLTVFSAKTTPPSVYPLAPGSXXXXXXMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLKSDLYTLSSSVTVXXXXXXXXXVTCNVAHPASSTTVDKKIVPR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 3 Entity 3 polymer

Description description	T-cell surface glycoprotein CD3 zeta chain
Molecular weight formula_weight	3605.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	a,b

LDPKLCYLLDGILFIYGVILTALFLRVKFSR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 4 Entity 4 polymer

Description description	T-cell surface glycoprotein CD3 delta chain
Molecular weight formula_weight	11693.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	d

FKIPIEELEDRVFVNCNTSITWVEGTVGTLLSDITRLDLGKRILDPRGIYRCNGTDIYKDKESTVQVHYRMCQSCVELDPATVAGIIVTDVIATLLLALGVFCFA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 5 Entity 5 polymer

Description description	T-cell surface glycoprotein CD3 epsilon chain
Molecular weight formula_weight	14111.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	e,f

QTPYKVSISGTTVILTCPQYPGSEILWQHNDKNIGGDEDDKNIGSDEDHLSLKEFSELEQSGYYVCYPRGSKPEDANFYLYLRARVCENCMEMDVMSVATIVIVDICITGGLLLLVYYWSKNRK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 6 Entity 6 polymer

Description description	T-cell surface glycoprotein CD3 gamma chain
Molecular weight formula_weight	12900.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	g

SIKGNHLVKVYDYQEDGSVLLTCDAEAKNITWFKDGKMIGFLTEDKKKWNLGSNAKDPRGMYQCKGSQNKSKPLQVYYRMCQNCIELNAATISGFLFAEIVSIFVLAVGVYFIAG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 7 Entity 7 polymer

Description description	T cell receptor delta constant
Molecular weight formula_weight	4104.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	m

HTEKVNMMSLTVLGLRMLFAKTVAVNFLLTAKLFFL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 8 Entity 8 polymer

Description description	T cell receptor gamma constant 1
Molecular weight formula_weight	4403.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	n

TLLLQLTNTSAYYMYLLLLLKSVVYFAIITCCLLRRTA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.01 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	193581
