9jy0

Fab-CD3-gamma epsilon-TCR complex

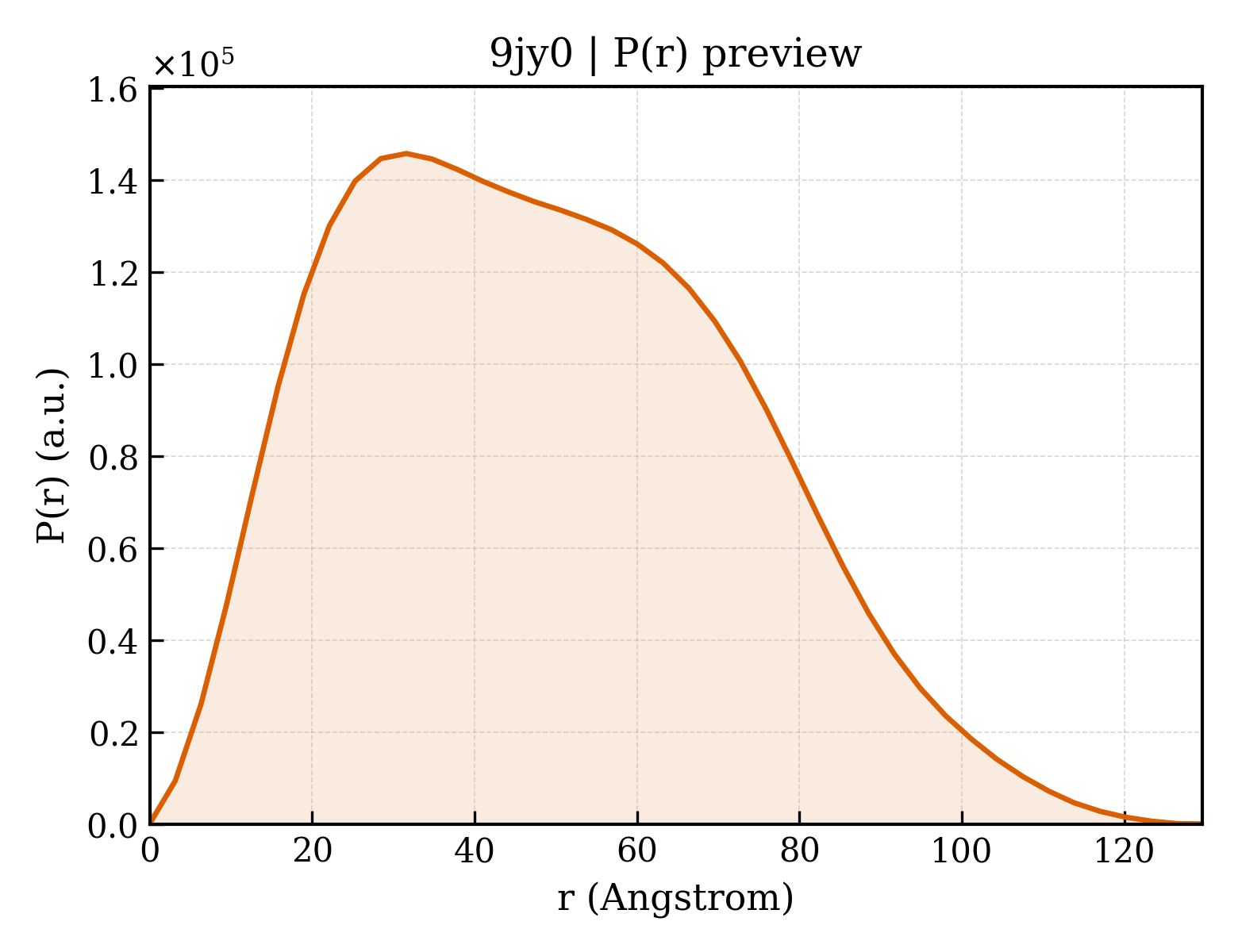

Method: ELECTRON MICROSCOPY Dmax: 129.6 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-cell surface glycoprotein CD3 zeta chain

Homo sapiens

UniProt P20963

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count Chain a； UniProt 1–164 Chain b； UniProt 1–164 Not recorded T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T cell receptor delta variable 2,T cell receptor delta constant × 1 （A0JD36,B7Z8K6） T cell receptor gamma variable 9,T cell receptor gamma constant 1 × 1 （Q99603,P0CF51） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） Fab light chain × 1 Fab heavy chain × 1 CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.69 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9JY0 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1TCE SOLUTION NMR STRUCTURE OF THE SHC SH2 DOMAIN COMPLEXED WITH A TYROSINE-PHOSPHORYLATED PEPTIDE FROM THE T-CELL RECEPTOR, MINIMIZED AVERAGE STRUCTURE Deposited 1996-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 136–149（14 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1YGR Crystal structure of the tandem phosphatase domain of RPTP CD45 Deposited 2005-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 80–85（6 aa） Fragment：ITAM-1 (residues 80-85; SWS:P20963)
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；Sodium acetate, PEG 4000, Glycerol, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.90 Å R-free 0.312
1YGR Crystal structure of the tandem phosphatase domain of RPTP CD45 Deposited 2005-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 80–85（6 aa） Fragment：ITAM-1 (residues 80-85; SWS:P20963)
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；Sodium acetate, PEG 4000, Glycerol, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.90 Å R-free 0.312
2HAC Structure of Zeta-Zeta Transmembrane Dimer Deposited 2006-06-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 28–60（33 aa） Fragment：transmembrane region (28-60)
Chain B 28–60（33 aa） Fragment：transmembrane region (28-60)
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；303 K；Ionic strength (raw mmCIF value) 20 mM sodium phosphate buffer；Pressure ambient
NMR sample composition 0.5-1.0 mM disulfide crosslinked zeta-zeta dimer U-15N,U-13C,85%-2H. Sodium dodecyl sulfate (40 mM) and dodecyl phosphocholine (200 mM), 95% H2O, 5% D2O. | 95% H2O/5% D2O
NMR sample composition 0.5-1.0 mM disulfide crosslinked zeta-zeta dimer U-15N,U-13C. Sodium dodecyl sulfate (40 mM) and dodecyl phosphocholine (200 mM), 95% H2O, 5% D2O. | 95% H2O/5% D2O
NMR sample composition 0.5-1.0 mM disulfide crosslinked zeta-zeta dimer, mixed-label. One monomer: U-15N,U-2H. Other monomer: natural abundance isotopes. Sodium dodecyl sulfate (40 mM) and dodecyl phosphocholine (200 mM), 95% H2O, 5% D2O. | 95% H2O/5% D2O
NMR sample composition 0.5-1.0 mM disulfide crosslinked zeta-zeta dimer U-15N,U-13C. Sodium dodecyl sulfate (40 mM) and dodecyl phosphocholine (200 mM), 95% H2O, 5% D2O. 5% polyacrylamide gel. | 95% H2O/5% D2O
Resolution not provided
2OQ1 Tandem SH2 domains of ZAP-70 with 19-mer zeta1 peptide Deposited 2007-01-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 69–87（19 aa） Fragment：residues 69-87
Non-standard monomer：Yes (specific site not provided by mmCIF) PB LEAD (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；298 K；20%PEG 4000, 50mM sodium citrate,100 mM ammonium acetate, 20mM DTT, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.90 Å R-free 0.255
3IK5 SIVmac239 Nef in complex with TCR zeta ITAM 1 polypeptide (A63-R80) Deposited 2009-08-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 63–80（18 aa） Fragment：ITAM 1 polypeptide (A63-R80)
Chain D 63–80（18 aa） Fragment：ITAM 1 polypeptide (A63-R80)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；15% PEG 3350, 0.2mM ammonmium fluoride, 0.1mM hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.05 Å R-free 0.184
3IK5 SIVmac239 Nef in complex with TCR zeta ITAM 1 polypeptide (A63-R80) Deposited 2009-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 63–80（18 aa） Fragment：ITAM 1 polypeptide (A63-R80)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；15% PEG 3350, 0.2mM ammonmium fluoride, 0.1mM hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.05 Å R-free 0.184
3IK5 SIVmac239 Nef in complex with TCR zeta ITAM 1 polypeptide (A63-R80) Deposited 2009-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 63–80（18 aa） Fragment：ITAM 1 polypeptide (A63-R80)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；15% PEG 3350, 0.2mM ammonmium fluoride, 0.1mM hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.05 Å R-free 0.184
3IOZ SIVmac239 Nef in complex with a TCR zeta polypeptide DP1 (L51-D93) Deposited 2009-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 51–93（43 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；277 K；15% PEG 3350, 0.15M KF, 0.1M hepes, pH 8.2, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.70 Å R-free 0.329
6JXR Structure of human T cell receptor-CD3 complex Deposited 2019-04-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.70 Å
7FJD Cryo-EM structure of a membrane protein(WT) Deposited 2021-08-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.20 Å
7FJE Cryo-EM structure of a membrane protein(LL) Deposited 2021-08-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.00 Å
7FJF Cryo-EM structure of a membrane protein(CS) Deposited 2021-08-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded C3S CHOLEST-5-EN-3-YL HYDROGEN SULFATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.10 Å
7PHR Structure of a fully assembled T-cell receptor engaging a tumor-associated peptide-MHC I Deposited 2021-08-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 11 PDB declaration: undecameric
Chain Z 22–57（36 aa）
Chain z 22–57（36 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
8ES7 CryoEM structure of PN45545 TCR-CD3 complex Deposited 2022-10-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric
Chain Y 1–164（164 aa）
Chain Z 1–164（164 aa）
Not recorded Y01 CHOLESTEROL HEMISUCCINATE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.04 Å
8ES8 CryoEM structure of PN45545 TCR-CD3 in complex with HLA-A2 MAGEA4 (230-239) Deposited 2022-10-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 11 PDB declaration: undecameric
Chain Y 1–164（164 aa）
Chain Z 1–164（164 aa）
Not recorded Y01 CHOLESTEROL HEMISUCCINATE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.65 Å
8ES9 CryoEM structure of PN45428 TCR-CD3 in complex with HLA-A2 MAGEA4 Deposited 2022-10-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 11 PDB declaration: undecameric
Chain Y 1–164（164 aa）
Chain Z 1–164（164 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 Y01 CHOLESTEROL HEMISUCCINATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.25 Å
8J8I Membrane-bound structure of CD3z cytoplasmic domain Deposited 2023-05-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 25–164（140 aa）
Mutation：C8S, D12L,M72V,M95V,M104V,M134V No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.7；298 K；Ionic strength (raw mmCIF value) 20；Pressure 1
NMR sample composition 0.3 mM [U-100% 13C; U-100% 15N] CD3zTMCD, 20 mM None Bis-Tris, 60 mM None POPG, 90 % None H2O, 10 % None D2O, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
8JC0 V gamma9 V delta2 TCR and CD3 complex in LMNG Deposited 2023-05-10 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8JCB Vgamma5 Vdelta1 T cell receptor complex Deposited 2023-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain A 1–164（164 aa）
Chain B 1–164（164 aa）
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.50 Å
8TW4 TCR in nanodisc ND-I Deposited 2023-08-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain X 1–164（164 aa）
Chain Y 1–164（164 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8TW6 TCR in nanodisc ND-II Deposited 2023-08-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain X 1–164（164 aa）
Chain Y 1–164（164 aa）
Not recorded CLR CHOLESTEROL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8WXE Vgamma5Vdelta1 EH TCR-CD3 complex Deposited 2023-10-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8WY0 T cell receptor delta 2 gamma 9 with F283A, F290A, and F291A Deposited 2023-10-30 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8WYI T cell receptor delta 2 gamma 9 with TCRD TM domain chimera of TRAC Deposited 2023-10-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8YC0 T cell receptor V delta2 V gamma9 in GDN Deposited 2024-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.12 Å
8ZA6 Cryo-EM structure of the gdTCR-CD3 complex Deposited 2024-04-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.43 Å
9BBC TCR GDN detergent micelle Deposited 2024-04-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric
Chain X 1–164（164 aa）
Chain Y 1–164（164 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9C3E TCR - CD3 complex bound to HLA Deposited 2024-05-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain X 1–164（164 aa）
Chain Y 1–164（164 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9CI8 T cell receptor complex Deposited 2024-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain a 27–57（31 aa）
Chain b 27–57（31 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Hepes buffer saline
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.01 Å
9CIA T cell receptor complex Deposited 2024-07-03 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain a 27–55（29 aa）
Chain b 27–55（29 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；HEPES buffer saline
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
9CQ4 G115 gamma delta TCR/CD3 complex bound by OKT3 Fab Deposited 2024-07-19 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric
Chain Y 1–164（164 aa）
Chain Z 1–164（164 aa）
Not recorded CLR CHOLESTEROL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.27 Å
9IRS Cryo-EM structure of the TCR-OKT3 complex Deposited 2024-07-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.18 Å
9IRU Cryo-em structure of TCR-4B1 complex Deposited 2024-07-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.14 Å
9JXZ V gamma9 V delta2 TCR and CD3 complex Deposited 2024-10-12 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded CLR CHOLESTEROL × 2 LPE 1-O-OCTADECYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9JY1 delta epsilon/delta epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: eicosameric
Chain A 1–164（164 aa）
Chain B 1–164（164 aa）
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
9JY2 Fab-CD3-delta epsilon-TCR complex Deposited 2024-10-12 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain a 26–56（31 aa）
Chain b 26–56（31 aa）
Not recorded CLR CHOLESTEROL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.24 Å
9JY3 delta epsilon/gamma epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain A 26–56（31 aa）
Chain B 26–56（31 aa）
Chain a 26–56（31 aa）
Chain b 26–56（31 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9JY4 gamma epsilon/gamma epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: eicosameric
Chain A 1–164（164 aa）
Chain B 1–164（164 aa）
Chain a 1–164（164 aa）
Chain b 1–164（164 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å

36 other PDB entries and 39 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CD3Z_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain a； PDBConstruct 1–164； UniProt 1–164 Author chain b； PDBConstruct 1–164； UniProt 1–164

T-cell surface glycoprotein CD3 delta chain

Homo sapiens

UniProt P04234

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count Chain d； UniProt 1–171 Not recorded T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T cell receptor delta variable 2,T cell receptor delta constant × 1 （A0JD36,B7Z8K6） T cell receptor gamma variable 9,T cell receptor gamma constant 1 × 1 （Q99603,P0CF51） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） Fab light chain × 1 Fab heavy chain × 1 CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.69 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9JY0 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1XIW Crystal structure of human CD3-e/d dimer in complex with a UCHT1 single-chain antibody fragment Deposited 2004-09-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 23–100（78 aa） Fragment：ectodomain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；PEG 3350, sodium chloride, HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 22K
Resolution 1.90 Å R-free 0.241
1XIW Crystal structure of human CD3-e/d dimer in complex with a UCHT1 single-chain antibody fragment Deposited 2004-09-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 23–100（78 aa） Fragment：ectodomain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；PEG 3350, sodium chloride, HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 22K
Resolution 1.90 Å R-free 0.241
6JXR Structure of human T cell receptor-CD3 complex Deposited 2019-04-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain d 1–171（171 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.70 Å
7FJD Cryo-EM structure of a membrane protein(WT) Deposited 2021-08-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain d 1–171（171 aa）
Not recorded CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.20 Å
7FJE Cryo-EM structure of a membrane protein(LL) Deposited 2021-08-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain d 1–171（171 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.00 Å
7FJF Cryo-EM structure of a membrane protein(CS) Deposited 2021-08-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain d 1–171（171 aa）
Not recorded C3S CHOLEST-5-EN-3-YL HYDROGEN SULFATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.10 Å
7PHR Structure of a fully assembled T-cell receptor engaging a tumor-associated peptide-MHC I Deposited 2021-08-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 11 PDB declaration: undecameric
Chain D 22–132（111 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
8ES7 CryoEM structure of PN45545 TCR-CD3 complex Deposited 2022-10-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–171（171 aa）
Not recorded Y01 CHOLESTEROL HEMISUCCINATE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.04 Å
8ES8 CryoEM structure of PN45545 TCR-CD3 in complex with HLA-A2 MAGEA4 (230-239) Deposited 2022-10-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 11 PDB declaration: undecameric
Chain D 1–171（171 aa）
Not recorded Y01 CHOLESTEROL HEMISUCCINATE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.65 Å
8ES9 CryoEM structure of PN45428 TCR-CD3 in complex with HLA-A2 MAGEA4 Deposited 2022-10-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 11 PDB declaration: undecameric
Chain D 1–171（171 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 Y01 CHOLESTEROL HEMISUCCINATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.25 Å
8JC0 V gamma9 V delta2 TCR and CD3 complex in LMNG Deposited 2023-05-10 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain d 1–171（171 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8JCB Vgamma5 Vdelta1 T cell receptor complex Deposited 2023-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain D 1–171（171 aa）
Chain d 1–171（171 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.50 Å
8TW4 TCR in nanodisc ND-I Deposited 2023-08-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–171（171 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8TW6 TCR in nanodisc ND-II Deposited 2023-08-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–171（171 aa）
Not recorded CLR CHOLESTEROL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8WXE Vgamma5Vdelta1 EH TCR-CD3 complex Deposited 2023-10-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain d 1–171（171 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8WY0 T cell receptor delta 2 gamma 9 with F283A, F290A, and F291A Deposited 2023-10-30 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain d 1–171（171 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8WYI T cell receptor delta 2 gamma 9 with TCRD TM domain chimera of TRAC Deposited 2023-10-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain d 1–171（171 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8YC0 T cell receptor V delta2 V gamma9 in GDN Deposited 2024-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain d 1–171（171 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.12 Å
8ZA6 Cryo-EM structure of the gdTCR-CD3 complex Deposited 2024-04-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain d 1–171（171 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.43 Å
9BBC TCR GDN detergent micelle Deposited 2024-04-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–171（171 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9C3E TCR - CD3 complex bound to HLA Deposited 2024-05-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain D 1–125（125 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9CI8 T cell receptor complex Deposited 2024-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain d 22–126（105 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Hepes buffer saline
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.01 Å
9CIA T cell receptor complex Deposited 2024-07-03 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain d 22–127（106 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；HEPES buffer saline
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
9CQ4 G115 gamma delta TCR/CD3 complex bound by OKT3 Fab Deposited 2024-07-19 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric
Chain K 1–171（171 aa）
Not recorded CLR CHOLESTEROL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.27 Å
9IRS Cryo-EM structure of the TCR-OKT3 complex Deposited 2024-07-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain d 1–171（171 aa）
Not recorded CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.18 Å
9IRU Cryo-em structure of TCR-4B1 complex Deposited 2024-07-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain d 1–171（171 aa）
Not recorded CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.14 Å
9JXZ V gamma9 V delta2 TCR and CD3 complex Deposited 2024-10-12 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain d 1–171（171 aa）
Not recorded CLR CHOLESTEROL × 2 LPE 1-O-OCTADECYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9JY1 delta epsilon/delta epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: eicosameric
Chain D 1–171（171 aa）
Chain d 1–171（171 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
9JY2 Fab-CD3-delta epsilon-TCR complex Deposited 2024-10-12 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain d 22–126（105 aa）
Not recorded CLR CHOLESTEROL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.24 Å
9JY3 delta epsilon/gamma epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain D 22–126（105 aa）
Chain d 22–126（105 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9JY4 gamma epsilon/gamma epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: eicosameric
Chain D 1–171（171 aa）
Chain d 1–171（171 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å

30 other PDB entries and 31 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CD3D_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain d； PDBConstruct 1–171； UniProt 1–171

T-cell surface glycoprotein CD3 epsilon chain

Homo sapiens

UniProt P07766

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count Chain e； UniProt 1–207 Chain f； UniProt 1–207 Not recorded T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T cell receptor delta variable 2,T cell receptor delta constant × 1 （A0JD36,B7Z8K6） T cell receptor gamma variable 9,T cell receptor gamma constant 1 × 1 （Q99603,P0CF51） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） Fab light chain × 1 Fab heavy chain × 1 CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.69 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9JY0 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1A81 CRYSTAL STRUCTURE OF THE TANDEM SH2 DOMAIN OF THE SYK KINASE BOUND TO A DUALLY TYROSINE-PHOSPHORYLATED ITAM Deposited 1998-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain H 186–203（18 aa）
Chain J 186–203（18 aa）
Chain L 186–203（18 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；10% (W/V) PEG800, 10% (V/V) PEG 200, 0.1M TRIS HCL PH 8.5
Resolution 3.00 Å R-free 0.317
1A81 CRYSTAL STRUCTURE OF THE TANDEM SH2 DOMAIN OF THE SYK KINASE BOUND TO A DUALLY TYROSINE-PHOSPHORYLATED ITAM Deposited 1998-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 186–203（18 aa）
Chain D 186–203（18 aa）
Chain F 186–203（18 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；10% (W/V) PEG800, 10% (V/V) PEG 200, 0.1M TRIS HCL PH 8.5
Resolution 3.00 Å R-free 0.317
1A81 CRYSTAL STRUCTURE OF THE TANDEM SH2 DOMAIN OF THE SYK KINASE BOUND TO A DUALLY TYROSINE-PHOSPHORYLATED ITAM Deposited 1998-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 186–203（18 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；10% (W/V) PEG800, 10% (V/V) PEG 200, 0.1M TRIS HCL PH 8.5
Resolution 3.00 Å R-free 0.317
1A81 CRYSTAL STRUCTURE OF THE TANDEM SH2 DOMAIN OF THE SYK KINASE BOUND TO A DUALLY TYROSINE-PHOSPHORYLATED ITAM Deposited 1998-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 186–203（18 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；10% (W/V) PEG800, 10% (V/V) PEG 200, 0.1M TRIS HCL PH 8.5
Resolution 3.00 Å R-free 0.317
1A81 CRYSTAL STRUCTURE OF THE TANDEM SH2 DOMAIN OF THE SYK KINASE BOUND TO A DUALLY TYROSINE-PHOSPHORYLATED ITAM Deposited 1998-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 186–203（18 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；10% (W/V) PEG800, 10% (V/V) PEG 200, 0.1M TRIS HCL PH 8.5
Resolution 3.00 Å R-free 0.317
1A81 CRYSTAL STRUCTURE OF THE TANDEM SH2 DOMAIN OF THE SYK KINASE BOUND TO A DUALLY TYROSINE-PHOSPHORYLATED ITAM Deposited 1998-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 186–203（18 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；10% (W/V) PEG800, 10% (V/V) PEG 200, 0.1M TRIS HCL PH 8.5
Resolution 3.00 Å R-free 0.317
1A81 CRYSTAL STRUCTURE OF THE TANDEM SH2 DOMAIN OF THE SYK KINASE BOUND TO A DUALLY TYROSINE-PHOSPHORYLATED ITAM Deposited 1998-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 186–203（18 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；10% (W/V) PEG800, 10% (V/V) PEG 200, 0.1M TRIS HCL PH 8.5
Resolution 3.00 Å R-free 0.317
1A81 CRYSTAL STRUCTURE OF THE TANDEM SH2 DOMAIN OF THE SYK KINASE BOUND TO A DUALLY TYROSINE-PHOSPHORYLATED ITAM Deposited 1998-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 186–203（18 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；10% (W/V) PEG800, 10% (V/V) PEG 200, 0.1M TRIS HCL PH 8.5
Resolution 3.00 Å R-free 0.317
1SY6 Crystal Structure of CD3gammaepsilon Heterodimer in Complex with OKT3 Fab Fragment Deposited 2004-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 23–118（96 aa） Fragment：CD3 epsilon/gamma ecto domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；294 K；PEG3350, potassium formate, TRIS, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 323K, temperature 294K
Resolution 2.10 Å R-free 0.255
1XIW Crystal structure of human CD3-e/d dimer in complex with a UCHT1 single-chain antibody fragment Deposited 2004-09-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 23–126（104 aa） Fragment：ectodomain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；PEG 3350, sodium chloride, HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 22K
Resolution 1.90 Å R-free 0.241
1XIW Crystal structure of human CD3-e/d dimer in complex with a UCHT1 single-chain antibody fragment Deposited 2004-09-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 23–126（104 aa） Fragment：ectodomain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；PEG 3350, sodium chloride, HEPES, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 22K
Resolution 1.90 Å R-free 0.241
2JXB Structure of CD3epsilon-Nck2 first SH3 domain complex Deposited 2007-11-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 177–188（12 aa） Fragment：;Fusion protein of T-cell surface glycoprotein CD3 epsilon chain cytoplasmic domain residues 177-188 and Cytoplasmic protein NCK2 first SH3 domain ;
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 100；Pressure ambient
NMR sample composition 2 mM [U-13C; U-15N] entity, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2ROL Structural Basis of PxxDY motif recognition in SH3 binding Deposited 2008-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 181–192（12 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.5；298 K；Pressure AMBIENT
NMR sample composition 0.8mM [U-98% 13C; U-98% 15N] Eps8L1SH3; 2.4mM CD3e peptide; 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
6JXR Structure of human T cell receptor-CD3 complex Deposited 2019-04-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.70 Å
7FJD Cryo-EM structure of a membrane protein(WT) Deposited 2021-08-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.20 Å
7FJE Cryo-EM structure of a membrane protein(LL) Deposited 2021-08-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.00 Å
7FJF Cryo-EM structure of a membrane protein(CS) Deposited 2021-08-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded C3S CHOLEST-5-EN-3-YL HYDROGEN SULFATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.10 Å
7PHR Structure of a fully assembled T-cell receptor engaging a tumor-associated peptide-MHC I Deposited 2021-08-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 11 PDB declaration: undecameric
Chain E 23–158（136 aa）
Chain e 23–158（136 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
8ES7 CryoEM structure of PN45545 TCR-CD3 complex Deposited 2022-10-13 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric
Chain E 2–207（206 aa）
Chain F 2–207（206 aa）
Not recorded Y01 CHOLESTEROL HEMISUCCINATE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.04 Å
8ES8 CryoEM structure of PN45545 TCR-CD3 in complex with HLA-A2 MAGEA4 (230-239) Deposited 2022-10-13 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 11 PDB declaration: undecameric
Chain E 2–207（206 aa）
Chain F 2–207（206 aa）
Not recorded Y01 CHOLESTEROL HEMISUCCINATE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.65 Å
8ES9 CryoEM structure of PN45428 TCR-CD3 in complex with HLA-A2 MAGEA4 Deposited 2022-10-13 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 11 PDB declaration: undecameric
Chain E 2–207（206 aa）
Chain F 2–207（206 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 Y01 CHOLESTEROL HEMISUCCINATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.25 Å
8F0L Crystal Structure of the Human T cell Receptor CD3(EPSILON) N-Terminal Peptide Complexed with ADI-26906 FAB Deposited 2022-11-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain P 22–34（13 aa）
Chain Q 22–34（13 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；Crystals of the ADI-26906 Fab complexed to CD3 epsilon N13 peptide were obtained by the sitting drop vapor diffusion method. The ADI-26906 Fab buffered in PBS, was first buffer-exchanged into 20 mM Bis-Tris pH 6.0 and 150 mM NaCl. The Fab (0.31 mM) was mixed with the N13 peptide (7.8 mM) at a Fab:peptide ratio of 1:25 and incubated on ice for 1.5 h. A BCS screen (Molecular Dimensions Ltd.) was set up using a mosquito crystallization robot (STP Labtech), with each drop consisting of 100 nL protein and 100 nL of reservoir solution, and left to equilibrate against a 40 uL reservoir solution at 293 K. After a few days, crystals were obtained in condition A6 (0.1 M MES pH 6.5, 25% w/v PEG Smear Broad).
Resolution 1.81 Å R-free 0.195
8JC0 V gamma9 V delta2 TCR and CD3 complex in LMNG Deposited 2023-05-10 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8JCB Vgamma5 Vdelta1 T cell receptor complex Deposited 2023-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain E 1–207（207 aa）
Chain F 1–207（207 aa）
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.50 Å
8TW4 TCR in nanodisc ND-I Deposited 2023-08-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–207（207 aa）
Chain F 1–207（207 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8TW6 TCR in nanodisc ND-II Deposited 2023-08-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–207（207 aa）
Chain F 1–207（207 aa）
Not recorded CLR CHOLESTEROL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8WXE Vgamma5Vdelta1 EH TCR-CD3 complex Deposited 2023-10-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8WY0 T cell receptor delta 2 gamma 9 with F283A, F290A, and F291A Deposited 2023-10-30 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8WYI T cell receptor delta 2 gamma 9 with TCRD TM domain chimera of TRAC Deposited 2023-10-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8YC0 T cell receptor V delta2 V gamma9 in GDN Deposited 2024-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.12 Å
8ZA6 Cryo-EM structure of the gdTCR-CD3 complex Deposited 2024-04-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.43 Å
9BBC TCR GDN detergent micelle Deposited 2024-04-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–207（207 aa）
Chain F 1–207（207 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9C3E TCR - CD3 complex bound to HLA Deposited 2024-05-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain E 1–207（207 aa）
Chain F 1–207（207 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9CI8 T cell receptor complex Deposited 2024-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain e 33–156（124 aa）
Chain f 33–156（124 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Hepes buffer saline
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.01 Å
9CIA T cell receptor complex Deposited 2024-07-03 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain e 33–155（123 aa）
Chain f 33–155（123 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；HEPES buffer saline
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
9CQ4 G115 gamma delta TCR/CD3 complex bound by OKT3 Fab Deposited 2024-07-19 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric
Chain E 1–207（207 aa）
Chain F 1–207（207 aa）
Not recorded CLR CHOLESTEROL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.27 Å
9IP8 Poly-alanine model for HL-type bispecific diabody Ex3 composed of 528 and OKT3 Fvs in ternary complex with sEGFR and CD3gamma-epsilon (closed conformation) Deposited 2024-07-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–118（96 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.91 Å
9IP9 Poly-alanine model for HL-type bispecific diabody Ex3 composed of 528 and OKT3 Fvs in ternary complex with sEGFR and CD3gamma-epsilon (middle conformation) Deposited 2024-07-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–118（96 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.64 Å
9IPA Poly-alanine model for HL-type bispecific diabody Ex3 composed of 528 and OKT3 Fvs in ternary complex with sEGFR and CD3gamma-epsilon (open conformation) Deposited 2024-07-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–118（96 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.85 Å
9IPC Poly-alanine model for LH-type bispecific diabody Ex3 composed of 528 and OKT3 Fvs in ternary complex with sEGFR and CD3gamma-epsilon (closed conformation) Deposited 2024-07-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–118（96 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9IPD Poly-alanine model for LH-type bispecific diabody Ex3 composed of 528 and OKT3 Fvs in ternary complex with sEGFR and CD3gamma-epsilon (middle conformation) Deposited 2024-07-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–118（96 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9IPE Poly-alanine model for LH-type bispecific diabody Ex3 composed of 528 and OKT3 Fvs in ternary complex with sEGFR and CD3gamma-epsilon (open conformation) Deposited 2024-07-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–118（96 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9IRS Cryo-EM structure of the TCR-OKT3 complex Deposited 2024-07-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.18 Å
9IRU Cryo-em structure of TCR-4B1 complex Deposited 2024-07-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.14 Å
9JXZ V gamma9 V delta2 TCR and CD3 complex Deposited 2024-10-12 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded CLR CHOLESTEROL × 2 LPE 1-O-OCTADECYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9JY1 delta epsilon/delta epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: eicosameric
Chain E 1–207（207 aa）
Chain F 1–207（207 aa）
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
9JY2 Fab-CD3-delta epsilon-TCR complex Deposited 2024-10-12 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain e 33–154（122 aa）
Chain f 33–154（122 aa）
Not recorded CLR CHOLESTEROL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.24 Å
9JY3 delta epsilon/gamma epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain E 33–154（122 aa）
Chain F 33–154（122 aa）
Chain e 33–154（122 aa）
Chain f 33–154（122 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9JY4 gamma epsilon/gamma epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: eicosameric
Chain E 1–207（207 aa）
Chain F 1–207（207 aa）
Chain e 1–207（207 aa）
Chain f 1–207（207 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9T46 Crystal structure of the Fab 40G5c in complex with a CD3 epsilon peptide Deposited 2025-10-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain P 22–30（9 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 1 ACT ACETATE ION × 9 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；294 K；0.1 M sodium acetate, pH 4.6, 2 M (NH4)2SO4
Resolution 1.65 Å R-free 0.225

42 other PDB entries and 50 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CD3E_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain e； PDBConstruct 1–207； UniProt 1–207 Author chain f； PDBConstruct 1–207； UniProt 1–207

T cell receptor delta variable 2,T cell receptor delta constant

Homo sapiens

UniProt A0JD36

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count Chain m； UniProt 1–115 Not recorded T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T cell receptor gamma variable 9,T cell receptor gamma constant 1 × 1 （Q99603,P0CF51） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） Fab light chain × 1 Fab heavy chain × 1 CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.69 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9JY0 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
8JC0 V gamma9 V delta2 TCR and CD3 complex in LMNG Deposited 2023-05-10 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain m 20–115（96 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8WY0 T cell receptor delta 2 gamma 9 with F283A, F290A, and F291A Deposited 2023-10-30 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain m 20–115（96 aa）
Mutation：F283A,F290A,F291A CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8WYI T cell receptor delta 2 gamma 9 with TCRD TM domain chimera of TRAC Deposited 2023-10-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain m 20–115（96 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8YC0 T cell receptor V delta2 V gamma9 in GDN Deposited 2024-02-17 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain m 20–115（96 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.12 Å
9JXZ V gamma9 V delta2 TCR and CD3 complex Deposited 2024-10-12 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain m 1–115（115 aa）
Not recorded CLR CHOLESTEROL × 2 LPE 1-O-OCTADECYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9JY1 delta epsilon/delta epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: eicosameric
Chain M 1–115（115 aa）
Chain m 1–115（115 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name TRDV2_HUMAN
Isoform —
PDB entities 4
Chains and sequence ranges Author chain m； PDBConstruct 1–115； UniProt 1–115

T cell receptor delta variable 2,T cell receptor delta constant

Homo sapiens

UniProt B7Z8K6

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count Chain m； UniProt 1–153 Not recorded T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T cell receptor gamma variable 9,T cell receptor gamma constant 1 × 1 （Q99603,P0CF51） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） Fab light chain × 1 Fab heavy chain × 1 CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.69 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9JY0 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
8JBV Extracellular domain of gamma delta TCR Deposited 2023-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain M 1–153（153 aa）
Chain m 1–153（153 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
Resolution 3.02 Å
8JC0 V gamma9 V delta2 TCR and CD3 complex in LMNG Deposited 2023-05-10 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain m 1–153（153 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8JCB Vgamma5 Vdelta1 T cell receptor complex Deposited 2023-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain M 1–153（153 aa）
Chain m 1–153（153 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.50 Å
8WXE Vgamma5Vdelta1 EH TCR-CD3 complex Deposited 2023-10-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain m 1–153（153 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8WY0 T cell receptor delta 2 gamma 9 with F283A, F290A, and F291A Deposited 2023-10-30 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain m 1–153（153 aa）
Mutation：F283A,F290A,F291A CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8WYI T cell receptor delta 2 gamma 9 with TCRD TM domain chimera of TRAC Deposited 2023-10-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain m 1–133（133 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8YC0 T cell receptor V delta2 V gamma9 in GDN Deposited 2024-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain m 1–153（153 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.12 Å
9JXZ V gamma9 V delta2 TCR and CD3 complex Deposited 2024-10-12 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain m 1–153（153 aa）
Not recorded CLR CHOLESTEROL × 2 LPE 1-O-OCTADECYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9JY1 delta epsilon/delta epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: eicosameric
Chain M 1–153（153 aa）
Chain m 1–153（153 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
9JY2 Fab-CD3-delta epsilon-TCR complex Deposited 2024-10-12 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain m 117–152（36 aa）
Not recorded CLR CHOLESTEROL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.24 Å
9JY3 delta epsilon/gamma epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain M 117–152（36 aa）
Chain m 117–152（36 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å

11 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name TRDC_HUMAN
Isoform —
PDB entities 4
Chains and sequence ranges Author chain m； PDBConstruct 140–292； UniProt 1–153

T cell receptor gamma variable 9,T cell receptor gamma constant 1

Homo sapiens

UniProt P0CF51

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count Chain n； UniProt 1–173 Not recorded T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T cell receptor delta variable 2,T cell receptor delta constant × 1 （A0JD36,B7Z8K6） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） Fab light chain × 1 Fab heavy chain × 1 CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.69 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9JY0 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
8JBV Extracellular domain of gamma delta TCR Deposited 2023-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain N 1–173（173 aa）
Chain n 1–173（173 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
Resolution 3.02 Å
8JC0 V gamma9 V delta2 TCR and CD3 complex in LMNG Deposited 2023-05-10 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain n 1–173（173 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8JCB Vgamma5 Vdelta1 T cell receptor complex Deposited 2023-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain N 1–173（173 aa）
Chain n 1–173（173 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.50 Å
8WXE Vgamma5Vdelta1 EH TCR-CD3 complex Deposited 2023-10-28 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain n 1–173（173 aa）
Mutation：Y106E,R120H CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8WY0 T cell receptor delta 2 gamma 9 with F283A, F290A, and F291A Deposited 2023-10-30 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain n 1–173（173 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8WYI T cell receptor delta 2 gamma 9 with TCRD TM domain chimera of TRAC Deposited 2023-10-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain n 1–173（173 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8YC0 T cell receptor V delta2 V gamma9 in GDN Deposited 2024-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain n 1–173（173 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.12 Å
9CI8 T cell receptor complex Deposited 2024-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain n 128–165（38 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Hepes buffer saline
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.01 Å
9CIA T cell receptor complex Deposited 2024-07-03 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain n 128–163（36 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；HEPES buffer saline
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
9JXZ V gamma9 V delta2 TCR and CD3 complex Deposited 2024-10-12 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain n 1–173（173 aa）
Not recorded CLR CHOLESTEROL × 2 LPE 1-O-OCTADECYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9JY1 delta epsilon/delta epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: eicosameric
Chain N 1–173（173 aa）
Chain n 1–173（173 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
9JY2 Fab-CD3-delta epsilon-TCR complex Deposited 2024-10-12 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain n 127–164（38 aa）
Not recorded CLR CHOLESTEROL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.24 Å
9JY3 delta epsilon/gamma epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain N 127–164（38 aa）
Chain n 127–164（38 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9JY4 gamma epsilon/gamma epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: eicosameric
Chain N 1–173（173 aa）
Chain n 1–173（173 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name TRGC1_HUMAN
Isoform —
PDB entities 5
Chains and sequence ranges Author chain n； PDBConstruct 143–315； UniProt 1–173

T cell receptor gamma variable 9,T cell receptor gamma constant 1

Homo sapiens

UniProt Q99603

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count Chain n； UniProt 1–121 Not recorded T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T cell receptor delta variable 2,T cell receptor delta constant × 1 （A0JD36,B7Z8K6） T-cell surface glycoprotein CD3 gamma chain × 1 （P09693） Fab light chain × 1 Fab heavy chain × 1 CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.69 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9JY0 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
8JC0 V gamma9 V delta2 TCR and CD3 complex in LMNG Deposited 2023-05-10 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain n 20–121（102 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8WY0 T cell receptor delta 2 gamma 9 with F283A, F290A, and F291A Deposited 2023-10-30 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain n 20–121（102 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8WYI T cell receptor delta 2 gamma 9 with TCRD TM domain chimera of TRAC Deposited 2023-10-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain n 20–121（102 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8YC0 T cell receptor V delta2 V gamma9 in GDN Deposited 2024-02-17 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain n 20–121（102 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.12 Å
9JXZ V gamma9 V delta2 TCR and CD3 complex Deposited 2024-10-12 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain n 1–121（121 aa）
Not recorded CLR CHOLESTEROL × 2 LPE 1-O-OCTADECYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9JY1 delta epsilon/delta epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: eicosameric
Chain N 1–121（121 aa）
Chain n 1–121（121 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
9JY4 gamma epsilon/gamma epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: eicosameric
Chain N 1–121（121 aa）
Chain n 1–121（121 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name TRGV9_HUMAN
Isoform —
PDB entities 5
Chains and sequence ranges Author chain n； PDBConstruct 1–121； UniProt 1–121

T-cell surface glycoprotein CD3 gamma chain

Homo sapiens

UniProt P09693

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count Chain g； UniProt 1–182 Not recorded T-cell surface glycoprotein CD3 zeta chain × 2 （P20963） T-cell surface glycoprotein CD3 delta chain × 1 （P04234） T-cell surface glycoprotein CD3 epsilon chain × 2 （P07766） T cell receptor delta variable 2,T cell receptor delta constant × 1 （A0JD36,B7Z8K6） T cell receptor gamma variable 9,T cell receptor gamma constant 1 × 1 （Q99603,P0CF51） Fab light chain × 1 Fab heavy chain × 1 CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.69 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9JY0 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1SY6 Crystal Structure of CD3gammaepsilon Heterodimer in Complex with OKT3 Fab Fragment Deposited 2004-03-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 23–103（81 aa） Fragment：CD3 epsilon/gamma ecto domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；294 K；PEG3350, potassium formate, TRIS, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 323K, temperature 294K
Resolution 2.10 Å R-free 0.255
6JXR Structure of human T cell receptor-CD3 complex Deposited 2019-04-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain g 1–182（182 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.70 Å
7FJD Cryo-EM structure of a membrane protein(WT) Deposited 2021-08-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain g 1–182（182 aa）
Not recorded CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.20 Å
7FJE Cryo-EM structure of a membrane protein(LL) Deposited 2021-08-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain g 1–182（182 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.00 Å
7FJF Cryo-EM structure of a membrane protein(CS) Deposited 2021-08-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain g 1–182（182 aa）
Not recorded C3S CHOLEST-5-EN-3-YL HYDROGEN SULFATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.10 Å
7PHR Structure of a fully assembled T-cell receptor engaging a tumor-associated peptide-MHC I Deposited 2021-08-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 11 PDB declaration: undecameric
Chain C 23–144（122 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
7Q5U The tandem SH2 domains of SYK with a bound CD3G diphospho-ITAM peptide Deposited 2021-11-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain LLL 157–176（20 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) EDO 1,2-ETHANEDIOL × 2 PEG DI(HYDROXYETHYL)ETHER × 1 P4G 1-ETHOXY-2-(2-ETHOXYETHOXY)ETHANE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；100 mM MMT buffer, 30% PEG 1000
Resolution 2.40 Å R-free 0.259
7Q5U The tandem SH2 domains of SYK with a bound CD3G diphospho-ITAM peptide Deposited 2021-11-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain III 157–176（20 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；100 mM MMT buffer, 30% PEG 1000
Resolution 2.40 Å R-free 0.259
7Q5U The tandem SH2 domains of SYK with a bound CD3G diphospho-ITAM peptide Deposited 2021-11-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain JJJ 157–176（20 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；100 mM MMT buffer, 30% PEG 1000
Resolution 2.40 Å R-free 0.259
7Q5U The tandem SH2 domains of SYK with a bound CD3G diphospho-ITAM peptide Deposited 2021-11-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain HHH 157–176（20 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；100 mM MMT buffer, 30% PEG 1000
Resolution 2.40 Å R-free 0.259
7Q5U The tandem SH2 domains of SYK with a bound CD3G diphospho-ITAM peptide Deposited 2021-11-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain KKK 157–176（20 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) PEG DI(HYDROXYETHYL)ETHER × 1 P4G 1-ETHOXY-2-(2-ETHOXYETHOXY)ETHANE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；100 mM MMT buffer, 30% PEG 1000
Resolution 2.40 Å R-free 0.259
7Q5U The tandem SH2 domains of SYK with a bound CD3G diphospho-ITAM peptide Deposited 2021-11-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain GGG 157–176（20 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；100 mM MMT buffer, 30% PEG 1000
Resolution 2.40 Å R-free 0.259
8ES7 CryoEM structure of PN45545 TCR-CD3 complex Deposited 2022-10-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–182（182 aa）
Not recorded Y01 CHOLESTEROL HEMISUCCINATE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.04 Å
8ES8 CryoEM structure of PN45545 TCR-CD3 in complex with HLA-A2 MAGEA4 (230-239) Deposited 2022-10-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 11 PDB declaration: undecameric
Chain G 1–182（182 aa）
Not recorded Y01 CHOLESTEROL HEMISUCCINATE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.65 Å
8ES9 CryoEM structure of PN45428 TCR-CD3 in complex with HLA-A2 MAGEA4 Deposited 2022-10-13 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 11 PDB declaration: undecameric
Chain G 1–182（182 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 Y01 CHOLESTEROL HEMISUCCINATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.25 Å
8JC0 V gamma9 V delta2 TCR and CD3 complex in LMNG Deposited 2023-05-10 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain g 1–182（182 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8JCB Vgamma5 Vdelta1 T cell receptor complex Deposited 2023-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain G 1–182（182 aa）
Chain g 1–182（182 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.50 Å
8TW4 TCR in nanodisc ND-I Deposited 2023-08-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–182（182 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8TW6 TCR in nanodisc ND-II Deposited 2023-08-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–182（182 aa）
Not recorded CLR CHOLESTEROL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8WXE Vgamma5Vdelta1 EH TCR-CD3 complex Deposited 2023-10-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain g 1–182（182 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8WY0 T cell receptor delta 2 gamma 9 with F283A, F290A, and F291A Deposited 2023-10-30 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain g 1–182（182 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8WYI T cell receptor delta 2 gamma 9 with TCRD TM domain chimera of TRAC Deposited 2023-10-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain g 1–182（182 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8YC0 T cell receptor V delta2 V gamma9 in GDN Deposited 2024-02-17 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain g 1–182（182 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.12 Å
8ZA6 Cryo-EM structure of the gdTCR-CD3 complex Deposited 2024-04-24 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain g 1–182（182 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.43 Å
9BBC TCR GDN detergent micelle Deposited 2024-04-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–137（137 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9C3E TCR - CD3 complex bound to HLA Deposited 2024-05-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain G 1–182（182 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9CI8 T cell receptor complex Deposited 2024-07-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain g 24–138（115 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Hepes buffer saline
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.01 Å
9CIA T cell receptor complex Deposited 2024-07-03 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain g 25–138（114 aa）
Not recorded CLR CHOLESTEROL × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；HEPES buffer saline
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
9CQ4 G115 gamma delta TCR/CD3 complex bound by OKT3 Fab Deposited 2024-07-19 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric
Chain G 1–182（182 aa）
Not recorded CLR CHOLESTEROL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.27 Å
9IP8 Poly-alanine model for HL-type bispecific diabody Ex3 composed of 528 and OKT3 Fvs in ternary complex with sEGFR and CD3gamma-epsilon (closed conformation) Deposited 2024-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–103（81 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.91 Å
9IP9 Poly-alanine model for HL-type bispecific diabody Ex3 composed of 528 and OKT3 Fvs in ternary complex with sEGFR and CD3gamma-epsilon (middle conformation) Deposited 2024-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–103（81 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.64 Å
9IPA Poly-alanine model for HL-type bispecific diabody Ex3 composed of 528 and OKT3 Fvs in ternary complex with sEGFR and CD3gamma-epsilon (open conformation) Deposited 2024-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–103（81 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.85 Å
9IPC Poly-alanine model for LH-type bispecific diabody Ex3 composed of 528 and OKT3 Fvs in ternary complex with sEGFR and CD3gamma-epsilon (closed conformation) Deposited 2024-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–103（81 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9IPD Poly-alanine model for LH-type bispecific diabody Ex3 composed of 528 and OKT3 Fvs in ternary complex with sEGFR and CD3gamma-epsilon (middle conformation) Deposited 2024-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–103（81 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å
9IPE Poly-alanine model for LH-type bispecific diabody Ex3 composed of 528 and OKT3 Fvs in ternary complex with sEGFR and CD3gamma-epsilon (open conformation) Deposited 2024-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 23–103（81 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9IRS Cryo-EM structure of the TCR-OKT3 complex Deposited 2024-07-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain g 1–182（182 aa）
Not recorded CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.18 Å
9IRU Cryo-em structure of TCR-4B1 complex Deposited 2024-07-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain g 1–182（182 aa）
Not recorded CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.14 Å
9JXZ V gamma9 V delta2 TCR and CD3 complex Deposited 2024-10-12 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain g 1–182（182 aa）
Not recorded CLR CHOLESTEROL × 2 LPE 1-O-OCTADECYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9JY1 delta epsilon/delta epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: eicosameric
Chain G 1–182（182 aa）
Chain g 1–182（182 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
9JY2 Fab-CD3-delta epsilon-TCR complex Deposited 2024-10-12 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain g 26–140（115 aa）
Not recorded CLR CHOLESTEROL × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.24 Å
9JY3 delta epsilon/gamma epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain G 26–140（115 aa）
Chain g 26–140（115 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9JY4 gamma epsilon/gamma epsilon Fab-TCR tetramer Deposited 2024-10-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: eicosameric
Chain G 1–182（182 aa）
Chain g 1–182（182 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.29 Å

37 other PDB entries and 42 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CD3G_HUMAN
Isoform —
PDB entities 6
Chains and sequence ranges Author chain g； PDBConstruct 1–182； UniProt 1–182

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 9jy0

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 9jy0
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9jy0
Deposition date deposition_date2024-10-12
Structure title titleFab-CD3-gamma epsilon-TCR complex
Keywords keywordsT cell receptor, gamma delta TCR, immune cell, Fab complex, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier38.14 Å
Radius of gyration Rg (electron density) rg_electron38.79 Å
Forward intensity I(0) i0122352000.00
Molecular weight molecular_weight92810.0 kDa
Excluded volume excluded_volume117570 ų
Envelope volume envelope_volume158880 ų
Hydration-shell volume shell_volume37028 ų
Envelope diameter envelope_diameter132.3 Å
Shell Rg shell_rg40.66 Å
Envelope Rg envelope_rg38.45 Å
Shape Rg shape_rg38.83 Å
Total Rg total_rg38.78 Å
Total atoms total_atoms6521
Residues n_residues822
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax129.6 Å
Rg (real space) rg_real38.34 Å
Rg uncertainty (real space) rg_real_error1.20 Å
I(0) (real space) i0_real1.2240e+08
I(0) uncertainty (real space) i0_real_error2.2690e+06
Rg (reciprocal space) rg_reciprocal38.22 Å
I(0) (reciprocal space) i0_reciprocal122300000.0000
Solution quality estimate total_estimate0.8543
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary31.6 Å
Skewness Skewness skewness0.332
Kurtosis Kurtosis kurtosis-0.583
Angular range angular_range— – 0.2050 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha11950000.0000
Real-space data points n_real_points42
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.841; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.821; Smooth: 0.758
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (9)

▶

8. Citations (1)

▶

9. Files and Curves (10)
