SAXSdb — 9w0t

▼

1. Structure Basics

entry_id	9w0t
deposition_date	2025-07-24
title	CryoEM structure of the T2R46 in complex with Denatomium benozate and heterotrimeric G protein complex
keywords	;G protein-coupled receptor, Bitter taste receptor 14, Bitter taste receptor 46, ligand binding, signal transduction, MEMBRANE PROTEIN ;; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	33.56 Å
rg_electron	33.33 Å
i0	130312000.00
molecular_weight	92967.0 kDa
excluded_volume	117090 Å³
envelope_volume	158180 Å³
shell_volume	40075 Å³
envelope_diameter	119.6 Å
shell_rg	39.26 Å
envelope_rg	33.48 Å
shape_rg	33.36 Å
total_rg	33.69 Å
total_atoms	6548
n_residues	879
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	110.1 Å
rg_real	33.61 Å
rg_real_error	0.90 Å
i0_real	1.3030e+08
i0_real_error	2.0860e+06
rg_reciprocal	33.58 Å
i0_reciprocal	130300000.0000
total_estimate	0.8813
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	35.1 Å
skewness	0.362
kurtosis	-0.352
angular_range	— – 0.2350 Å⁻¹
current_alpha	0.0000
highest_alpha	31070000.0000
n_real_points	48
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.906; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.951; Smooth: 0.785

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Guanine nucleotide-binding protein G(i) subunit alpha-1
formula_weight	40458.1 kDa
ec_number	3.6.5.-
mutation	S47N,G202T,G203A,E245A,A326S
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	6548

MGCTLSAEDKAAVERSKMIDRNLREDGEKAAREVKLLLLGAGESGKNTIVKQMKIIHEAGYSEEECKQYKAVVYSNTIQSIIAIIRAMGRLKIDFGDSARADDARQLFVLAGAAEEGFMTAELAGVIKRLWKDSGVQACFNRSREYQLNDSAAYYLNDLDRIAQPNYIPTQQDVLRTRVKTTGIVETHFTFKDLHFKMFDVTAQRSERKKWIHCFEGVTAIIFCVALSDYDLVLAEDEEMNRMHASMKLFDSICNNKWFTDTSIILFLNKKDLFEEKIKKSPLTICYPEYAGSNTYEEAAAYIQCQFEDLNKRKDTKEIYTHFTCSTDTKNVQFVFDAVTDVIIKNNLKDCGLF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
formula_weight	38744.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MHHHHHHGSLLQSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 3 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
formula_weight	7861.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 4 polymer

description	Taste receptor type 2 member 46
formula_weight	41557.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R

MKTIIALSYIFCLVFADYKDDDMITFLPIIFSILIVVTFVIGNFANGFIALVNSIEWFKRQKISFADQILTALAVSRVGLLWVLLLNWYATELNPAFNSIEVRITAYNVWAVINHFSNWLATSLSIFYLLKIANFSNLIFLHLKRRVKSVVLVILLGPLLFLVCHLFVINMNQIIWTKEYEGNMTWKIKLRSAMYLSNTTVTILANLVPFTLTLISFLLLICSLCKHLKKMQLHGKGSQDPSMKVHIKALQTVTSFLLLCAIYFLSIIMSVWSFESLENKPVFMFCEAIAFSYPSTHPFILIWGNKKLKQTFLSVLWHVRYWVKGEFLEVLFQGPWSHPQFEKGGGSGGGSGGSAWSHPQFEK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 5 non-polymer

description	N-benzyl-2-(2,6-dimethylanilino)-N,N-diethyl-2-oxoethan-1-aminium
formula_weight	325.5 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.300 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.30 Å
resolution_method	—
num_particles	1056541

fit	/app/data/saxs_computation/w0/9w0t/9w0t.fit
pddf	/app/data/pr_computation/w0/9w0t/9w0t.pr.out
profile	/app/data/saxs_computation/w0/9w0t/9w0t.dat

CryoEM structure of the T2R46 in complex with Denatomium benozate and heterotrimeric G protein complex

SAXS Profile

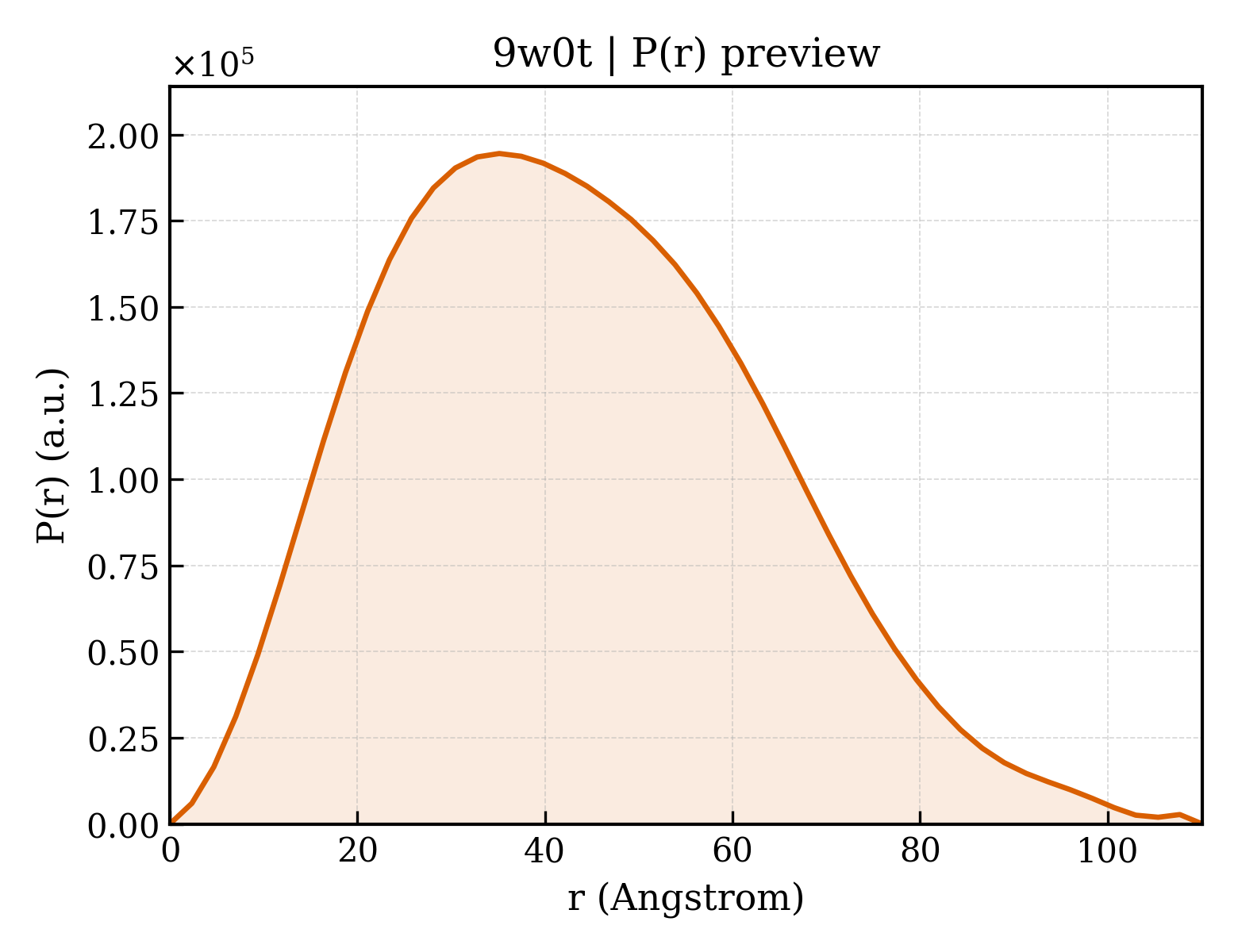

P(r) Distribution
