1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） viral G-protein coupled receptor × 1 （Q98146） Growth-regulated alpha protein × 1 （P09341） Guanine nucleotide-binding protein G(i) subunit alpha-1 × 1 （P63096） scFv Recombinant Mouse Monoclonal Antibody (scFv16) × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 22–360； UniProt 2–340

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

Homo sapiens

UniProt P59768

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） viral G-protein coupled receptor × 1 （Q98146） Growth-regulated alpha protein × 1 （P09341） Guanine nucleotide-binding protein G(i) subunit alpha-1 × 1 （P63096） scFv Recombinant Mouse Monoclonal Antibody (scFv16) × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBG2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–71； UniProt 1–71

viral G-protein coupled receptor

Human gammaherpesvirus 8

UniProt Q98146

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Growth-regulated alpha protein × 1 （P09341） Guanine nucleotide-binding protein G(i) subunit alpha-1 × 1 （P63096） scFv Recombinant Mouse Monoclonal Antibody (scFv16) × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VGPCR_HHV8P
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–340； UniProt 1–340

Growth-regulated alpha protein

Homo sapiens

UniProt P09341

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） viral G-protein coupled receptor × 1 （Q98146） Guanine nucleotide-binding protein G(i) subunit alpha-1 × 1 （P63096） scFv Recombinant Mouse Monoclonal Antibody (scFv16) × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GROA_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain F； PDBConstruct 1–73； UniProt 35–107

Guanine nucleotide-binding protein G(i) subunit alpha-1

Homo sapiens

UniProt P63096

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） viral G-protein coupled receptor × 1 （Q98146） Growth-regulated alpha protein × 1 （P09341） scFv Recombinant Mouse Monoclonal Antibody (scFv16) × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GNAI1_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain A； PDBConstruct 1–354； UniProt 1–354

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ejc
Deposition date deposition_date	2024-11-27
Structure title title	Cryo-EM Structure of CXCL1-KSHV ORF74-Gi-scFv16 Complex
Keywords keywords	;KSHV vGPCR, Viral GPCR, KSHV ORF74, ORF74-CXCL1, ORF74 Active, CXCL1 bound ORF74, KSHV ORF74-CXCL1-Gi-scFv16, VIRAL PROTEIN, VIRAL PROTEIN-SIGNALING PROTEIN complex ;; VIRAL PROTEIN/SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ejc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9ejc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

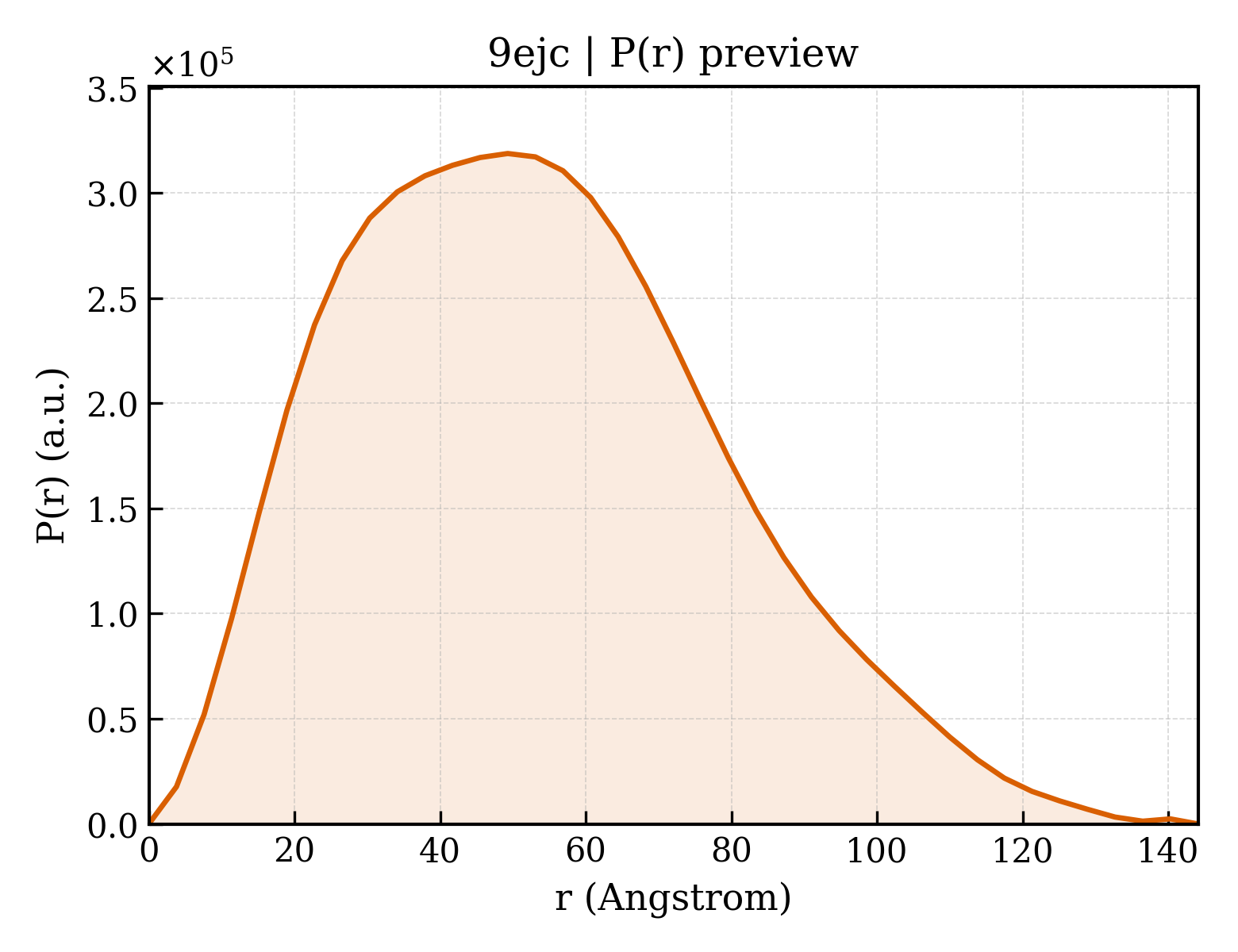

9ejc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.45 Å
Rg (electron density)	41.32 Å
Total Rg	41.72 Å
Atom count	9492
Residues	1215
Excluded volume	169770 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ejc__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	39660.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	9492

HHHHHHHHLEVLFQGPPGSSGSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Molecular weight formula_weight	7861.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	viral G-protein coupled receptor
Molecular weight formula_weight	39601.5 kDa
Mutation mutation	G30C, L169W, L258V
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MAAEDFLTIFLDDDESWNETLNMSGYDYSCNFSLEVSVCEMTTVVPYTWNVGILSLIFLINVLGNGLVTYIFCKHRSRAGAIDILLLGICLNSLCLSISLLAEVLMFLFPNIISTGLCRLEIFFYYLYVYLDIFSVVCVSLVRYLLVAYSTRSWPKKQSLGWVLTSAAWLIALVLSGDACRHRSRVVDPVSKQAMCYENAGNMTADWRLHVRTVSVTAGFLLPLALLILFYALTWCVVRRTKLQARRKVRGVIVAVVVLFFVFCFPYHVLNLLDTLLRRRWIRDSCYTRGLINVGLAVTSLLQALYSAVVPLIYSCLGSLFRQRMYGLFQSLRQSFMSGADYKDDDDK

Source Source

Source organism organism	Human gammaherpesvirus 8
NCBI taxonomy ID ncbi_taxonomy_id	37296
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	Growth-regulated alpha protein
Molecular weight formula_weight	10131.8 kDa
Mutation mutation	N22C
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

ASVATELRCQCLQTLQGIHPKCIQSVNVKSPGPHCAQTEVIATLKNGRKACLNPASPIVKKIIEKMLNSDKSNLEVLFQGPHHHHHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 polymer

Description description	Guanine nucleotide-binding protein G(i) subunit alpha-1
Molecular weight formula_weight	40415.0 kDa
EC 编号 ec_number	3.6.5.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MGCTLSAEDKAAVERSKMIDRNLREDGEKAAREVKLLLLGAGESGKSTIVKQMKIIHEAGYSEEECKQYKAVVYSNTIQSIIAIIRAMGRLKIDFGDSARADDARQLFVLAGAAEEGFMTAELAGVIKRLWKDSGVQACFNRSREYQLNDSAAYYLNDLDRIAQPNYIPTQQDVLRTRVKTTGIVETHFTFKDLHFKMFDVGGQRSERKKWIHCFEGVTAIIFCVALSDYDLVLAEDEEMNRMHESMKLFDSICNNKWFTDTSIILFLNKKDLFEEKIKKSPLTICYPEYAGSNTYEEAAAYIQCQFEDLNKRKDTKEIYTHFTCATDTKNVQFVFDAVTDVIIKNNLKDCGLF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 6 Entity 6 polymer

Description description	scFv Recombinant Mouse Monoclonal Antibody (scFv16)
Molecular weight formula_weight	30895.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

METDTLLLWVLLLWVPGSTGDVQLVESGGGLVQPGGSRKLSCSASGFAFSSFGMHWVRQAPEKGLEWVAYISSGSGTIYYADTVKGRFTISRDDPKNTLFLQMTSLRSEDTAMYYCVRSIYYYGSSPFDFWGQGTTLTVSSGGGGSGGGGSGGGGSDIVMTQATSSVPVTPGESVSISCRSSKSLLHSNGNTYLYWFLQRPGQSPQLLIYRMSNLASGVPDRFSGSGSGTAFTLTISRLEAEDVGVYYCMQHLEYPLTFGAGTKLELKAAALEVLFQGPHHHHHHHH

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Mus musculus

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.980 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.98 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	190755

Cryo-EM Structure of CXCL1-KSHV ORF74-Gi-scFv16 Complex
