8yky

Structure of human class T GPCR TAS2R14-Ggustducin complex with agonist 28.1

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	G alpha gustducin protein × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） ScFv16 protein × 1 exo-alpha-sialidase,Taste receptor type 2 member 14,LgBit × 1 （Q59310,Q9NYV8） 4-methyl-N-[(2M)-2-(1H-tetrazol-5-yl)phenyl]-6-(trifluoromethyl)pyrimidin-2-amine × 1 CHOLESTEROL × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–340； UniProt 1–340

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

Homo sapiens

UniProt P59768

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	G alpha gustducin protein × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） ScFv16 protein × 1 exo-alpha-sialidase,Taste receptor type 2 member 14,LgBit × 1 （Q59310,Q9NYV8） 4-methyl-N-[(2M)-2-(1H-tetrazol-5-yl)phenyl]-6-(trifluoromethyl)pyrimidin-2-amine × 1 CHOLESTEROL × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBG2_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–71； UniProt 1–71

exo-alpha-sialidase,Taste receptor type 2 member 14,LgBit

synthetic construct

UniProt Q59310

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	G alpha gustducin protein × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） ScFv16 protein × 1 4-methyl-N-[(2M)-2-(1H-tetrazol-5-yl)phenyl]-6-(trifluoromethyl)pyrimidin-2-amine × 1 CHOLESTEROL × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q59310_CLOPF
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain R； PDBConstruct 45–496； UniProt 243–694

exo-alpha-sialidase,Taste receptor type 2 member 14,LgBit

synthetic construct

UniProt Q9NYV8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	G alpha gustducin protein × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） ScFv16 protein × 1 4-methyl-N-[(2M)-2-(1H-tetrazol-5-yl)phenyl]-6-(trifluoromethyl)pyrimidin-2-amine × 1 CHOLESTEROL × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	T2R14_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain R； PDBConstruct 502–817； UniProt 2–317

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8yky
Deposition date deposition_date	2024-03-05
Structure title title	Structure of human class T GPCR TAS2R14-Ggustducin complex with agonist 28.1
Keywords keywords	GPCR, TAS2R14, Ggustducin, 28.1, SIGNALING PROTEIN, TASTE RECEPTOR.; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8yky__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8yky__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

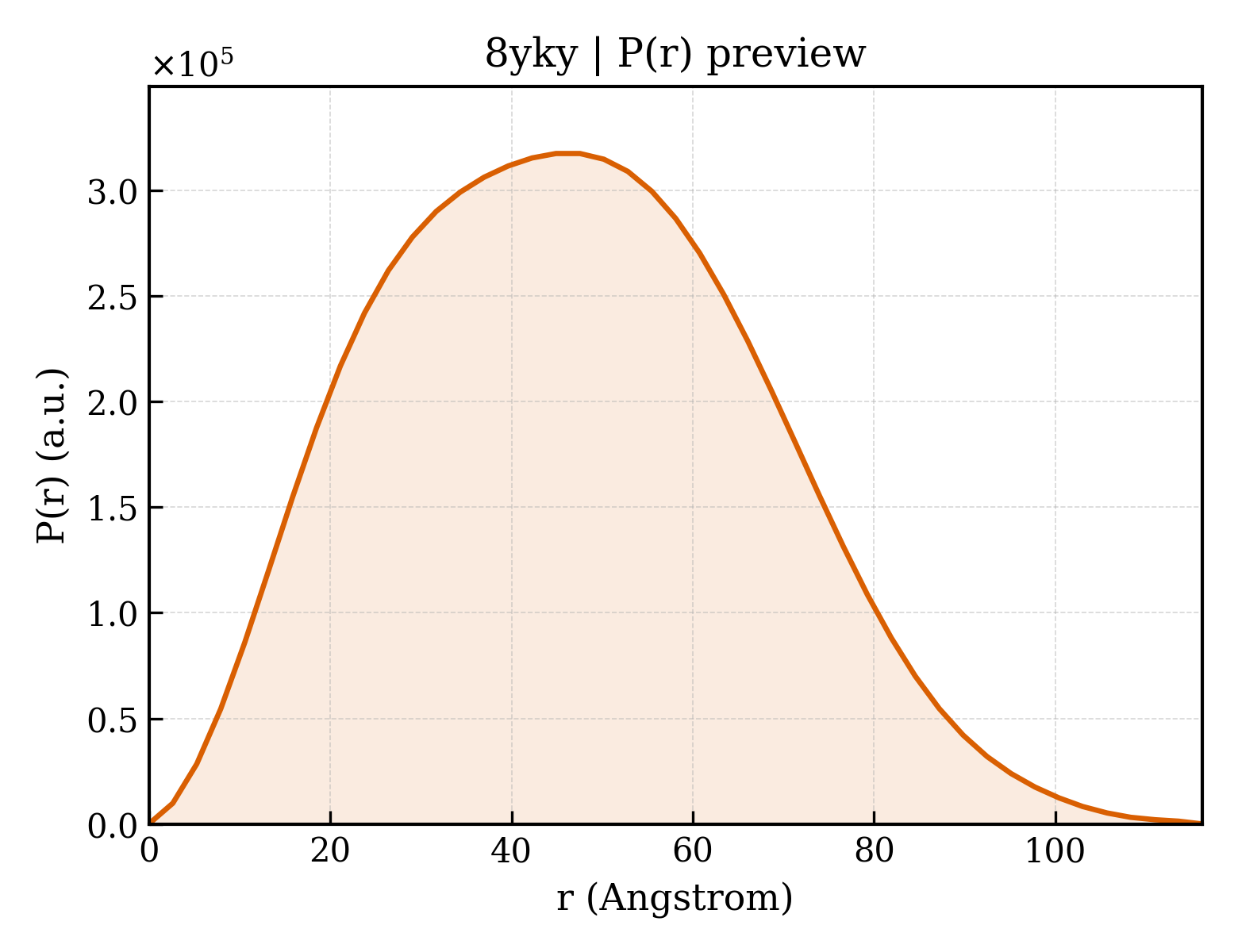

8yky__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.03 Å
Rg (electron density)	36.03 Å
Total Rg	36.44 Å
Atom count	8800
Residues	1113
Excluded volume	157830 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8yky__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	G alpha gustducin protein
Molecular weight formula_weight	42373.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8800

MDYKDDDDKENLYFQMGCTLSAEDKAAVERSKMIDRNLQEDAERDARTVKLLLLGAGESGKSTIVKQMKIIHKNGYSEQECMEFKAVIYSNTLQSILAIVKAMTTLGIDYVNPRSAEDQRQLYAMANTLEDGGMTPQLAEVIKRLWRDPGIQACFERASEYQLNDSAAYYLNDLDRITASGYVPNEQDVLHSRVKTTGIIETQFSFKDLHFRMFDVGGQRSERKKWIHCFEGVTCIIFCAALSAYDMVLVEDEEVNRMHESLHLFNSICNHKYFSTTSIILFLNKKDIFQEKVTKVHLSICFPEYTGPNTFEDAGNYIKNQFLDLNLKKEDKEIYSHMTCATDTQNVKFVFDAVTDIIIKENLKDCGLF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	39728.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWNGSSGGGGSGGGGSSGVSGWRLFKKIS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Molecular weight formula_weight	7861.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	ScFv16 protein
Molecular weight formula_weight	30668.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MVSAIVLYVLLAAAAHSAFADVQLVESGGGLVQPGGSRKLSCSASGFAFSSFGMHWVRQAPEKGLEWVAYISSGSGTIYYADTVKGRFTISRDDPKNTLFLQMTSLRSEDTAMYYCVRSIYYYGSSPFDFWGQGTTLTVSSGGGGSGGGGSGGGGSDIVMTQATSSVPVTPGESVSISCRSSKSLLHSNGNTYLYWFLQRPGQSPQLLIYRMSNLASGVPDRFSGSGSGTAFTLTISRLEAEDVGVYYCMQHLEYPLTFGAGTKLELKAAAENLYFQSHHHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 polymer

Description description	exo-alpha-sialidase,Taste receptor type 2 member 14,LgBit
Molecular weight formula_weight	110840.0 kDa
EC 编号 ec_number	3.2.1.18
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

MKTIIALSYIFCLVFADYKDDDDAHHHHHHHHHHENLYFQSGRAVEGAVKTEPVDLFHPGFLNSSNYRIPALFKTKEGTLIASIDARRHGGADAPNNDIDTAVRRSEDGGKTWDEGQIIMDYPDKSSVIDTTLIQDDETGRIFLLVTHFPSKYGFWNAGLGSGFKNIDGKEYLCLYDSSGKEFTVRENVVYDKDSNKTEYTTNALGDLFKNGTKIDNINSSTAPLKAKGTSYINLVYSDDDGKTWSEPQNINFQVKKDWMKFLGIAPGRGIQIKNGEHKGRIVVPVYYTNEKGKQSSAVIYSDDSGKNWTIGESPNDNRKLENGKIINSKTLSDDAPQLTECQVVEMPNGQLKLFMRNLSGYLNIATSFDGGATWDETVEKDTNVLEPYCQLSVINYSQKVDGKDAVIFSNPNARSRSNGTVRIGLINQVGTYENGEPKYEFDWKYNKLVKPGYYAYSCLTELSNGNIGLLYEGTPSEEMSYIEMNLKYLESGANKGSAGSGGVIKSIFTFVLIVEFIIGNLGNSFIALVNCIDWVKGRKISSVDRILTALAISRISLVWLIFGSWCVSVFFPALFATEKMFRMLTNIWTVINHFSVWLATGLGTFYFLKIANFSNSIFLYLKWRVKKVVLVLLLVTSVFLFLNIALINIHINASINGYRRNKTCSSDSSNFTRFSSLIVLTSTVFIFIPFTLSLAMFLLLIFSMWKHRKKMQHTVKISGDASTKAHRGVKSVITFFLLYAIFSLSFFISVWTSERLEENLIILSQVMGMAYPSCHSCVLILGNKKLRQASLSVLLWLRYMFKDGEPSGHKEFRESSGSGSSGSGSSGSGSSVFTLEDFVGDWEQTAAYNLDQVLEQGGVSSLLQNLAVSVTPIQRIVRSGENALKIDIHVIIPYEGLSADQMAQIEEVFKVVYPVDDHHFKVILPYGTLVIDGVTPNMLNYFGRPYEGIAVFDGKKITVTGTLWNGNKIIDERLITPDGSMLFRVTINS

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Spodoptera frugiperda

Entity 6 Entity 6 non-polymer

Description description	4-methyl-N-[(2M)-2-(1H-tetrazol-5-yl)phenyl]-6-(trifluoromethyl)pyrimidin-2-amine
Molecular weight formula_weight	321.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	CHOLESTEROL
Molecular weight formula_weight	386.7 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.99 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	174503

Structure of human class T GPCR TAS2R14-Ggustducin complex with agonist 28.1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

exo-alpha-sialidase,Taste receptor type 2 member 14,LgBit

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

exo-alpha-sialidase,Taste receptor type 2 member 14,LgBit

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

8yky__assembly_1__model_1

8yky__assembly_1__model_1 | I(q)

8yky__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source

Entity 5 Entity 5 polymer

Polymer Polymer

Source Source

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

7. Citations (1)
