1. Protein Identity and Related Structures Protein Identity & Related Structures

Taste receptor type 1 member 3,Guanine nucleotide-binding protein G(s) subunit alpha isoforms short

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Nanobody 35 (NB35) × 1 Taste receptor type 1 member 2 × 1 （Q8TE23）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GNAS2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 880–939； UniProt 5–64 Author chain B； PDBConstruct 948–1103； UniProt 204–369 Author chain F； PDBConstruct 880–939； UniProt 5–64 Author chain F； PDBConstruct 948–1103； UniProt 204–369

Taste receptor type 1 member 3,Guanine nucleotide-binding protein G(s) subunit alpha isoforms short

Homo sapiens

UniProt Q7RTX0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Nanobody 35 (NB35) × 1 Taste receptor type 1 member 2 × 1 （Q8TE23）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TS1R3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 28–859； UniProt 21–852 Author chain F； PDBConstruct 28–859； UniProt 21–852

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Homo sapiens

UniProt P62873

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	Taste receptor type 1 member 3,Guanine nucleotide-binding protein G(s) subunit alpha isoforms short × 2 （P63092,Q7RTX0） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Nanobody 35 (NB35) × 1 Taste receptor type 1 member 2 × 1 （Q8TE23）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–340； UniProt 1–340

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

Homo sapiens

UniProt P59768

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	Taste receptor type 1 member 3,Guanine nucleotide-binding protein G(s) subunit alpha isoforms short × 2 （P63092,Q7RTX0） Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Nanobody 35 (NB35) × 1 Taste receptor type 1 member 2 × 1 （Q8TE23）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBG2_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–71； UniProt 1–71

Taste receptor type 1 member 2

Homo sapiens

UniProt Q8TE23

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 6	Taste receptor type 1 member 3,Guanine nucleotide-binding protein G(s) subunit alpha isoforms short × 2 （P63092,Q7RTX0） Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Nanobody 35 (NB35) × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TS1R2_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain A； PDBConstruct 28–848； UniProt 19–839

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9o38
Deposition date deposition_date	2025-04-06
Structure title title	Transmembrane domains of the human sweet receptor (TAS1R2 + TAS1R3) from Class 3 particles (rigidly fitted from PDB:9NOX and 9NOR)
Keywords keywords	Sweet, taste, receptor, GPCR, TAS1R2, TAS1R3, T1R2, T1R3, HYDROLASE-IMMUNE SYSTEM complex, human; HYDROLASE/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9o38__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9o38__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

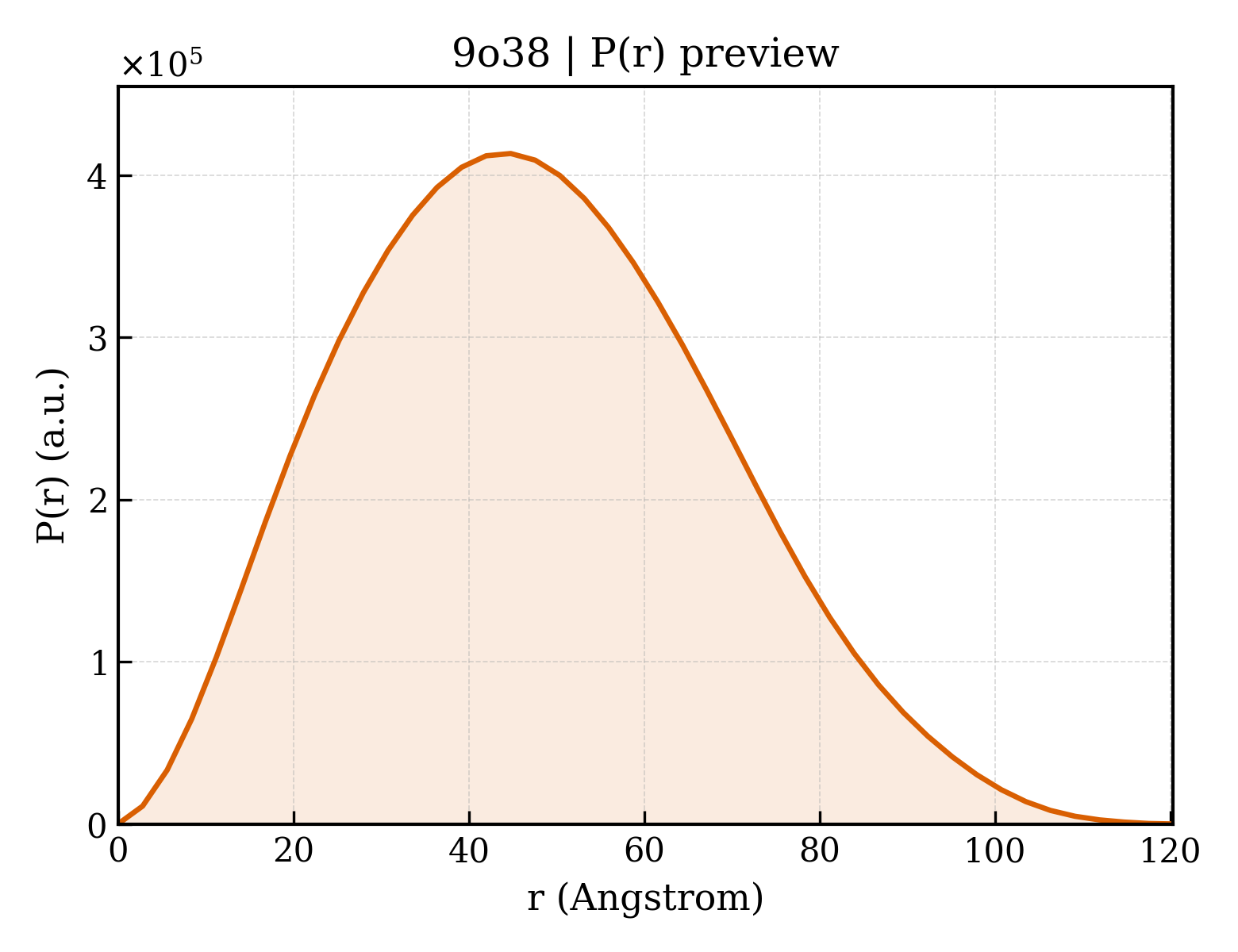

9o38__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.74 Å
Rg (electron density)	36.71 Å
Total Rg	37.24 Å
Atom count	9824
Residues	1258
Excluded volume	176220 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9o38__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Taste receptor type 1 member 3,Guanine nucleotide-binding protein G(s) subunit alpha isoforms short
Molecular weight formula_weight	124469.3 kDa
EC 编号 ec_number	3.6.5.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F
Atom count atom_count	9824

MKTIIALSYIFCLVFADYKDDDDKAAAAPLCLSQQLRMKGDYVLGGLFPLGEAEEAGLRSRTRPSSPVCTRFSSNGLLWALAMKMAVEEINNKSDLLPGLRLGYDLFDTCSEPVVAMKPSLMFLAKAGSRDIAAYCNYTQYQPRVLAVIGPHSSELAMVTGKFFSFFLMPQVSYGASMELLSARETFPSFFRTVPSDRVQLTAAAELLQEFGWNWVAALGSDDEYGRQGLSIFSALAAARGICIAHEGLVPLPRADDSRLGKVQDVLHQVNQSSVQVVLLFASVHAAHALFNYSISSRLSPKVWVASEAWLTSDLVMGLPGMAQMGTVLGFLQRGAQLHEFPQYVKTHLALATDPAFCSALGEREQGLEEDVVGQRCPQCDCITLQNVSAGLNHHQTFSVYAAVYSVAQALHNTLQCNASGCPAQDPVKPWQLLENMYNLTFHVGGLPLRFDSSGNVDMEYDLKLWVWQGSVPRLHDVGRFNGSLRTERLKIRWHTSDNQKPVSRCSRQCQEGQVRRVKGFHSCCYDCVDCEAGSYRQNPDDIACTFCGQDEWSPERSTRCFRRRSRFLAWGEPAVLLLLLLLSLALGLVLAALGLFVHHRDSPLVQASGGPLACFGLVCLGLVCLSVLLFPGQPSPARCLAQQPLSHLPLTGCLSTLFLQAAEIFVESELPLSWADRLSGCLRGPWAWLVVLLAMLVEVALCTWYLVAFPPEVVTDWHMLPTEALVHCRTRSWVSFGLAHATNATLAFLCFLGTFLVRSQPGRYNRARGLTFAMLAYFITWVSFVPLLANVQVVLRPAVQMGALLLCVLGILAAFHLPRCYLLMRQPGLNTPEFFLGGGPGDAQGQNDGNTGNQGKHEGGGSGGGSGGGSGGGSGGGSGNSKTEDQRNEEKAQREANKKIEKQLQKDKQVYRATHRLLLLGADNSGKSTIVKQMRILHGGSGGSGGTSGIFETKFQVDKVNFHMFDVGGQRDERRKWIQCFNDVTAIIFVVDSSDYNRLQEALNDFKSIWNNRWLRTISVILFLNKQDLLAEKVLAGKSKIEDYFPEFARYTTPEDATPEPGEDPRVTRAKYFIRDEFLRISTASGDGRHYCYPHFTCAVDTQNVKFVFDAVTDIIIKENLKDCGLF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	37416.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Molecular weight formula_weight	7861.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Nanobody 35 (NB35)
Molecular weight formula_weight	17352.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MKYLLPTAAAGLLLLAAQPAMAQVQLQESGGGLVQPGGSLRLSCAASGFTFSNYKMNWVRQAPGKGLEWVSDISQSGASISYTGSVKGRFTISRDNAKNTLYLQMNSLKPEDTAVYYCARCPAPFTRDCFDVTSTTYAYRGQGTQVTVSSHHHHHHEPEA

Source Source

Source organism organism	Lama glama
Common name common_name	llama
NCBI taxonomy ID ncbi_taxonomy_id	9844
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Taste receptor type 1 member 2
Molecular weight formula_weight	96239.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MKTIIALSYIFCLVFAYPYDVPDYAAAAEPAENSDFYLPGDYLLGGLFSLHANMKGIVHLNFLQVPMCKEYEVKVIGYNLMQAMRFAVEEINNDSSLLPGVLLGYEIVDVCYISNNVQPVLYFLAHEDNLLPIQEDYSNYISRVVAVIGPDNSESVMTVANFLSLFLLPQITYSAISDELRDKVRFPALLRTTPSADHHIEAMVQLMLHFRWNWIIVLVSSDTYGRDNGQLLGERVARRDICIAFQETLPTLQPNQNMTSEERQRLVTIVDKLQQSTARVVVVFSPDLTLYHFFNEVLRQNFTGAVWIASESWAIDPVLHNLTELRHLGTFLGITIQSVPIPGFSEFREWGPQAGPPPLSRTSQSYTCNQECDNCLNATLSFNTILRLSGERVVYSVYSAVYAVAHALHSLLGCDKSTCTKRVVYPWQLLEEIWKVNFTLLDHQIFFDPQGDVALHLEIVQWQWDRSQNPFQSVASYYPLQRQLKNIQDISWHTINNTIPMSMCSKRCQSGQKKKPVGIHVCCFECIDCLPGTFLNHTEDEYECQACPNNEWSYQSETSCFKRQLVFLEWHEAPTIAVALLAALGFLSTLAILVIFWRHFQTPIVRSAGGPMCFLMLTLLLVAYMVVPVYVGPPKVSTCLCRQALFPLCFTICISCIAVRSFQIVCAFKMASRFPRAYSYWVRYQGPYVSMAFITVLKMVIVVIGMLATGLSPTTRTDPDDPKITIVSCNPNYRNSLLFNTSLDLLLSVVGFSFAYMGKELPTNYNEAKFITLSMTFYFTSSVSLCTFMSAYSGVLVTIVDLLVTVLNLLAISLGYFGPKCYMILFYPERNTPAYFNSMIQGYTMRRD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Resolution resolution	3.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	723893

Transmembrane domains of the human sweet receptor (TAS1R2 + TAS1R3) from Class 3 particles (rigidly fitted from PDB:9NOX and 9NOR)
