SAXSdb — 9ut8

▼

1. Structure Basics

entry_id	9ut8
deposition_date	2025-05-03
title	The full-length human sweet taste receptor TAS1R2 and TAS1R3 in the apo state
keywords	GPCR, Taste, Tas1R2, Tas1R3, SIGNALING PROTEIN; SIGNALING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	55.47 Å
rg_electron	57.08 Å
i0	408996000.00
molecular_weight	173660.0 kDa
excluded_volume	219530 Å³
envelope_volume	342920 Å³
shell_volume	54244 Å³
envelope_diameter	183.8 Å
shell_rg	51.70 Å
envelope_rg	56.00 Å
shape_rg	57.08 Å
total_rg	56.89 Å
total_atoms	12214
n_residues	1552
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	171.7 Å
rg_real	56.19 Å
rg_real_error	1.80 Å
i0_real	4.0900e+08
i0_real_error	8.6040e+06
rg_reciprocal	54.82 Å
i0_reciprocal	408200000.0000
total_estimate	0.7244
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	42.9 Å
skewness	0.509
kurtosis	-0.777
angular_range	— – 0.1400 Å⁻¹
current_alpha	0.0000
highest_alpha	31230000.0000
n_real_points	29
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.597; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.621; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Taste receptor type 1 member 2,Engineered red fluorescent protein mScarlet3
formula_weight	122191.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	12214

MKTIIALSYIFCLVFAGSDYKDDDDKGSADFYLPGDYLLGGLFSLHANMKGIVHLNFLQVPMCKEYEVKVIGYNLMQAMRFAVEEINNDSSLLPGVLLGYEIVDVCYISNNVQPVLYFLAHEDNLLPIQEDYSNYISRVVAVIGPDNSESVMTVANFLSLFLLPQITYSAISDELRDKVRFPALLRTTPSADHHIEAMVQLMLHFRWNWIIVLVSSDTYGRDNGQLLGERVARRDICIAFQETLPTLQPNQNMTSEERQRLVTIVDKLQQSTARVVVVFSPDLTLYHFFNEVLRQNFTGAVWIASESWAIDPVLHNLTELRHLGTFLGITIQSVPIPGFSEFREWGPQAGPPPLSRTSQSYTCNQECDNCLNATLSFNTILRLSGERVVYSVYSAVYAVAHALHSLLGCDKSTCTKRVVYPWQLLEEIWKVNFTLLDHQIFFDPQGDVALHLEIVQWQWDRSQNPFQSVASYYPLQRQLKNIQDISWHTINNTIPMSMCSKRCQSGQKKKPVGIHVCCFECIDCLPGTFLNHTEDEYECQACPNNEWSYQSETSCFKRQLVFLEWHEAPTIAVALLAALGFLSTLAILVIFWRHFQTPIVRSAGGPMCFLMLTLLLVAYMVVPVYVGPPKVSTCLCRQALFPLCFTICISCIAVRSFQIVCAFKMASRFPRAYSYWVRYQGPYVSMAFITVLKMVIVVIGMLATGLSPTTRTDPDDPKITIVSCNPNYRNSLLFNTSLDLLLSVVGFSFAYMGKELPTNYNEAKFITLSMTFYFTSSVSLCTFMSAYSGVLVTIVDLLVTVLNLLAISLGYFGPKCYMILFYPERNTPAYFNSMIQGYTMRRDGSSGLEVLFQGPSGGDSTEAVIKEFMRFKVHMEGSMNGHEFEIEGEGEGRPYEGTQTAKLRVTKGGPLPFSWDILSPQFMYGSRAFTKHPADIPDYWKQSFPEGFKWERVMNFEDGGAVSVAQDTSLEDGTLIYKVKLRGTNFPPDGPVMQKKTMGWEASTERLYPEDVVLKGDIKMALRLKDGGRYLADFKTTYRAKKPVQMPGAFNIDRKLDITSHNEDYTVVEQYERSVARH

Source

organism	Discosoma sp. (Sea anemone)
ncbi_taxonomy_id	86600
host_organism	Homo sapiens

Entity 2 polymer

description	Taste receptor type 1 member 3,mNeonGreen
formula_weight	124906.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MKTIIALSYIFCLVFAGSDYKDDDDKGSAPLCLSQQLRMKGDYVLGGLFPLGEAEEAGLRSRTRPSSPVCTRFSSNGLLWALAMKMAVEEINNKSDLLPGLRLGYDLFDTCSEPVVAMKPSLMFLAKAGSRDIAAYCNYTQYQPRVLAVIGPHSSELAMVTGKFFSFFLMPQVSYGASMELLSARETFPSFFRTVPSDRVQLTAAAELLQEFGWNWVAALGSDDEYGRQGLSIFSALAAARGICIAHEGLVPLPRADDSRLGKVQDVLHQVNQSSVQVVLLFASVHAAHALFNYSISSRLSPKVWVASEAWLTSDLVMGLPGMAQMGTVLGFLQRGAQLHEFPQYVKTHLALATDPAFCSALGEREQGLEEDVVGQRCPQCDCITLQNVSAGLNHHQTFSVYAAVYSVAQALHNTLQCNASGCPAQDPVKPWQLLENMYNLTFHVGGLPLRFDSSGNVDMEYDLKLWVWQGSVPRLHDVGRFNGSLRTERLKIRWHTSDNQKPVSRCSRQCQEGQVRRVKGFHSCCYDCVDCEAGSYRQNPDDIACTFCGQDEWSPERSTRCFRRRSRFLAWGEPAVLLLLLLLSLALGLVLAALGLFVHHRDSPLVQASGGPLACFGLVCLGLVCLSVLLFPGQPSPARCLAQQPLSHLPLTGCLSTLFLQAAEIFVESELPLSWADRLSGCLRGPWAWLVVLLAMLVEVALCTWYLVAFPPEVVTDWHMLPTEALVHCRTRSWVSFGLAHATNATLAFLCFLGTFLVRSQPGCYNRARGLTFAMLAYFITWVSFVPLLANVQVVLRPAVQMGALLLCVLGILAAFHLPRCYLLMRQPGLNTPEFFLGGGPGDAQGQNDGNTGNQGKHEGSSGLEVLFQGPSGGVSKGEEDNMASLPATHELHIFGSINGVDFDMVGQGTGNPNDGYEELNLKSTKGDLQFSPWILVPHIGYGFHQYLPYPDGMSPFQAAMVDGSGYQVHRTMQFEDGASLTVNYRYTYEGSHIKGEAQVKGTGFPADGPVMTNSLTAADWCRSKKTYPNDKTIISTFKWSYTTGNGKRYRSTARTTYTFAKPMAANYLKNQPMYVFRKTELKHSKTELNFKEWQKAFTDVMGMDELYKGSENLYFQSSGHHHHHHHHH

Source

organism	Branchiostoma lanceolatum
common_name	amphioxus
ncbi_taxonomy_id	7740
host_organism	Homo sapiens

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.410 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.41 Å
resolution_method	—
num_particles	189062

fit	/app/data/saxs_computation/ut/9ut8/9ut8.fit
pddf	/app/data/pr_computation/ut/9ut8/9ut8.pr.out
profile	/app/data/saxs_computation/ut/9ut8/9ut8.dat

The full-length human sweet taste receptor TAS1R2 and TAS1R3 in the apo state

SAXS Profile

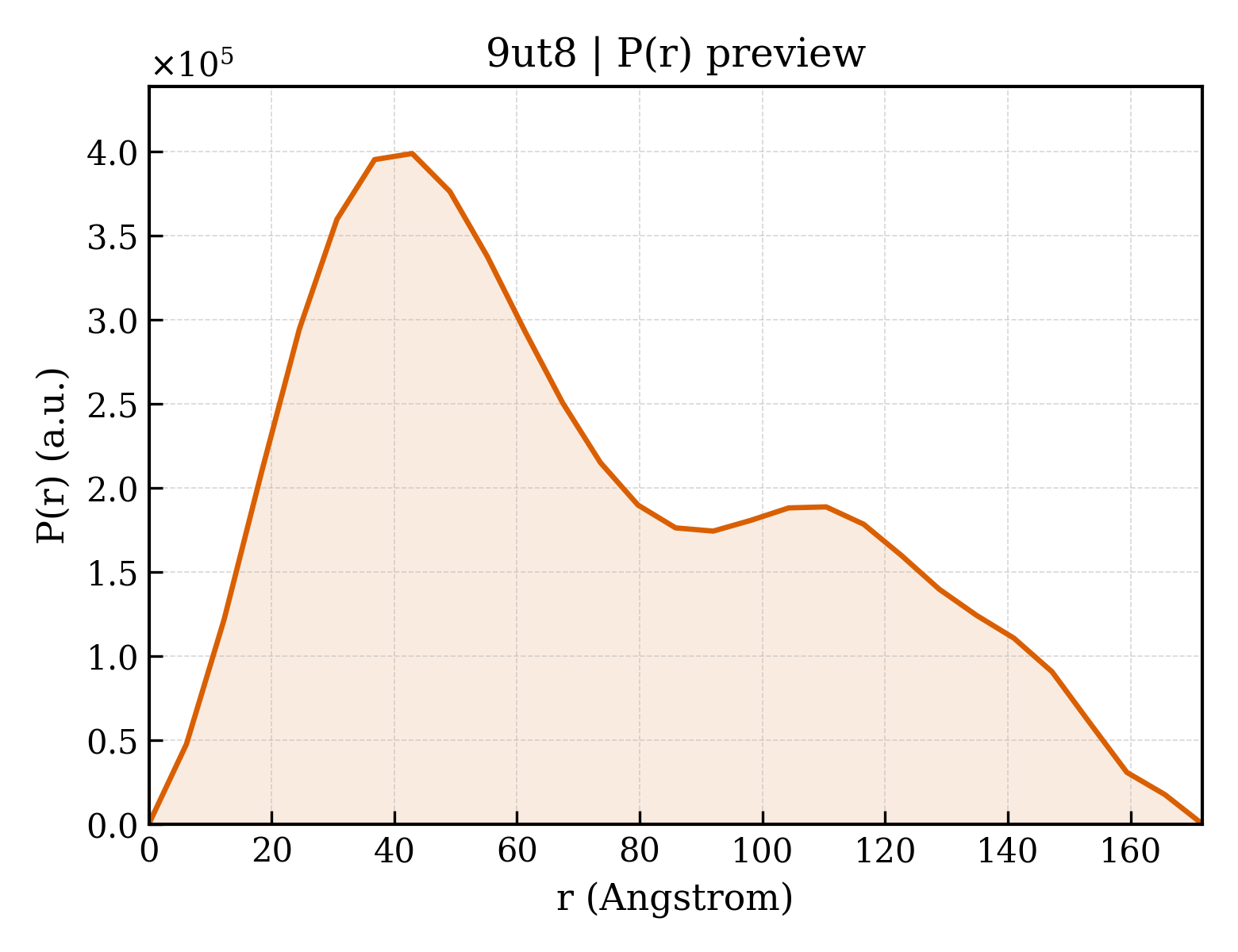

P(r) Distribution
