9noy

Human TAS1R2 transmembrane domains from the TAS1R2-TM-G protein complex

Method: ELECTRON MICROSCOPY D_max: 70.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

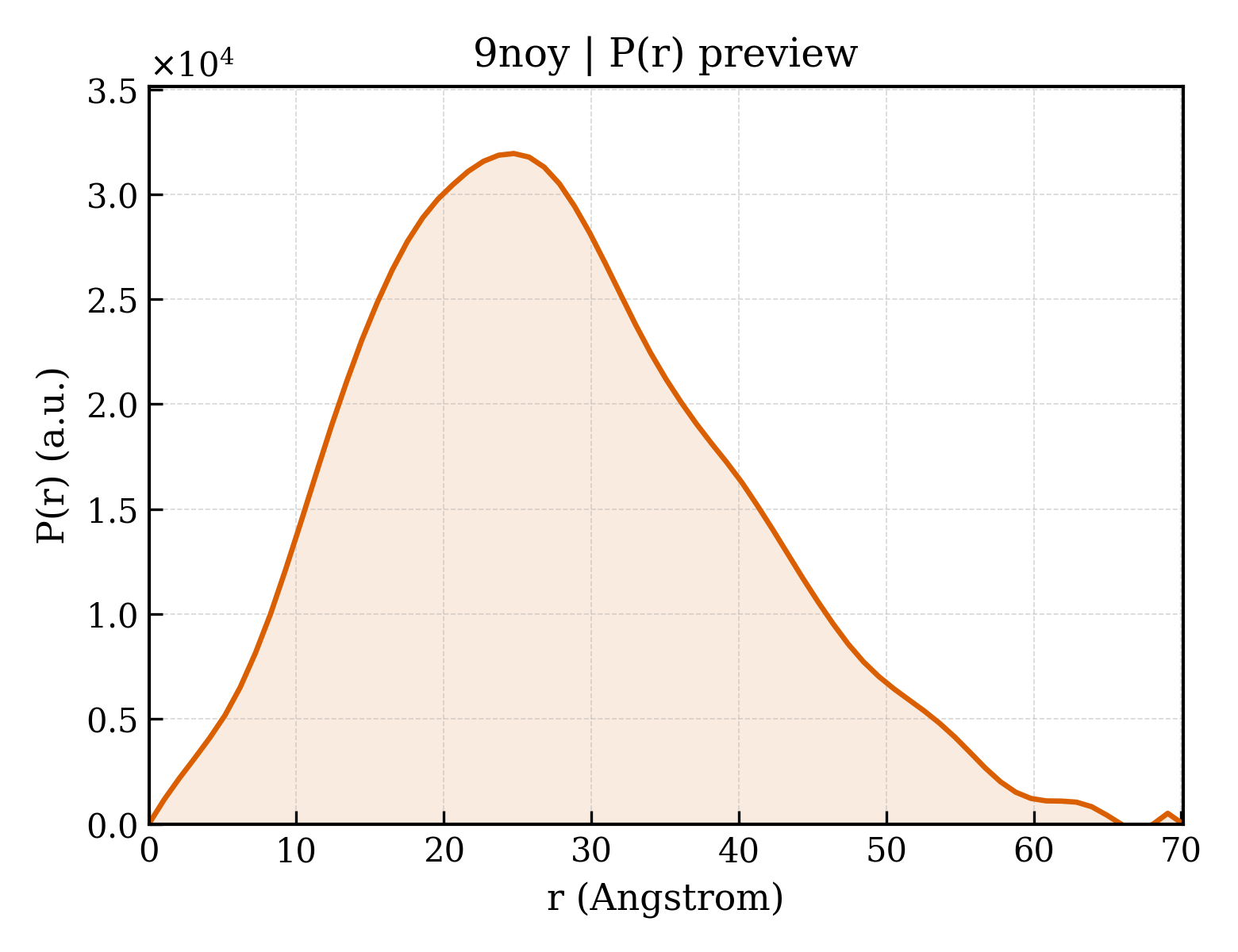

P(r) distribution for 9noy

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9noy
沉积日期 deposition_date	2025-03-10
结构标题 title	Human TAS1R2 transmembrane domains from the TAS1R2-TM-G protein complex
关键词 keywords	Sweet, taste, receptor, GPCR, TAS1R2, TAS1R3, T1R2, T1R3, membrane protein; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	21.11 Å
回转半径 Rg (电子) rg_electron	20.09 Å
零角强度 I(0) i0	12203400.00
分子量 molecular_weight	28931.0 kDa
排除体积 excluded_volume	37443 Å³
包络体积 envelope_volume	44804 Å³
水化壳体积 shell_volume	19167 Å³
包络直径 envelope_diameter	70.8 Å
壳层 Rg shell_rg	26.06 Å
包络 Rg envelope_rg	20.48 Å
形状 Rg shape_rg	20.11 Å
总 Rg total_rg	21.01 Å
总原子数 total_atoms	2031
残基数 n_residues	257
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	70.1 Å
Rg (实空间) rg_real	21.14 Å
Rg 误差 (实空间) rg_real_error	0.52 Å
I(0) (实空间) i0_real	1.2200e+07
I(0) 误差 (实空间) i0_real_error	1.5650e+05
Rg (倒空间) rg_reciprocal	21.14 Å
I(0) (倒空间) i0_reciprocal	12200000.0000
解质量估计 total_estimate	0.8028
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	24.8 Å
偏度 Skewness skewness	0.400
峰度 Kurtosis kurtosis	-0.255
角度范围 angular_range	— – 0.3750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	2150000.0000
实空间数据点数 n_real_points	69
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.822; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (1)

▶

7. 引用文献 (1)

▶

8. 文件与曲线 (10)
