1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8emx
沉积日期 deposition_date	2022-09-28
结构标题 title	Phospholipase C beta 3 (PLCb3) in complex with Gbg on lipid nanodiscs
关键词 keywords	PIP2 degradation, IP3 production, DAG production, G protein signaling, HYDROLASE; HYDROLASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.11 Å
回转半径 Rg (电子) rg_electron	41.60 Å
零角强度 I(0) i0	424926000.00
分子量 molecular_weight	166900.0 kDa
排除体积 excluded_volume	208050 Å³
包络体积 envelope_volume	287630 Å³
水化壳体积 shell_volume	58023 Å³
包络直径 envelope_diameter	132.8 Å
壳层 Rg shell_rg	46.73 Å
包络 Rg envelope_rg	40.99 Å
形状 Rg shape_rg	41.57 Å
总 Rg total_rg	41.93 Å
总原子数 total_atoms	11714
残基数 n_residues	1506
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	131.6 Å
Rg (实空间) rg_real	42.03 Å
Rg 误差 (实空间) rg_real_error	0.79 Å
I(0) (实空间) i0_real	4.2490e+08
I(0) 误差 (实空间) i0_real_error	7.7490e+06
Rg (倒空间) rg_reciprocal	42.11 Å
I(0) (倒空间) i0_reciprocal	425000000.0000
解质量估计 total_estimate	0.8910
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	39.1 Å
偏度 Skewness skewness	0.132
峰度 Kurtosis kurtosis	-0.784
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	112600000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.942; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.756

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	1-phosphatidylinositol 4,5-bisphosphate phosphodiesterase beta-3
分子量 formula_weight	139055.6 kDa
EC 编号 ec_number	3.1.4.11
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	11714

GPSRASTMHALQLEPPTVVETLRRGSKFIKWDEETSSRNLVTLRVDPNGFFLYWTGPNMEVDTLDISSIRDTRTGRYARLPKDPKIREVLGFGGPDARLEEKLMTVVSGPDPVNTVFLNFMAVQDDTAKVWSEELFKLAMNILAQNASRNTFLRKAYTKLKLQVNQDGRIPVKNILKMFSADKKRVETALESCGLKFNRSESIRPDEFSLEIFERFLNKLCLRPDIDKILLEIGAKGKPYLTLEQLMDFINQKQRDPRLNEVLYPPLRPSQARLLIEKYEPNQQFLERDQMSMEGFSRYLGGEENGILPLEALDLSTDMTQPLSAYFINSSHNTYLTAGQLAGTSSVEMYRQALLWGCRCVELDVWKGRPPEEEPFITHGFTMTTEVPLRDVLEAIAETAFKTSPYPVILSFENHVDSAKQQAKMAEYCRSIFGDALLIEPLDKYPLAPGVPLPSPQDLMGRILVKNKKRHRPSAGGPDSAGRKRPLEQSNSALSESSAATEPSSPQLGSPSSDSCPGLSNGEEVGLEKPSLEPQKSLGDEGLNRGPYVLGPADREDEEEDEEEEEQTDPKKPTTDEGTASSEVNATEEMSTLVNYIEPVKFKSFEAARKRNKCFEMSSFVETKAMEQLTKSPMEFVEYNKQQLSRIYPKGTRVDSSNYMPQLFWNVGCQLVALNFQTLDVAMQLNAGVFEYNGRSGYLLKPEFMRRPDKSFDPFTEVIVDGIVANALRVKVISGQFLSDRKVGIYVEVDMFGLPVDTRRKYRTRTSQGNSFNPVWDEEPFDFPKVVLPTLASLRIAAFEEGGKFVGHRILPVSAIRSGYHYVCLRNEANQPLCLPALLIYTEASDYIPDDHQDYAEALINPIKHVSLMDQRARQLAALIGESEAQAGQETCQDTQSQQLGSQPSSNPTPSPLDASPRRPPGPTTSPASTSLSSPGQRDDLIASILSEVAPTPLDELRGHKALVKLRSRQERDLRELRKKHQRKAVTLTRRLLDGLAQAQAEGRCRLRPGALGGAADVEDTKEGEDEAKRYQEFQNRQVQSLLELREAQVDAEAQRRLEHLRQALQRLREVVLDANTTQFKRLKEMNEREKKELQKILDRKRHNSISEAKMRDKHKKEAELTEINRRHITESVNSIRRLEEAQKQRHDRLVAGQQQVLQQLAEEEPKLLAQLAQECQEQRARLPQEIRRSLLGEMPEGLGDGPLVACASNGHAPGSSGHLSGADSESQEENTQL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 polymer

描述 description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
分子量 formula_weight	37416.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,C

MSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 polymer

描述 description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
分子量 formula_weight	7717.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,D

GPMASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 4 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

结构域编号 domain_id	8emxA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	8emxB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

结构域编号 domain_id	8emxC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	53984

fit	/app/data/saxs_computation/em/8emx/8emx.fit
pddf	/app/data/pr_computation/em/8emx/8emx.pr.out
profile	/app/data/saxs_computation/em/8emx/8emx.dat

Phospholipase C beta 3 (PLCb3) in complex with Gbg on lipid nanodiscs

SAXS 散射曲线 SAXS Profile

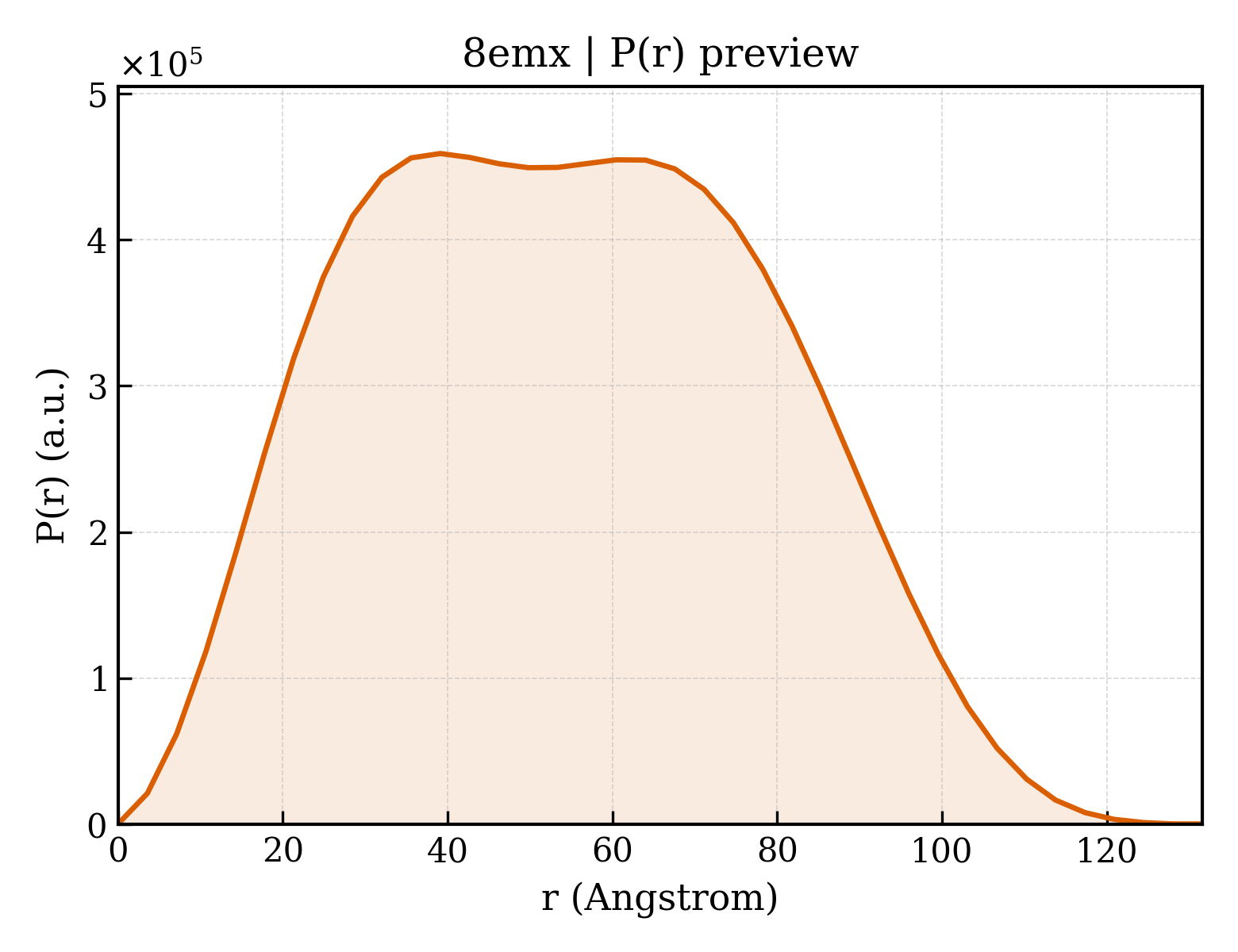

P(r) 距离分布 P(r) Distribution
