8uqo

PLCb3-Gbg-Gaq complex on membranes

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein subunit gamma × 2 （G3V2N0） Guanine nucleotide-binding protein G(q) subunit alpha × 1 （P50148） 1-phosphatidylinositol 4,5-bisphosphate phosphodiesterase beta-3 × 1 （Q01970） GUANOSINE-5'-DIPHOSPHATE × 1 TETRAFLUOROALUMINATE ION × 1 MAGNESIUM ION × 1 CALCIUM ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–340； UniProt 1–340 Author chain C； PDBConstruct 1–340； UniProt 1–340

Guanine nucleotide-binding protein subunit gamma

Homo sapiens

UniProt G3V2N0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 2 （P62873） Guanine nucleotide-binding protein G(q) subunit alpha × 1 （P50148） 1-phosphatidylinositol 4,5-bisphosphate phosphodiesterase beta-3 × 1 （Q01970） GUANOSINE-5'-DIPHOSPHATE × 1 TETRAFLUOROALUMINATE ION × 1 MAGNESIUM ION × 1 CALCIUM ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G3V2N0_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 2–73； UniProt 39–110 Author chain G； PDBConstruct 2–73； UniProt 39–110

Guanine nucleotide-binding protein G(q) subunit alpha

Homo sapiens

UniProt P50148

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 2 （P62873） Guanine nucleotide-binding protein subunit gamma × 2 （G3V2N0） 1-phosphatidylinositol 4,5-bisphosphate phosphodiesterase beta-3 × 1 （Q01970） GUANOSINE-5'-DIPHOSPHATE × 1 TETRAFLUOROALUMINATE ION × 1 MAGNESIUM ION × 1 CALCIUM ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GNAQ_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 3–355； UniProt 7–359

1-phosphatidylinositol 4,5-bisphosphate phosphodiesterase beta-3

Homo sapiens

UniProt Q01970

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 2 （P62873） Guanine nucleotide-binding protein subunit gamma × 2 （G3V2N0） Guanine nucleotide-binding protein G(q) subunit alpha × 1 （P50148） GUANOSINE-5'-DIPHOSPHATE × 1 TETRAFLUOROALUMINATE ION × 1 MAGNESIUM ION × 1 CALCIUM ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PLCB3_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain Q； PDBConstruct 10–1234； UniProt 10–1234

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8uqo
Deposition date deposition_date	2023-10-24
Last revision last_revision	2023-12-06
Structure title title	PLCb3-Gbg-Gaq complex on membranes
Keywords keywords	PLCb3, Gbg, Gaq, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8uqo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8uqo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

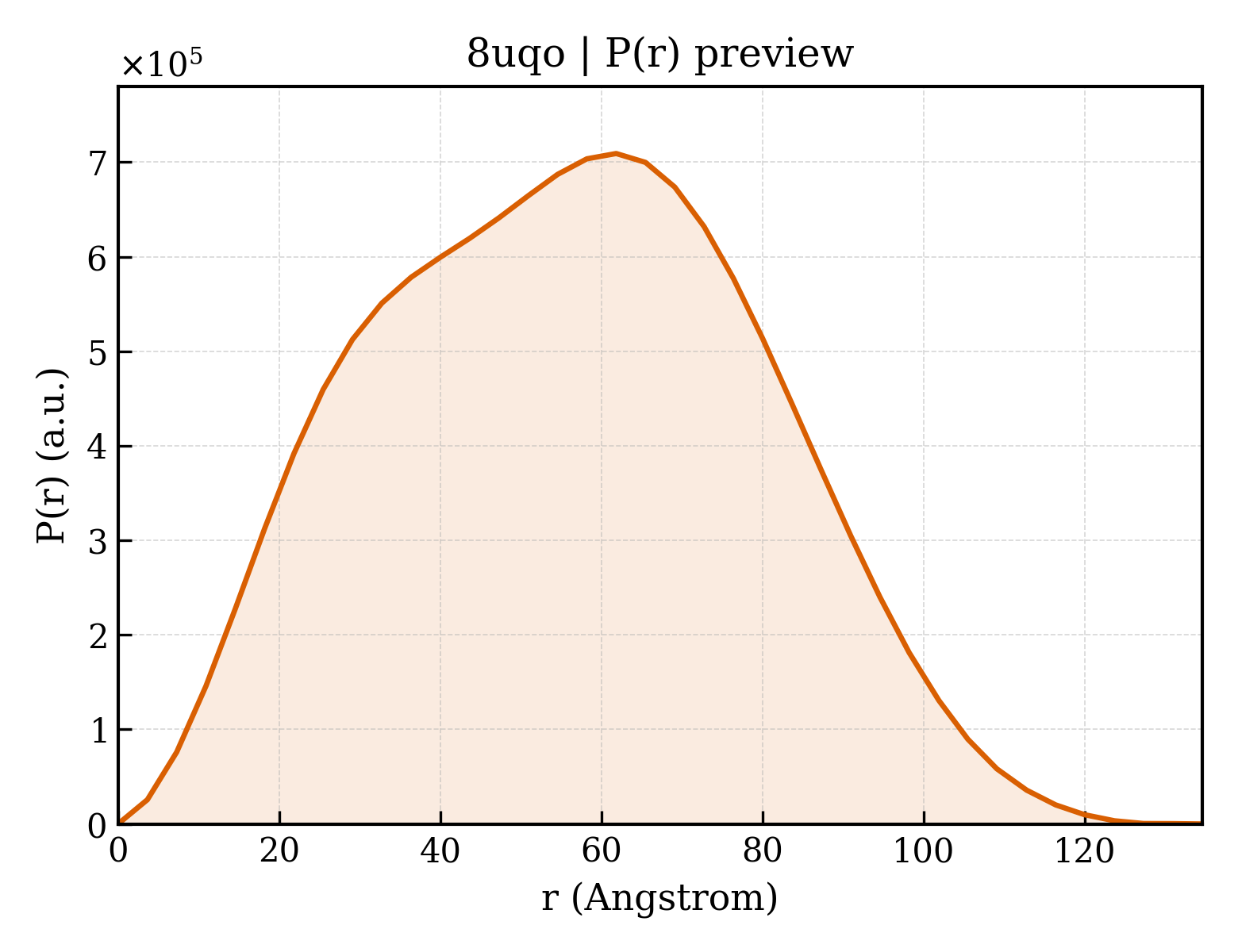

8uqo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.07 Å
Rg (electron density)	42.48 Å
Total Rg	42.75 Å
Atom count	13958
Residues	1823
Excluded volume	247810 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8uqo__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	37416.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C
Atom count atom_count	13961

MSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Guanine nucleotide-binding protein subunit gamma
Molecular weight formula_weight	8015.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,G

GPMASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Guanine nucleotide-binding protein G(q) subunit alpha
Molecular weight formula_weight	41676.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

GPMACCLSEEAKEARRINDEIERQLRRDKRDARRELKLLLLGTGESGKSTFIKQMRIIHGSGYSDEDKRGFTKLVYQNIFTAMQAMIRAMDTLKIPYKYEHNKAHAQLVREVDVEKVSAFENPYVDAIKSLWNDPGIQECYDRRREYQLSDSTKYYLNDLDRVADPAYLPTQQDVLRVRVPTTGIIEYPFDLQSVIFRMVDVGGQRSERRKWIHCFENVTSIMFLVALSEYDQVLVESDNENRMEESKALFRTIITYPWFQNSSVILFLNKKDLLEEKIMYSHLVDYFPEYDGPQRDAQAAREFILKMFVDLNPDSDKIIYSHFTCATDTENIRFVFAAVKDTILQLNLKEYNLV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	1-phosphatidylinositol 4,5-bisphosphate phosphodiesterase beta-3
Molecular weight formula_weight	139104.7 kDa
EC 编号 ec_number	3.1.4.11
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q

GPAMDPEFMALQLEPPTVVETLRRGSKFIKWDEETSSRNLVTLRVDPNGFFLYWTGPNMEVDTLDISSIRDTRTGRYARLPKDPKIREVLGFGGPDARLEEKLMTVVSGPDPVNTVFLNFMAVQDDTAKVWSEELFKLAMNILAQNASRNTFLRKAYTKLKLQVNQDGRIPVKNILKMFSADKKRVETALESCGLKFNRSESIRPDEFSLEIFERFLNKLCLRPDIDKILLEIGAKGKPYLTLEQLMDFINQKQRDPRLNEVLYPPLRPSQARLLIEKYEPNQQFLERDQMSMEGFSRYLGGEENGILPLEALDLSTDMTQPLSAYFINSSHNTYLTAGQLAGTSSVEMYRQALLWGCRCVELDVWKGRPPEEEPFITHGFTMTTEVPLRDVLEAIAETAFKTSPYPVILSFENHVDSAKQQAKMAEYCRSIFGDALLIEPLDKYPLAPGVPLPSPQDLMGRILVKNKKRHRPSAGGPDSAGRKRPLEQSNSALSESSAATEPSSPQLGSPSSDSCPGLSNGEEVGLEKPSLEPQKSLGDEGLNRGPYVLGPADREDEEEDEEEEEQTDPKKPTTDEGTASSEVNATEEMSTLVNYIEPVKFKSFEAARKRNKCFEMSSFVETKAMEQLTKSPMEFVEYNKQQLSRIYPKGTRVDSSNYMPQLFWNVGCQLVALNFQTLDVAMQLNAGVFEYNGRSGYLLKPEFMRRPDKSFDPFTEVIVDGIVANALRVKVISGQFLSDRKVGIYVEVDMFGLPVDTRRKYRTRTSQGNSFNPVWDEEPFDFPKVVLPTLASLRIAAFEEGGKFVGHRILPVSAIRSGYHYVCLRNEANQPLCLPALLIYTEASDYIPDDHQDYAEALINPIKHVSLMDQRARQLAALIGESEAQAGQETCQDTQSQQLGSQPSSNPTPSPLDASPRRPPGPTTSPASTSLSSPGQRDDLIASILSEVAPTPLDELRGHKALVKLRSRQERDLRELRKKHQRKAVTLTRRLLDGLAQAQAEGRCRLRPGALGGAADVEDTKEGEDEAKRYQEFQNRQVQSLLELREAQVDAEAQRRLEHLRQALQRLREVVLDANTTQFKRLKEMNEREKKELQKILDRKRHNSISEAKMRDKHKKEAELTEINRRHITESVNSIRRLEEAQKQRHDRLVAGQQQVLQQLAEEEPKLLAQLAQECQEQRARLPQEIRRSLLGEMPEGLGDGPLVACASNGHAPGSSGHLSGADSESQEENTQL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 5 Entity 5 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	TETRAFLUOROALUMINATE ION
Molecular weight formula_weight	103.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	nat
Copy count entity_count	1

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.37 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	359215
