8i2g

FSHR-Follicle stimulating hormone-compound 716340-Gs complex

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;chimera of Guanine nucleotide-binding protein G(s) subunit alpha and Guanine nucleotide-binding protein G(s) subunit alpha isoforms XLas ;

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 7 其他Polymer 1	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Nb35 × 1 Follicle-stimulating hormone receptor × 1 （P23945） Glycoprotein hormones alpha chain × 1 （P01215） Follitropin subunit beta × 1 （P01225） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 13 PALMITIC ACID × 3 MYRISTIC ACID × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 N-tert-butyl-N-ethyl-8-methoxy-9-propan-2-yloxy-1-thiophen-2-yl-5,6-dihydroimidazo[5,1-a]isoquinoline-3-carboxamide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GNAS1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 70–259； UniProt 848–1037

;chimera of Guanine nucleotide-binding protein G(s) subunit alpha and Guanine nucleotide-binding protein G(s) subunit alpha isoforms XLas ;

Homo sapiens

UniProt Q8R4A8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 7 其他Polymer 1	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Nb35 × 1 Follicle-stimulating hormone receptor × 1 （P23945） Glycoprotein hormones alpha chain × 1 （P01215） Follitropin subunit beta × 1 （P01225） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 13 PALMITIC ACID × 3 MYRISTIC ACID × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 N-tert-butyl-N-ethyl-8-methoxy-9-propan-2-yloxy-1-thiophen-2-yl-5,6-dihydroimidazo[5,1-a]isoquinoline-3-carboxamide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GNAS_CRIGR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–60； UniProt 6–64

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Homo sapiens

UniProt P62873

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 7 其他Polymer 1	;chimera of Guanine nucleotide-binding protein G(s) subunit alpha and Guanine nucleotide-binding protein G(s) subunit alpha isoforms XLas ; × 1 （Q5JWF2,Q8R4A8） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Nb35 × 1 Follicle-stimulating hormone receptor × 1 （P23945） Glycoprotein hormones alpha chain × 1 （P01215） Follitropin subunit beta × 1 （P01225） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 13 PALMITIC ACID × 3 MYRISTIC ACID × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 N-tert-butyl-N-ethyl-8-methoxy-9-propan-2-yloxy-1-thiophen-2-yl-5,6-dihydroimidazo[5,1-a]isoquinoline-3-carboxamide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 7–345； UniProt 2–340

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

Homo sapiens

UniProt P59768

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 7 其他Polymer 1	;chimera of Guanine nucleotide-binding protein G(s) subunit alpha and Guanine nucleotide-binding protein G(s) subunit alpha isoforms XLas ; × 1 （Q5JWF2,Q8R4A8） Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Nb35 × 1 Follicle-stimulating hormone receptor × 1 （P23945） Glycoprotein hormones alpha chain × 1 （P01215） Follitropin subunit beta × 1 （P01225） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 13 PALMITIC ACID × 3 MYRISTIC ACID × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 N-tert-butyl-N-ethyl-8-methoxy-9-propan-2-yloxy-1-thiophen-2-yl-5,6-dihydroimidazo[5,1-a]isoquinoline-3-carboxamide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBG2_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–71； UniProt 1–71

Follicle-stimulating hormone receptor

Homo sapiens

UniProt P23945

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 7 其他Polymer 1	;chimera of Guanine nucleotide-binding protein G(s) subunit alpha and Guanine nucleotide-binding protein G(s) subunit alpha isoforms XLas ; × 1 （Q5JWF2,Q8R4A8） Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Nb35 × 1 Glycoprotein hormones alpha chain × 1 （P01215） Follitropin subunit beta × 1 （P01225） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 13 PALMITIC ACID × 3 MYRISTIC ACID × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 N-tert-butyl-N-ethyl-8-methoxy-9-propan-2-yloxy-1-thiophen-2-yl-5,6-dihydroimidazo[5,1-a]isoquinoline-3-carboxamide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FSHR_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain R； PDBConstruct 1–678； UniProt 18–695

Glycoprotein hormones alpha chain

Homo sapiens

UniProt P01215

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 7 其他Polymer 1	;chimera of Guanine nucleotide-binding protein G(s) subunit alpha and Guanine nucleotide-binding protein G(s) subunit alpha isoforms XLas ; × 1 （Q5JWF2,Q8R4A8） Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Nb35 × 1 Follicle-stimulating hormone receptor × 1 （P23945） Follitropin subunit beta × 1 （P01225） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 13 PALMITIC ACID × 3 MYRISTIC ACID × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 N-tert-butyl-N-ethyl-8-methoxy-9-propan-2-yloxy-1-thiophen-2-yl-5,6-dihydroimidazo[5,1-a]isoquinoline-3-carboxamide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GLHA_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain X； PDBConstruct 1–92； UniProt 25–116

Follitropin subunit beta

Homo sapiens

UniProt P01225

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 7 其他Polymer 1	;chimera of Guanine nucleotide-binding protein G(s) subunit alpha and Guanine nucleotide-binding protein G(s) subunit alpha isoforms XLas ; × 1 （Q5JWF2,Q8R4A8） Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Nb35 × 1 Follicle-stimulating hormone receptor × 1 （P23945） Glycoprotein hormones alpha chain × 1 （P01215） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL × 13 PALMITIC ACID × 3 MYRISTIC ACID × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 N-tert-butyl-N-ethyl-8-methoxy-9-propan-2-yloxy-1-thiophen-2-yl-5,6-dihydroimidazo[5,1-a]isoquinoline-3-carboxamide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FSHB_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain Y； PDBConstruct 1–109； UniProt 19–127

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8i2g
Deposition date deposition_date	2023-01-14
Structure title title	FSHR-Follicle stimulating hormone-compound 716340-Gs complex
Keywords keywords	Follicle stimulating hormone, FSH, GPCR, Gs-protein, HORMONE; HORMONE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8i2g__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8i2g__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

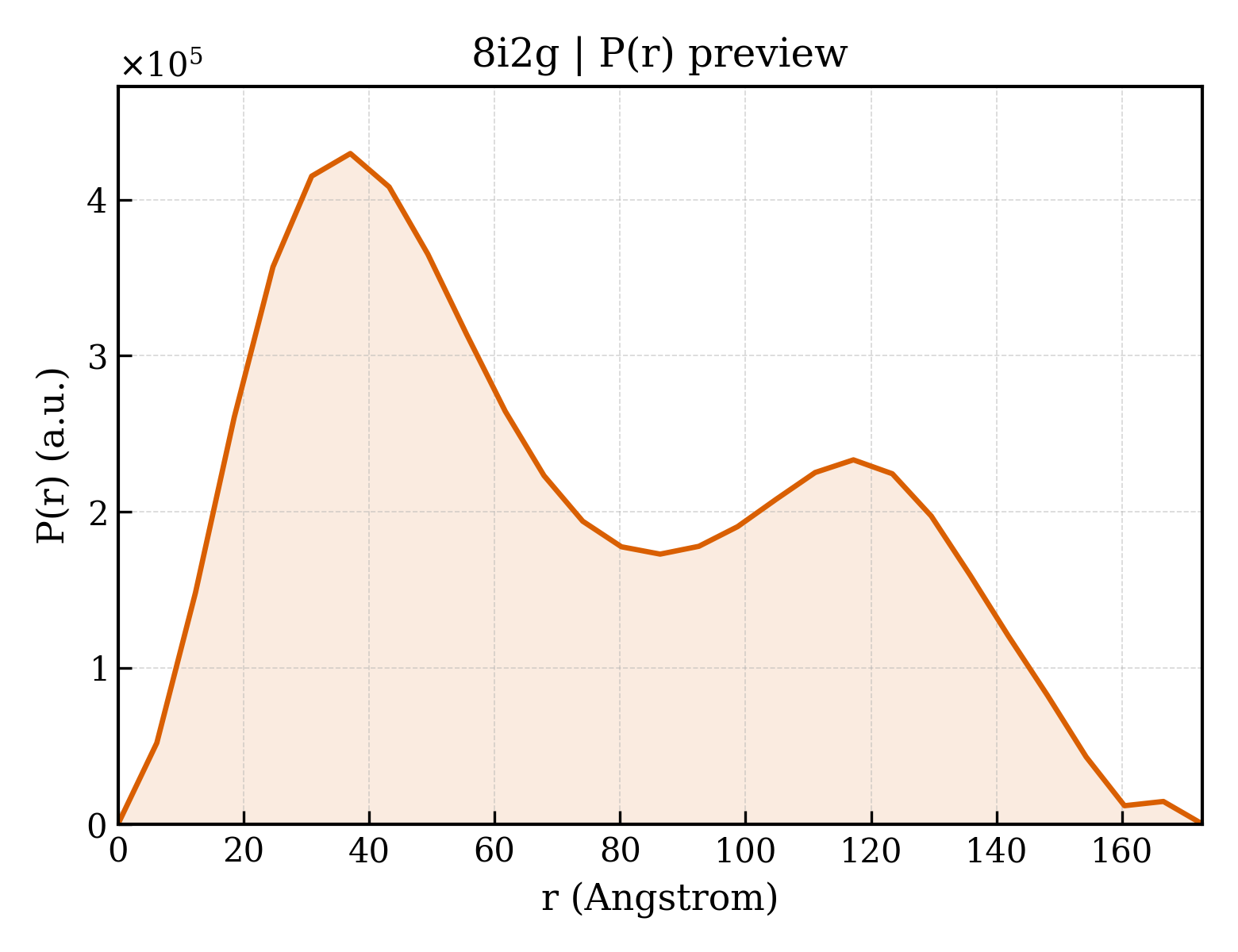

8i2g__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	56.23 Å
Rg (electron density)	55.41 Å
Total Rg	55.29 Å
Atom count	25551
Residues	1540
Excluded volume	229290 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8i2g__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (13)

Entity 1 Entity 1 polymer

Description description	;chimera of Guanine nucleotide-binding protein G(s) subunit alpha and Guanine nucleotide-binding protein G(s) subunit alpha isoforms XLas ;
Molecular weight formula_weight	30168.2 kDa
Mutation mutation	S205T
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	25551

MNSKTEDQRNEEKAQREANKKIEKQLQKDKQVYRATHRLLLLGAGESGKSTIVKQMRILHGGSGGSGGTTGIFETKFQVDKVNFHMFDVGGQRDERRKWIQCFNDVTAIIFVVASSSYNMVIREDNQTNRLQEALNLFKSIWNNRWLRTISVILFLNKQDLLAEKVLAGKSKIEDYFPEFARYTTPEDATPEPGEDPRVTRAKYFIRDEFLRISTASGDGRHYCYPHFTCAVDTENIRRVFNDCRDIIQRMHLRQYELL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	37915.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MGSLLQSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Molecular weight formula_weight	7861.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	Nb35
Molecular weight formula_weight	13885.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

QVQLQESGGGLVQPGGSLRLSCAASGFTFSNYKMNWVRQAPGKGLEWVSDISQSGASISYTGSVKGRFTISRDNAKNTLYLQMNSLKPEDTAVYYCARCPAPFTRDCFDVTSTTYAYRGQGTQVTVSS

Source Source

Source organism organism	Lama glama
NCBI taxonomy ID ncbi_taxonomy_id	9844
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Follicle-stimulating hormone receptor
Molecular weight formula_weight	76683.7 kDa
Mutation mutation	S273I
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

CHHRICHCSNRVFLCQESKVTEIPSDLPRNAIELRFVLTKLRVIQKGAFSGFGDLEKIEISQNDVLEVIEADVFSNLPKLHEIRIEKANNLLYINPEAFQNLPNLQYLLISNTGIKHLPDVHKIHSLQKVLLDIQDNINIHTIERNSFVGLSFESVILWLNKNGIQEIHNCAFNGTQLDELNLSDNNNLEELPNDVFHGASGPVILDISRTRIHSLPSYGLENLKKLRARSTYNLKKLPTLEKLVALMEASLTYPIHCCAFANWRRQISELHPICNKSILRQEVDYMTQARGQRSSLAEDNESSYSRGFDMTYTEFDYDLCNEVVDVTCSPKPDAFNPCEDIMGYNILRVLIWFISILAITGNIIVLVILTTSQYKLTVPRFLMCNLAFADLCIGIYLLLIASVDIHTKSQYHNYAIDWQTGAGCDAAGFFTVFASELSVYTLTAITLERWHTITHAMQLDCKVQLRHAASVMVMGWIFAFAAALFPIFGISSYMKVSICLPMDIDSPLSQLYVMSLLVLNVLAFVVICGCYIHIYLTVRNPNIVSSSSDTRIAKRMAMLIFTDFLCMAPISFFAISASLKVPLITVSKAKILLVLFHPINSCANPFLYAIFTKNFRRDFFILLSKCGCYEMQAQIYRTETSSTVHNTHPRNGHCSSAPRVTNGSTYILVPLSHLAQN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 6 Entity 6 polymer

Description description	Glycoprotein hormones alpha chain
Molecular weight formula_weight	10183.8 kDa
Mutation mutation	F17L
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X

APDVQDCPECTLQENPLFSQPGAPILQCMGCCFSRAYPTPLRSKKTMLVQKNVTSESTCCVAKSYNRVTVMGGFKVENHTACHCSTCYYHKS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 7 Entity 7 polymer

Description description	Follitropin subunit beta
Molecular weight formula_weight	12241.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Y

NSCELTNITIAIEKEECRFCISINTTWCAGYCYTRDLVYKDPARPKIQKTCTFKELVYETVRVPGCAHHADSLYTYPVATQCHCGKCDSDSTDCTVRGLGPSYCSFGEM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 8 Entity 8 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	CHOLESTEROL
Molecular weight formula_weight	386.7 kDa
Source method src_method	syn
Copy count entity_count	13

Entity 10 Entity 10 non-polymer

Description description	PALMITIC ACID
Molecular weight formula_weight	256.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 11 Entity 11 non-polymer

Description description	MYRISTIC ACID
Molecular weight formula_weight	228.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 12 Entity 12 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 13 Entity 13 non-polymer

Description description	N-tert-butyl-N-ethyl-8-methoxy-9-propan-2-yloxy-1-thiophen-2-yl-5,6-dihydroimidazo[5,1-a]isoquinoline-3-carboxamide
Molecular weight formula_weight	467.6 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	8i2gB01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	8i2gN01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	477950

FSHR-Follicle stimulating hormone-compound 716340-Gs complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

;chimera of Guanine nucleotide-binding protein G(s) subunit alpha and Guanine nucleotide-binding protein G(s) subunit alpha isoforms XLas ;

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

;chimera of Guanine nucleotide-binding protein G(s) subunit alpha and Guanine nucleotide-binding protein G(s) subunit alpha isoforms XLas ;

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Follicle-stimulating hormone receptor

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Glycoprotein hormones alpha chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Follitropin subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

8i2g__assembly_1__model_1

8i2g__assembly_1__model_1 | I(q)

8i2g__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (13)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source
