1dz7
Solution structure of the a-subunit of human chorionic gonadotropin [modeled without carbohydrate residues]

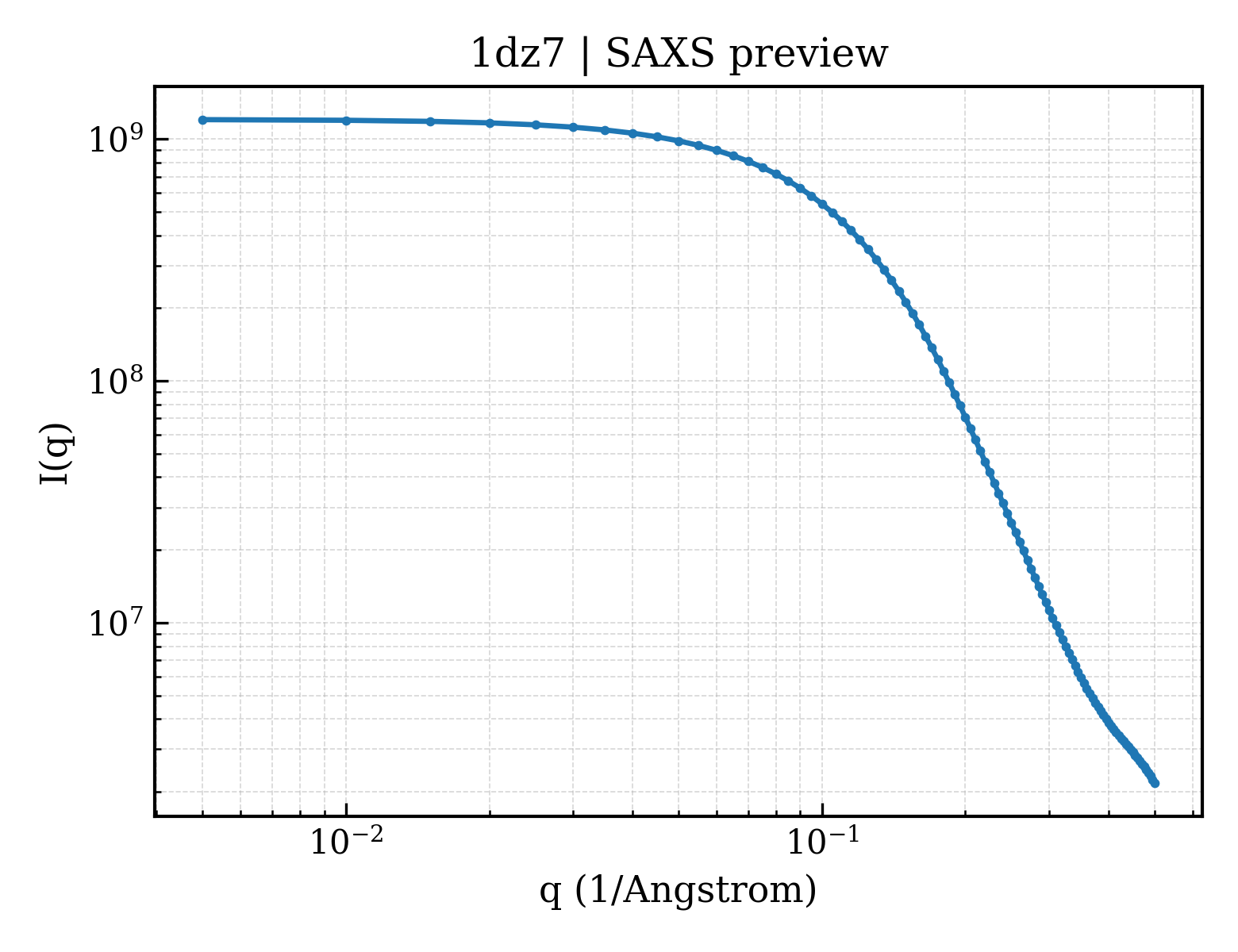

SAXS Profile

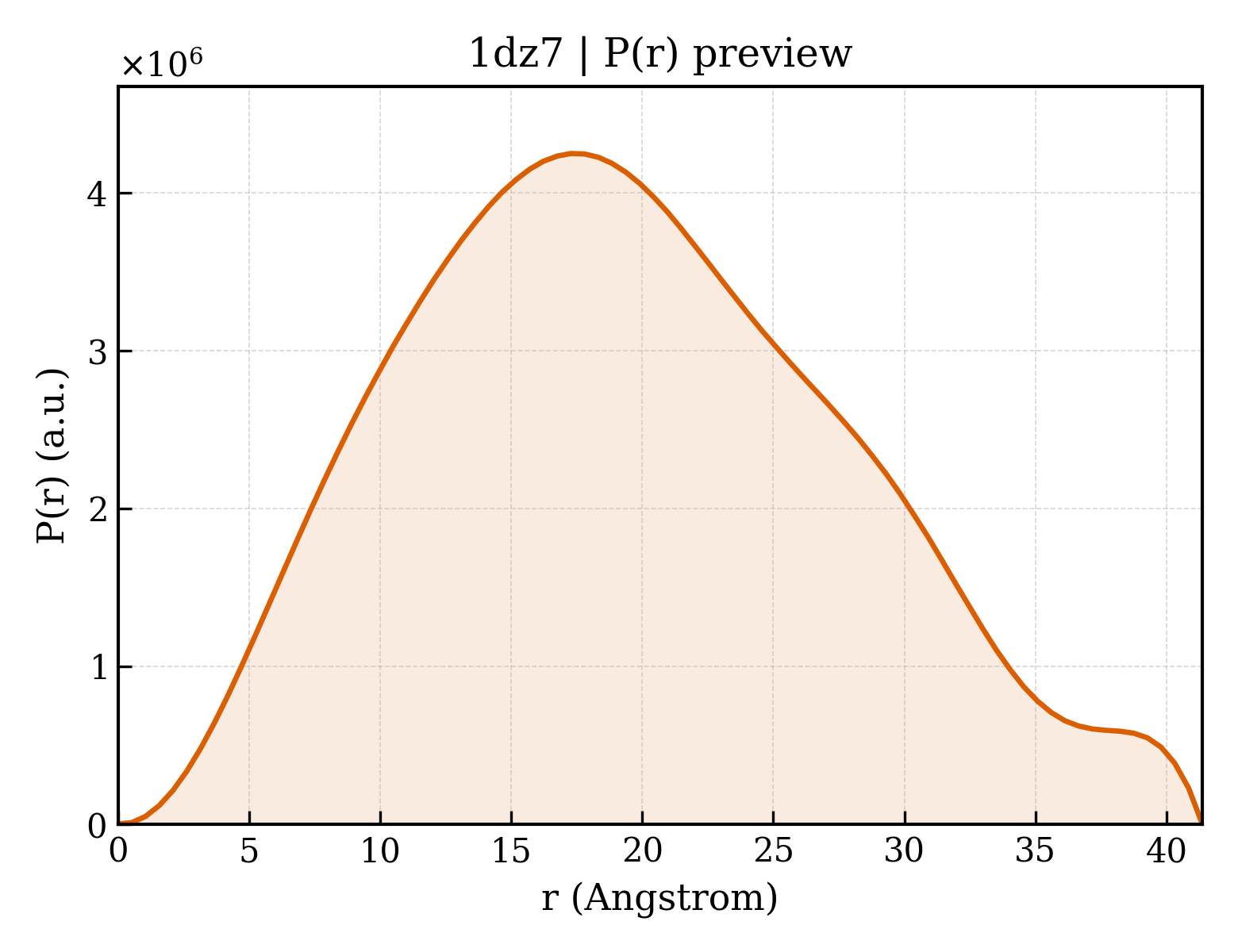

P(r) Distribution
1. Structure Basics
| entry_id | 1dz7 |
| deposition_date | 2000-02-18 |
| title | Solution structure of the a-subunit of human chorionic gonadotropin [modeled without carbohydrate residues] |
| keywords | GLYCOPROTEIN, CHORIONIC GONADOTROPIN, CHORIONIC GONADOTROPIN FREE A SUBUNIT, GLYCOPROTEIN STRUCTURE, CYSTINE KNOT, XPLOR; GLYCOPROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.64 Å |
| rg_electron | 16.17 Å |
| i0 | 1206590000.00 |
| molecular_weight | 275640.0 kDa |
| excluded_volume | 337510 ų |
| envelope_volume | 63329 ų |
| shell_volume | 25107 ų |
| envelope_diameter | 75.0 Å |
| shell_rg | 27.94 Å |
| envelope_rg | 20.66 Å |
| shape_rg | 16.21 Å |
| total_rg | 16.29 Å |
| total_atoms | 37341 |
| n_residues | 2484 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.4 Å |
| rg_real | 14.88 Å |
| rg_real_error | 0.05 Å |
| i0_real | 1.1520e+09 |
| i0_real_error | 1.0010e+07 |
| rg_reciprocal | 15.68 Å |
| i0_reciprocal | 1207000000.0000 |
| total_estimate | 0.6858 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 17.3 Å |
| skewness | 0.274 |
| kurtosis | -0.501 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 3.5760 |
| highest_alpha | 2887000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.002; Oscil: 0.991; Stabil: 0.982; Sysdev: 0.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
