1e9j
SOLUTION STRUCTURE OF THE A-SUBUNIT OF HUMAN CHORIONIC GONADOTROPIN [INCLUDING A SINGLE GLCNAC RESIDUE AT ASN52 AND ASN78]
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1e9j |
| deposition_date | 2000-10-18 |
| title | SOLUTION STRUCTURE OF THE A-SUBUNIT OF HUMAN CHORIONIC GONADOTROPIN [INCLUDING A SINGLE GLCNAC RESIDUE AT ASN52 AND ASN78] |
| keywords | GLYCOPROTEIN, CHORIONIC GONADOTROPIN, HCG, XPLOR; GLYCOPROTEIN |
| method | SOLUTION NMR |
Download Data

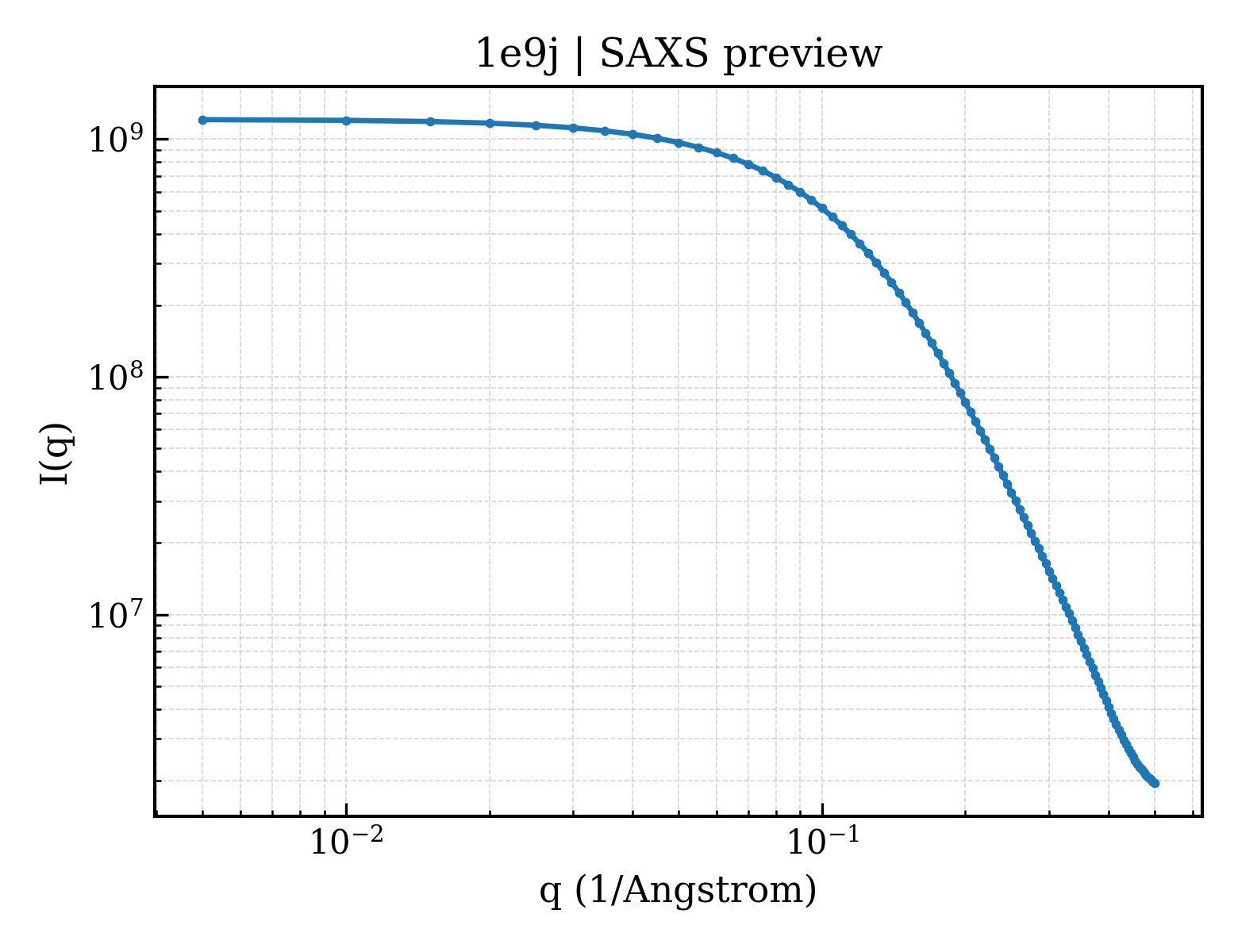

2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.35 Å |
| rg_electron | 17.07 Å |
| i0 | 1209890000.00 |
| molecular_weight | 276050.0 kDa |
| excluded_volume | 338110 ų |
| envelope_volume | 65228 ų |
| shell_volume | 25168 ų |
| envelope_diameter | 81.2 Å |
| shell_rg | 28.67 Å |
| envelope_rg | 21.58 Å |
| shape_rg | 17.11 Å |
| total_rg | 17.20 Å |
| total_atoms | 37050 |
| n_residues | 2392 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

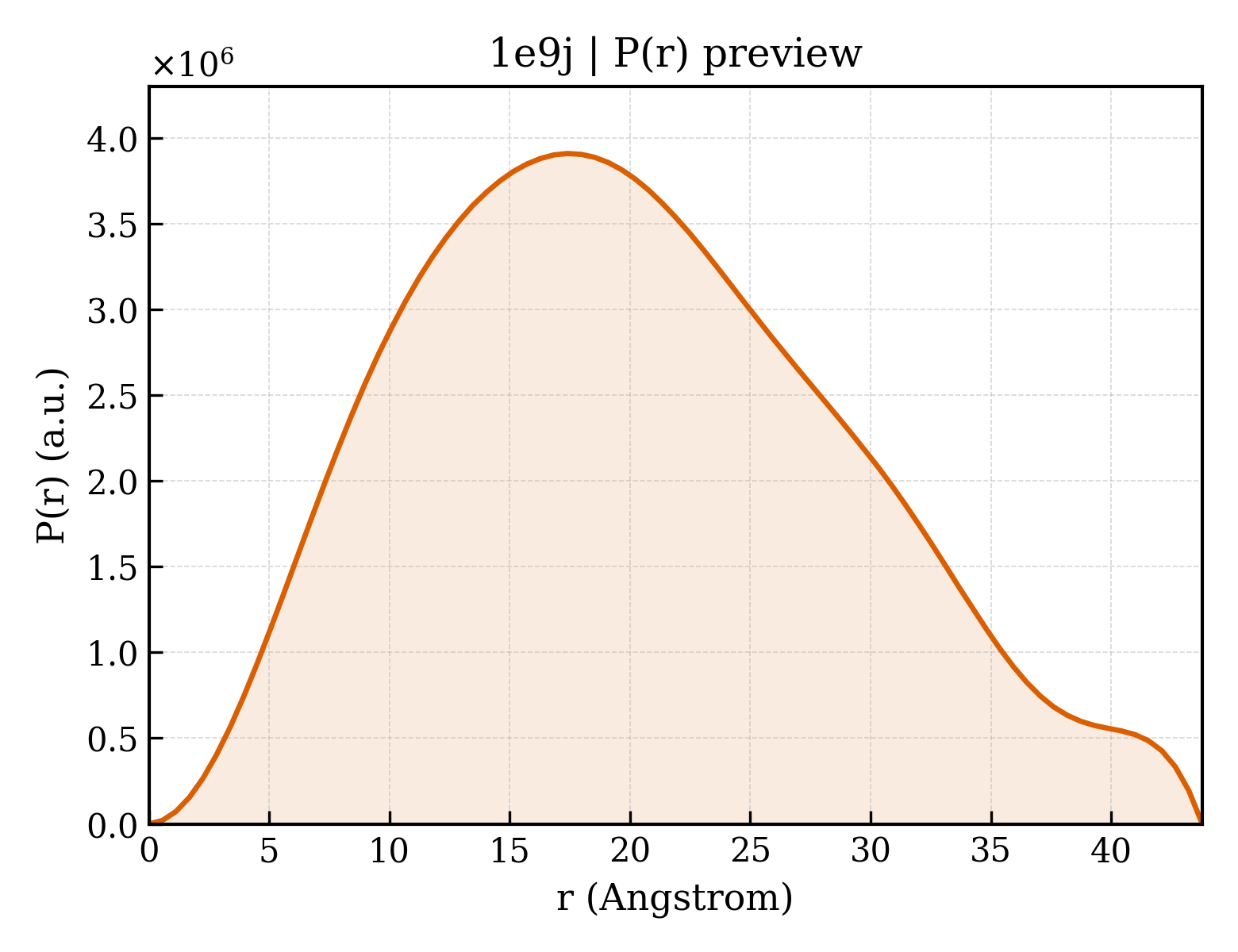

3. P(r) Analysis (GNOM)
| dmax | 43.8 Å |
| rg_real | 15.44 Å |
| rg_real_error | 0.07 Å |
| i0_real | 1.1540e+09 |
| i0_real_error | 1.0900e+07 |
| rg_reciprocal | 16.47 Å |
| i0_reciprocal | 1210000000.0000 |
| total_estimate | 0.6870 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 17.4 Å |
| skewness | 0.318 |
| kurtosis | -0.510 |
| angular_range | — – 0.4850 Å−1 |
| current_alpha | 3.5520 |
| highest_alpha | 2922000.0000 |
| n_real_points | 79 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.004; Oscil: 0.992; Stabil: 0.989; Sysdev: 0.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.000 |
