SAXSdb — 7wy8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform 3 of Adhesion G protein-coupled receptor L3

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） engineered mini G alpha s subunit × 1 NB35 × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AGRL3_MOUSE
Isoform	Q80TS3-3
PDB entities	1
Chains and sequence ranges	Author chain R； PDBConstruct 1–1543； UniProt 1–1543

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

Homo sapiens

UniProt P59768

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Isoform 3 of Adhesion G protein-coupled receptor L3 × 1 （Q80TS3） engineered mini G alpha s subunit × 1 NB35 × 1 Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBG2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–71； UniProt 1–71

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Homo sapiens

UniProt P62873

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Isoform 3 of Adhesion G protein-coupled receptor L3 × 1 （Q80TS3） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） engineered mini G alpha s subunit × 1 NB35 × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain B； PDBConstruct 7–345； UniProt 2–340

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7wy8
Deposition date deposition_date	2022-02-15
Structure title title	ADGRL3/Gs complex
Keywords keywords	GPCR, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7wy8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7wy8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

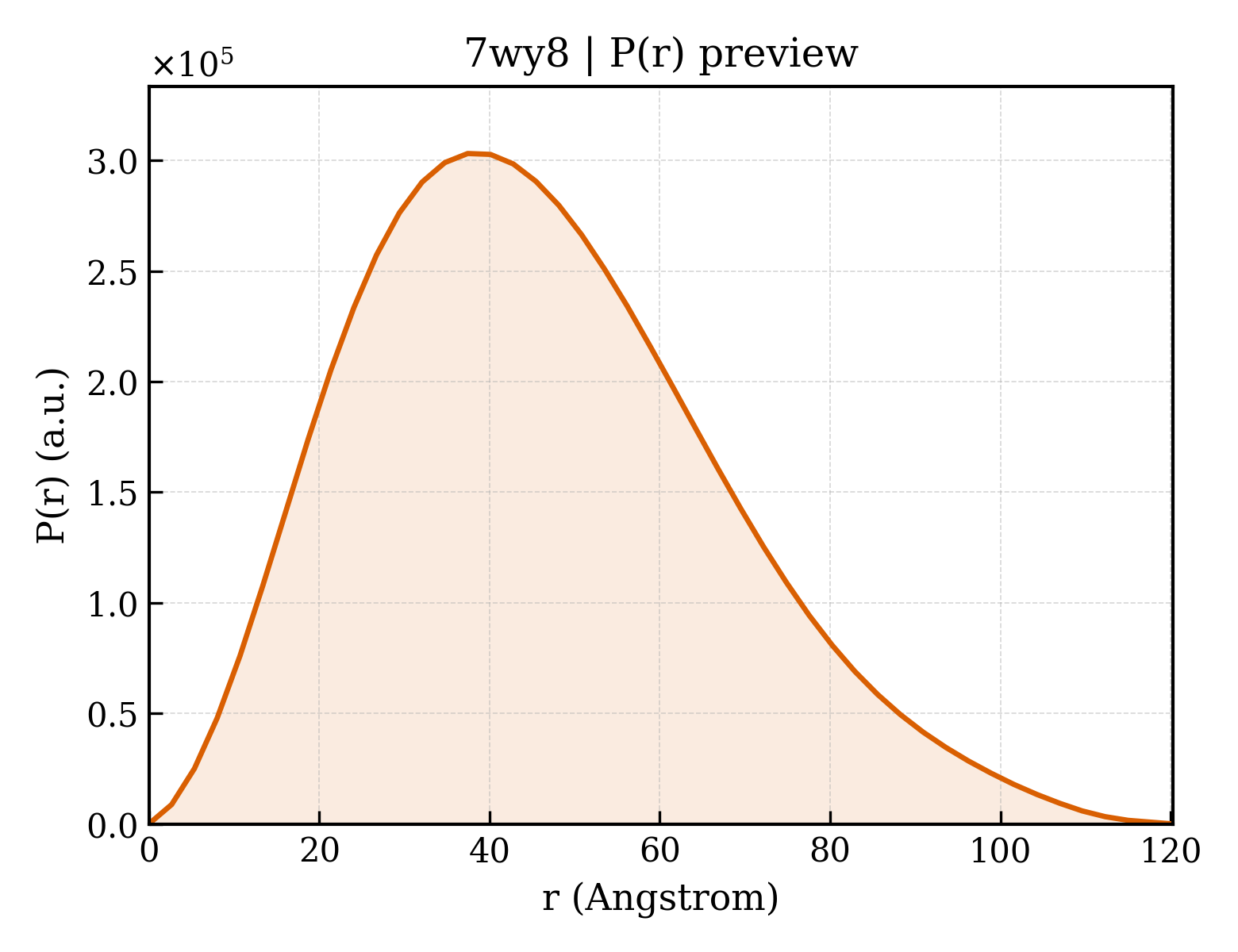

7wy8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.50 Å
Rg (electron density)	35.59 Å
Total Rg	35.99 Å
Atom count	8049
Residues	1015
Excluded volume	143410 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7wy8__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Isoform 3 of Adhesion G protein-coupled receptor L3
Molecular weight formula_weight	172044.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R
Atom count atom_count	8049

MWPPQLLILTMLLAPVVHGGKHNERHPALAAPLRHAERSPGGALPPRHLLQQPAAERSTAHRGQGPRGAARGVRGPGAPGAQIAAQAFSRAPIPMAVVRRELSCESYPIELRCPGTDVIMIESANYGRTDDKICDSDPAQMENIRCYLPDAYKIMSQRCNNRTQCAVVAGPDVFPDPCPGTYKYLEVQYECVPYKVEQKVFLCPGLLKGVYQSEHLFESDHQSGAWCKDPLQASDKIYYMPWTPYRTDTLTEYSSKDDFIAGRPTTTYKLPHRVDGTGFVVYDGALFFNKERTRNIVKFDLRTRIKSGEAIIANANYHDTSPYRWGGKSDIDLAVDENGLWVIYATEQNNGKIVISQLNPYTLRIEGTWDTAYDKRSASNAFMICGILYVVKSVYEDDDNEATGNKIDYIYNTDQSKDSLVDVPFPNSYQYIAAVDYNPRDNLLYVWNNYHVVKYSLDFGPLDSRSGPVHHGQVSYISPPIHLDSELERPPVRGISTTGSLGMGSTTTSTTLRTTTWNIGRSTTASLPGRRNRSTSTPSPAVEVLDDVTTHLPSAASQIPAMEESCEAVEAREIMWFKTRQGQVAKQPCPAGTIGVSTYLCLAPDGIWDPQGPDLSNCSSPWVNHITQKLKSGETAANIARELAEQTRNHLNAGDITYSVRAMDQLVGLLDVQLRNLTPGGKDSAARSLNKLQKRERSCRAYVQAMVETVNNLLQPQALNAWRDLTTSDQLRAATMLLDTVEESAFVLADNLLKTDIVRENTDNIQLEVARLSTEGNLEDLKFPENMGHGSTIQLSANTLKQNGRNGEIRVAFVLYNNLGPYLSTENASMKLGTEAMSTNHSVIVNSPVITAAINKEFSNKVYLADPVVFTVKHIKQSEENFNPNCSFWSYSKRTMTGYWSTQGCRLLTTNKTHTTCSCNHLTNFAVLMAHVEVKHSDAVHDLLLDVITWVGILLSLVCLLICIFTFCFFRGLQSDRNTIHKNLCISLFVAELLFLIGINRTDQPIACAVFAALLHFFFLAAFTWMFLEGVQLYIMLVEVFESEHSRRKYFYLVGYGMPALIVAVSAAVDYRSYGTDKVCWLRLDTYFIWSFIGPATLIIMLNVIFLGIALYKMFHHTAILKPESGCLDNINYEDNRPFIKSWVIGAIALLCLLGLTWAFGLMYINESTVIMAYLFTIFNSLQGMFIFIFHCVLQKKVRKEYGKCLRTHCCSGKSTESSIGSGKTSGSRTPGRYSTGSQSRIRRMWNDTVRKQSESSFITGDINSSASLNREPYRETKGLLNNARDTSVMDTLPLNGNHGNSYSIAGGEYLSNCVQIIDRGYNHNETALEKKILKELTSNYIPSYLNNHERSSEQNRNMMNKLVNNLGSGSEDDAIVLDDAASFNHEESLGLELIHEESDAPLLPPRVYSTDNHQPHHYSRRRFPQDHSESFFPLLTDEHTEDLQSPHRDSLYTSMPALAGVPAADSVTTSTQTEAAAAKGGDAEDVYYKSMPNLGSRNHVHPLHAYYQLGRGSSDGFIVPPNKDGASPEGTSKGPAHLVTSL

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Insect BA phytoplasma

Entity 2 Entity 2 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Molecular weight formula_weight	7861.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect BA phytoplasma

Entity 3 Entity 3 polymer

Description description	engineered mini G alpha s subunit
Molecular weight formula_weight	41879.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MGCTLSAEDKAAVERSKMIEKQLQKDKQVYRATHRLLLLGADNSGKSTIVKQMRIYHVNGYSEEECKQYKAVVYSNTIQSIIAIIRAMGRLKIDFGDSARADDARQLFVLAGAAEEGFMTAELAGVIKRLWKDSGVQACFNRSREYQLNDSAAYYLNDLDRIAQPNYIPTQQDVLRTRVKTSGIFETKFQVDKVNFHMFDVGAQRDERRKWIQCFNDVTAIIFVVDSSDYNRLQEALNDFKSIWNNRWLRTISVILFLNKQDLLAEKVLAGKSKIEDYFPEFARYTTPEDATPEPGEDPRVTRAKYFIRDEFLRISTASGDGRHYCYPHFTCSVDTENARRIFNDCRDIIQRMHLRQYELL

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect BA phytoplasma

Entity 4 Entity 4 polymer

Description description	NB35
Molecular weight formula_weight	17381.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MKYLLPTAAAGLLLLAAQPAMAQVQLQESGGGLVQPGGSLRLSCAASGFTFSNYKMNWVRQAPGKGLEWVSDISQSGASISYTGSVKGRFTISRDNAKNTLYLQMNSLKPEDTAVYYCARCPAPFTRDCFDVTSTTYAYRGQGTQVTVSSAAALEHHHHHH

Source Source

Source organism organism	Lama glama
NCBI taxonomy ID ncbi_taxonomy_id	9844
Host organism host_organism	Bacteria abnormis

Entity 5 Entity 5 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	37915.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MGSLLQSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Insect BA phytoplasma

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	7wy8B01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

▶

Resolution resolution	2.83 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	340000
