SAXSdb — 9x40

▼

1. Structure Basics

entry_id	9x40
deposition_date	2025-10-09
title	AR234958 bound Mas1 Receptor Complex
keywords	GPCR, Agonist, Orphan Receptor..., PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	36.98 Å
rg_electron	36.83 Å
i0	411905000.00
molecular_weight	110310.0 kDa
excluded_volume	106940 Å³
envelope_volume	196150 Å³
shell_volume	45517 Å³
envelope_diameter	120.4 Å
shell_rg	41.56 Å
envelope_rg	36.82 Å
shape_rg	36.84 Å
total_rg	37.03 Å
total_atoms	8343
n_residues	1066
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	119.3 Å
rg_real	36.92 Å
rg_real_error	0.79 Å
i0_real	4.1190e+08
i0_real_error	6.0890e+06
rg_reciprocal	36.96 Å
i0_reciprocal	411900000.0000
total_estimate	0.9003
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	47.2 Å
skewness	0.178
kurtosis	-0.672
angular_range	— – 0.2150 Å⁻¹
current_alpha	0.0001
highest_alpha	37730000.0000
n_real_points	44
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.937; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.922

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Chimeric Gi protein
formula_weight	41641.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	8343

MGCTLSAEDKAAVERSKMIEKQLQKDKQVYRATHRLLLLGADNSGKSTIVKQMRIYHVNGYSEEECKQYKAVVYSNTIQSIIAIIRAMGRLKIDFGDSARADDARQLFVLAGAAEEGFMTAELAGVIKRLWKDSGVQACFNRSREYQLNDSAAYYLNDLDRIAQPNYIPTQQDVLRTRVKTSGIFETKFQVDKVNFHMFDVGAQRDERRKWIQCFNDVTAIIFVVDSSDYNRLQEALNDFKSIWNNRWLRTISVILFLNKQDLLAEKVLAGKSKIEDYFPEFARYTTPEDATPEPGEDPRVTRAKYFIRDEFLRISTASGDGRHYCYPHFTCSVDTENARRIFNDVTDIIIKMNLRDCGLF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
formula_weight	37915.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MGSLLQSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 3 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
formula_weight	7729.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	G

ASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 4 polymer

description	Scfv16
formula_weight	26277.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	S

VQLVESGGGLVQPGGSRKLSCSASGFAFSSFGMHWVRQAPEKGLEWVAYISSGSGTIYYADTVKGRFTISRDDPKNTLFLQMTSLRSEDTAMYYCVRSIYYYGSSPFDFWGQGTTLTVSAGGGGSGGGGSGGGGSADIVMTQATSSVPVTPGESVSISCRSSKSLLHSNGNTYLYWFLQRPGQSPQLLIYRMSNLASGVPDRFSGSGSGTAFTLTISRLEAEDVGVYYCMQHLEYPLTFGAGTKLEL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 5 polymer

description	Proto-oncogene Mas
formula_weight	37502.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R

MDGSNVTSFVVEEPTNISTGRNASVGNAHRQIPIVHWVIMSISPVGFVENGILLWFLCFRMRRNPFTVYITHLSIADISLLFCIFILSIDYALDYELSSGHYYTIVTLSVTFLFGYNTGLYLLTAISVERCLSVLYPIWYRCHRPKYQSALVCALLWALSCLVTTMEYVMCIDREEESHSRNDCRAVIIFIAILSFLVFTPLMLVSSTILVVKIRKNTWASHSSKLYIVIMVTIIIFLIFAMPMRLLYLLYYEYWSTFGNLHHISLLFSTINSSANPFIYFFVGSSKKKRFKESLKVVLTRAFKDEMQPRRQKDNCNTVTVETVV

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 6 non-polymer

description	1-(4-fluorophenyl)-4-[[(3~{R},4~{R})-4-(3-fluorophenyl)-1-(2-methoxy-4-nitro-phenyl)sulfonyl-pyrrolidin-3-yl]methyl]piperazine
formula_weight	572.6 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

resolution	3.070 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.07 Å
resolution_method	—
num_particles	162204

fit	/app/data/saxs_computation/x4/9x40/9x40.fit
pddf	/app/data/pr_computation/x4/9x40/9x40.pr.out
profile	/app/data/saxs_computation/x4/9x40/9x40.dat

AR234958 bound Mas1 Receptor Complex

SAXS Profile

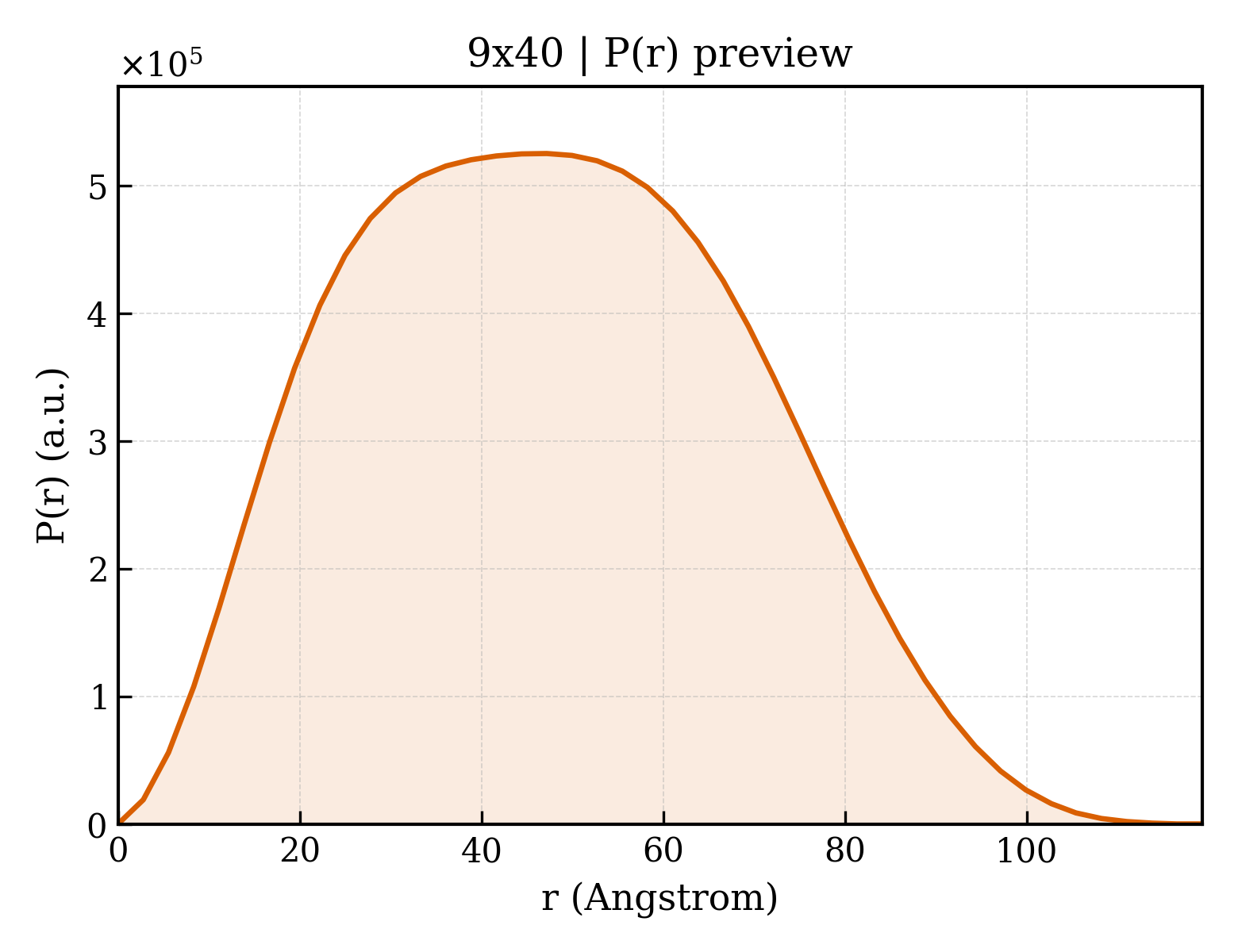

P(r) Distribution
