SAXSdb — 6x18

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein G(s) subunit alpha isoforms short

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Nanobody35 × 1 Glucagon-like peptide-1 (GLP-1)(7-36)NH2 × 1 （P01275） Glucagon-like peptide 1 receptor × 1 （P43220） water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GNAS2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–394； UniProt 1–394

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Homo sapiens

UniProt P62873

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(s) subunit alpha isoforms short × 1 （P63092） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Nanobody35 × 1 Glucagon-like peptide-1 (GLP-1)(7-36)NH2 × 1 （P01275） Glucagon-like peptide 1 receptor × 1 （P43220） water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–340； UniProt 2–340

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

Homo sapiens

UniProt P59768

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(s) subunit alpha isoforms short × 1 （P63092） Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Nanobody35 × 1 Glucagon-like peptide-1 (GLP-1)(7-36)NH2 × 1 （P01275） Glucagon-like peptide 1 receptor × 1 （P43220） water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBG2_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–58； UniProt 5–62

Glucagon-like peptide-1 (GLP-1)(7-36)NH2

OrganismNot specified

UniProt P01275

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(s) subunit alpha isoforms short × 1 （P63092） Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Nanobody35 × 1 Glucagon-like peptide 1 receptor × 1 （P43220） water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GLUC_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain P； PDBConstruct 1–30； UniProt 98–127

Glucagon-like peptide 1 receptor

Homo sapiens

UniProt P43220

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(s) subunit alpha isoforms short × 1 （P63092） Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Nanobody35 × 1 Glucagon-like peptide-1 (GLP-1)(7-36)NH2 × 1 （P01275） water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GLP1R_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain R； PDBConstruct 33–472； UniProt 24–463

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6x18
Deposition date deposition_date	2020-05-18
Structure title title	GLP-1 peptide hormone bound to Glucagon-Like peptide-1 (GLP-1) Receptor
Keywords keywords	G-coupled protein receptor, GPCR, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6x18__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6x18__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

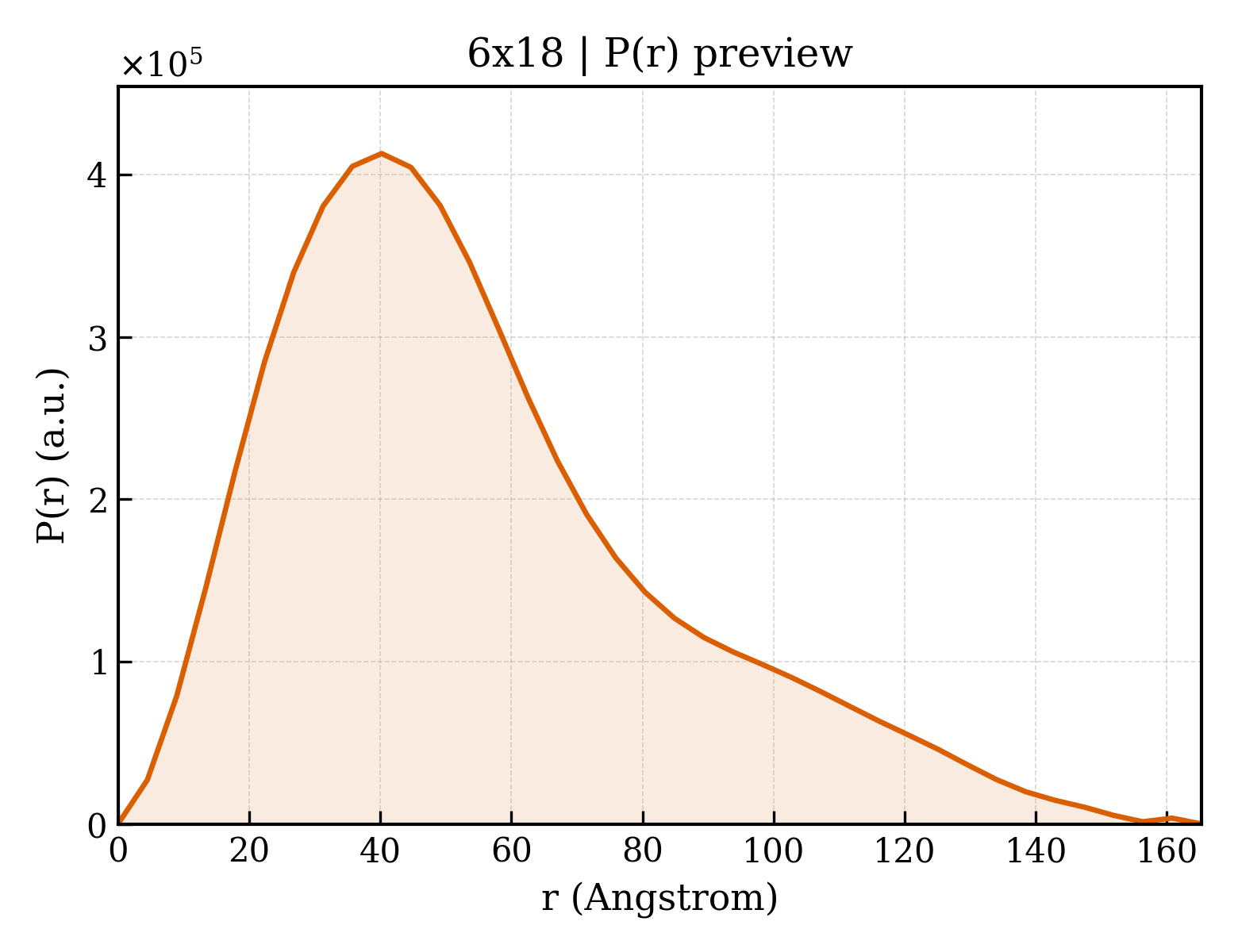

6x18__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.96 Å
Rg (electron density)	43.52 Å
Total Rg	43.37 Å
Atom count	10283
Residues	1289
Excluded volume	182710 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6x18__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Guanine nucleotide-binding protein G(s) subunit alpha isoforms short
Molecular weight formula_weight	45683.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10381

MGCLGNSKTEDQRNEEKAQREANKKIEKQLQKDKQVYRATHRLLLLGAGESGKNTIVKQMRILHVNGFNGEGGEEDPQAARSNSDGEKATKVQDIKNNLKEAIETIVAAMSNLVPPVELANPENQFRVDYILSVMNVPDFDFPPEFYEHAKALWEDEGVRACYERSNEYQLIDCAQYFLDKIDVIKQADYVPSDQDLLRCRVLTSGIFETKFQVDKVNFHMFDVGAQRDERRKWIQCFNDVTAIIFVVASSSYNMVIREDNQTNRLQAALKLFDSIWNNKWLRDTSVILFLNKQDLLAEKVLAGKSKIEDYFPEFARYTTPEDATPEPGEDPRVTRAKYFIRDEFLRISTASGDGRHYCYPHFTCAVDTENIRRVFNDCRDIIQRMHLRQYELL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	37413.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Molecular weight formula_weight	6375.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

NTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFR

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	Nanobody35
Molecular weight formula_weight	13885.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

QVQLQESGGGLVQPGGSLRLSCAASGFTFSNYKMNWVRQAPGKGLEWVSDISQSGASISYTGSVKGRFTISRDNAKNTLYLQMNSLKPEDTAVYYCARCPAPFTRDCFDVTSTTYAYRGQGTQVTVSS

Source Source

Source organism organism	Lama glama
NCBI taxonomy ID ncbi_taxonomy_id	9844
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Glucagon-like peptide-1 (GLP-1)(7-36)NH2
Molecular weight formula_weight	3302.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

HAEGTFTSDVSSYLEGQAAKEFIAWLVKGR

Entity 6 Entity 6 polymer

Description description	Glucagon-like peptide 1 receptor
Molecular weight formula_weight	56748.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

MKTIIALSYIFCLVFADYKDDDDLEVLFQGPARPQGATVSLWETVQKWREYRRQCQRSLTEDPPPATDLFCNRTFDEYACWPDGEPGSFVNVSCPWYLPWASSVPQGHVYRFCTAEGLWLQKDNSSLPWRDLSECEESKRGERSSPEEQLLFLYIIYTVGYALSFSALVIASAILLGFRHLHCTRNYIHLNLFASFILRALSVFIKDAALKWMYSTAAQQHQWDGLLSYQDSLSCRLVFLLMQYCVAANYYWLLVEGVYLYTLLAFSVFSEQWIFRLYVSIGWGVPLLFVVPWGIVKYLYEDEGCWTRNSNMNYWLIIRLPILFAIGVNFLIFVRVICIVVSKLKANLMCKTDIKCRLAKSTLTLIPLLGTHEVIFAFVMDEHARGTLRFIKLFTELSFTSFQGLMVAILYCFVNNEVQLEFRKSWERWRLEHLHIQRDSSMKPLKCPTSSLSSGATAGSSMYTATCQASCSPAGLEVLFQGPHHHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	98

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	6x18A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	400 — GI Alpha 1, domain 2-like
Homologous superfamily homologous superfamily	10 — GI Alpha 1, domain 2-like

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	635785
