7s15

GLP-1 receptor bound with Pfizer small molecule agonist

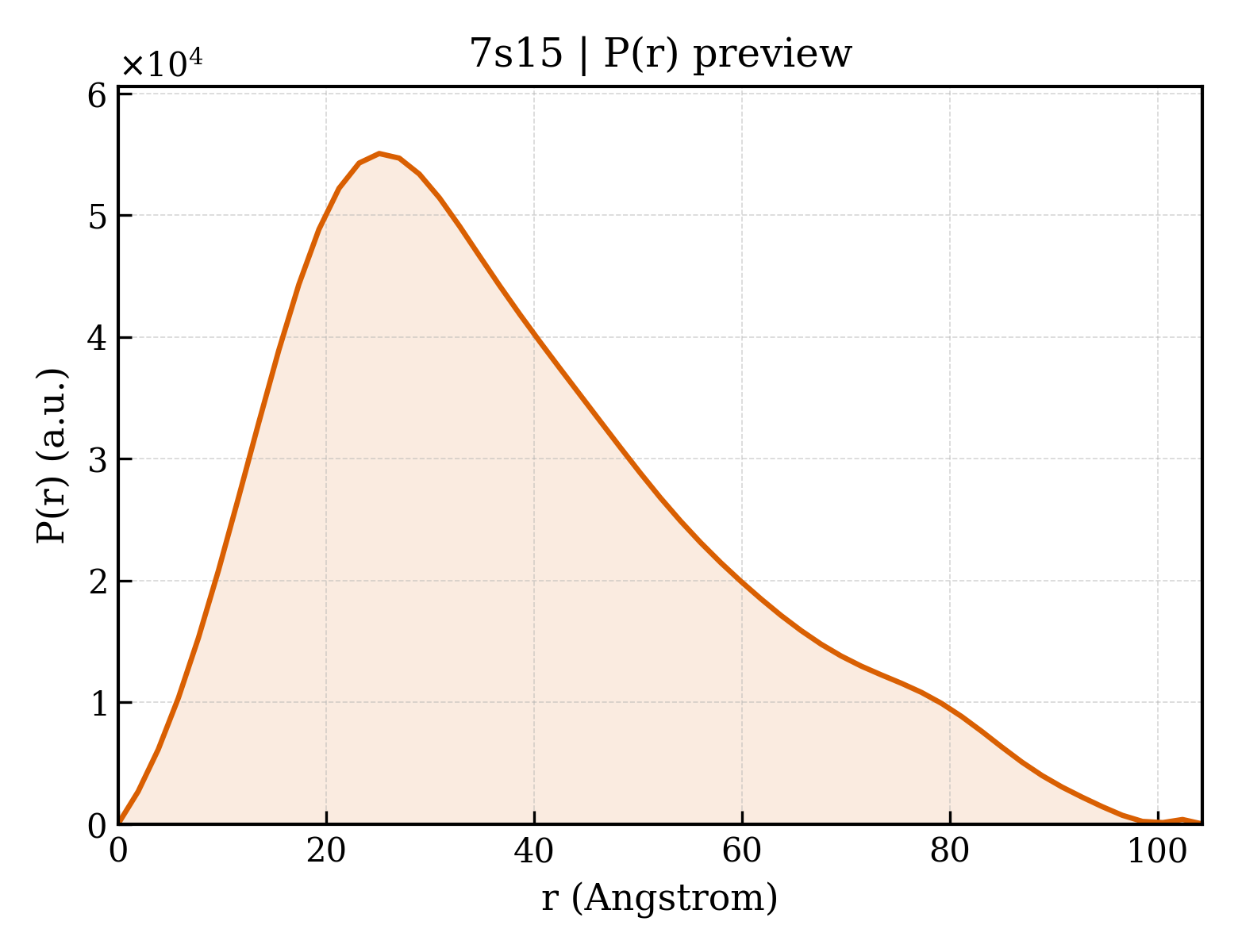

Method: ELECTRON MICROSCOPY Dmax: 104.3 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glucagon-like peptide 1 receptor

Homo sapiens

UniProt P43220

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain R； UniProt 24–422 Mutation：I146Y, A208R, Q213E, S219R, L260A, Y291A, L339E, K346Q 82L 2-[(4-{6-[(2,4-difluorophenyl)methoxy]pyridin-2-yl}piperidin-1-yl)methyl]-1-[(1-ethyl-1H-imidazol-5-yl)methyl]-1H-benzimidazole-6-carboxylic acid × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；-2 blotting force 4S blotting time Resolution 3.80 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7S15 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3C59 Crystal structure of the ligand-bound glucagon-like peptide-1 receptor extracellular domain Deposited 2008-01-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–145（122 aa） Fragment：N-terminal extracellular domain, UNP residues 24-145
Not recorded 10M decyl 4-O-alpha-D-glucopyranosyl-1-thio-beta-D-glucopyranoside × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.1M Tris-HCl pH 8.5, 0.1M MgCl2, 0.4M MgTartrate, 9mM n-Decyl-beta-D-thiomaltoside, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.30 Å R-free 0.241
3C5T Crystal structure of the ligand-bound glucagon-like peptide-1 receptor extracellular domain Deposited 2008-02-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–145（122 aa） Fragment：N-terminal extracellular domain, UNP residues 24-145
Not recorded 10M decyl 4-O-alpha-D-glucopyranosyl-1-thio-beta-D-glucopyranoside × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.1M Tris-HCl pH 8.5, 0.1M MgCl2, 0.4M MgTartrate, 9mM n-Decyl-beta-D-thiomaltoside, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.238
3IOL Crystal structure of Glucagon-Like Peptide-1 in complex with the extracellular domain of the Glucagon-Like Peptide-1 Receptor Deposited 2009-08-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–145（122 aa） Fragment：N-terminal extracellular domain, UNP residues 24-145
Not recorded 10M decyl 4-O-alpha-D-glucopyranosyl-1-thio-beta-D-glucopyranoside × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；291 K；0.1M N-(2-Acetamido) Iminodiacetic Acid (ADA), pH 6.9, 14 vol-% (+/-)-2-Methyl-2,4-pentanediol (MPD), 9mM n-decyl-beta-D-thiomaltoside, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.10 Å R-free 0.226
4ZGM Crystal structure of Semaglutide peptide backbone in complex with the GLP-1 receptor extracellular domain Deposited 2015-04-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–145（122 aa）
Not recorded 32M 3,6,9,12,15,18-hexaoxahexacosan-1-ol × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.24 M Sodium malonate pH 7.0, 20% (w/v) PEG3350 (JCSG screen QIAGEN) and 10 mM hexaethylene glycol monooctyl ether (Detergent Screen HT Hampton Research).
Resolution 1.80 Å R-free 0.193
5E94 Antibody-bound Glucagon-like Peptide-1 receptor extracellular domain Deposited 2015-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 24–145（122 aa） Fragment：N-terminal extracellular domain, UNP residues 24-145
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.2 M Sodium dihydrogen Phosphate monohydrate, 20% w/v PEG 3350
Resolution 2.00 Å R-free 0.232
5E94 Antibody-bound Glucagon-like Peptide-1 receptor extracellular domain Deposited 2015-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 24–145（122 aa） Fragment：N-terminal extracellular domain, UNP residues 24-145
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.2 M Sodium dihydrogen Phosphate monohydrate, 20% w/v PEG 3350
Resolution 2.00 Å R-free 0.232
5NX2 Crystal structure of thermostabilised full-length GLP-1R in complex with a truncated peptide agonist at 3.7 A resolution Deposited 2017-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–432（409 aa） Fragment：UNP residues 24-432
Mutation：T207E, Q211A, D215R, L232F, G295A, T298A, C329A, P358A, G361A, H363V, V405A NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SOG octyl 1-thio-beta-D-glucopyranoside × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；283 K；0.1M Tris-HCl pH 8.0-9.0, 32-44% (v/v) PEG 200
Resolution 3.70 Å R-free 0.334
5OTT Extracellular domain of GLP-1 receptor in complex with exendin-4 variant Gly2Hcs/Thr5Hcs Deposited 2017-08-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–139（116 aa） Fragment：extracellular domain, UNP residues 24-139
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Imidazole pH 6.5, 1.0 M Sodium acetate trihydrate
Resolution 1.92 Å R-free 0.209
5OTU Extracellular domain of GLP-1 receptor in complex with GLP-1 variant Ala8Hcs/Thr11Hcs Deposited 2017-08-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–139（116 aa） Fragment：extracellular domain, UNP residues 24-139
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Morpheus from Molecular Dimensions, solution G1: 0.1 M Carboxylic acids, 0.1 Buffer system 1 pH 6.5, 20% (v/v) PEG500mme, 10% (w/v) PEG20000
Resolution 1.80 Å R-free 0.211
5OTU Extracellular domain of GLP-1 receptor in complex with GLP-1 variant Ala8Hcs/Thr11Hcs Deposited 2017-08-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 24–139（116 aa） Fragment：extracellular domain, UNP residues 24-139
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Morpheus from Molecular Dimensions, solution G1: 0.1 M Carboxylic acids, 0.1 Buffer system 1 pH 6.5, 20% (v/v) PEG500mme, 10% (w/v) PEG20000
Resolution 1.80 Å R-free 0.211
5OTV Extracellular domain of GLP-1 receptor in complex with GLP-1 variant Ala8Cyc/Thr11Hcs Deposited 2017-08-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 24–139（116 aa） Fragment：extracellular domain, UNP residues 24-139
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Morpheus from Molecular Dimensions, solution E5: 0.12 M Ethylene Glycols, 0.1 M Buffer System 2 pH 7.5, 205 (v/v) PEg500mme, 10% (w/v) PEG20000
Resolution 2.00 Å R-free 0.246
5OTV Extracellular domain of GLP-1 receptor in complex with GLP-1 variant Ala8Cyc/Thr11Hcs Deposited 2017-08-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–139（116 aa） Fragment：extracellular domain, UNP residues 24-139
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Morpheus from Molecular Dimensions, solution E5: 0.12 M Ethylene Glycols, 0.1 M Buffer System 2 pH 7.5, 205 (v/v) PEg500mme, 10% (w/v) PEG20000
Resolution 2.00 Å R-free 0.246
5OTW Extracellular domain of GLP-1 receptor in complex with GLP-1 variant Ala8Hcs/Thr11Cys Deposited 2017-08-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 24–139（116 aa） Fragment：extracellular domain, UNP residues 24-139
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Morpheus from Molecular Dimensions, solution E12: 0.12 M ethylene Glycols, 0.1 M Buffer system 3 pH 8.5, 12.5% (v/v) MPD, 12.5% (w/v) PEG1000, 12.5% (w/v) PEG3350
Resolution 2.10 Å R-free 0.239
5OTW Extracellular domain of GLP-1 receptor in complex with GLP-1 variant Ala8Hcs/Thr11Cys Deposited 2017-08-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–139（116 aa） Fragment：extracellular domain, UNP residues 24-139
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Morpheus from Molecular Dimensions, solution E12: 0.12 M ethylene Glycols, 0.1 M Buffer system 3 pH 8.5, 12.5% (v/v) MPD, 12.5% (w/v) PEG1000, 12.5% (w/v) PEG3350
Resolution 2.10 Å R-free 0.239
5OTX Extracellular domain of GLP-1 receptor in complex with GLP-1 variant Ala8Cys/Thr11Cys Deposited 2017-08-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–139（116 aa） Fragment：extracellular domain, UNP residues 24-139
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Morpheus from Molecular Dimensions solution F2: 0.12 M Monosaccharides, 0.1 M Buffer system 1 pH 6.5, 20% (v/v) Ethylene Glycol, 10% (w/v) PEG8000
Resolution 2.00 Å R-free 0.240
5OTX Extracellular domain of GLP-1 receptor in complex with GLP-1 variant Ala8Cys/Thr11Cys Deposited 2017-08-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 24–139（116 aa） Fragment：extracellular domain, UNP residues 24-139
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Morpheus from Molecular Dimensions solution F2: 0.12 M Monosaccharides, 0.1 M Buffer system 1 pH 6.5, 20% (v/v) Ethylene Glycol, 10% (w/v) PEG8000
Resolution 2.00 Å R-free 0.240
5VEW Structure of the human GLP-1 receptor complex with PF-06372222 Deposited 2017-04-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 128–257（130 aa）
Chain A 261–431（171 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) 97Y N-{4-[(R)-(3,3-dimethylcyclobutyl)({6-[4-(trifluoromethyl)-1H-imidazol-1-yl]pyridin-3-yl}amino)methyl]benzene-1-carbonyl}-beta-alanine × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 2 OLA OLEIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；0.4-0.45 M ammonium acetate, 0.1 M sodium cacodylate, pH 6.2-6.6, 35-38% PEG400, 3% w/v aminohexanoic acid
Resolution 2.70 Å R-free 0.246
5VEW Structure of the human GLP-1 receptor complex with PF-06372222 Deposited 2017-04-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 128–257（130 aa）
Chain B 261–431（171 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) 97Y N-{4-[(R)-(3,3-dimethylcyclobutyl)({6-[4-(trifluoromethyl)-1H-imidazol-1-yl]pyridin-3-yl}amino)methyl]benzene-1-carbonyl}-beta-alanine × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 4 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；0.4-0.45 M ammonium acetate, 0.1 M sodium cacodylate, pH 6.2-6.6, 35-38% PEG400, 3% w/v aminohexanoic acid
Resolution 2.70 Å R-free 0.246
5VEX Structure of the human GLP-1 receptor complex with NNC0640 Deposited 2017-04-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 128–257（130 aa）
Chain A 261–431（171 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) 97V 4-{[(4-cyclohexylphenyl){[3-(methylsulfonyl)phenyl]carbamoyl}amino]methyl}-N-(1H-tetrazol-5-yl)benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；0.4-0.45 M ammonium acetate, 0.1 M sodium acetate, pH 5.0-5.8, 38-40% PEG400
Resolution 3.00 Å R-free 0.256
5VEX Structure of the human GLP-1 receptor complex with NNC0640 Deposited 2017-04-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 128–257（130 aa）
Chain B 261–431（171 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) 97V 4-{[(4-cyclohexylphenyl){[3-(methylsulfonyl)phenyl]carbamoyl}amino]methyl}-N-(1H-tetrazol-5-yl)benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；0.4-0.45 M ammonium acetate, 0.1 M sodium acetate, pH 5.0-5.8, 38-40% PEG400
Resolution 3.00 Å R-free 0.256
6B3J 3.3 angstrom phase-plate cryo-EM structure of a biased agonist-bound human GLP-1 receptor-Gs complex Deposited 2017-09-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa） Fragment：residues 24-463
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
6GB1 Crystal structure of the GLP1 receptor ECD with Peptide 11 Deposited 2018-04-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 21–145（125 aa）
Not recorded SO4 SULFATE ION × 2 HEZ HEXANE-1,6-DIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；A 6-fold excess of peptide 11 was dissolved in a solution of 12 mg/ml GLP1R-ECD in 10 mM Tris buffer pH 7.5, 100 mM NaSulfate and 2% glycerol. 100 nl of this protein solution plus 100 nl reservoir solution were equilibrated against reservoir solution consisting of 10 mM CoCl2, 9.4 % (v/v) 1,6-hexanediol and 100 mM NaAcetate, pH 4.8. Crystals appeared after about one week.
Resolution 2.73 Å R-free 0.262
6KJV Structure of thermal-stabilised(M9) human GLP-1 receptor transmembrane domain Deposited 2019-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 128–257（130 aa）
Chain A 261–431（171 aa）
Mutation：S193C,I196F,S225A,S271A,I317C,G318I,K346A,C347F,G361C,205-214deletion,R1011G,C1053T,C1096A,I1136R Mutation：S193C,I196F,S225A,S271A,I317C,G318I,K346A,C347F,G361C,205-214deletion,R1011G,C1053T,C1096A,I1136R 97Y N-{4-[(R)-(3,3-dimethylcyclobutyl)({6-[4-(trifluoromethyl)-1H-imidazol-1-yl]pyridin-3-yl}amino)methyl]benzene-1-carbonyl}-beta-alanine × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；0.4-0.45 M ammonium acetate, 0.1 M sodium cacodylate, pH 6.2-6.6, 35-38% PEG400, 3% w/v aminohexanoic acid
Resolution 2.80 Å R-free 0.280
6KJV Structure of thermal-stabilised(M9) human GLP-1 receptor transmembrane domain Deposited 2019-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 128–257（130 aa）
Chain B 261–431（171 aa）
Mutation：S193C,I196F,S225A,S271A,I317C,G318I,K346A,C347F,G361C,205-214deletion,R1011G,C1053T,C1096A,I1136R Mutation：S193C,I196F,S225A,S271A,I317C,G318I,K346A,C347F,G361C,205-214deletion,R1011G,C1053T,C1096A,I1136R 97Y N-{4-[(R)-(3,3-dimethylcyclobutyl)({6-[4-(trifluoromethyl)-1H-imidazol-1-yl]pyridin-3-yl}amino)methyl]benzene-1-carbonyl}-beta-alanine × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；0.4-0.45 M ammonium acetate, 0.1 M sodium cacodylate, pH 6.2-6.6, 35-38% PEG400, 3% w/v aminohexanoic acid
Resolution 2.80 Å R-free 0.280
6KK1 Structure of thermal-stabilised(M8) human GLP-1 receptor transmembrane domain Deposited 2019-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 128–257（130 aa）
Chain A 261–431（171 aa）
Mutation：;I196F,S225A,S271A,I317C,G318I,K346A,C347F,G361C,205-214deletion,R1011G,C1053T,C1096A,I1136R,I196F,S225A,S271A,I317C,G318I,K346A,C347F,G361C,205-214deletion ; Mutation：;I196F,S225A,S271A,I317C,G318I,K346A,C347F,G361C,205-214deletion,R1011G,C1053T,C1096A,I1136R,I196F,S225A,S271A,I317C,G318I,K346A,C347F,G361C,205-214deletion ; 97Y N-{4-[(R)-(3,3-dimethylcyclobutyl)({6-[4-(trifluoromethyl)-1H-imidazol-1-yl]pyridin-3-yl}amino)methyl]benzene-1-carbonyl}-beta-alanine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；0.4-0.45 M ammonium acetate, 0.1 M sodium cacodylate, pH 6.2-6.6, 35-38% PEG400, 3% w/v aminohexanoic acid
Resolution 2.80 Å R-free 0.290
6KK1 Structure of thermal-stabilised(M8) human GLP-1 receptor transmembrane domain Deposited 2019-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 128–257（130 aa）
Chain B 261–431（171 aa）
Mutation：;I196F,S225A,S271A,I317C,G318I,K346A,C347F,G361C,205-214deletion,R1011G,C1053T,C1096A,I1136R,I196F,S225A,S271A,I317C,G318I,K346A,C347F,G361C,205-214deletion ; Mutation：;I196F,S225A,S271A,I317C,G318I,K346A,C347F,G361C,205-214deletion,R1011G,C1053T,C1096A,I1136R,I196F,S225A,S271A,I317C,G318I,K346A,C347F,G361C,205-214deletion ; 97Y N-{4-[(R)-(3,3-dimethylcyclobutyl)({6-[4-(trifluoromethyl)-1H-imidazol-1-yl]pyridin-3-yl}amino)methyl]benzene-1-carbonyl}-beta-alanine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；0.4-0.45 M ammonium acetate, 0.1 M sodium cacodylate, pH 6.2-6.6, 35-38% PEG400, 3% w/v aminohexanoic acid
Resolution 2.80 Å R-free 0.290
6KK7 Structure of thermal-stabilised(M6) human GLP-1 receptor transmembrane domain Deposited 2019-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 128–257（130 aa）
Chain A 261–431（171 aa）
Mutation：S225A,I317C,G318I,K346A,C347F,G361C,205-214deletion,R1011G,C1053T,C1096A,I1136R Mutation：S225A,I317C,G318I,K346A,C347F,G361C,205-214deletion,R1011G,C1053T,C1096A,I1136R 97Y N-{4-[(R)-(3,3-dimethylcyclobutyl)({6-[4-(trifluoromethyl)-1H-imidazol-1-yl]pyridin-3-yl}amino)methyl]benzene-1-carbonyl}-beta-alanine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；0.4-0.45 M ammonium acetate, 0.1 M sodium cacodylate, pH 6.2-6.6, 35-38% PEG400, 3% w/v aminohexanoic acid
Resolution 3.10 Å R-free 0.303
6KK7 Structure of thermal-stabilised(M6) human GLP-1 receptor transmembrane domain Deposited 2019-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 128–257（130 aa）
Chain B 261–431（171 aa）
Mutation：S225A,I317C,G318I,K346A,C347F,G361C,205-214deletion,R1011G,C1053T,C1096A,I1136R Mutation：S225A,I317C,G318I,K346A,C347F,G361C,205-214deletion,R1011G,C1053T,C1096A,I1136R 97Y N-{4-[(R)-(3,3-dimethylcyclobutyl)({6-[4-(trifluoromethyl)-1H-imidazol-1-yl]pyridin-3-yl}amino)methyl]benzene-1-carbonyl}-beta-alanine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；0.4-0.45 M ammonium acetate, 0.1 M sodium cacodylate, pH 6.2-6.6, 35-38% PEG400, 3% w/v aminohexanoic acid
Resolution 3.10 Å R-free 0.303
6LN2 Crystal structure of full length human GLP1 receptor in complex with Fab fragment (Fab7F38) Deposited 2019-12-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 24–260（237 aa）
Chain A 262–439（178 aa）
Mutation：S193C,I196F,S225A,M233C,S271A,I317C,G318I,K346A,C347F,G361C,E387D Mutation：S193C,I196F,S225A,M233C,S271A,I317C,G318I,K346A,C347F,G361C,E387D NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ZN ZINC ION × 1 97Y N-{4-[(R)-(3,3-dimethylcyclobutyl)({6-[4-(trifluoromethyl)-1H-imidazol-1-yl]pyridin-3-yl}amino)methyl]benzene-1-carbonyl}-beta-alanine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；200-300 mM Ammonium formate, 36% PEG 400, 5%-10% (w/v) Guanidine hydrochloride
Resolution 3.20 Å R-free 0.262
6ORV Non-peptide agonist (TT-OAD2) bound to the Glucagon-Like peptide-1 (GLP-1) Receptor Deposited 2019-05-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain RP 24–463（440 aa）
Not recorded N2V N-{(3S,8S)-3-{4-[(3,4-dichlorophenyl)methoxy]phenyl}-7-[(1S)-1-phenylpropyl]-2,3,6,7,8,9-hexahydro[1,4]dioxino[2,3-g]isoquinoline-8-carbonyl}-4-(2,3-dimethylpyridin-4-yl)-L-phenylalanine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
6VCB Cryo-EM structure of the Glucagon-like peptide-1 receptor in complex with G protein, GLP-1 peptide and a positive allosteric modulator Deposited 2019-12-20 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–422（399 aa）
Not recorded QW7 1-[(1R)-1-(2,6-dichloro-3-methoxyphenyl)ethyl]-6-{2-[(2R)-piperidin-2-yl]phenyl}-1H-benzimidazole × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
6X18 GLP-1 peptide hormone bound to Glucagon-Like peptide-1 (GLP-1) Receptor Deposited 2020-05-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.10 Å
6X19 Non peptide agonist CHU-128, bound to Glucagon-Like peptide-1 (GLP-1) Receptor Deposited 2020-05-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 24–463（440 aa）
Not recorded UK1 3-{(1S)-1-[5-(2,2-dimethylmorpholin-4-yl)-2-{(4S)-2-(4-fluoro-3,5-dimethylphenyl)-3-[3-(4-fluoro-1-methyl-1H-indazol-5-yl)-2-oxo-2,3-dihydro-1H-imidazol-1-yl]-4-methyl-2,4,6,7-tetrahydro-5H-pyrazolo[4,3-c]pyridine-5-carbonyl}-1H-indol-1-yl]butyl}-1,2,4-oxadiazol-5(4H)-one × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.10 Å
6X1A Non peptide agonist PF-06882961, bound to Glucagon-Like peptide-1 (GLP-1) Receptor Deposited 2020-05-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 24–463（440 aa）
Not recorded UK4 2-[(4-{6-[(4-cyano-2-fluorophenyl)methoxy]pyridin-2-yl}piperidin-1-yl)methyl]-1-{[(2S)-oxetan-2-yl]methyl}-1H-benzimidazole-6-carboxylic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
6XOX cryo-EM of human GLP-1R bound to non-peptide agonist LY3502970 Deposited 2020-07-07 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–422（399 aa）
Not recorded V6G 3-[(1S,2S)-1-(5-[(4S)-2,2-dimethyloxan-4-yl]-2-{(4S)-2-(4-fluoro-3,5-dimethylphenyl)-3-[3-(4-fluoro-1-methyl-1H-indazol-5-yl)-2-oxo-2,3-dihydro-1H-imidazol-1-yl]-4-methyl-2,4,6,7-tetrahydro-5H-pyrazolo[4,3-c]pyridine-5-carbonyl}-1H-indol-1-yl)-2-methylcyclopropyl]-1,2,4-oxadiazol-5(4H)-one × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
7C2E GLP-1R-Gs complex structure with a small molecule full agonist Deposited 2020-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 24–463（440 aa）
Mutation：L260F FFR 2-[[4-[6-[(4-cyano-2-fluoranyl-phenyl)methoxy]pyridin-2-yl]-3,6-dihydro-2~{H}-pyridin-1-yl]methyl]-3-[[(2~{S})-oxetan-2-yl]methyl]imidazo[4,5-b]pyridine-5-carboxylic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
7DUQ Cryo-EM structure of the compound 2 and GLP-1-bound human GLP-1 receptor-Gs complex Deposited 2021-01-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded HNO N-tert-butyl-6,7-bis(chloranyl)quinoxalin-2-amine × 1 CLR CHOLESTEROL × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
7DUR Cryo-EM structure of the compound 2-bound human GLP-1 receptor-Gs complex Deposited 2021-01-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 24–463（440 aa）
Not recorded HNO N-tert-butyl-6,7-bis(chloranyl)quinoxalin-2-amine × 1 CLR CHOLESTEROL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7E14 Compound2_GLP-1R_OWL833_Gs complex structure Deposited 2021-01-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 24–463（440 aa）
Not recorded V6G 3-[(1S,2S)-1-(5-[(4S)-2,2-dimethyloxan-4-yl]-2-{(4S)-2-(4-fluoro-3,5-dimethylphenyl)-3-[3-(4-fluoro-1-methyl-1H-indazol-5-yl)-2-oxo-2,3-dihydro-1H-imidazol-1-yl]-4-methyl-2,4,6,7-tetrahydro-5H-pyrazolo[4,3-c]pyridine-5-carbonyl}-1H-indol-1-yl)-2-methylcyclopropyl]-1,2,4-oxadiazol-5(4H)-one × 1 CLR CHOLESTEROL × 5 HNO N-tert-butyl-6,7-bis(chloranyl)quinoxalin-2-amine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7EVM Cryo-EM structure of the compound 2-bound human GLP-1 receptor-Gs complex Deposited 2021-05-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 24–463（440 aa）
Not recorded HNO N-tert-butyl-6,7-bis(chloranyl)quinoxalin-2-amine × 1 CLR CHOLESTEROL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
7FIM Cryo-EM structure of the tirzepatide (LY3298176)-bound human GLP-1R-Gs complex Deposited 2021-07-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7KI0 Semaglutide-bound Glucagon-Like Peptide-1 (GLP-1) Receptor in Complex with Gs protein Deposited 2020-10-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded WF1 17-amino-10-oxo-3,6,12,15-tetraoxa-9-azaheptadecan-1-oic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
7KI1 Taspoglutide-bound Glucagon-Like Peptide-1 (GLP-1) Receptor in Complex with Gs Protein Deposited 2020-10-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
7LCI PF 06882961 bound to the glucagon-like peptide-1 receptor (GLP-1R):Gs complex Deposited 2021-01-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain R 24–463（440 aa）
Not recorded UK4 2-[(4-{6-[(4-cyano-2-fluorophenyl)methoxy]pyridin-2-yl}piperidin-1-yl)methyl]-1-{[(2S)-oxetan-2-yl]methyl}-1H-benzimidazole-6-carboxylic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7LCJ PF 06882961 bound to the glucagon-like peptide-1 receptor (GLP-1R):Gs complex Deposited 2021-01-11 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain R 24–463（440 aa）
Not recorded UK4 2-[(4-{6-[(4-cyano-2-fluorophenyl)methoxy]pyridin-2-yl}piperidin-1-yl)methyl]-1-{[(2S)-oxetan-2-yl]methyl}-1H-benzimidazole-6-carboxylic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.82 Å
7LCK PF 06882961 bound to the glucagon-like peptide-1 receptor (GLP-1R) Deposited 2021-01-11 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain R 24–463（440 aa）
Not recorded UK4 2-[(4-{6-[(4-cyano-2-fluorophenyl)methoxy]pyridin-2-yl}piperidin-1-yl)methyl]-1-{[(2S)-oxetan-2-yl]methyl}-1H-benzimidazole-6-carboxylic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.24 Å
7LLL Exendin-4-bound Glucagon-Like Peptide-1 (GLP-1) Receptor in complex with Gs protein Deposited 2021-02-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7LLY Oxyntomodulin-bound Glucagon-Like Peptide-1 (GLP-1) Receptor in complex with Gs protein Deposited 2021-02-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7RG9 cryo-EM of human Glucagon-like peptide 1 receptor GLP-1R in apo form Deposited 2021-07-14 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–422（399 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7RGP cryo-EM of human Glucagon-like peptide 1 receptor GLP-1R bound to tirzepatide Deposited 2021-07-15 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric
Chain R 24–422（399 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7RTB Peptide-19 bound to the Glucagon-Like Peptide-1 Receptor (GLP-1R) Deposited 2021-08-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 22–463（442 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.14 Å
7S1M Ex4-D-Ala bound to the glucagon-like peptide-1 receptor/g protein complex (conformer 1) Deposited 2021-09-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.41 Å
7S3I Ex4-D-Ala bound to the glucagon-like peptide-1 receptor/g protein complex (conformer 2) Deposited 2021-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.51 Å
7VBH Cryo-EM structure of the GIPR/GLP-1R/GCGR triagonist peptide 20-bound human GLP-1R-Gs complex Deposited 2021-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded D6M N-hexadecanoyl-L-glutamic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7VBI Cryo-EM structure of the non-acylated tirzepatide (LY3298176)-bound human GLP-1R-Gs complex Deposited 2021-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7X8R Cryo-EM structure of the Boc5-bound hGLP-1R-Gs complex Deposited 2022-03-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 24–463（440 aa）
Not recorded BYI 2,4-bis(3-methoxy-4-thiophen-2-ylcarbonyloxy-phenyl)-1,3-bis[[4-[(2-methylpropan-2-yl)oxycarbonylamino]phenyl]carbonylamino]cyclobutane-1,3-dicarboxylic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.61 Å
7X8S Cryo-EM structure of the WB4-24-bound hGLP-1R-Gs complex Deposited 2022-03-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 24–463（440 aa）
Not recorded WB2 2,4-bis(3-methoxy-4-thiophen-2-ylcarbonyloxy-phenyl)-1,3-bis[[4-(2-methylpropanoylamino)phenyl]carbonylamino]cyclobutane-1,3-dicarboxylic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.09 Å
8JIP Cryo-EM structure of the GLP-1R/GCGR dual agonist MEDI0382-bound human GLP-1R-Gs complex Deposited 2023-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded D6M N-hexadecanoyl-L-glutamic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.85 Å
8JIR Cryo-EM structure of the GLP-1R/GCGR dual agonist SAR425899-bound human GLP-1R-Gs complex Deposited 2023-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded D6M N-hexadecanoyl-L-glutamic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.57 Å
8JIS Cryo-EM structure of the GLP-1R/GCGR dual agonist peptide15-bound human GLP-1R-Gs complex Deposited 2023-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 30–423（394 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.46 Å
8WG7 Cryo-EM structures of peptide free and Gs-coupled GLP-1R Deposited 2023-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
8YW3 Cryo-EM structure of the retatrutide-bound human GLP-1R-Gs complex Deposited 2024-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.68 Å
8YWF Cryo-EM structure of GLP1 complex bound with Retatrutide Deposited 2024-03-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded A1D7Q 20-[[(2~{S})-1-oxidanyl-1,5-bis(oxidanylidene)-5-[2-[2-(2-oxidanylideneethoxy)ethoxy]ethylamino]pentan-2-yl]amino]-20-oxidanylidene-icosanoic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.04
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
9BYO Cryo-EM structure of glucagon-like peptide-1 receptor (GLP-1R)-Gs complex with Exendin-asp3 Deposited 2024-05-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
9C0K Cryo-EM structure of glucagon-like peptide-1 receptor (GLP-1R)-Gs complex with Exendin-phe1 Deposited 2024-05-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.72 Å
9E2A Glucagon Like Peptide Receptor-1 (GLP1R) A316T mutant with GLP-1 peptide. Dominant negative Gs complex. Deposited 2024-10-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Mutation：A316T No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9EBN Peptide 1 (GLP-1 (Aib16, ACPC18)) bound to GLP-1R/Gs complex Deposited 2024-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.44 Å
9EBO Peptide 2 (GLP-1 (ACPC18)) bound to GLP-1R/Gs complex (conformer 1) Deposited 2024-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.13 Å
9EBQ Peptide 2 (GLP-1 (ACPC18)) bound to GLP-1R/Gs complex (conformer 2) Deposited 2024-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
9IVG Cryo-EM structure of the GLP-1(9-36)-bound human GLP-1R-Gs complex Deposited 2024-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9IVM Cryo-EM structure of the GLP-1(9-36)-bound human GLP-1R-Gs complex in the presence of LSN3318839 Deposited 2024-07-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded A1EEC (2~{R})-2-[2-[1-[(1~{R})-1-[2,6-bis(chloranyl)-3-cyclopropyl-phenyl]ethyl]imidazo[4,5-c]pyridin-6-yl]phenyl]propanoic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.22 Å
9J1P Cryo-EM structure of the g1:Ox-bound human GLP-1R-Gs complex Deposited 2024-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.99 Å
9MXU cryo-EM structure of GLP-1R-Gs complex with glucagon Deposited 2025-01-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
9MZE Cryo-EM structure of GLP-1R-Gs complex with oxyntomodulin Deposited 2025-01-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.20 Å
9MZF Cryo-EM structure of GLP-1R-Gs complex with peptide 15 Deposited 2025-01-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
9N05 Cryo-EM structure of GLP-1R-Gs complex with SRB103Q Deposited 2025-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.20 Å
9N1P cryo-EM structure of GLP-1R-Gs complex with SRB103H Deposited 2025-01-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9X20 Cryo-EM structure of the GLP-1-bound human GLP-1R-Gi complex Deposited 2025-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.18 Å
9X22 Cryo-EM structure of the GLP-1-bound human GLP-1R-Gq complex Deposited 2025-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 24–463（440 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.92 Å

69 other PDB entries and 79 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name GLP1R_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain R； PDBConstruct 1–399； UniProt 24–422

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 7s15

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 7s15
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7s15
Deposition date deposition_date2021-09-01
Structure title titleGLP-1 receptor bound with Pfizer small molecule agonist
Keywords keywordsGLP-1R, GPCR, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier29.61 Å
Radius of gyration Rg (electron density) rg_electron28.99 Å
Forward intensity I(0) i030308400.00
Molecular weight molecular_weight45296.0 kDa
Excluded volume excluded_volume57785 ų
Envelope volume envelope_volume77172 ų
Hydration-shell volume shell_volume24758 ų
Envelope diameter envelope_diameter109.6 Å
Shell Rg shell_rg32.51 Å
Envelope Rg envelope_rg29.93 Å
Shape Rg shape_rg28.97 Å
Total Rg total_rg29.48 Å
Total atoms total_atoms3207
Residues n_residues382
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax104.3 Å
Rg (real space) rg_real30.03 Å
Rg uncertainty (real space) rg_real_error1.11 Å
I(0) (real space) i0_real3.0310e+07
I(0) uncertainty (real space) i0_real_error5.1360e+05
Rg (reciprocal space) rg_reciprocal29.85 Å
I(0) (reciprocal space) i0_reciprocal30300000.0000
Solution quality estimate total_estimate0.7877
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary25.1 Å
Skewness Skewness skewness0.650
Kurtosis Kurtosis kurtosis-0.201
Angular range angular_range— – 0.2700 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha5547000.0000
Real-space data points n_real_points55
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.609; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.586; Smooth: 0.822
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id7s15R01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1070 — Rhopdopsin 7-helix transmembrane proteins
Homologous superfamily homologous superfamily10 — Rhodopsin 7-helix transmembrane proteins
▶

8. Citations (1)

▶

9. Files and Curves (10)
