SAXSdb — 9v0u

▼

1. Structure Basics

entry_id	9v0u
deposition_date	2025-05-19
last_revision	2025-07-30
title	GPR133-Gain-miniG13 complex
keywords	GPCR, G12/G13, Complex, Stachel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.97 Å
rg_electron	32.81 Å
i0	119737000.00
molecular_weight	88042.0 kDa
excluded_volume	110330 Å³
envelope_volume	142710 Å³
shell_volume	37661 Å³
envelope_diameter	114.1 Å
shell_rg	38.01 Å
envelope_rg	32.73 Å
shape_rg	32.81 Å
total_rg	33.21 Å
total_atoms	6205
n_residues	864
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	109.5 Å
rg_real	33.08 Å
rg_real_error	0.81 Å
i0_real	1.1970e+08
i0_real_error	1.6930e+06
rg_reciprocal	33.03 Å
i0_reciprocal	119700000.0000
total_estimate	0.8677
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	34.2 Å
skewness	0.393
kurtosis	-0.351
angular_range	— – 0.2400 Å⁻¹
current_alpha	0.0000
highest_alpha	25510000.0000
n_real_points	49
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.887; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.942; Smooth: 0.672

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Adhesion G-protein coupled receptor D1
formula_weight	65688.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R
atom_count	6205

HPIITNLTEERKTFQSPGVILSYLQNVSLSLPSKSLSEQTALNLTKTFLKAVGEILLLPGWIALSEDSAVVLSLIDTIDTVMGHVSSNLHGSTPQVTVEGSSAMAEFSVAKILPKTVNSSHYRFPAHGQSFIQIPHEAFHRHAWSTVVGLLYHSMHYYLNNIWPAHTKIAEAMHHQDCLLFATSHLISLEVSPPPTLSQNLSGSPLITVHLKHRLTRKQHSEATNSSNRVFVYCAFLDFSSGEGVWSNHGCALTRGNLTYSVCRCTHLTNFAILMQVVPLELARGHQVALSSISYVGCSLSVLCLVATLVTFAVLSSVSTIRNQRYHIHANLSFAVLVAQVLLLISFRLEPGTTPCQVMAVLLHYFFLSAFAWMLVEGLHLYSMVIKVFGSEDSKHRYYYGMGWGFPLLICIISLSFAMDSYGTSNNCWLSLASGAIWAFVAPALFVIVVNIGILIAVTRVISQISADNYKIHGDPSAFKLTAKAVAVLLPILGTSWVFGVLAVNGCAVVFQYMFATLNSLQGLFIFLFHCLLNSEVRAAFKHKTKVWSLTSSSARTSNAKPFHSDLMNGTRPGMASTKLSPWDKSSHSAHRVDLSAV

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Guanine nucleotide-binding protein subunit alpha-13,Isoform 2 of Guanine nucleotide-binding protein subunit alpha-13
formula_weight	26705.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MMGSTVSAEDKAAAERSKEIDKCLSREKTYVKRLVKILLLGADNSGKSTFLKQMRIIHGGSGGSGGTKGIHEYDFEIKNVPFKMVDVGGQRSERKRWFECFDSVTSILFLVDSSDFNRLTESLNDFETIVNNRVFSNVSIILFLNKTDLLEEKVQIVSIKDYFLEFEGDPHCLRDVQKFLVECFRNKRRDQQQKPLYHHFTTAINTENARLIFRDVKDTILHDNLKQLMLQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 3 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
formula_weight	7861.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	G

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 4 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
formula_weight	37784.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

GSLLQSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.51 Å
resolution_method	—
num_particles	45759

fit	/app/data/saxs_computation/v0/9v0u/9v0u.fit
pddf	/app/data/pr_computation/v0/9v0u/9v0u.pr.out
profile	/app/data/saxs_computation/v0/9v0u/9v0u.dat

GPR133-Gain-miniG13 complex

SAXS Profile

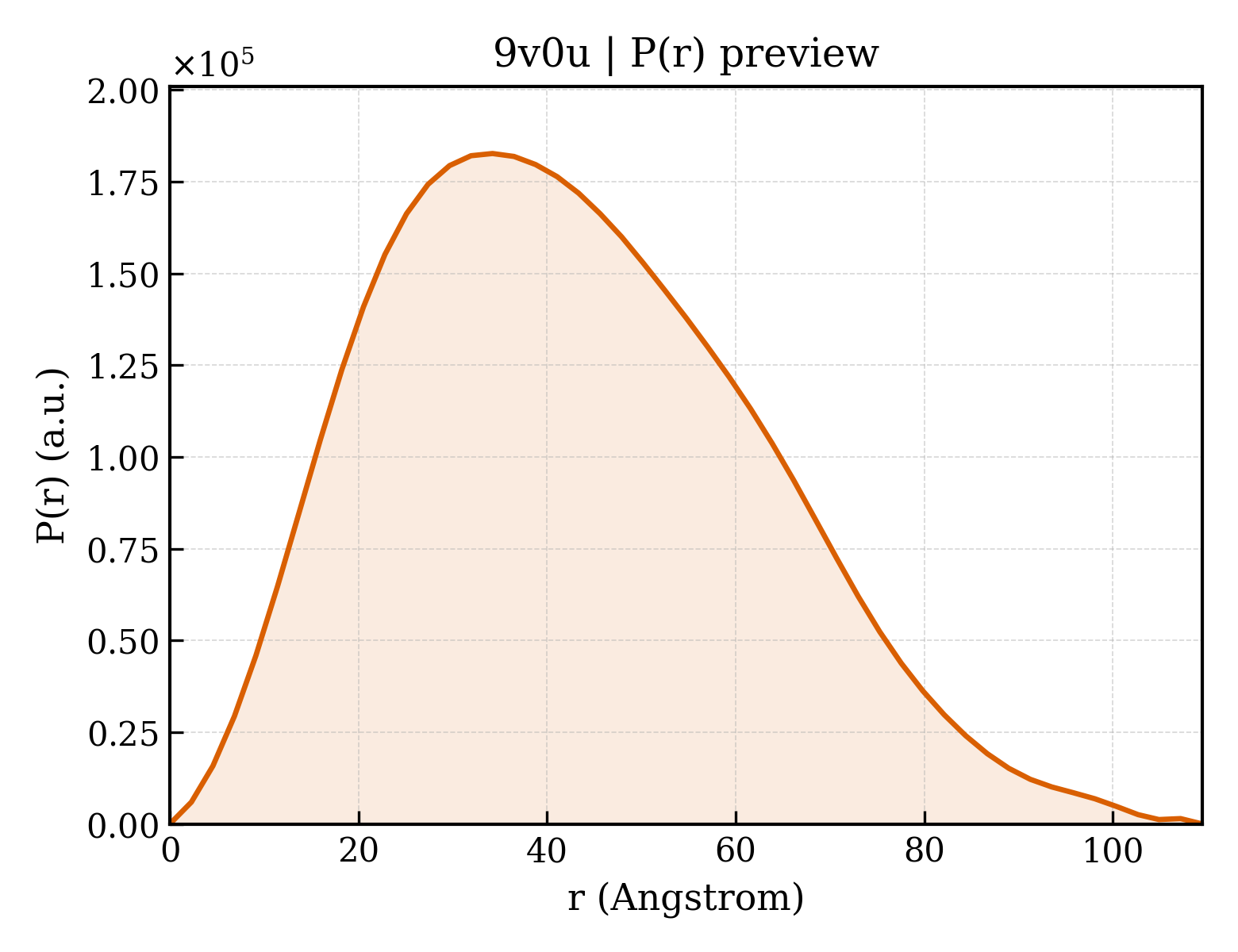

P(r) Distribution
