SAXSdb — 9ecj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

P2Y purinoceptor 8

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Guanine nucleotide-binding protein subunit alpha-13 × 1 （Q14344） Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） L-gamma-glutamyl-S-[(2Z,6E)-3,7,15-trimethyl-11-methylidenehexadeca-2,6,14-trien-1-yl]-L-cysteinylglycine × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	P2RY8_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 10–368； UniProt 1–359

Guanine nucleotide-binding protein subunit alpha-13

Homo sapiens

UniProt Q14344

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	P2Y purinoceptor 8 × 1 （Q86VZ1） Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62873） L-gamma-glutamyl-S-[(2Z,6E)-3,7,15-trimethyl-11-methylidenehexadeca-2,6,14-trien-1-yl]-L-cysteinylglycine × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GNA13_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 66–240； UniProt 203–377

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Homo sapiens

UniProt P62873

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	P2Y purinoceptor 8 × 1 （Q86VZ1） Guanine nucleotide-binding protein subunit alpha-13 × 1 （Q14344） L-gamma-glutamyl-S-[(2Z,6E)-3,7,15-trimethyl-11-methylidenehexadeca-2,6,14-trien-1-yl]-L-cysteinylglycine × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 32–370； UniProt 2–340

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ecj
Deposition date deposition_date	2024-11-14
Structure title title	Human P2RY8 bound to S-geranylgeranyl-L-glutathione in complex with miniG13
Keywords keywords	MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ecj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9ecj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

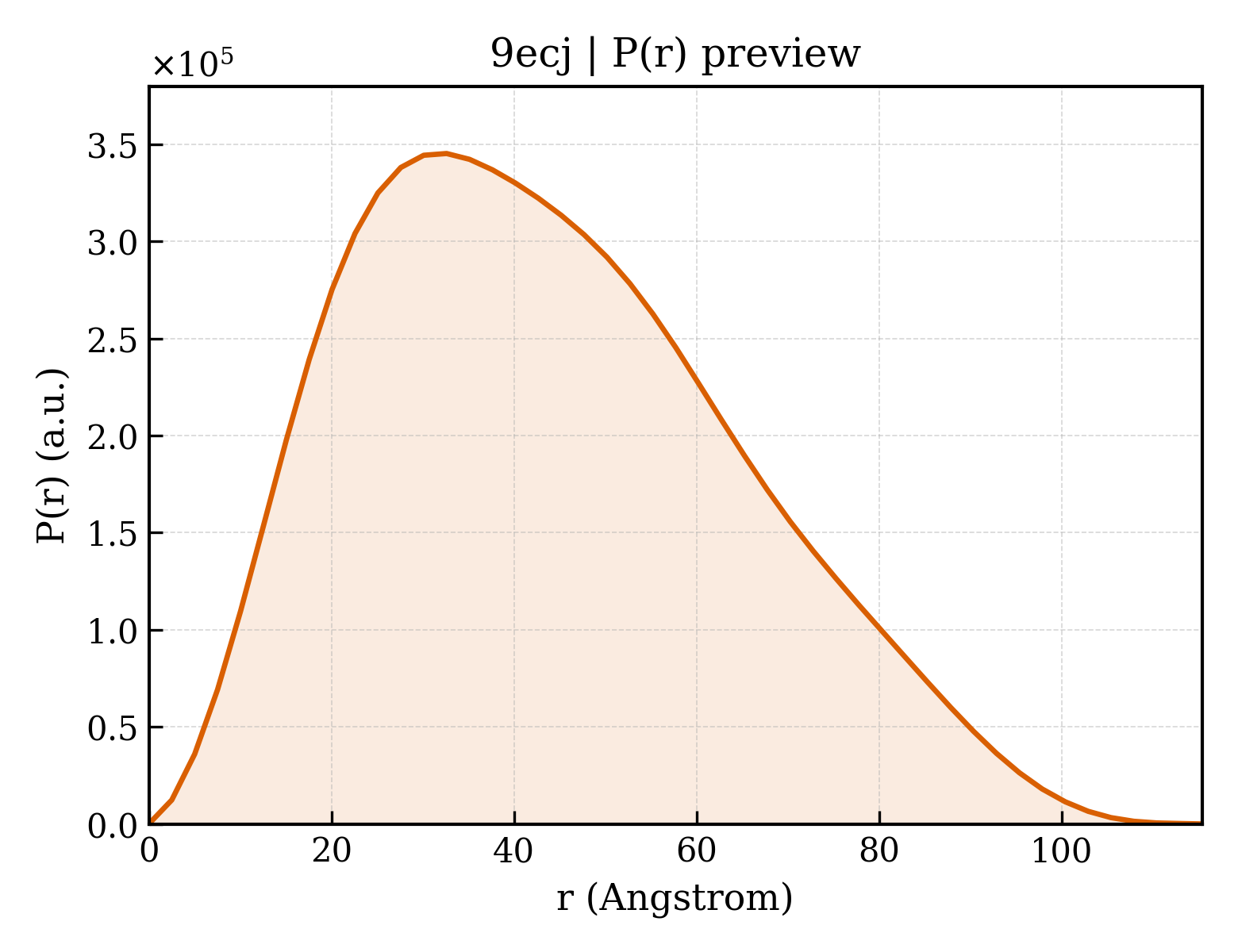

9ecj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.13 Å
Rg (electron density)	34.11 Å
Total Rg	34.35 Å
Atom count	6323
Residues	790
Excluded volume	113250 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ecj__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	P2Y purinoceptor 8
Molecular weight formula_weight	43194.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	6323

FADYKDDDDMQVPNSTGPDNATLQMLRNPAIAVALPVVYSLVAAVSIPGNLFSLWVLCRRMGPRSPSVIFMINLSVTDLMLASVLPFQIYYHCNRHHWVFGVLLCNVVTVAFYANMYSSILTMTCISVERFLGVLYPLSSKRWRRRRYAVAACAGTWLLLLTALSPLARTDLTYPVHALGIITCFDVLKWTMLPSVAMWAVFLFTIFILLFLIPFVITVACYTATILKLLRTEEAHGREQRRRAVGLAAVVLLAFVTCFAPNNFVLLAHIVSRLFYGKSYYHVYKLTLCLSCLNNCLDPFVYYFASREFQLRLREYLGCRRVPRDTLDTRRESLFSARTTSVRSEAGAHPEGMEGATRPGLQRQESVFGSSGLEVLFQGPGGSG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Guanine nucleotide-binding protein subunit alpha-13
Molecular weight formula_weight	27776.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGSTVSAEDKAAAERSKEIDKCLSREKTYVKRLVKILLLGADNSGKSTFLKQMRIIHGGSGGSGGTKGIHEYDFEIKNVPFKMVDVGGQRSERKRWFECFDSVTSILFLVDSSDFDQVLMEDRLTNRLTESLNDFETIVNNRVFSNVSIILFLNKTDLLEEKVQIVSIKDYFLEFEGDPHCLRDVQKFLVECFRNKRRDQQQKPLYHHFTTAINTENARLIFRDVKDTILHDNLKQLMLQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	40786.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MHHHHHHLEVLFQGPEDQVDPRLIDGKGSSGSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 non-polymer

Description description	L-gamma-glutamyl-S-[(2Z,6E)-3,7,15-trimethyl-11-methylidenehexadeca-2,6,14-trien-1-yl]-L-cysteinylglycine
Molecular weight formula_weight	579.8 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Resolution resolution	2.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	90243

Human P2RY8 bound to S-geranylgeranyl-L-glutathione in complex with miniG13
