8jpc

cryo-EM structure of NTSR1-GRK2-Galpha(q) complexes 2

Method: ELECTRON MICROSCOPY D_max: 154.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Neurotensin receptor type 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain R； UniProt 1–418	Not recorded	NTS(8-13) × 1 Beta-adrenergic receptor kinase 1 × 1 （P21146） Guanine nucleotide-binding protein G(q) subunit alpha × 1 （P50148） SRW 2-[{2-(1-fluorocyclopropyl)-4-[4-(2-methoxyphenyl)piperidin-1-yl]quinazolin-6-yl}(methyl)amino]ethan-1-ol × 1 STU STAUROSPORINE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.07 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8JPC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
20ZC Cryo-EM structure of human Neurotensin Receptor 1 (hNTSR1)-Gi1 (delipidated) complex in nucleotide-free C state Deposited 2025-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.60 Å
20ZD Cryo-EM structure of human Neurotensin Receptor 1 (hNTSR1)-Gi1 (delipidated) complex in nucleotide-free NC state Deposited 2025-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.80 Å
20ZG Cryo-EM structure of the human neurotensin receptor 1 (hNTSR1)-Gi1 complex in the GTP-bound, AHD-open C state 1, plunge-frozen 0-5 seconds after GTP addition Deposited 2025-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.40 Å
20ZH Cryo-EM structure of the human neurotensin receptor 1 (hNTSR1)-Gi1 complex in the GTP-bound, AHD-open C state 2, plunge-frozen 0-5 seconds after GTP addition Deposited 2025-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.40 Å
20ZI Cryo-EM structure of the human neurotensin receptor 1 (hNTSR1)-Gi1 complex in the GTP-bound, AHD-open NC state 1, plunge-frozen 0-5 seconds after GTP addition Deposited 2025-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.70 Å
20ZJ Cryo-EM structure of the human neurotensin receptor 1 (hNTSR1)-Gi1 complex in the GTP-bound, AHD-open NC state 2, plunge-frozen 0-5 seconds after GTP addition Deposited 2025-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.90 Å
20ZK Cryo-EM structure of the human neurotensin receptor 1 (hNTSR1)-Gi1 complex in the GTP-bound, AHD-open NC state 3, plunge-frozen 0-5 seconds after GTP addition Deposited 2025-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.70 Å
20ZL Cryo-EM structure of the human neurotensin receptor 1 (hNTSR1)-Gi1 complex in the GTP-bound, AHD-open NC state 4, plunge-frozen 0-5 seconds after GTP addition Deposited 2025-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.10 Å
2LYW Intermolecular interactions between neurotensin and the third extracellular loop of human neurotensin 1 receptor Deposited 2012-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 321–344（24 aa） Fragment：Extracellular domain residues 321-344	Mutation：C327S	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions 308 K；Pressure ambient NMR sample composition 0.7 mM neurotensin, 1.4 mM hNTS1(321-344), trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided
6OS9 human Neurotensin Receptor 1 (hNTSR1) - Gi1 Protein Complex in canonical conformation (C state) Deposited 2019-05-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Mutation：A85L	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
6OSA human Neurotensin Receptor 1 (hNTSR1) - Gi1 Protein Complex in non-canonical conformation (NC state) Deposited 2019-05-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Mutation：A85L	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
6PWC A complex structure of arrestin-2 bound to neurotensin receptor 1 Deposited 2019-07-22	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 49–418（370 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.90 Å
6UP7 neurotensin receptor and arrestin2 complex Deposited 2019-10-16	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain R 50–383（334 aa）	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
7UL2 CryoEM Structure of Inactive NTSR1 Bound to SR48692 and Nb6 Deposited 2022-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain R 20–255（236 aa） Chain R 309–418（110 aa）	Not recorded	Q6Q 2-[[1-(7-chloranylquinolin-4-yl)-5-(2,6-dimethoxyphenyl)pyrazol-3-yl]carbonylamino]adamantane-2-carboxylic acid × 1 NA SODIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.40 Å
8JPB cryo-EM structure of NTSR1-GRK2-Galpha(q) complexes 1 Deposited 2023-06-11	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain R 1–418（418 aa）	Not recorded	STU STAUROSPORINE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1 SRW 2-[{2-(1-fluorocyclopropyl)-4-[4-(2-methoxyphenyl)piperidin-1-yl]quinazolin-6-yl}(methyl)amino]ethan-1-ol × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.07 Å
8JPF Focused refiment structure of NTSR1 in NTSR1-GRK2-Galpha(q) complexes Deposited 2023-06-11	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain R 1–418（418 aa）	Not recorded	SRW 2-[{2-(1-fluorocyclopropyl)-4-[4-(2-methoxyphenyl)piperidin-1-yl]quinazolin-6-yl}(methyl)amino]ethan-1-ol × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.02 Å
8ZYT Cryo-EM structure of neurotensin receptor 1 in complex with beta-arrestin1 and SBI-553 (complex 3) Deposited 2024-06-18	Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–418（418 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1 SRW 2-[{2-(1-fluorocyclopropyl)-4-[4-(2-methoxyphenyl)piperidin-1-yl]quinazolin-6-yl}(methyl)amino]ethan-1-ol × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.65 Å
8ZYU Cryo-EM structure of neurotensin receptor 1 in complex with beta-arrestin1 and SBI-553 (complex 1) Deposited 2024-06-18	Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–418（418 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	SRW 2-[{2-(1-fluorocyclopropyl)-4-[4-(2-methoxyphenyl)piperidin-1-yl]quinazolin-6-yl}(methyl)amino]ethan-1-ol × 1 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.65 Å
8ZYY Cryo-EM structure of neurotensin receptor 1 in complex with beta-arrestin1 and SBI-553 (complex 2) Deposited 2024-06-18	Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–418（418 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1 SRW 2-[{2-(1-fluorocyclopropyl)-4-[4-(2-methoxyphenyl)piperidin-1-yl]quinazolin-6-yl}(methyl)amino]ethan-1-ol × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.83 Å
9M0D Cryo-EM structure of neurotensin receptor 1 in complex with beta-arrestin 1 Deposited 2025-02-24	Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain R 1–418（418 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.41 Å
9P7Z NTSR1-Gi-NTS(8-13) Complex in the Canonical, AHD Open State (C-Open-Apo) Deposited 2025-06-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.10 Å
9P80 NTSR1-Gi-NTS(8-13) Complex in the Non-Canonical, AHD Open State (NC-Open-Apo) Deposited 2025-06-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.30 Å
9P81 NTSR1-Gi-NTS(8-13), GTP-bound Complex in the Canonical, AHD Open State (C-Open-GTP) Deposited 2025-06-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Not recorded	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
9P82 NTSR1-Gi-NTS(8-13) GTP-Bound Complex in the Canonical, AHD Closed State (C-Closed-GTP) Deposited 2025-06-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Not recorded	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.40 Å
9P83 NTSR1-Gi-NTS(8-13) GTP-Bound Complex in the Non-Canonical, AHD Open State (NC-Open-GTP) Deposited 2025-06-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9P84 NTSR1-Gi-NTS(8-13) GTP-Bound Complex in the Non-Canonical, AHD Closed State (NC-Closed-GTP) Deposited 2025-06-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
9P85 NTSR1-Gi-NTS(8-13) GTP-Bound Complex in the Canonical, AHD Closed State, 3DVA Sorted (C-Closed*-GTP) Deposited 2025-06-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Not recorded	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9P86 NTSR1-G11-NTS(8-13) Complex in the Canonical, AHD Open State (C-Open-Apo) Deposited 2025-06-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9P87 NTSR1-G11-NTS(8-13) Complex in the Canonical, AHD Partially Closed State (C-P-Closed-Apo) Deposited 2025-06-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
9P88 NTSR1-G11-NTS(8-13) Complex in the Non-Canonical, AHD Open State (NC-Open-Apo) Deposited 2025-06-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9P89 NTSR1-G11-NTS(8-13) GTP-Bound Complex in the Canonical, AHD Closed State 3DVA Separated 1 (C-Closed-GTP) Deposited 2025-06-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
9VAT Cryo-EM structure of human Neurotensin Receptor 1 (hNTSR1)-Go complex in nucleotide-free C state Deposited 2025-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Mutation：A85L	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.37 Å
9VAU Cryo-EM structure of human Neurotensin Receptor 1 (hNTSR1)-Go complex in nucleotide-free NC state 1 Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.95 Å
9VAV Cryo-EM structure of human Neurotensin Receptor 1 (hNTSR1)-Go complex in nucleotide-free NC state 2 Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.99 Å
9VAW Cryo-EM structure of human Neurotensin Receptor 1 (hNTSR1)-Gq (delipidated) complex in nucleotide-free C state Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.24 Å
9VAX Cryo-EM structure of human Neurotensin Receptor 1 (hNTSR1)-Gi1 complex in nucleotide-free C state 1 Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.46 Å
9VAY Cryo-EM structure of human Neurotensin Receptor 1 (hNTSR1)-Gi1 complex in nucleotide-free C state 2 Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.65 Å
9VAZ Cryo-EM structure of human Neurotensin Receptor 1 (hNTSR1)-Gi1 complex in nucleotide-free NC state 1 Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.38 Å
9VB0 Cryo-EM structure of human Neurotensin Receptor 1 (hNTSR1)-Gi1 complex in nucleotide-free NC state 2 Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.19 Å
9VB1 Cryo-EM structure of human Neurotensin Receptor 1 (hNTSR1)-Gi1 complex in nucleotide-free NC state 3 Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.31 Å
9VB2 Cryo-EM structure of the human neurotensin receptor 1 (hNTSR1)-Gi1 complex in the GDP-bound, AHD-closed C state 1, plunge-frozen 8 seconds after GDP addition Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.08 Å
9VB3 Cryo-EM structure of the human neurotensin receptor 1 (hNTSR1)-Gi1 complex in the GDP-bound, AHD-closed C state 2, plunge-frozen 8 seconds after GDP addition Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.02 Å
9VB4 Cryo-EM structure of the human neurotensin receptor 1 (hNTSR1)-Gi1 complex in the GDP-bound, AHD-closed C state 1, plunge-frozen 15 seconds after GDP addition Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.85 Å
9VB5 Cryo-EM structure of the human neurotensin receptor 1 (hNTSR1)-Gi1 complex in the GDP-bound, AHD-closed C state 2, plunge-frozen 15 seconds after GDP addition Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.14 Å
9VB6 Cryo-EM structure of the human neurotensin receptor 1 (hNTSR1)-Gi1 complex in the GTP-bound, AHD-open C state, plunge-frozen 8 seconds after GTP addition Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.38 Å
9VB7 Cryo-EM structure of the human neurotensin receptor 1 (hNTSR1)-Gi1 complex in the GTP-bound, AHD-closed C state 1, plunge-frozen 8 seconds after GTP addition Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.01 Å
9VBA Cryo-EM structure of the human neurotensin receptor 1 (hNTSR1)-Gi1 complex in the GTP-bound, AHD-closed C state 2, plunge-frozen 8 seconds after GTP addition Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 20–418（399 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.38 Å

47 other PDB entries and 47 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NTR1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain R； PDBConstruct 1–418； UniProt 1–418

Beta-adrenergic receptor kinase 1

Bos taurus

UniProt P21146

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain G； UniProt 2–689	Mutation：A292P,R295I,S455D	NTS(8-13) × 1 Neurotensin receptor type 1 × 1 （P30989） Guanine nucleotide-binding protein G(q) subunit alpha × 1 （P50148） SRW 2-[{2-(1-fluorocyclopropyl)-4-[4-(2-methoxyphenyl)piperidin-1-yl]quinazolin-6-yl}(methyl)amino]ethan-1-ol × 1 STU STAUROSPORINE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.07 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8JPC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1OMW Crystal Structure of the complex between G Protein-Coupled Receptor Kinase 2 and Heterotrimeric G Protein beta 1 and gamma 2 subunits Deposited 2003-02-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–689（689 aa）	Mutation：S670A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.75；277 K；PEG 3350, Sodium Chloride, CHAPS, ATP, Magnesium Chloride, Mastoparan , MES pH 5.75, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.50 Å R-free 0.252
1YM7 G Protein-Coupled Receptor Kinase 2 (GRK2) Deposited 2005-01-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–689（689 aa）	Mutation：S670A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；278 K；HEPES, phosphoserine, sodium Chloride, Glycerol, PEG 8000, Urea, Dithiothreitol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 4.50 Å R-free 0.279
1YM7 G Protein-Coupled Receptor Kinase 2 (GRK2) Deposited 2005-01-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–689（689 aa）	Mutation：S670A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；278 K；HEPES, phosphoserine, sodium Chloride, Glycerol, PEG 8000, Urea, Dithiothreitol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 4.50 Å R-free 0.279
1YM7 G Protein-Coupled Receptor Kinase 2 (GRK2) Deposited 2005-01-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–689（689 aa）	Mutation：S670A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；278 K；HEPES, phosphoserine, sodium Chloride, Glycerol, PEG 8000, Urea, Dithiothreitol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 4.50 Å R-free 0.279
1YM7 G Protein-Coupled Receptor Kinase 2 (GRK2) Deposited 2005-01-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–689（689 aa）	Mutation：S670A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；278 K；HEPES, phosphoserine, sodium Chloride, Glycerol, PEG 8000, Urea, Dithiothreitol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 4.50 Å R-free 0.279
2BCJ Crystal Structure of G Protein-Coupled Receptor Kinase 2 in Complex with Galpha-q and Gbetagamma Subunits Deposited 2005-10-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–689（689 aa） Fragment：residues 28-689	Mutation：S670A	MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；9% PEG8000, 1M NaCl, 0.1M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.06 Å R-free 0.292
3PSC Bovine GRK2 in complex with Gbetagamma subunits Deposited 2010-12-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–689（689 aa）	Mutation：S670A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；9% PEG3350, 200 mM NaCl, 100 mM MES pH 6.5, 1 mM ATP, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.67 Å R-free 0.257
3PVU Bovine GRK2 in complex with Gbetagamma subunits and a selective kinase inhibitor (CMPD101) Deposited 2010-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–689（689 aa）	Mutation：S670A	QRW 3-({[4-methyl-5-(pyridin-4-yl)-4H-1,2,4-triazol-3-yl]methyl}amino)-N-[2-(trifluoromethyl)benzyl]benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.25；277 K；7% PEG3350, 200 mM NaCl, 100 mM MES pH 5.25, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.48 Å R-free 0.274
3PVW Bovine GRK2 in complex with Gbetagamma subunits and a selective kinase inhibitor (CMPD103A) Deposited 2010-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–689（689 aa）	Mutation：S670A	QRX N-(2,6-difluorobenzyl)-3-({[4-propyl-5-(pyrimidin-4-yl)-4H-1,2,4-triazol-3-yl]methyl}amino)benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.25；277 K；7% PEG3350, 250 mM NaCl, 100 mM MES pH 6.25, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.49 Å R-free 0.285
3UZS Structure of the C13.28 RNA Aptamer Bound to the G Protein-Coupled Receptor Kinase 2-Heterotrimeric G Protein Beta 1 and Gamma 2 Subunit Complex Deposited 2011-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 3 PDB declaration: tetrameric	Chain A 1–689（689 aa）	Mutation：S670A	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；100 mM Tris pH 8.5, 200 mM NaCl and 3% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 4.52 Å R-free 0.268
3UZT Structure of the C13.18 RNA Aptamer in Complex with G Protein-Coupled Receptor Kinase 2 Deposited 2011-12-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–689（689 aa）	Mutation：S670A	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；277 K；100 mM MES pH 5.9, 100 mM NaCl and 5% PEG 3350 supplemented with 0.1 M glycine, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.51 Å R-free 0.317
5HE0 Bovine GRK2 in complex with Gbetagamma subunits and CCG215022 Deposited 2016-01-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 30–670（641 aa） Fragment：UNP residues 30-670	Mutation：S670A	453 (4S)-4-{4-fluoro-3-[(pyridin-2-ylmethyl)carbamoyl]phenyl}-N-(1H-indazol-5-yl)-6-methyl-2-oxo-1,2,3,4-tetrahydropyrimidine-5-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES, 0.8-1.2 M sodium chloride, 8-16% PEG3350	Resolution 2.56 Å R-free 0.264
5HE2 Bovine GRK2 in complex with Gbetagamma subunits and CCG224406 Deposited 2016-01-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 30–670（641 aa） Fragment：UNP residues 30-670	Mutation：S670A	F0S (4~{S})-4-[3-[(2,6-dimethoxyphenyl)methylcarbamoyl]-4-fluoranyl-phenyl]-~{N}-(1~{H}-indazol-5-yl)-6-methyl-2-oxidanylidene-3,4-dihydro-1~{H}-pyrimidine-5-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES, 0.8-1.2 M sodium chloride, 8-16% PEG3350	Resolution 2.79 Å R-free 0.277
5HE3 Bovine GRK2 in complex with Gbetagamma subunits and CCG224411 Deposited 2016-01-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 30–670（641 aa） Fragment：UNP residues 30-670	Not recorded	MG MAGNESIUM ION × 1 FF1 (4~{S})-4-[3-[2-(2,6-dimethylphenyl)ethylcarbamoyl]-4-fluoranyl-phenyl]-~{N}-(1~{H}-indazol-5-yl)-6-methyl-2-oxidanylidene-3,4-dihydro-1~{H}-pyrimidine-5-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；50 mM MES, 0.8-1.2 M sodium chloride, 8-16% PEG3350	Resolution 2.74 Å R-free 0.257
5UKM bovine GRK2 in complex with human Gbetagamma subunits and CCG258208 (14as) Deposited 2017-01-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–689（689 aa）	Mutation：S670A	T0E 5-[(3S,4R)-3-{[(2H-1,3-benzodioxol-5-yl)oxy]methyl}piperidin-4-yl]-2-fluoro-N-[(1H-pyrazol-5-yl)methyl]benzamide × 1 MG MAGNESIUM ION × 1 CMT O-METHYLCYSTEINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；100 mM MES, 0.2 M NaCl, 8-10% PEG3350	Resolution 3.03 Å R-free 0.252
8JPB cryo-EM structure of NTSR1-GRK2-Galpha(q) complexes 1 Deposited 2023-06-11	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 2–689（688 aa）	Mutation：A292P,R295I,S455D	STU STAUROSPORINE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1 SRW 2-[{2-(1-fluorocyclopropyl)-4-[4-(2-methoxyphenyl)piperidin-1-yl]quinazolin-6-yl}(methyl)amino]ethan-1-ol × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.07 Å
8JPD Focused refinement structure of GRK2 in NTSR1-GRK2-Galpha(q) complexes Deposited 2023-06-11	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 2–689（688 aa）	Mutation：A292P,R295I,S455D	STU STAUROSPORINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.81 Å

14 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ARBK1_BOVIN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–688； UniProt 2–689

Guanine nucleotide-binding protein G(q) subunit alpha

Homo sapiens

UniProt P50148

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain Q； UniProt 37–359	Not recorded	NTS(8-13) × 1 Neurotensin receptor type 1 × 1 （P30989） Beta-adrenergic receptor kinase 1 × 1 （P21146） SRW 2-[{2-(1-fluorocyclopropyl)-4-[4-(2-methoxyphenyl)piperidin-1-yl]quinazolin-6-yl}(methyl)amino]ethan-1-ol × 1 STU STAUROSPORINE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.07 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8JPC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6VU5 Structure of G-alpha-q bound to its chaperone Ric-8A Deposited 2020-02-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–359（359 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7EZM Cryo-EM structure of an activated Cholecystokinin A receptor (CCKAR)-Gq complex Deposited 2021-06-01	Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 37–359（323 aa）	Mutation：G208A,A331S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7F6G Cryo-EM structure of human angiotensin receptor AT1R in complex Gq proteins and Sar1-AngII Deposited 2021-06-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 2–359（358 aa）	Mutation：R183Q, Q209L	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CLR CHOLESTEROL × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7F6H Cryo-EM structure of human bradykinin receptor BK2R in complex Gq proteins and bradykinin Deposited 2021-06-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 2–359（358 aa）	Mutation：R183Q, Q209L	CLR CHOLESTEROL × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7F6I Cryo-EM structure of human bradykinin receptor BK2R in complex Gq proteins and kallidin Deposited 2021-06-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 2–359（358 aa）	Mutation：R183Q, Q209L	CLR CHOLESTEROL × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
7F8W Cryo-EM structure of the cholecystokinin receptor CCKBR in complex with gastrin-17 and Gq Deposited 2021-07-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 29–359（331 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
7W3Z Cryo-EM Structure of Human Gastrin Releasing Peptide Receptor in complex with the agonist Gastrin Releasing Peptide and Gq heterotrimers Deposited 2021-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 36–359（324 aa）	Mutation：R183Q, Q209L	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7W40 Cryo-EM Structure of Human Gastrin Releasing Peptide Receptor in complex with the agonist Bombesin (6-14) [D-Phe6, beta-Ala11, Phe13, Nle14] and Gq heterotrimers Deposited 2021-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 36–359（324 aa）	Mutation：R183Q, Q209L	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7XOW Structural insights into human brain gut peptide cholecystokinin receptors Deposited 2022-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 36–359（324 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8G59 Cryo-EM structure of the TUG891 bound GPR120-Giq complex Deposited 2023-02-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 332–359（28 aa）	Not recorded	YN9 3-{4-[(4-fluoro-4'-methyl[1,1'-biphenyl]-2-yl)methoxy]phenyl}propanoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.64 Å
8IA7 Structural insights into human brain gut peptide cholecystokinin receptors Deposited 2023-02-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 36–359（324 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8IYS TUG891-bound FFAR4 in complex with Gq Deposited 2023-04-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 36–359（324 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 YN9 3-{4-[(4-fluoro-4'-methyl[1,1'-biphenyl]-2-yl)methoxy]phenyl}propanoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.95 Å
8J9N Gq bound FZD1 in ligand-free state Deposited 2023-05-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 28–37（10 aa） Chain C 345–359（15 aa）	Mutation：G49D,E50N,A249D,S252D,I372A,V375I Mutation：G49D,E50N,A249D,S252D,I372A,V375I	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8JPB cryo-EM structure of NTSR1-GRK2-Galpha(q) complexes 1 Deposited 2023-06-11	Parsed fields agree	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain Q 37–359（323 aa）	Not recorded	STU STAUROSPORINE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1 SRW 2-[{2-(1-fluorocyclopropyl)-4-[4-(2-methoxyphenyl)piperidin-1-yl]quinazolin-6-yl}(methyl)amino]ethan-1-ol × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.07 Å
8JPE Focused refinement structure of Galpha(q) in NTSR1-GRK2-Galpha(q) complexes Deposited 2023-06-11	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain Q 37–359（323 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.91 Å
8SZG Cryo-EM structure of cinacalcet-bound human calcium-sensing receptor CaSR-Gq complex in lipid nanodiscs Deposited 2023-05-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 29–359（331 aa）	Not recorded	YP4 N-[(1R)-1-(naphthalen-1-yl)ethyl]-3-[3-(trifluoromethyl)phenyl]propan-1-amine × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 PCW 1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 SPM SPERMINE × 3 CA CALCIUM ION × 3 TRP TRYPTOPHAN × 2 PO4 PHOSPHATE ION × 2 CLR CHOLESTEROL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8THK Cryo-EM structure of A61603-bound alpha-1A-adrenergic receptor in complex with heterotrimeric Gq-protein Deposited 2023-07-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 349–359（11 aa）	Not recorded	CGZ N-[(5S)-5-(4,5-dihydro-1H-imidazol-2-yl)-2-hydroxy-5,6,7,8-tetrahydronaphthalen-1-yl]methanesulfonamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
8THL Cryo-EM structure of epinephrine-bound alpha-1A-adrenergic receptor in complex with heterotrimeric Gq-protein Deposited 2023-07-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 349–359（11 aa）	Not recorded	ALE L-EPINEPHRINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8UQN PLCb3-Gaq complex on membranes Deposited 2023-10-24	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 7–359（353 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8UQO PLCb3-Gbg-Gaq complex on membranes Deposited 2023-10-24	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 7–359（353 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.37 Å
8XGO a peptide receptor complex structure Deposited 2023-12-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 25–359（335 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.68 Å
8XGS a peptide receptor complex structure Deposited 2023-12-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 25–359（335 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.95 Å
8YYW Cryo-EM structure of OXGR1 bound to alpha-ketoglutarate and Gq proteins Deposited 2024-04-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 335–359（25 aa）	Mutation：G203A, A326S	AKG 2-OXOGLUTARIC ACID × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.16 Å
8YYX Cryo-EM structure of OXGR1 bound to leukotriene E4 and Gq proteins Deposited 2024-04-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 335–359（25 aa）	Mutation：G203A,A326S	CLR CHOLESTEROL × 1 A1D7P (5~{S},6~{R},7~{E},9~{E},11~{Z},14~{Z})-6-[(2~{R})-2-azanyl-3-oxidanyl-3-oxidanylidene-propyl]sulfanyl-5-oxidanyl-icosa-7,9,11,14-tetraenoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.45 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.84 Å
8ZJD Cryo-EM structure of kisspeptin receptor bound to KP-10 Deposited 2024-05-14	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 37–359（323 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.06 Å
8ZJE Cryo-EM structure of kisspeptin receptor bound to TAK-448 Deposited 2024-05-14	Different oligomeric state Different ligand/ion	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 37–359（323 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.07 Å
9D0A CryoEM structure of PAR2 with endogenous tethered ligand. Deposited 2024-08-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 7–197（191 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9K27 PrRP31 bound prolactin-releasing peptide receptor coupled with Gq protein complex Deposited 2024-10-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 25–359（335 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.68 Å
9LL9 DOI-bound Serotonin 2A (5-HT2A) receptor-Gq complex Deposited 2025-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 345–359（15 aa）	Not recorded	A1EK5 (2~{R})-1-(4-iodanyl-2,5-dimethoxy-phenyl)propan-2-amine × 1 CLR CHOLESTEROL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.76 Å
9LLA Ariadne-bound Serotonin 2A (5-HT2A) receptor-Gq complex Deposited 2025-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 345–359（15 aa）	Not recorded	A1EK8 (2~{R})-1-(2,5-dimethoxy-4-methyl-phenyl)butan-2-amine × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.27 Å
9LLB DOI-NBOMe-bound Serotonin 2A (5-HT2A) receptor-Gq complex Deposited 2025-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 345–359（15 aa）	Not recorded	CLR CHOLESTEROL × 1 A1ELA (2~{R})-1-(4-iodanyl-2,5-dimethoxy-phenyl)-~{N}-[(2-methoxyphenyl)methyl]propan-2-amine × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.98 Å
9M1H Cryo-EM structure of PGE2-EP1-Gq complex Deposited 2025-02-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 345–359（15 aa）	Not recorded	P2E (Z)-7-[(1R,2R,3R)-3-hydroxy-2-[(E,3S)-3-hydroxyoct-1-enyl]-5-oxo-cyclopentyl]hept-5-enoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.55 Å
9VAW Cryo-EM structure of human Neurotensin Receptor 1 (hNTSR1)-Gq (delipidated) complex in nucleotide-free C state Deposited 2025-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 7–359（353 aa）	Mutation：C3S	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.24 Å

33 other PDB entries and 33 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GNAQ_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain Q； PDBConstruct 31–353； UniProt 37–359

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8jpc
Deposition date deposition_date	2023-06-11
Structure title title	cryo-EM structure of NTSR1-GRK2-Galpha(q) complexes 2
Keywords keywords	Biased signaling, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	46.55 Å
Radius of gyration Rg (electron density) rg_electron	46.65 Å
Forward intensity I(0) i0	269949000.00
Molecular weight molecular_weight	135980.0 kDa
Excluded volume excluded_volume	170610 Å³
Envelope volume envelope_volume	250770 Å³
Hydration-shell volume shell_volume	48456 Å³
Envelope diameter envelope_diameter	163.7 Å
Shell Rg shell_rg	45.49 Å
Envelope Rg envelope_rg	46.58 Å
Shape Rg shape_rg	46.71 Å
Total Rg total_rg	46.38 Å
Total atoms total_atoms	9589
Residues n_residues	1278
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

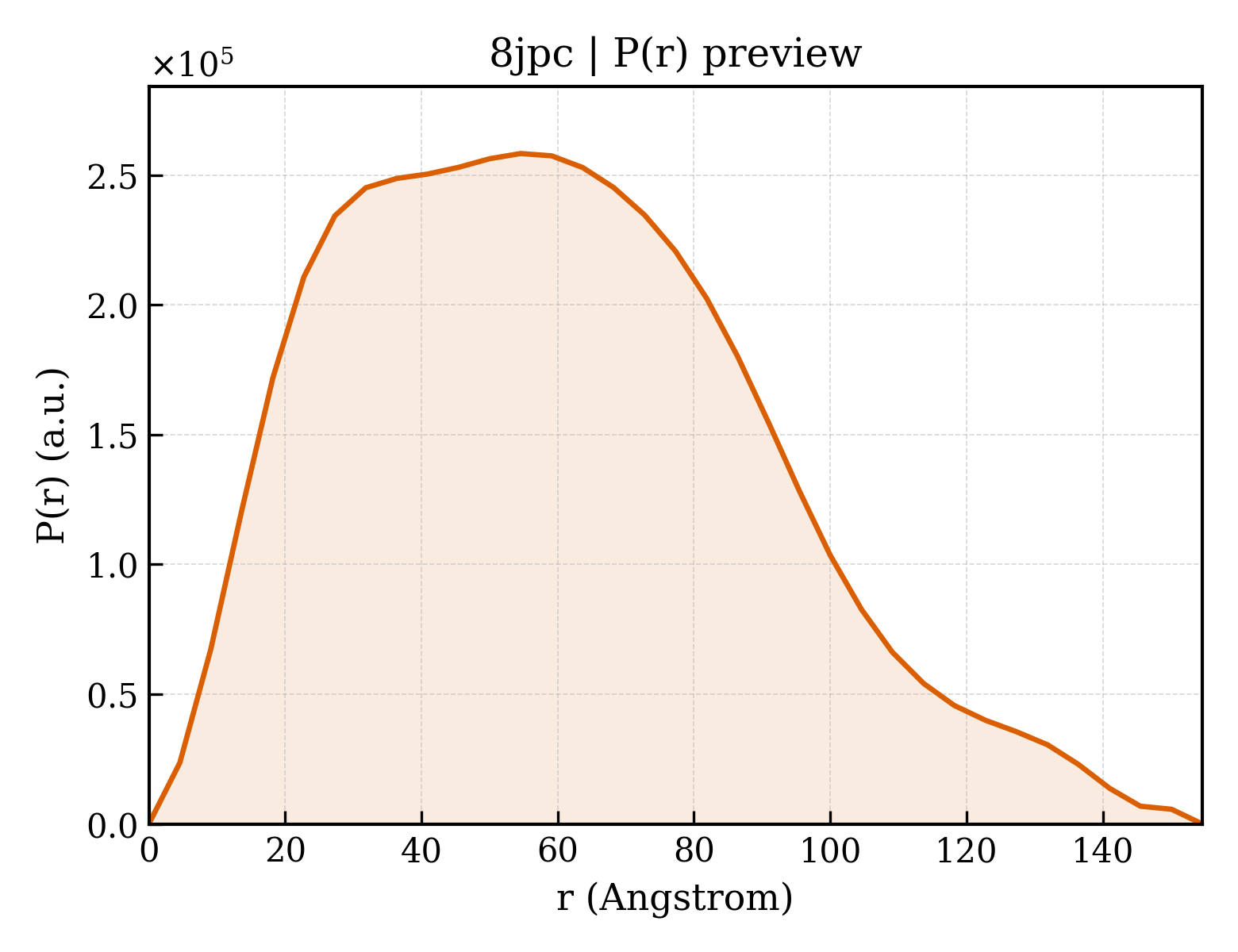

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	154.6 Å
Rg (real space) rg_real	46.95 Å
Rg uncertainty (real space) rg_real_error	1.90 Å
I(0) (real space) i0_real	2.6990e+08
I(0) uncertainty (real space) i0_real_error	5.4760e+06
Rg (reciprocal space) rg_reciprocal	46.56 Å
I(0) (reciprocal space) i0_reciprocal	269800000.0000
Solution quality estimate total_estimate	0.8181
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	54.6 Å
Skewness Skewness skewness	0.437
Kurtosis Kurtosis kurtosis	-0.332
Angular range angular_range	— – 0.1700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15450000.0000
Real-space data points n_real_points	35
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.867; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.906; Smooth: 0.124

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	NTS(8-13)
Molecular weight formula_weight	819.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	9589

RRPYIL

Entity 2 Entity 2 polymer

Description description	Neurotensin receptor type 1
Molecular weight formula_weight	46307.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

MRLNSSAPGTPGTPAADPFQRAQAGLEEALLAPGFGNASGNASERVLAAPSSELDVNTDIYSKVLVTAVYLALFVVGTVGNTVTAFTLARKKSLQSLQSTVHYHLGSLALSDLLTLLLAMPVELYNFIWVHHPWAFGDAGCRGYYFLRDACTYATALNVASLSVERYLAICHPFKAKTLMSRSRTKKFISAIWLASALLAVPMLFTMGEQNRSADGQHAGGLVCTPTIHTATVKVVIQVNTFMSFIFPMVVISVLNTIIANKLTVMVRQAAEQGQVCTVGGEHSTFSMAIEPGRVQALRHGVRVLRAVVIAFVVCWLPYHVRRLMFCYISDEQWTPFLYDFYHYFYMVTNALFYVSSTINPILYNLVSANFRHIFLATLACLCPVWRRRRKRPAFSRKADSVSSNHTLSSNATRETLY

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Beta-adrenergic receptor kinase 1
Molecular weight formula_weight	79644.7 kDa
EC 编号 ec_number	2.7.11.15
Mutation mutation	A292P,R295I,S455D
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

ADLEAVLADVSYLMAMEKSKATPAARASKKILLPEPSIRSVMQKYLEDRGEVTFEKIFSQKLGYLLFRDFCLKHLEEAKPLVEFYEEIKKYEKLETEEERLVCSREIFDTYIMKELLACSHPFSKSAIEHVQGHLVKKQVPPDLFQPYIEEICQNLRGDVFQKFIESDKFTRFCQWKNVELNIHLTMNDFSVHRIIGRGGFGEVYGCRKADTGKMYAMKCLDKKRIKMKQGETLALNERIMLSLVSTGDCPFIVCMSYAFHTPDKLSFILDLMNGGDLHYHLSQHGVFSEPDMIFYAAEIILGLEHMHNRFVVYRDLKPANILLDEHGHVRISDLGLACDFSKKKPHASVGTHGYMAPEVLQKGVAYDSSADWFSLGCMLFKLLRGHSPFRQHKTKDKHEIDRMTLTMAVELPDSFSPELRSLLEGLLQRDVNRRLGCLGRGAQEVKESPFFRDLDWQMVFLQKYPPPLIPPRGEVNAADAFDIGSFDEEDTKGIKLLDSDQELYRNFPLTISERWQQEVAETVFDTINAETDRLEARKKTKNKQLGHEEDYALGKDCIMHGYMSKMGNPFLTQWQRRYFYLFPNRLEWRGEGEAPQSLLTMEEIQSVEETQIKERKCLLLKIRGGKQFVLQCDSDPELVQWKKELRDAYREAQQLVQRVPKMKNKPRSPVVELSKVPLIQRGSANGL

来源 Source

来源生物 organism	Bos taurus
通用名 common_name	cattle
NCBI Class编号 ncbi_taxonomy_id	9913
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	Guanine nucleotide-binding protein G(q) subunit alpha
Molecular weight formula_weight	41282.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q

MGCTLSAEDKAAVERSKMIDRNLREDGERSRRELKLLLLGTGESGKSTFIKQMRIIHGSGYSDEDKRGFTKLVYQNIFTAMQAMIRAMDTLKIPYKYEHNKAHAQLVREVDVEKVSAFENPYVDAIKSLWNDPGIQECYDRRREYQLSDSTKYYLNDLDRVADPAYLPTQQDVLRVRVPTTGIIEYPFDLQSVIFRMVDVGGQRSERRKWIHCFENVTSIMFLVALSEYDQVLVESDNENRMEESKALFRTIITYPWFQNSSVILFLNKKDLLEEKIMYSHLVDYFPEYDGPQRDAQAAREFILKMFVDLNPDSDKIIYSHFTCATDTENIRFVFAAVKDTILQLNLKEYNLV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 5 Entity 5 non-polymer

Description description	2-[{2-(1-fluorocyclopropyl)-4-[4-(2-methoxyphenyl)piperidin-1-yl]quinazolin-6-yl}(methyl)amino]ethan-1-ol
Molecular weight formula_weight	450.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	STAUROSPORINE
Molecular weight formula_weight	466.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	TETRAFLUOROALUMINATE ION
Molecular weight formula_weight	103.0 kDa
Source method src_method	syn
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	8jpcG01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	167 — Regulator of G-protein Signalling 4; domain 2
Homologous superfamily homologous superfamily	10 — Regulator of G-protein Signalling 4, domain 2

Domain ID domain_id	8jpcG02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	8jpcG03
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	29 — PH-domain like
Homologous superfamily homologous superfamily	30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.07 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	233943

fit	/app/data/saxs_computation/jp/8jpc/8jpc.fit
pddf	/app/data/pr_computation/jp/8jpc/8jpc.pr.out
profile	/app/data/saxs_computation/jp/8jpc/8jpc.dat

cryo-EM structure of NTSR1-GRK2-Galpha(q) complexes 2

1. Protein Identity and Related Structures Protein Identity & Related Structures

Neurotensin receptor type 1

State in the Current Structure

Other States of the Same Protein in the Database

Beta-adrenergic receptor kinase 1

State in the Current Structure

Other States of the Same Protein in the Database

Guanine nucleotide-binding protein G(q) subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 non-polymer

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
